| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T09_9000005236_36709cztM0_level2.evt | modeM0/AS1C07_001T09_9000005236_36709cztM0_level2_quad_clean.evt |
| Size (bytes) | 405,046,080 | 103,688,640 |
| Size | 386.3 MB | 98.9 MB |
| Events in quadrant A | 2,663,211 | 704,050 |
| Events in quadrant B | 2,894,162 | 720,258 |
| Events in quadrant C | 3,208,739 | 690,835 |
| Events in quadrant D | 3,144,165 | 657,802 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11223 | 3 |
| B | 0 | 11909 | 2 |
| C | 0 | 12716 | 2 |
| D | 0 | 12939 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5247 | 21 | 0.400229% |
| B | 5247 | 79 | 1.505622% |
| C | 5247 | 166 | 3.163713% |
| D | 5247 | 141 | 2.687250% |

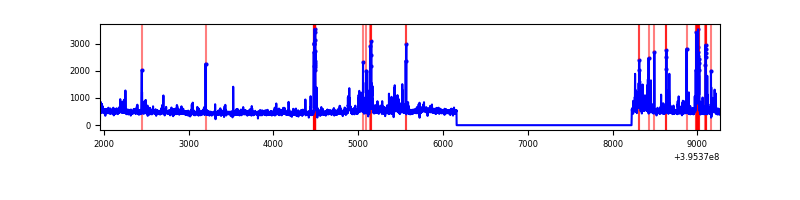

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7311 | 5248 | 8 | 8 | 0.11% | 0.15% |  |
| B | 7311 | 5248 | 52 | 52 | 0.71% | 0.99% |  |
| C | 7311 | 5248 | 135 | 135 | 1.85% | 2.57% |  |
| D | 7311 | 5248 | 117 | 117 | 1.60% | 2.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 212651 | 1751.89 | 607 | 596 | 121.0 |
| A | 9 | 143 | 49971 | 407.91 | 607 | 596 | 121.0 |
| A | 7 | 3 | 34627 | 281.15 | 607 | 596 | 121.0 |
| B | 5 | 255 | 247227 | 2186.92 | 606 | 593 | 112.8 |
| B | 5 | 172 | 99954 | 881.04 | 606 | 593 | 112.8 |
| B | 0 | 221 | 55072 | 483.07 | 606 | 593 | 112.8 |
| C | 0 | 10 | 368340 | 2786.76 | 576 | 579 | 132.0 |
| C | 14 | 254 | 347647 | 2629.96 | 576 | 579 | 132.0 |
| C | 15 | 214 | 235674 | 1781.47 | 576 | 579 | 132.0 |
| D | 13 | 249 | 334588 | 2408.3 | 575 | 559 | 138.7 |
| D | 13 | 171 | 199708 | 1435.83 | 575 | 559 | 138.7 |
| D | 2 | 153 | 118020 | 846.88 | 575 | 559 | 138.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

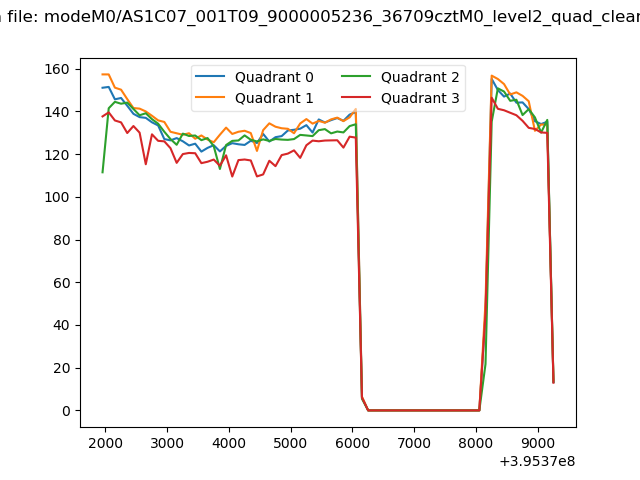

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

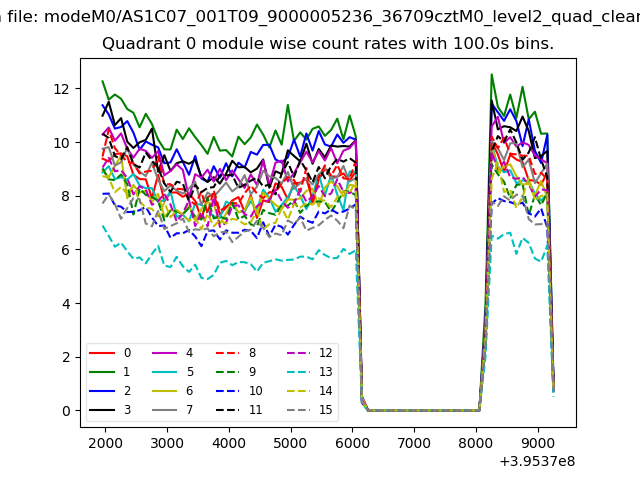

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

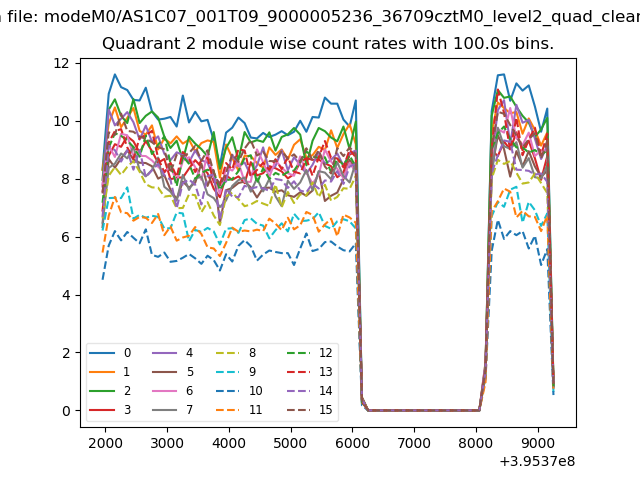

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

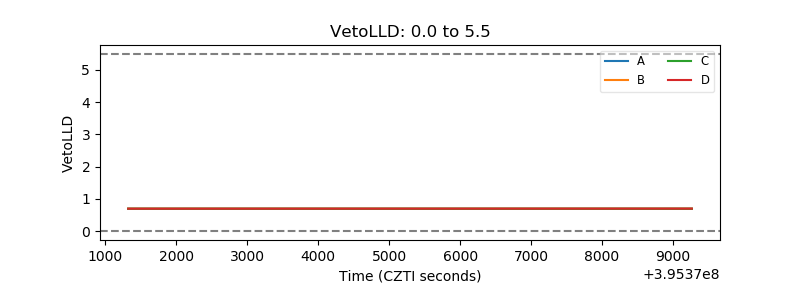

| Veto LLD |  |
| Alpha Counter |  |

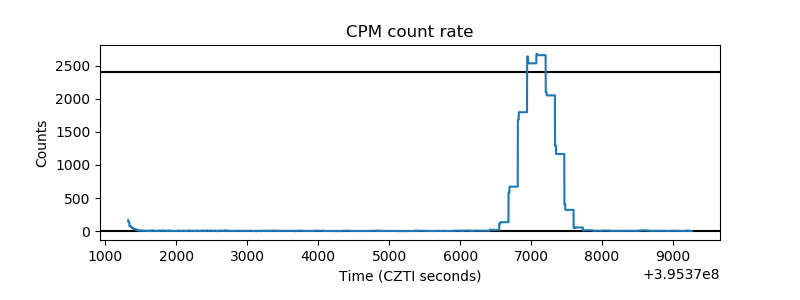

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

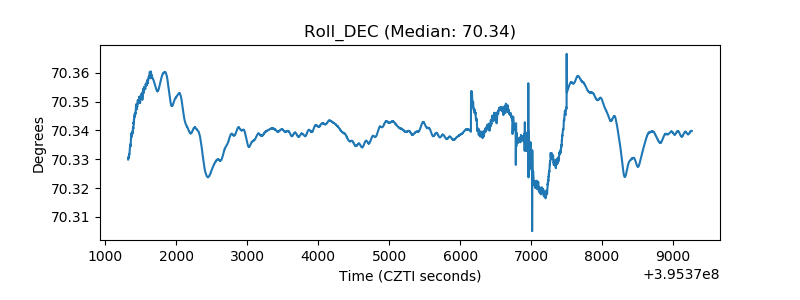

| _Roll_DEC |  |
| _Roll_RA |  |

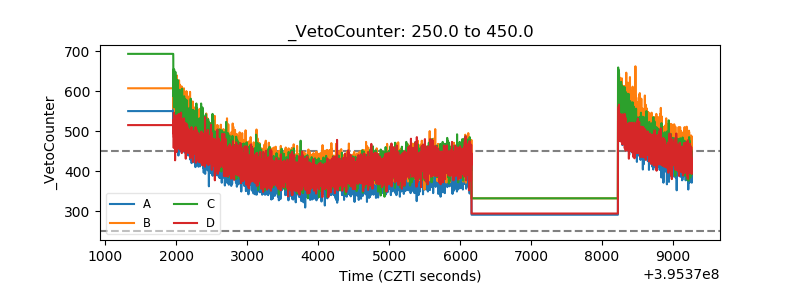

| Veto Counter |  |
