| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36713cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36713cztM0_level2_quad_clean.evt |
| Size (bytes) | 446,924,160 | 58,501,440 |
| Size | 426.2 MB | 55.8 MB |
| Events in quadrant A | 2,719,645 | 352,307 |
| Events in quadrant B | 2,968,042 | 359,526 |
| Events in quadrant C | 3,164,677 | 344,423 |
| Events in quadrant D | 4,310,059 | 330,797 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11427 | 3 |
| B | 0 | 12302 | 2 |
| C | 0 | 12653 | 2 |
| D | 0 | 16613 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5487 | 9 | 0.164024% |
| B | 5487 | 27 | 0.492072% |
| C | 5487 | 143 | 2.606160% |
| D | 5487 | 316 | 5.759067% |

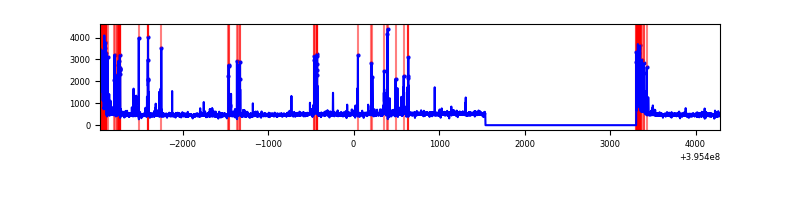

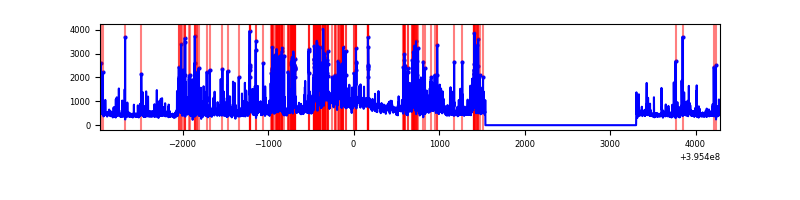

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

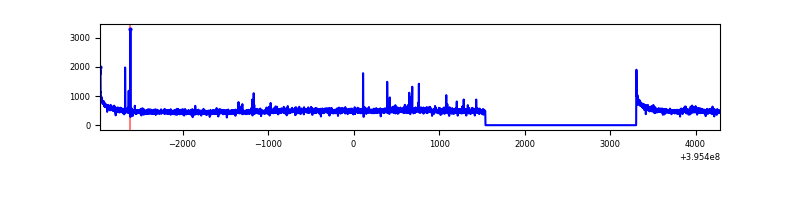

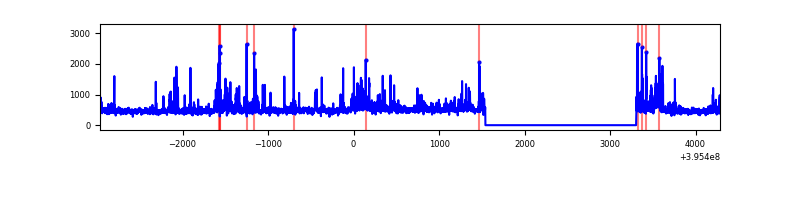

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7251 | 5488 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7251 | 5488 | 12 | 12 | 0.17% | 0.22% |  |
| C | 7251 | 5488 | 119 | 119 | 1.64% | 2.17% |  |
| D | 7251 | 5488 | 265 | 265 | 3.65% | 4.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 227571 | 1793.27 | 627 | 614 | 126.6 |
| A | 9 | 143 | 19358 | 148.1 | 627 | 614 | 126.6 |
| A | 10 | 228 | 18478 | 141.15 | 627 | 614 | 126.6 |
| B | 0 | 221 | 197545 | 1637.15 | 621 | 605 | 120.3 |
| B | 5 | 255 | 168068 | 1392.11 | 621 | 605 | 120.3 |
| B | 4 | 171 | 31015 | 252.8 | 621 | 605 | 120.3 |
| C | 0 | 10 | 330560 | 2363.03 | 596 | 600 | 139.6 |
| C | 14 | 254 | 255130 | 1822.83 | 596 | 600 | 139.6 |
| C | 15 | 214 | 248794 | 1777.46 | 596 | 600 | 139.6 |
| D | 13 | 171 | 391279 | 2666.13 | 596 | 580 | 146.5 |
| D | 13 | 36 | 381977 | 2602.65 | 596 | 580 | 146.5 |
| D | 12 | 233 | 333537 | 2272.1 | 596 | 580 | 146.5 |

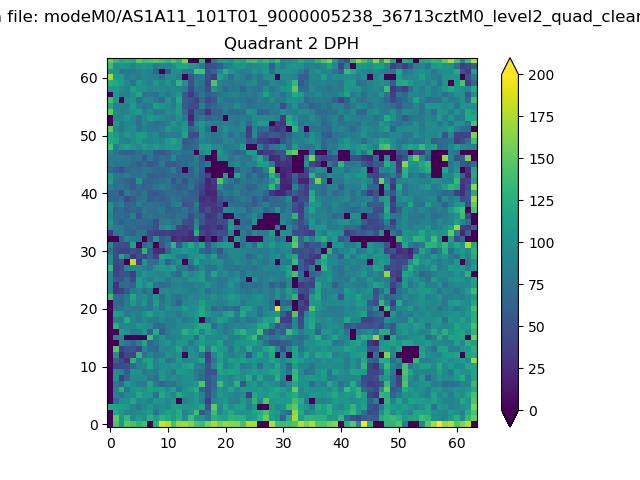

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

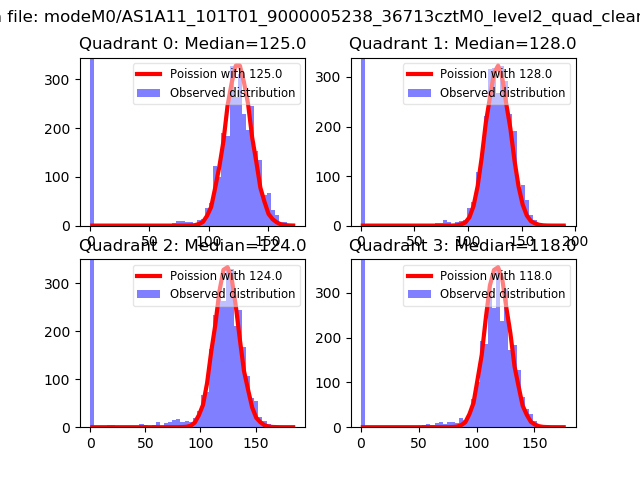

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

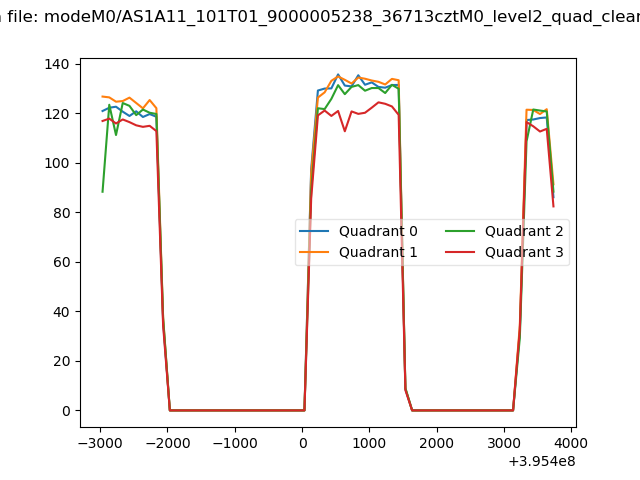

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

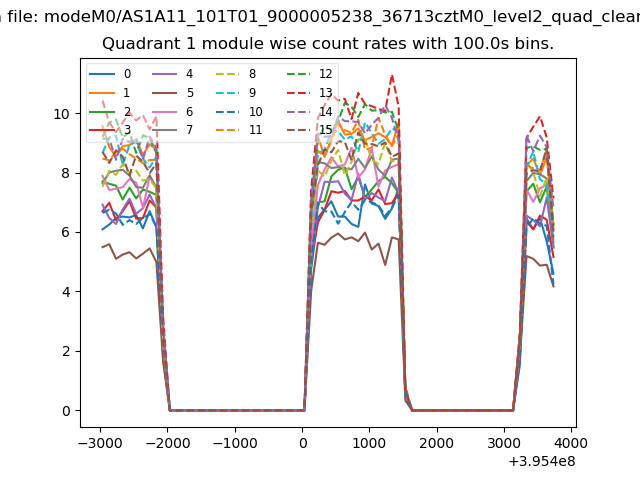

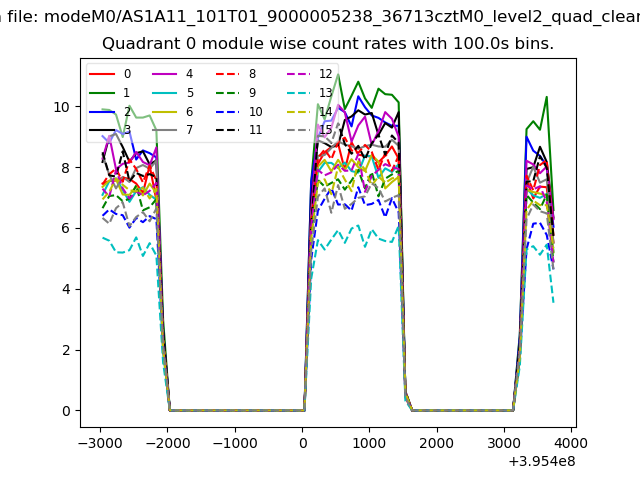

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

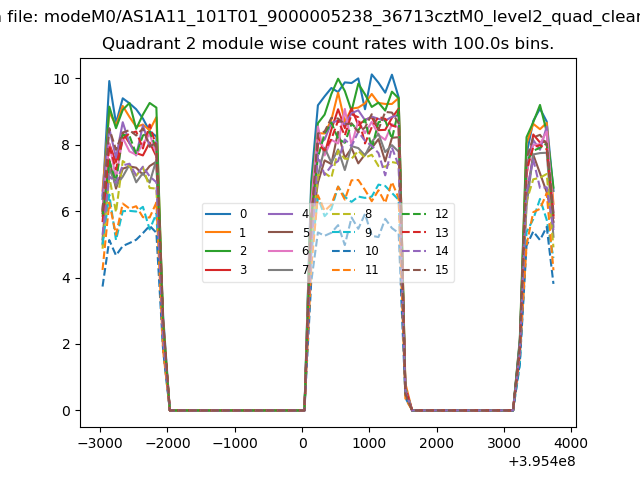

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

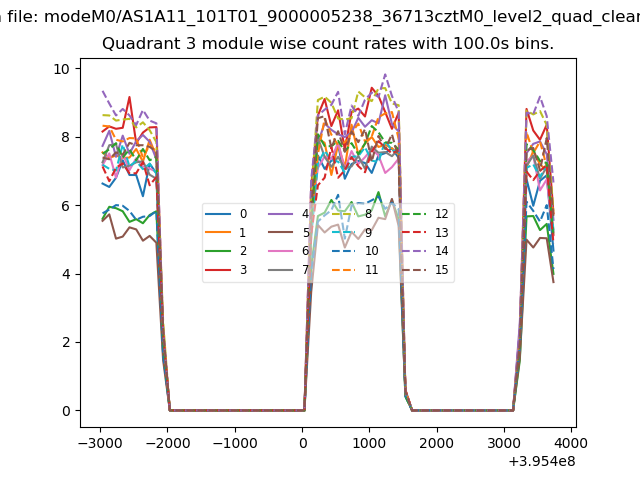

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

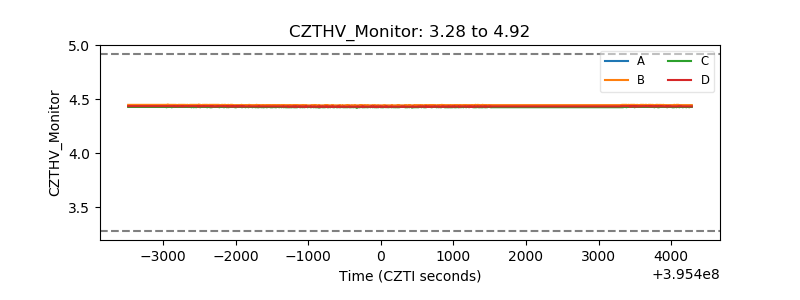

| CZT HV Monitor |  |

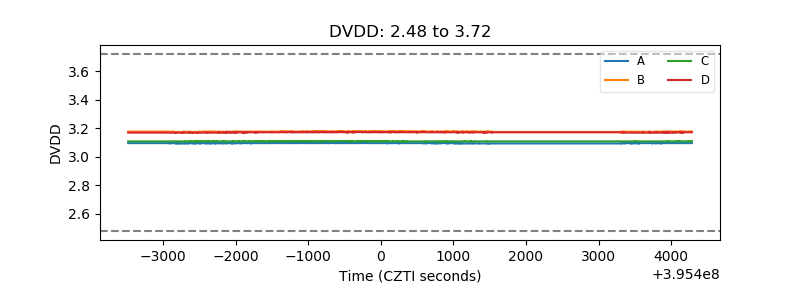

| D_VDD |  |

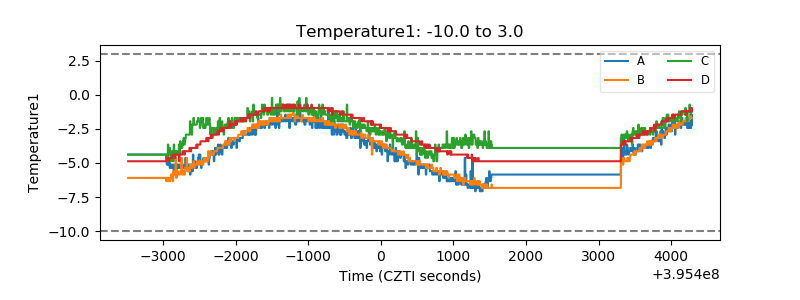

| Temperature 1 |  |

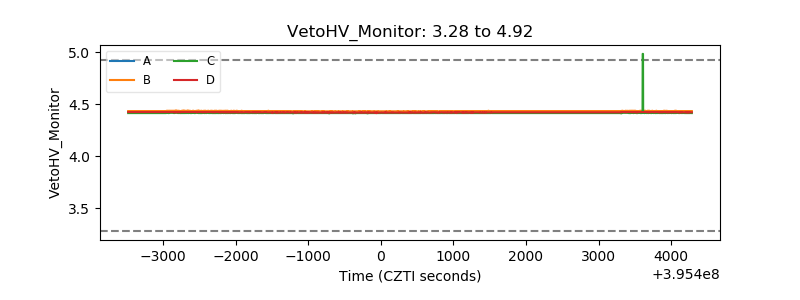

| Veto HV Monitor |  |
| Veto LLD |  |

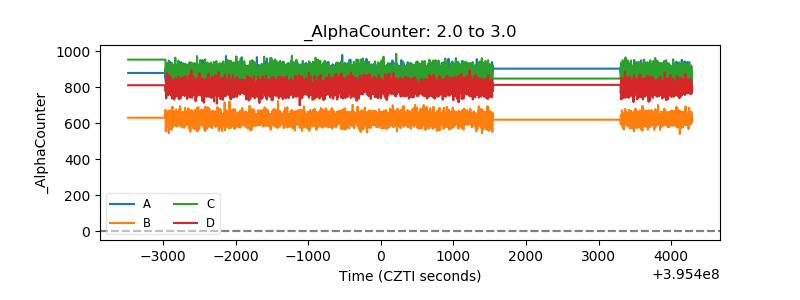

| Alpha Counter |  |
| _CPM_Rate |  |

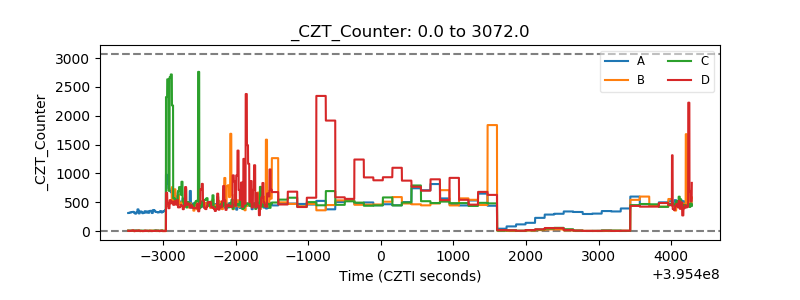

| CZT Counter |  |

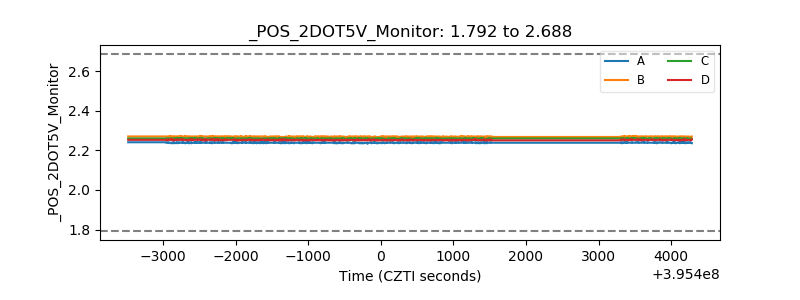

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

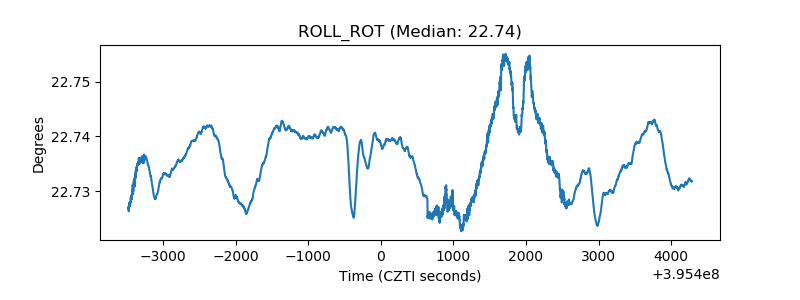

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
