| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36737cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36737cztM0_level2_quad_clean.evt |
| Size (bytes) | 433,327,680 | 82,316,160 |
| Size | 413.3 MB | 78.5 MB |
| Events in quadrant A | 2,581,153 | 548,403 |
| Events in quadrant B | 3,127,390 | 548,042 |
| Events in quadrant C | 3,105,297 | 542,981 |
| Events in quadrant D | 3,956,512 | 489,179 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11044 | 3 |
| B | 0 | 12614 | 2 |
| C | 0 | 12389 | 2 |
| D | 0 | 15321 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5193 | 10 | 0.192567% |
| B | 5193 | 236 | 4.544579% |
| C | 5193 | 165 | 3.177354% |
| D | 5193 | 493 | 9.493549% |

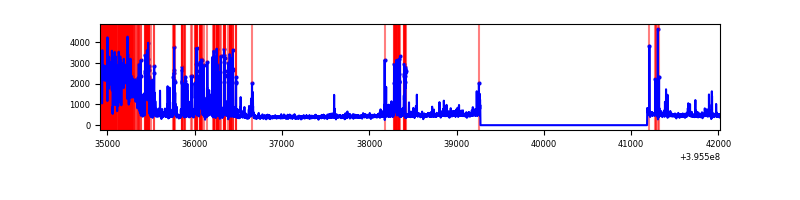

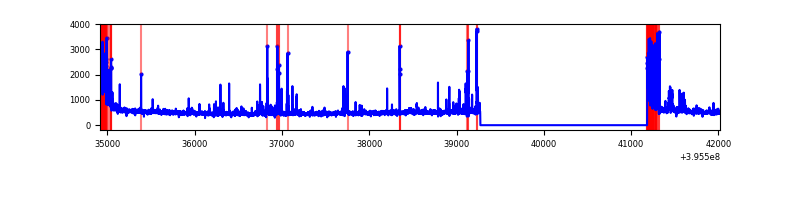

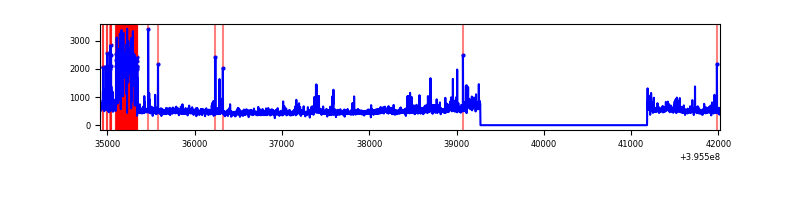

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7104 | 5194 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7104 | 5194 | 169 | 169 | 2.38% | 3.25% |  |
| C | 7104 | 5194 | 115 | 115 | 1.62% | 2.21% |  |
| D | 7104 | 5194 | 484 | 484 | 6.81% | 9.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 207173 | 1714.27 | 604 | 595 | 120.5 |
| A | 9 | 143 | 22232 | 179.55 | 604 | 595 | 120.5 |
| A | 13 | 254 | 8496 | 65.57 | 604 | 595 | 120.5 |
| B | 5 | 200 | 523311 | 4635.87 | 592 | 577 | 112.8 |
| B | 0 | 213 | 56529 | 496.21 | 592 | 577 | 112.8 |
| B | 0 | 189 | 55604 | 488.01 | 592 | 577 | 112.8 |
| C | 0 | 10 | 435588 | 3195.47 | 585 | 590 | 136.1 |
| C | 15 | 214 | 215449 | 1578.34 | 585 | 590 | 136.1 |
| C | 14 | 254 | 129481 | 946.83 | 585 | 590 | 136.1 |
| D | 12 | 227 | 1311064 | 9671.16 | 559 | 544 | 135.5 |
| D | 13 | 171 | 189546 | 1394.77 | 559 | 544 | 135.5 |
| D | 13 | 249 | 115648 | 849.43 | 559 | 544 | 135.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

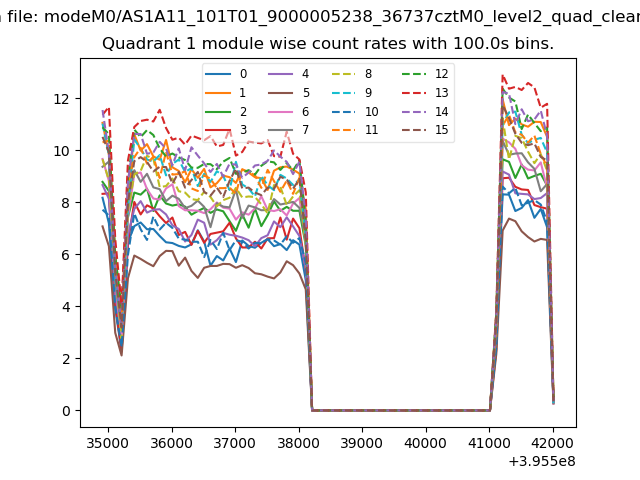

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

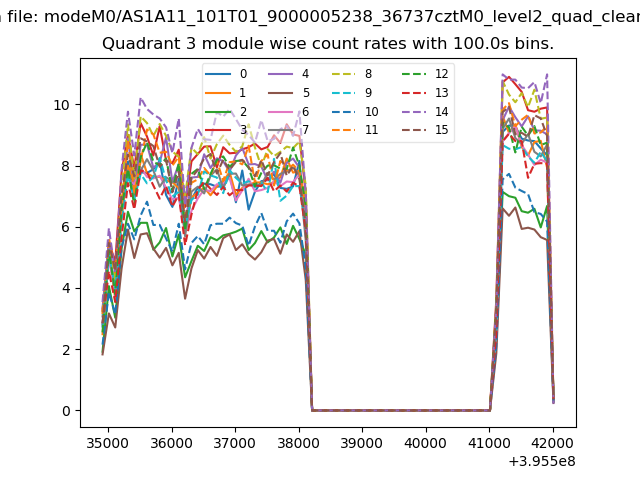

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

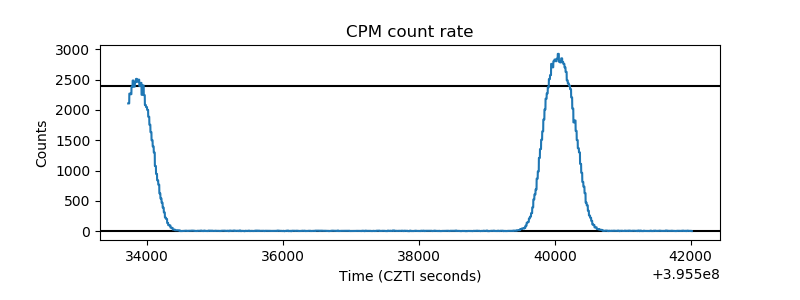

| _CPM_Rate |  |

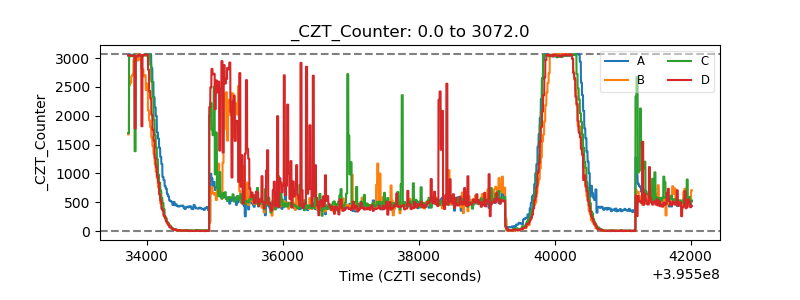

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

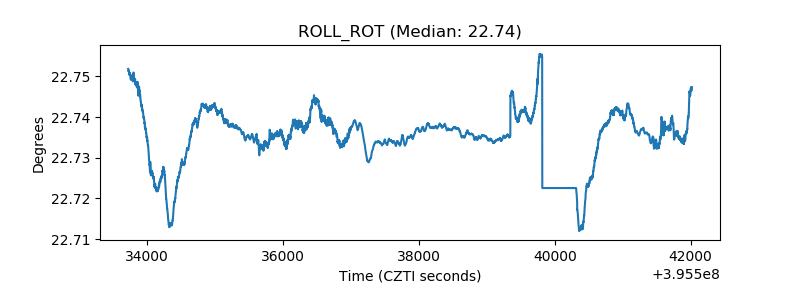

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
