| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36750cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36750cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,120,640 | 83,373,120 |
| Size | 459.8 MB | 79.5 MB |
| Events in quadrant A | 2,599,405 | 557,116 |
| Events in quadrant B | 3,064,746 | 563,225 |
| Events in quadrant C | 2,911,485 | 552,492 |
| Events in quadrant D | 5,666,030 | 480,964 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11305 | 3 |
| B | 0 | 12553 | 2 |
| C | 0 | 11922 | 2 |
| D | 0 | 20376 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5300 | 13 | 0.245283% |
| B | 5300 | 129 | 2.433962% |
| C | 5300 | 36 | 0.679245% |
| D | 5300 | 1144 | 21.584906% |

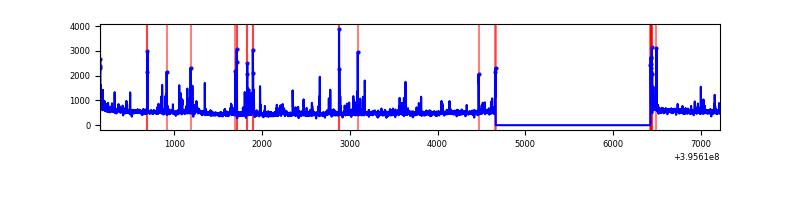

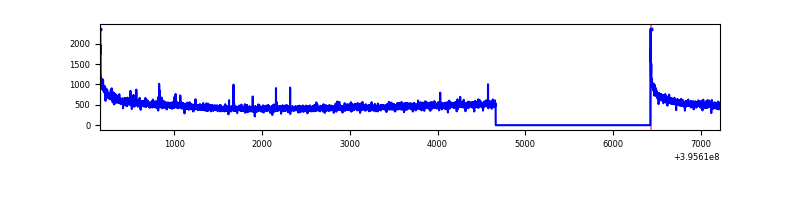

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7062 | 5301 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7062 | 5301 | 54 | 54 | 0.76% | 1.02% |  |
| C | 7062 | 5301 | 29 | 29 | 0.41% | 0.55% |  |
| D | 7062 | 5300 | 1118 | 1118 | 15.83% | 21.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 219064 | 1767.25 | 607 | 595 | 123.6 |
| A | 9 | 143 | 12679 | 97.75 | 607 | 595 | 123.6 |
| A | 2 | 79 | 10466 | 79.85 | 607 | 595 | 123.6 |
| B | 4 | 171 | 249553 | 2143.32 | 605 | 588 | 116.2 |
| B | 0 | 213 | 133135 | 1141.08 | 605 | 588 | 116.2 |
| B | 0 | 221 | 70286 | 600.02 | 605 | 588 | 116.2 |
| C | 15 | 214 | 226542 | 1608.41 | 597 | 603 | 140.5 |
| C | 14 | 254 | 195143 | 1384.89 | 597 | 603 | 140.5 |
| C | 0 | 207 | 78300 | 553.11 | 597 | 603 | 140.5 |
| D | 12 | 227 | 2954254 | 23675.52 | 505 | 491 | 124.8 |
| D | 12 | 6 | 284905 | 2279.68 | 505 | 491 | 124.8 |
| D | 13 | 249 | 266516 | 2132.29 | 505 | 491 | 124.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

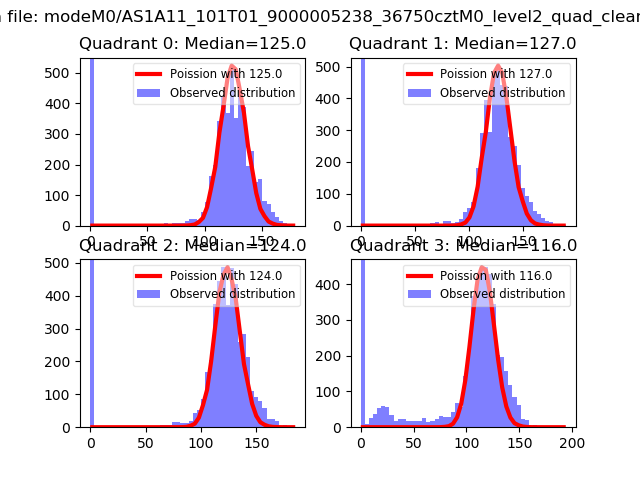

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

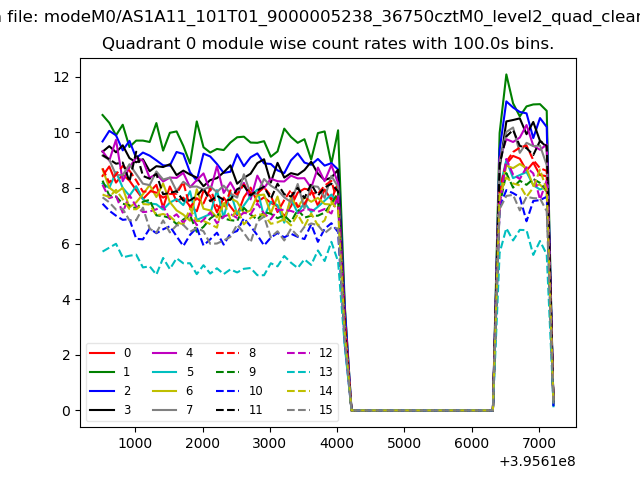

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

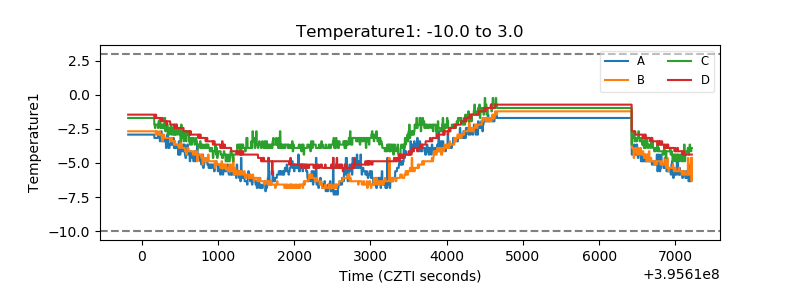

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

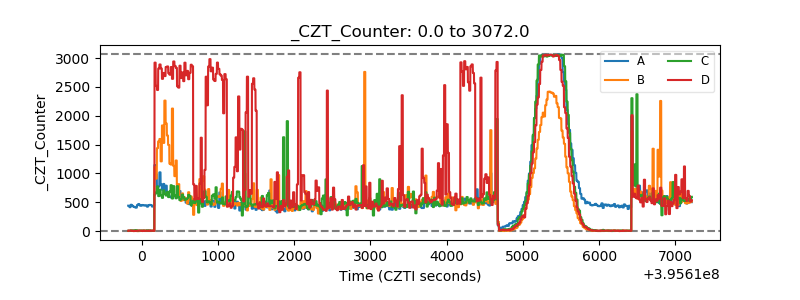

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

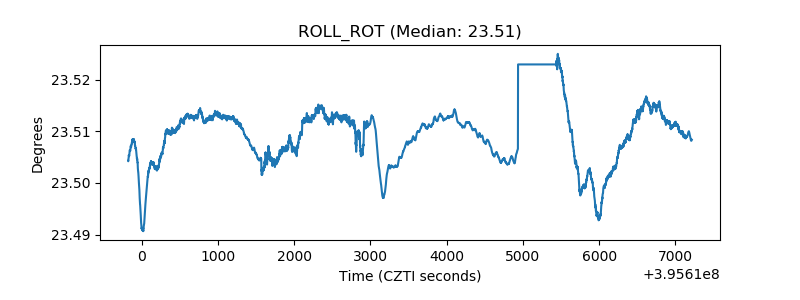

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

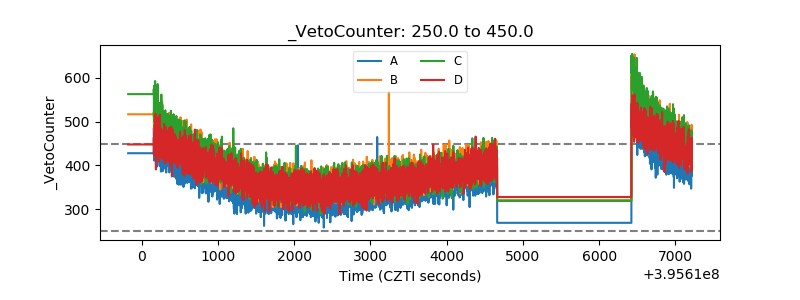

| Veto Counter |  |
