| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36752cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36752cztM0_level2_quad_clean.evt |
| Size (bytes) | 369,768,960 | 82,396,800 |
| Size | 352.6 MB | 78.6 MB |
| Events in quadrant A | 2,528,995 | 536,704 |
| Events in quadrant B | 2,677,315 | 555,607 |
| Events in quadrant C | 2,695,508 | 539,969 |
| Events in quadrant D | 2,951,748 | 507,749 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10702 | 3 |
| B | 0 | 11160 | 2 |
| C | 0 | 10996 | 2 |
| D | 0 | 12140 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5065 | 7 | 0.138203% |
| B | 5065 | 29 | 0.572557% |
| C | 5065 | 32 | 0.631787% |
| D | 5065 | 67 | 1.322804% |

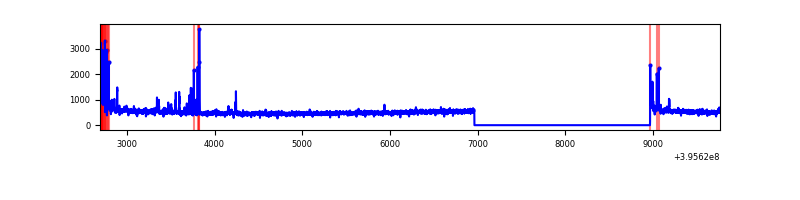

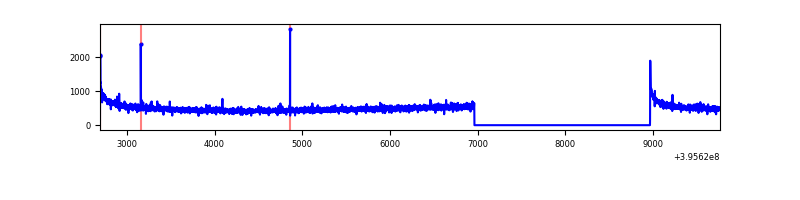

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7068 | 5066 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7068 | 5066 | 14 | 14 | 0.20% | 0.28% |  |
| C | 7068 | 5066 | 25 | 25 | 0.35% | 0.49% |  |
| D | 7068 | 5066 | 57 | 57 | 0.81% | 1.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 204812 | 1691.26 | 597 | 585 | 120.8 |
| A | 9 | 143 | 8759 | 67.69 | 597 | 585 | 120.8 |
| A | 7 | 3 | 7458 | 56.92 | 597 | 585 | 120.8 |
| B | 0 | 213 | 116370 | 1017.02 | 600 | 585 | 113.8 |
| B | 4 | 171 | 66699 | 580.72 | 600 | 585 | 113.8 |
| B | 5 | 255 | 42892 | 371.61 | 600 | 585 | 113.8 |
| C | 15 | 214 | 215710 | 1575.27 | 586 | 591 | 136.6 |
| C | 0 | 10 | 102655 | 747.39 | 586 | 591 | 136.6 |
| C | 14 | 254 | 78226 | 568.5 | 586 | 591 | 136.6 |
| D | 13 | 249 | 165427 | 1166.98 | 578 | 564 | 141.3 |
| D | 7 | 223 | 151532 | 1068.62 | 578 | 564 | 141.3 |
| D | 13 | 171 | 121190 | 853.85 | 578 | 564 | 141.3 |

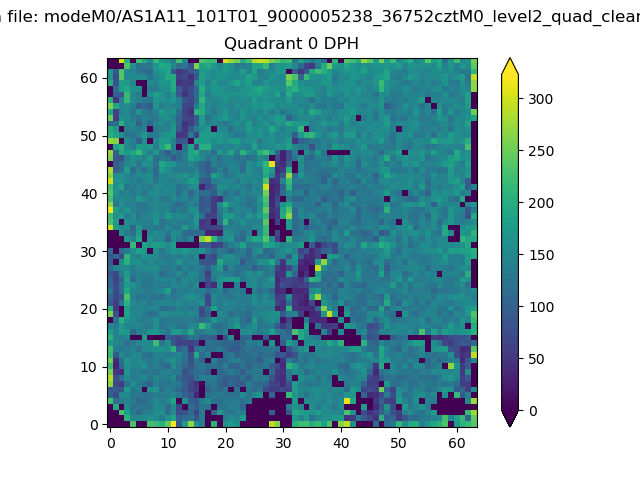

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

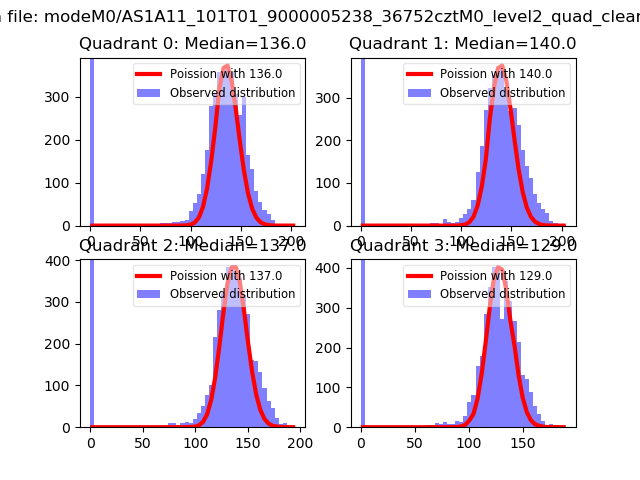

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

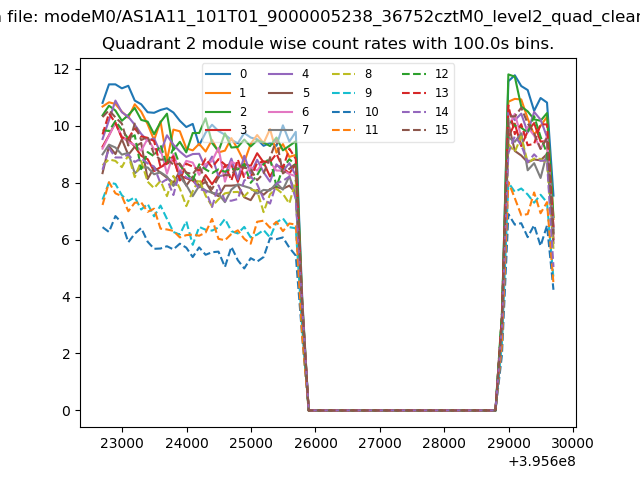

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

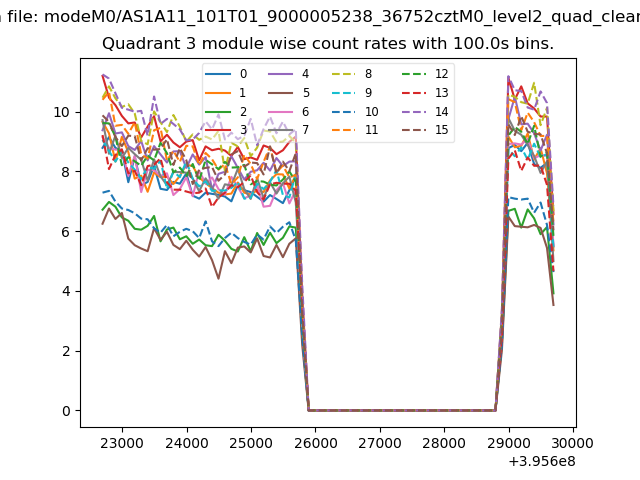

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

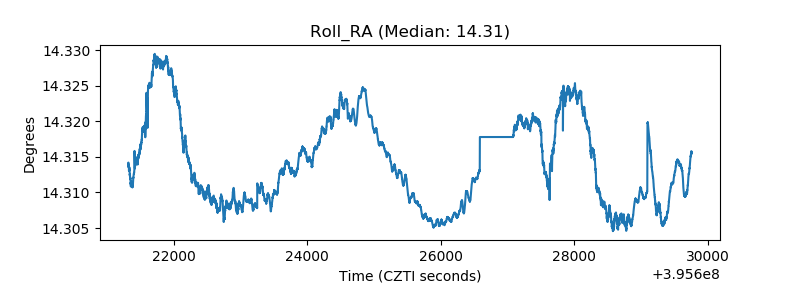

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

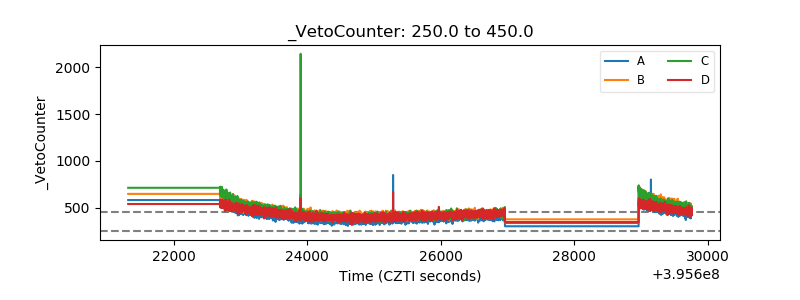

| Veto Counter |  |
