| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36754cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36754cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,880,000 | 67,662,720 |
| Size | 440.5 MB | 64.5 MB |
| Events in quadrant A | 2,643,228 | 455,412 |
| Events in quadrant B | 5,095,319 | 352,438 |
| Events in quadrant C | 3,272,143 | 443,747 |
| Events in quadrant D | 2,622,400 | 430,606 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11077 | 3 |
| B | 0 | 18503 | 2 |
| C | 0 | 12838 | 2 |
| D | 0 | 11390 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33 | 0 |
| B | 0 | 33 | 0 |
| C | 0 | 33 | 0 |
| D | 0 | 34 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5226 | 11 | 0.210486% |
| B | 5226 | 1115 | 21.335630% |
| C | 5226 | 149 | 2.851129% |
| D | 5226 | 36 | 0.688863% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7380 | 5227 | 5 | 5 | 0.07% | 0.10% |  |
| B | 7379 | 5226 | 1040 | 1040 | 14.09% | 19.90% |  |
| C | 7379 | 5226 | 117 | 117 | 1.59% | 2.24% |  |
| D | 7380 | 5227 | 28 | 28 | 0.38% | 0.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 215326 | 1743.46 | 612 | 601 | 123.2 |
| A | 9 | 143 | 56158 | 451.1 | 612 | 601 | 123.2 |
| A | 13 | 254 | 7633 | 57.1 | 612 | 601 | 123.2 |
| B | 12 | 1 | 2578560 | 26454.42 | 518 | 506 | 97.5 |
| B | 4 | 171 | 350119 | 3587.52 | 518 | 506 | 97.5 |
| B | 5 | 255 | 35540 | 359.5 | 518 | 506 | 97.5 |
| C | 14 | 254 | 655130 | 4841.95 | 584 | 589 | 135.2 |
| C | 15 | 214 | 221980 | 1637.73 | 584 | 589 | 135.2 |
| C | 0 | 10 | 92717 | 681.51 | 584 | 589 | 135.2 |
| D | 13 | 249 | 139518 | 970.08 | 587 | 571 | 143.2 |
| D | 13 | 171 | 134141 | 932.54 | 587 | 571 | 143.2 |
| D | 2 | 234 | 24736 | 168.71 | 587 | 571 | 143.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

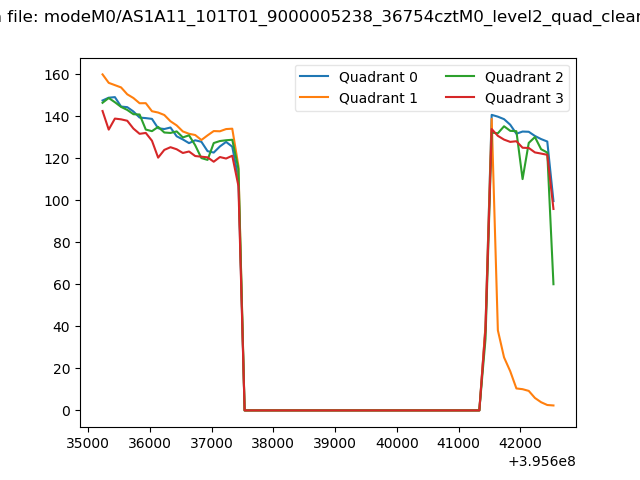

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

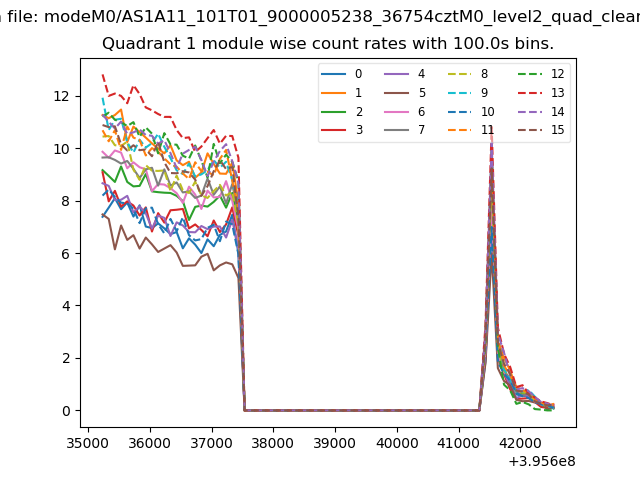

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

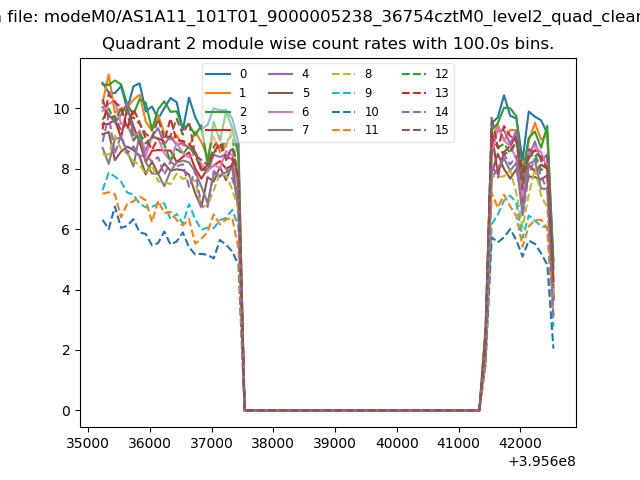

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

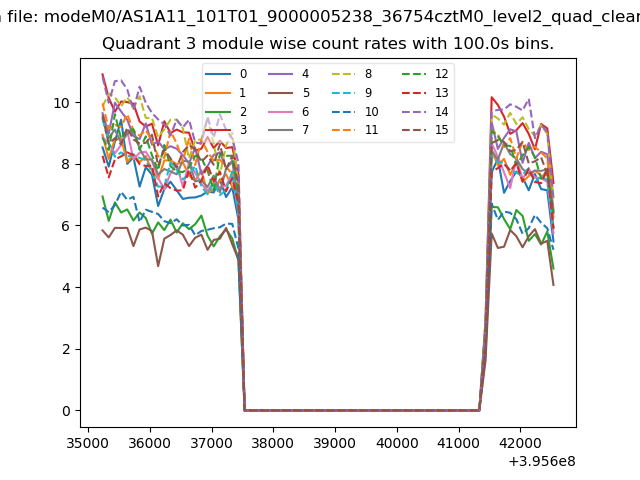

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

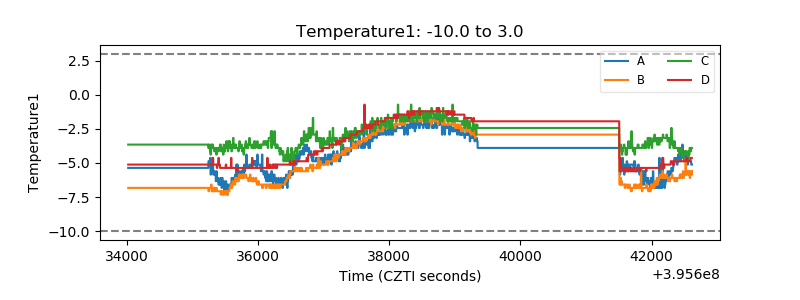

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

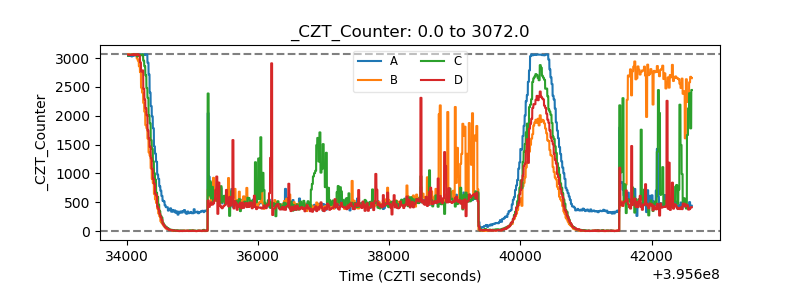

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

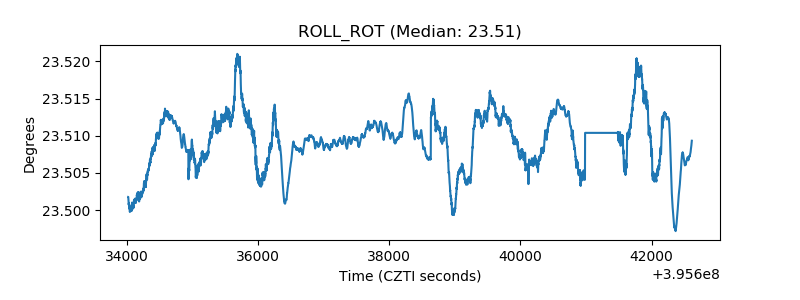

| _ROLL_ROT |  |
| _Roll_DEC |  |

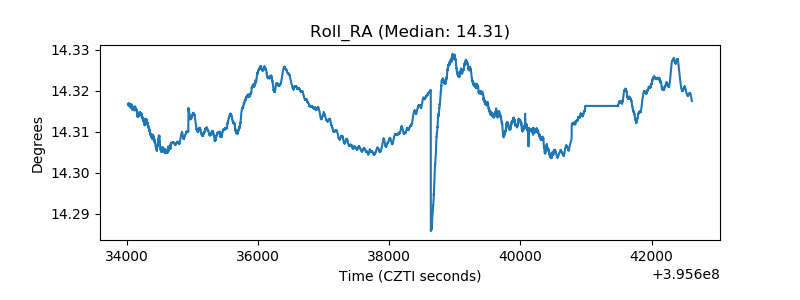

| _Roll_RA |  |
| Veto Counter |  |
