| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_101T01_9000005238_36758cztM0_level2.evt | modeM0/AS1A11_101T01_9000005238_36758cztM0_level2_quad_clean.evt |
| Size (bytes) | 768,602,880 | 47,646,720 |
| Size | 733.0 MB | 45.4 MB |
| Events in quadrant A | 2,861,890 | 344,435 |
| Events in quadrant B | 12,560,541 | 37,142 |
| Events in quadrant C | 4,141,834 | 322,758 |
| Events in quadrant D | 3,312,160 | 323,927 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12136 | 2 |
| B | 0 | 41352 | 1 |
| C | 0 | 15908 | 1 |
| D | 0 | 13810 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5905 | 8 | 0.135478% |
| B | 5905 | 5831 | 98.746825% |
| C | 5905 | 382 | 6.469094% |
| D | 5905 | 81 | 1.371719% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

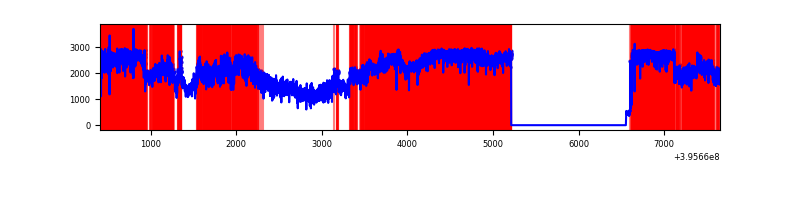

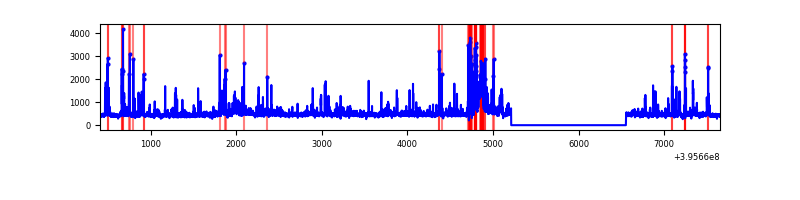

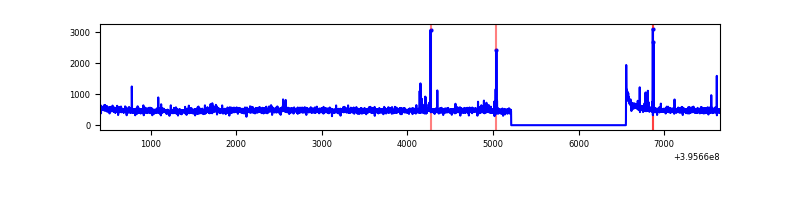

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7247 | 5906 | 4 | 4 | 0.06% | 0.07% |  |
| B | 7246 | 5904 | 3648 | 3648 | 50.35% | 61.79% |  |
| C | 7247 | 5906 | 335 | 335 | 4.62% | 5.67% |  |
| D | 7247 | 5906 | 79 | 79 | 1.09% | 1.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 199200 | 1459.07 | 672 | 657 | 136.1 |
| A | 9 | 143 | 54122 | 392.91 | 672 | 657 | 136.1 |
| A | 13 | 254 | 9610 | 65.79 | 672 | 657 | 136.1 |
| B | 12 | 1 | 12261560 | 822454.61 | 68 | 67 | 14.9 |
| B | 4 | 171 | 6853 | 455.18 | 68 | 67 | 14.9 |
| B | 0 | 213 | 4213 | 278.1 | 68 | 67 | 14.9 |
| C | 14 | 254 | 1379893 | 9310.96 | 632 | 636 | 148.1 |
| C | 15 | 214 | 248588 | 1673.85 | 632 | 636 | 148.1 |
| C | 3 | 233 | 16242 | 105.35 | 632 | 636 | 148.1 |
| D | 13 | 249 | 186959 | 1160.68 | 650 | 632 | 160.5 |
| D | 12 | 17 | 175416 | 1088.77 | 650 | 632 | 160.5 |
| D | 2 | 250 | 166025 | 1030.27 | 650 | 632 | 160.5 |

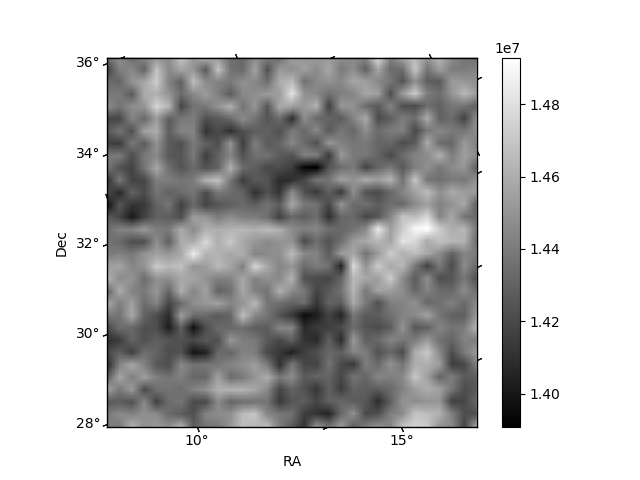

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

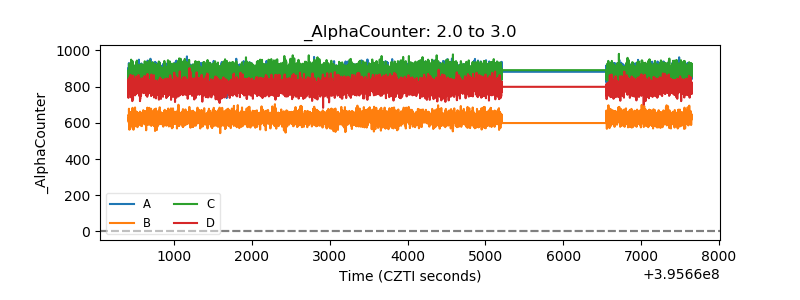

| Alpha Counter |  |
| _CPM_Rate |  |

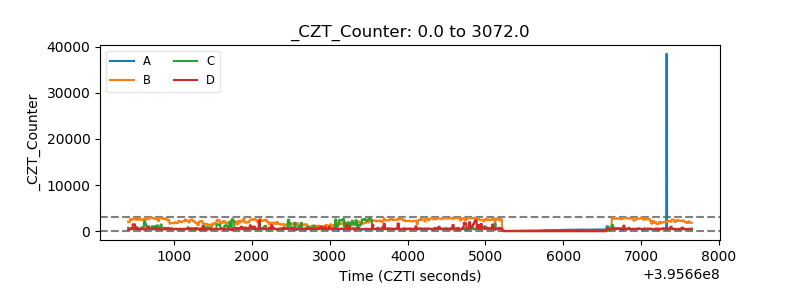

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

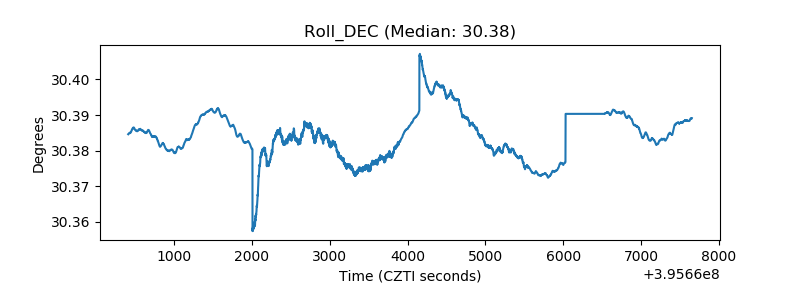

| _ROLL_ROT |  |
| _Roll_DEC |  |

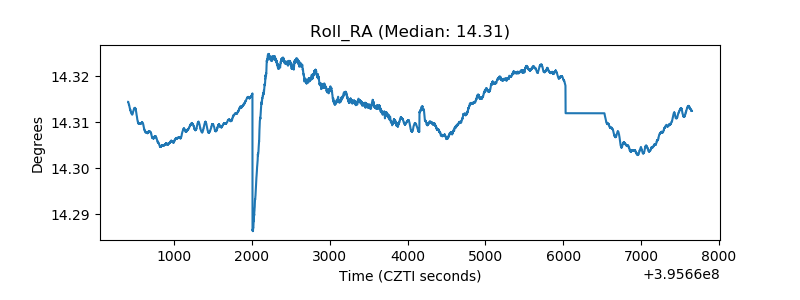

| _Roll_RA |  |
| Veto Counter |  |
