| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_087T05_9000005240_36777cztM0_level2.evt | modeM0/AS1A11_087T05_9000005240_36777cztM0_level2_quad_clean.evt |
| Size (bytes) | 529,217,280 | 74,070,720 |
| Size | 504.7 MB | 70.6 MB |
| Events in quadrant A | 2,761,443 | 480,078 |
| Events in quadrant B | 4,706,723 | 471,858 |
| Events in quadrant C | 3,187,729 | 474,490 |
| Events in quadrant D | 4,990,327 | 422,731 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11852 | 3 |
| B | 0 | 17868 | 2 |
| C | 0 | 12853 | 2 |
| D | 0 | 18626 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5621 | 17 | 0.302437% |
| B | 5621 | 203 | 3.611457% |
| C | 5621 | 77 | 1.369863% |
| D | 5621 | 703 | 12.506671% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

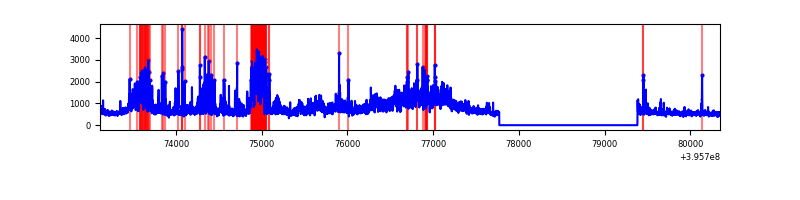

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7233 | 5622 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7233 | 5622 | 139 | 139 | 1.92% | 2.47% |  |
| C | 7233 | 5622 | 59 | 59 | 0.82% | 1.05% |  |
| D | 7232 | 5621 | 687 | 687 | 9.50% | 12.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 222963 | 1696.91 | 646 | 633 | 131.0 |
| A | 13 | 6 | 19490 | 143.92 | 646 | 633 | 131.0 |
| A | 7 | 16 | 11263 | 81.13 | 646 | 633 | 131.0 |
| B | 12 | 1 | 1975066 | 15956.02 | 640 | 624 | 123.7 |
| B | 0 | 221 | 57347 | 458.39 | 640 | 624 | 123.7 |
| B | 0 | 213 | 42596 | 339.19 | 640 | 624 | 123.7 |
| C | 14 | 254 | 251144 | 1692.3 | 632 | 636 | 148.0 |
| C | 15 | 214 | 237170 | 1597.9 | 632 | 636 | 148.0 |
| C | 0 | 207 | 162003 | 1090.11 | 632 | 636 | 148.0 |
| D | 12 | 6 | 1170933 | 7835.33 | 605 | 589 | 149.4 |
| D | 12 | 227 | 724976 | 4849.69 | 605 | 589 | 149.4 |
| D | 10 | 118 | 247821 | 1655.19 | 605 | 589 | 149.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

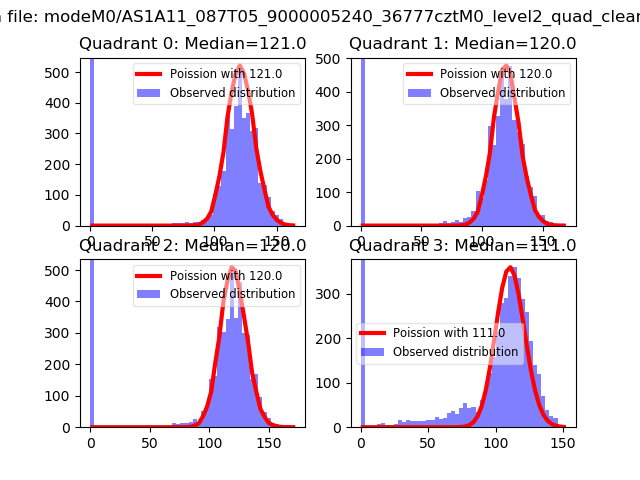

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

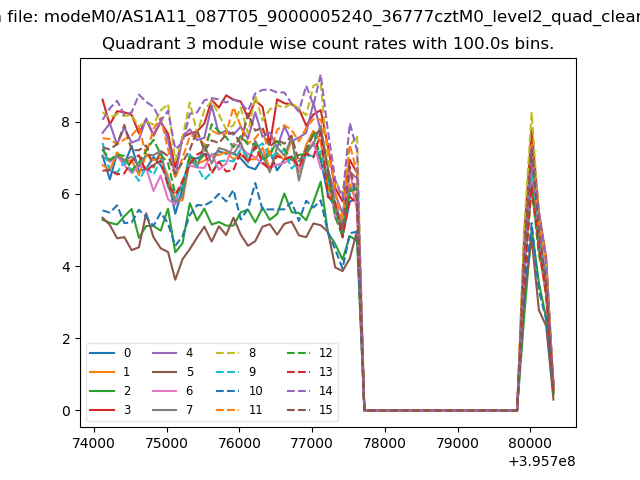

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

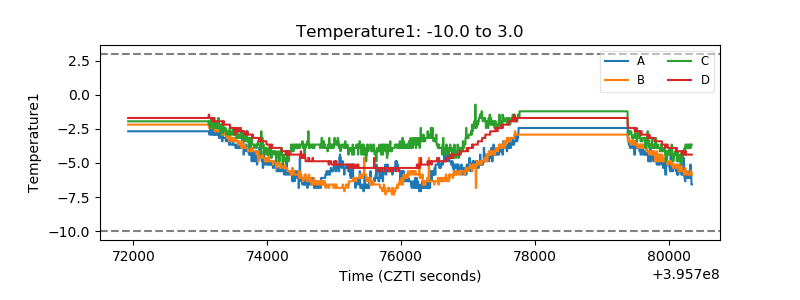

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

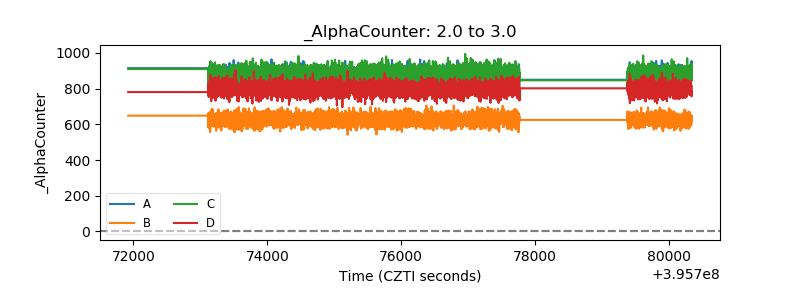

| Alpha Counter |  |

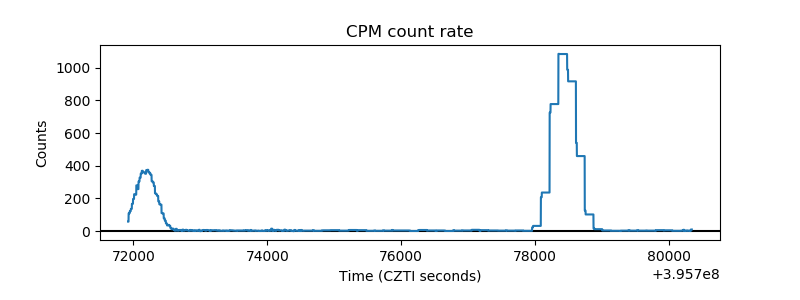

| _CPM_Rate |  |

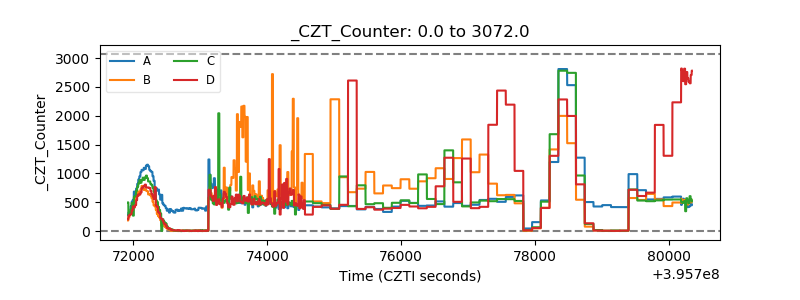

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

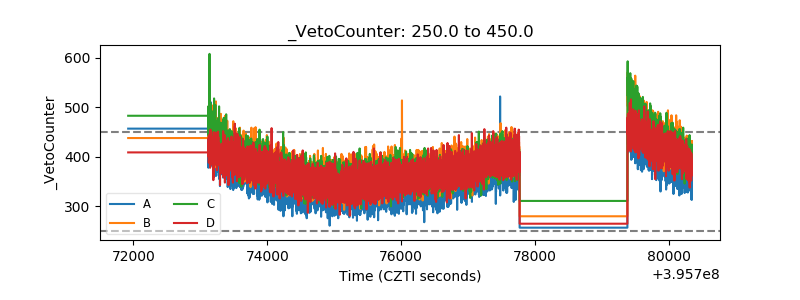

| Veto Counter |  |
