| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_083T01_9000005242_36781cztM0_level2.evt | modeM0/AS1A11_083T01_9000005242_36781cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,949,440 | 45,374,400 |
| Size | 573.1 MB | 43.3 MB |
| Events in quadrant A | 2,682,916 | 284,939 |
| Events in quadrant B | 6,041,381 | 229,736 |
| Events in quadrant C | 3,048,525 | 277,631 |
| Events in quadrant D | 6,084,989 | 225,806 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10978 | 3 |
| B | 0 | 21271 | 2 |
| C | 0 | 11975 | 2 |
| D | 0 | 21525 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5061 | 8 | 0.158072% |
| B | 5061 | 1238 | 24.461569% |
| C | 5061 | 85 | 1.679510% |
| D | 5061 | 929 | 18.356056% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7064 | 5062 | 2 | 2 | 0.03% | 0.04% |  |
| B | 7064 | 5062 | 968 | 968 | 13.70% | 19.12% |  |
| C | 7064 | 5062 | 79 | 79 | 1.12% | 1.56% |  |
| D | 7064 | 5062 | 900 | 900 | 12.74% | 17.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 208052 | 1657.66 | 621 | 610 | 125.1 |
| A | 9 | 143 | 58190 | 460.12 | 621 | 610 | 125.1 |
| A | 13 | 6 | 12149 | 92.21 | 621 | 610 | 125.1 |
| B | 12 | 1 | 3495341 | 32304.08 | 573 | 560 | 108.2 |
| B | 4 | 171 | 149716 | 1378.73 | 573 | 560 | 108.2 |
| B | 5 | 172 | 55384 | 506.77 | 573 | 560 | 108.2 |
| C | 14 | 254 | 454942 | 3248.27 | 601 | 606 | 139.9 |
| C | 15 | 214 | 216739 | 1545.24 | 601 | 606 | 139.9 |
| C | 0 | 10 | 22240 | 154.67 | 601 | 606 | 139.9 |
| D | 12 | 6 | 2408617 | 17748.28 | 554 | 540 | 135.7 |
| D | 12 | 233 | 592046 | 4359.58 | 554 | 540 | 135.7 |
| D | 13 | 249 | 411063 | 3025.68 | 554 | 540 | 135.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

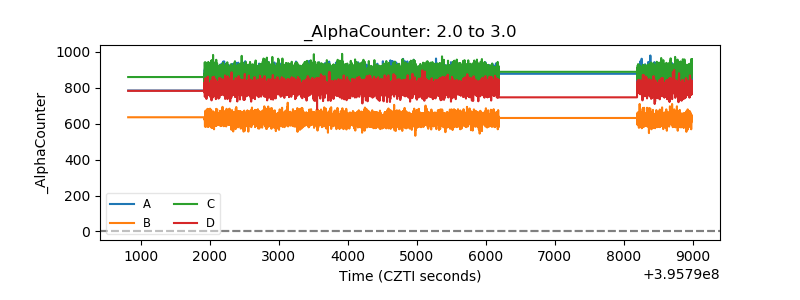

| Alpha Counter |  |

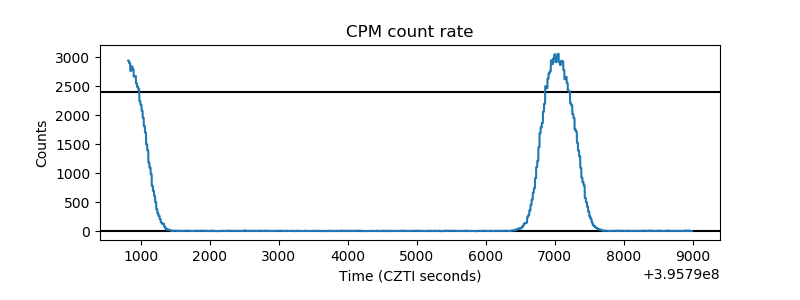

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

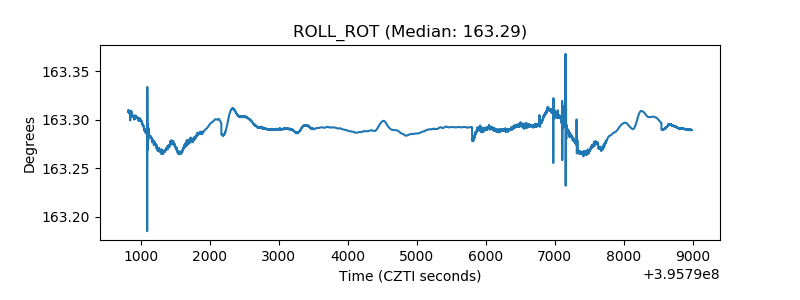

| _ROLL_ROT |  |

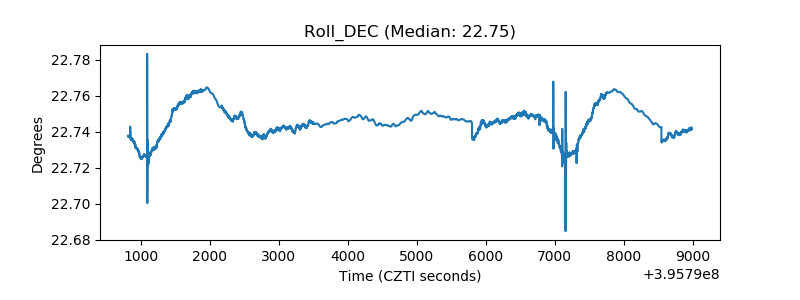

| _Roll_DEC |  |
| _Roll_RA |  |

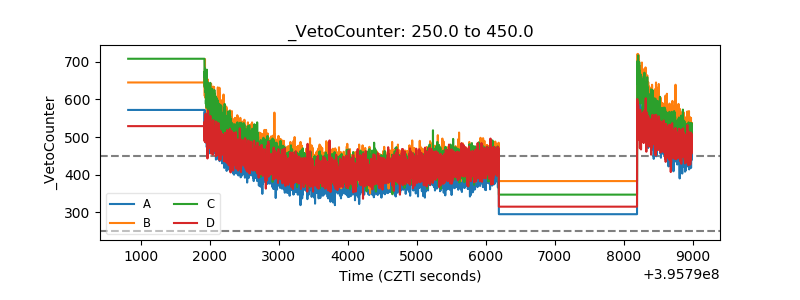

| Veto Counter |  |
