| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_083T01_9000005242_36788cztM0_level2.evt | modeM0/AS1A11_083T01_9000005242_36788cztM0_level2_quad_clean.evt |
| Size (bytes) | 724,438,080 | 73,506,240 |
| Size | 690.9 MB | 70.1 MB |
| Events in quadrant A | 2,983,115 | 507,259 |
| Events in quadrant B | 12,109,652 | 331,109 |
| Events in quadrant C | 2,910,509 | 499,359 |
| Events in quadrant D | 3,539,435 | 477,183 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12492 | 2 |
| B | 0 | 39937 | 1 |
| C | 0 | 12173 | 1 |
| D | 0 | 14399 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5866 | 26 | 0.443232% |
| B | 5866 | 4139 | 70.559154% |
| C | 5866 | 7 | 0.119332% |
| D | 5866 | 108 | 1.841118% |

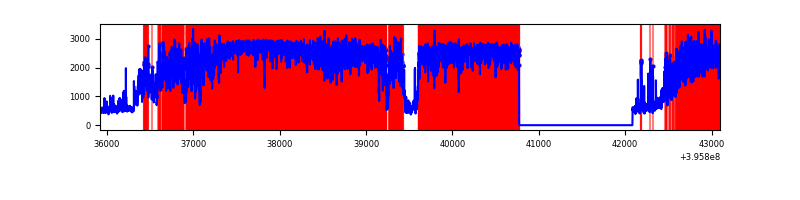

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7179 | 5867 | 18 | 18 | 0.25% | 0.31% |  |
| B | 7178 | 5865 | 3923 | 3923 | 54.65% | 66.89% |  |
| C | 7179 | 5867 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7179 | 5867 | 89 | 89 | 1.24% | 1.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 220276 | 1614.47 | 670 | 655 | 136.0 |
| A | 9 | 143 | 137342 | 1004.81 | 670 | 655 | 136.0 |
| A | 13 | 6 | 23831 | 170.37 | 670 | 655 | 136.0 |
| B | 12 | 1 | 9747158 | 112606.59 | 445 | 433 | 86.6 |
| B | 4 | 171 | 289434 | 3338.91 | 445 | 433 | 86.6 |
| B | 5 | 172 | 72975 | 838.1 | 445 | 433 | 86.6 |
| C | 15 | 214 | 268880 | 1761.15 | 650 | 654 | 152.3 |
| C | 0 | 207 | 51953 | 336.83 | 650 | 654 | 152.3 |
| C | 14 | 254 | 23841 | 152.24 | 650 | 654 | 152.3 |
| D | 13 | 249 | 278316 | 1753.73 | 648 | 631 | 158.3 |
| D | 2 | 249 | 170554 | 1073.16 | 648 | 631 | 158.3 |
| D | 2 | 250 | 141906 | 892.23 | 648 | 631 | 158.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

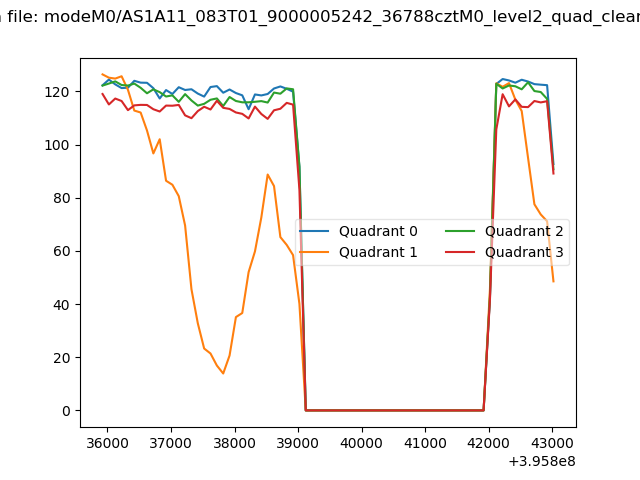

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

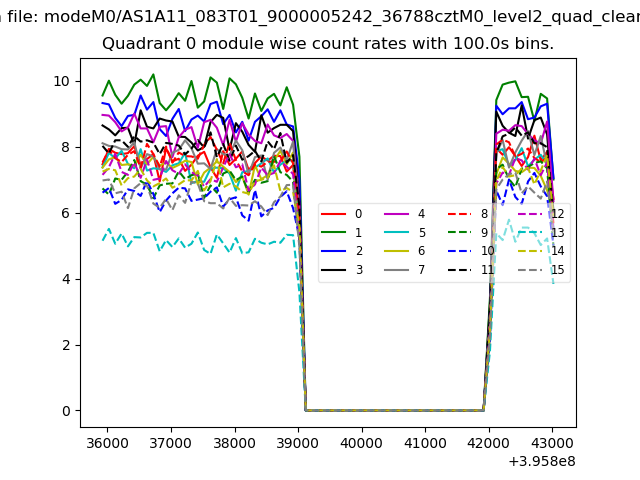

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

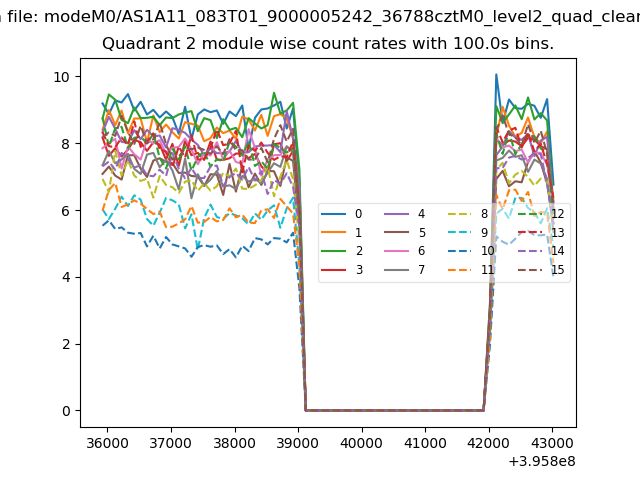

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

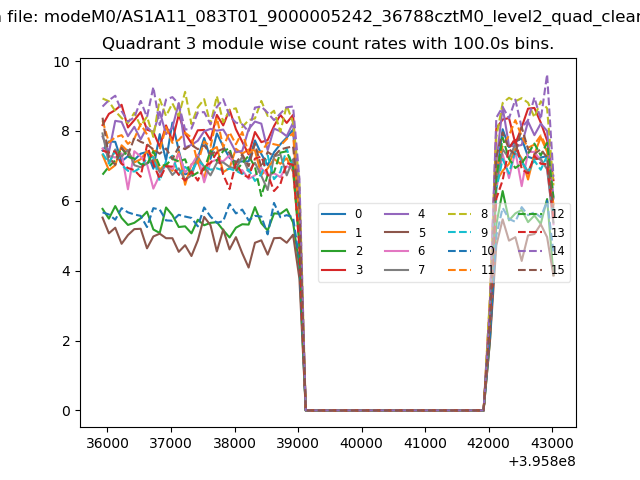

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

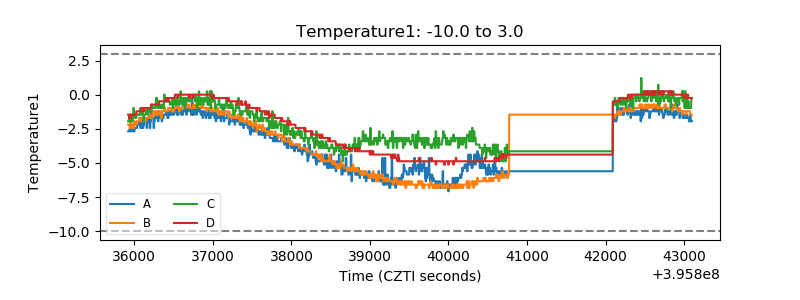

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

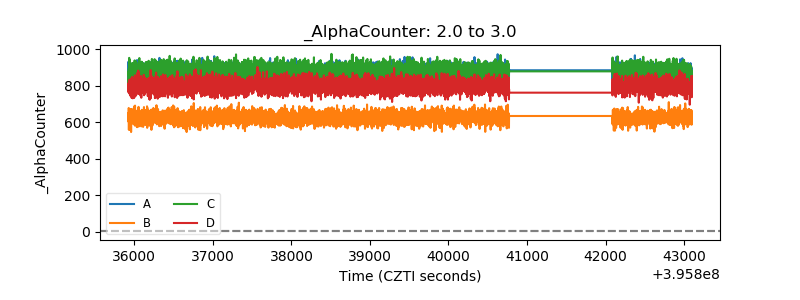

| Alpha Counter |  |

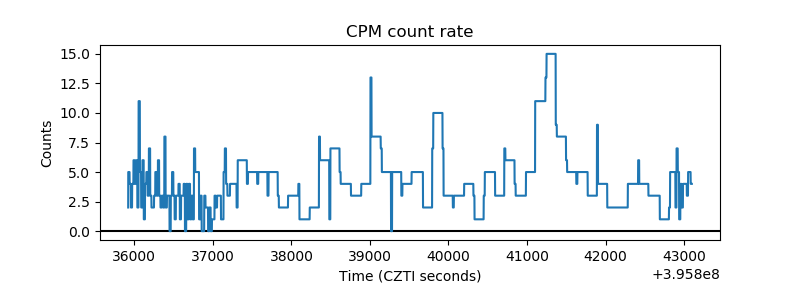

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
