| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005244_36826cztM0_level2.evt | modeM0/AS1A11_075T01_9000005244_36826cztM0_level2_quad_clean.evt |
| Size (bytes) | 640,016,640 | 80,481,600 |
| Size | 610.4 MB | 76.8 MB |
| Events in quadrant A | 2,470,090 | 566,231 |
| Events in quadrant B | 10,798,473 | 401,845 |
| Events in quadrant C | 3,103,056 | 574,348 |
| Events in quadrant D | 2,676,821 | 547,196 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10451 | 3 |
| B | 0 | 35448 | 2 |
| C | 0 | 12207 | 2 |
| D | 0 | 11354 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4927 | 10 | 0.202963% |
| B | 4927 | 4028 | 81.753603% |
| C | 4927 | 181 | 3.673635% |
| D | 4927 | 80 | 1.623706% |

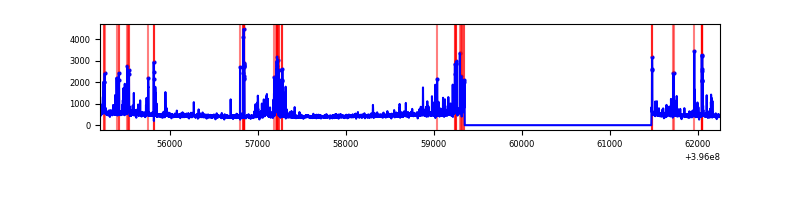

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7050 | 4928 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7050 | 4928 | 3805 | 3805 | 53.97% | 77.21% |  |
| C | 7050 | 4928 | 164 | 164 | 2.33% | 3.33% |  |
| D | 7050 | 4928 | 65 | 65 | 0.92% | 1.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 211542 | 1818.7 | 574 | 564 | 116.0 |
| A | 13 | 6 | 16027 | 133.3 | 574 | 564 | 116.0 |
| A | 9 | 143 | 13424 | 110.86 | 574 | 564 | 116.0 |
| B | 12 | 1 | 8648909 | 107753.49 | 428 | 419 | 80.3 |
| B | 0 | 189 | 139059 | 1727.35 | 428 | 419 | 80.3 |
| B | 0 | 221 | 108032 | 1340.77 | 428 | 419 | 80.3 |
| C | 0 | 207 | 462289 | 3547.33 | 562 | 567 | 130.2 |
| C | 15 | 214 | 206717 | 1583.81 | 562 | 567 | 130.2 |
| C | 0 | 10 | 162944 | 1247.51 | 562 | 567 | 130.2 |
| D | 13 | 249 | 204807 | 1521.54 | 558 | 543 | 134.2 |
| D | 2 | 250 | 101299 | 750.52 | 558 | 543 | 134.2 |
| D | 2 | 153 | 64269 | 474.69 | 558 | 543 | 134.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

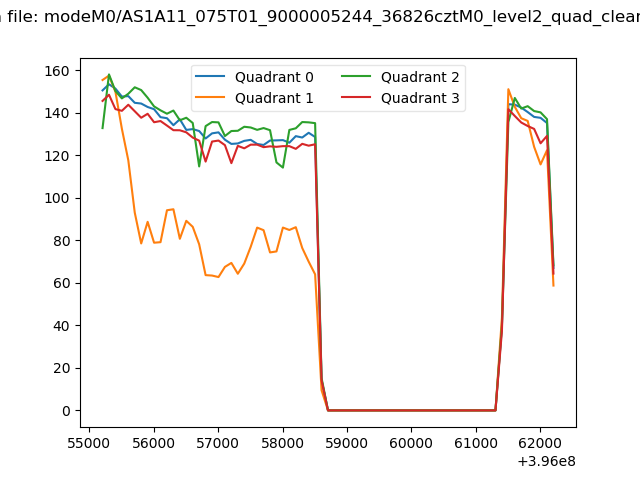

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

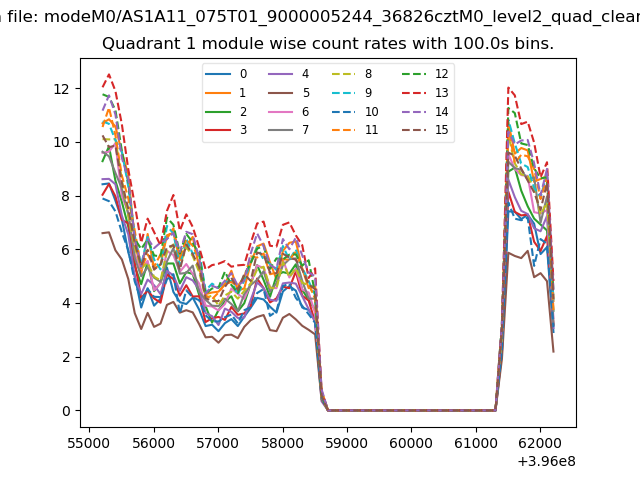

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

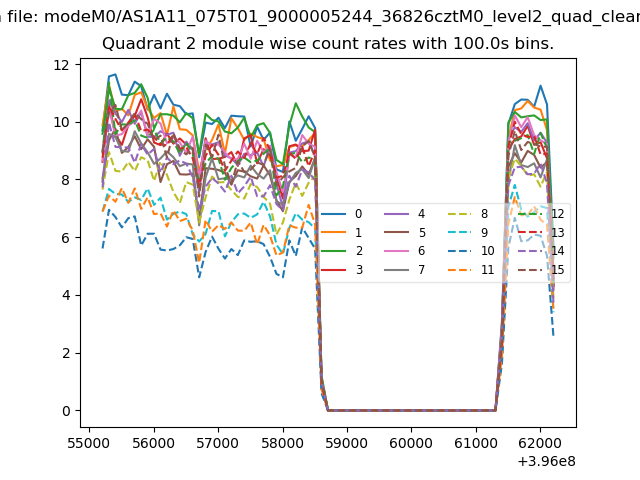

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

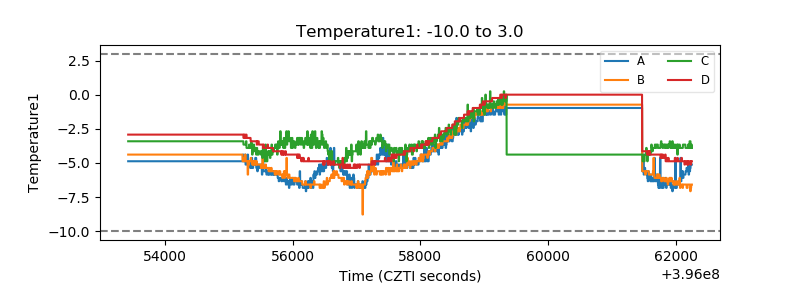

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

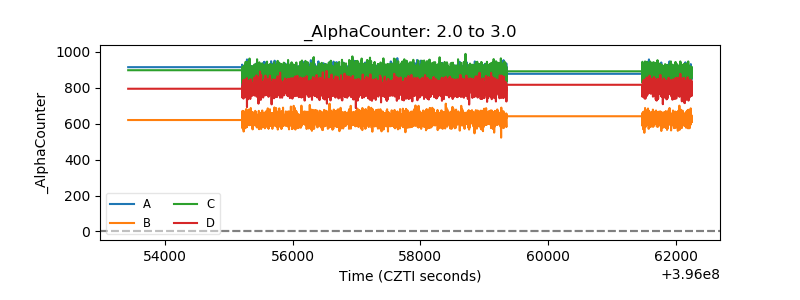

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

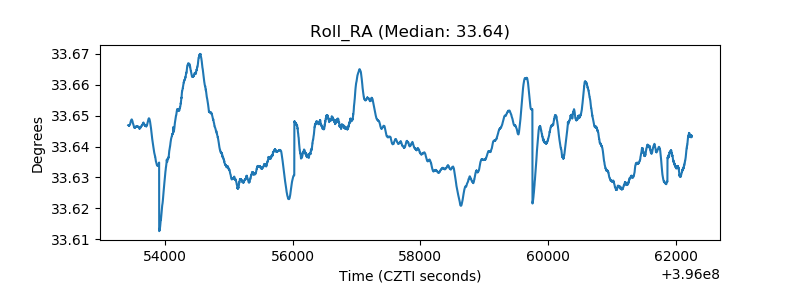

| _Roll_RA |  |

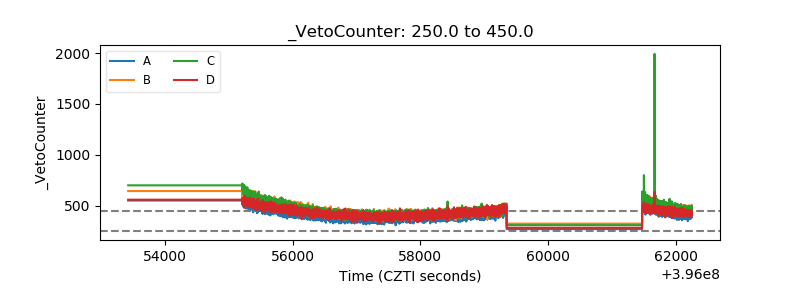

| Veto Counter |  |
