| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005244_36888cztM0_level2.evt | modeM0/AS1A11_075T01_9000005244_36888cztM0_level2_quad_clean.evt |
| Size (bytes) | 157,930,560 | 22,800,960 |
| Size | 150.6 MB | 21.7 MB |
| Events in quadrant A | 1,090,392 | 184,866 |
| Events in quadrant B | 358,725 | 2,936 |
| Events in quadrant C | 1,114,594 | 182,685 |
| Events in quadrant D | 2,068,126 | 162,521 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 69 | 21 |
| B | 0 | 70 | 25 |
| C | 0 | 73 | 23 |
| D | 0 | 73 | 27 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6916 | 2395 |
| B | 0 | 3359 | 989 |
| C | 0 | 7308 | 2717 |
| D | 0 | 12236 | 4700 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 5 |
| B | 0 | 15 | 2 |
| C | 0 | 15 | 2 |
| D | 0 | 14 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2181 | 6 | 0.275103% |
| B | 2311 | 2311 | 100.000000% |
| C | 2135 | 9 | 0.421546% |
| D | 1973 | 231 | 11.708059% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3884 | 2348 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4483 | 2310 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3863 | 2315 | 7 | 7 | 0.18% | 0.30% |  |
| D | 3841 | 2204 | 167 | 167 | 4.35% | 7.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 112229 | 2137.16 | 249 | 245 | 52.4 |
| A | 13 | 248 | 5573 | 101.68 | 249 | 245 | 52.4 |
| A | 13 | 254 | 3812 | 68.07 | 249 | 245 | 52.4 |
| B | 12 | 243 | 319415 | 132126.51 | 5 | 5 | 2.4 |
| B | 12 | 144 | 6040 | 2496.43 | 5 | 5 | 2.4 |
| B | 5 | 172 | 5910 | 2442.65 | 5 | 5 | 2.4 |
| C | 15 | 214 | 95567 | 1654.61 | 239 | 240 | 57.6 |
| C | 0 | 10 | 82153 | 1421.78 | 239 | 240 | 57.6 |
| C | 12 | 249 | 2089 | 32.09 | 239 | 240 | 57.6 |
| D | 12 | 235 | 921801 | 17450.82 | 211 | 204 | 52.8 |
| D | 13 | 249 | 253162 | 4789.86 | 211 | 204 | 52.8 |
| D | 12 | 233 | 22251 | 417.47 | 211 | 204 | 52.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

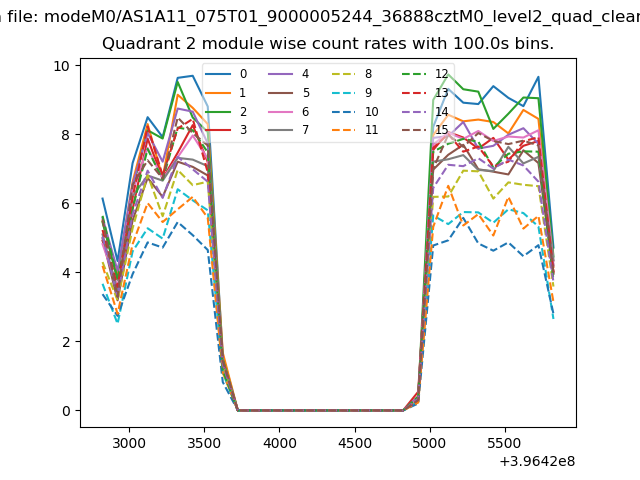

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

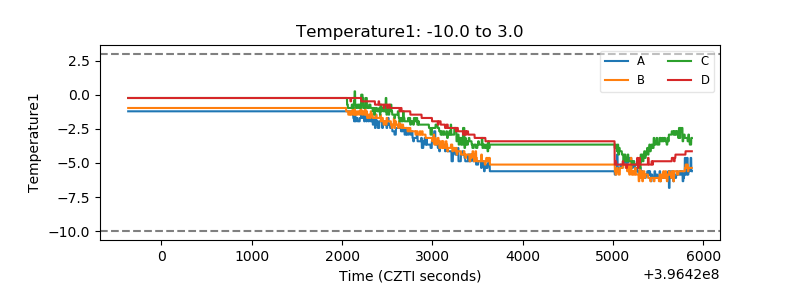

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

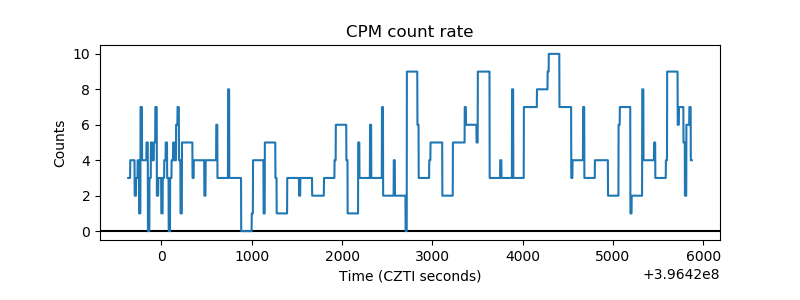

| _CPM_Rate |  |
| CZT Counter |  |

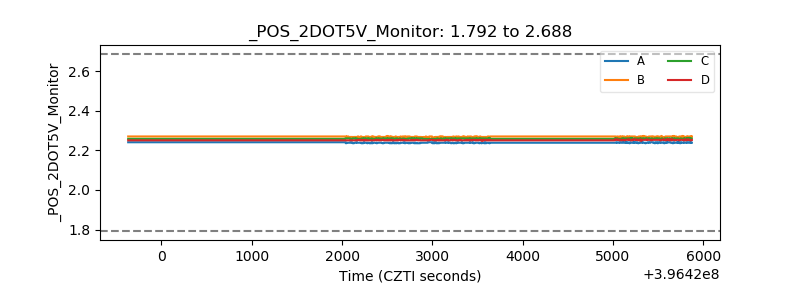

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
