| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_010T01_9000005246_36899cztM0_level2.evt | modeM0/AS1C07_010T01_9000005246_36899cztM0_level2_quad_clean.evt |
| Size (bytes) | 324,921,600 | 57,142,080 |
| Size | 309.9 MB | 54.5 MB |
| Events in quadrant A | 2,492,083 | 468,323 |
| Events in quadrant B | 735,832 | 6,923 |
| Events in quadrant C | 2,631,284 | 471,557 |
| Events in quadrant D | 3,643,844 | 439,273 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10411 | 3 |
| B | 0 | 4924 | 2 |
| C | 0 | 10621 | 2 |
| D | 0 | 14091 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4874 | 18 | 0.369307% |
| B | 4874 | 4874 | 100.000000% |
| C | 4874 | 45 | 0.923266% |
| D | 4874 | 294 | 6.032007% |

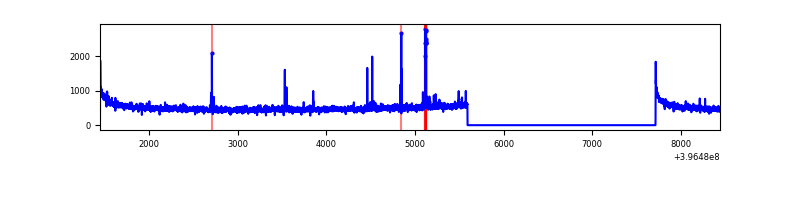

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6996 | 4875 | 12 | 12 | 0.17% | 0.25% |  |
| B | 6995 | 4873 | 0 | 0 | 0.00% | 0.00% |  |
| C | 6996 | 4875 | 36 | 36 | 0.51% | 0.74% |  |
| D | 6996 | 4875 | 297 | 297 | 4.25% | 6.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 208612 | 1823.73 | 571 | 560 | 114.1 |
| A | 9 | 143 | 59203 | 514.05 | 571 | 560 | 114.1 |
| A | 13 | 6 | 11096 | 92.36 | 571 | 560 | 114.1 |
| B | 12 | 243 | 677213 | 178427.13 | 10 | 10 | 3.8 |
| B | 12 | 144 | 12627 | 3324.28 | 10 | 10 | 3.8 |
| B | 0 | 229 | 1025 | 267.43 | 10 | 10 | 3.8 |
| C | 15 | 214 | 210811 | 1596.59 | 567 | 572 | 131.7 |
| C | 0 | 10 | 184959 | 1400.27 | 567 | 572 | 131.7 |
| C | 0 | 207 | 23455 | 173.78 | 567 | 572 | 131.7 |
| D | 2 | 120 | 551462 | 4109.6 | 552 | 538 | 134.1 |
| D | 13 | 171 | 428370 | 3191.4 | 552 | 538 | 134.1 |
| D | 12 | 233 | 329057 | 2450.58 | 552 | 538 | 134.1 |

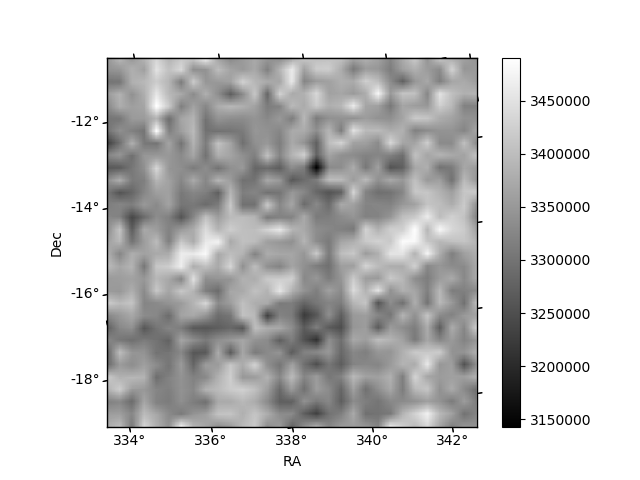

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

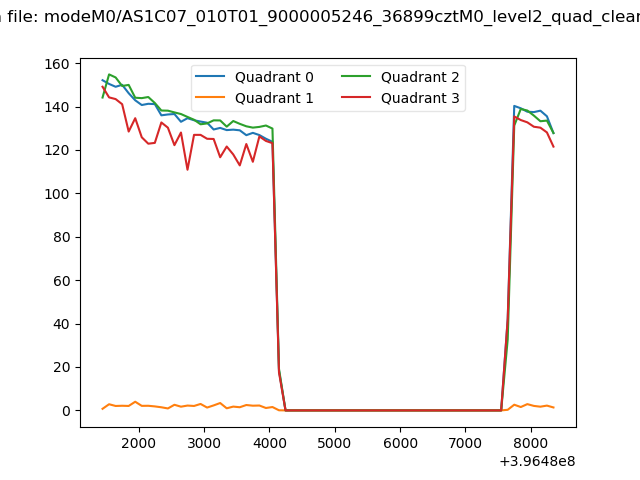

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

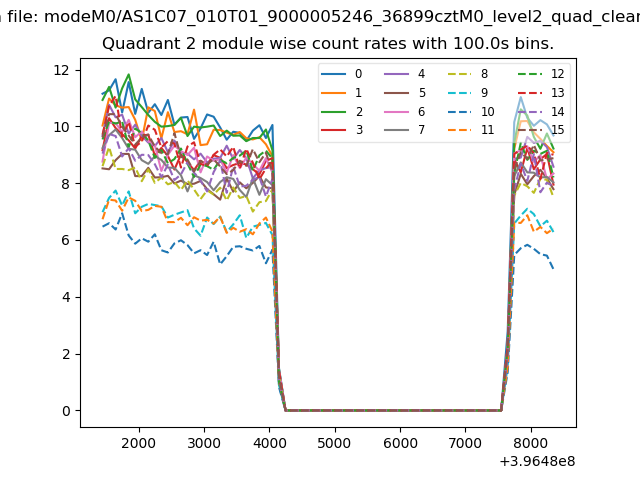

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

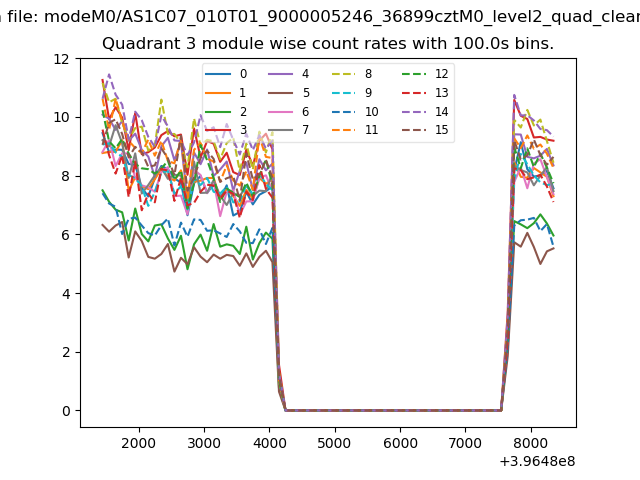

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

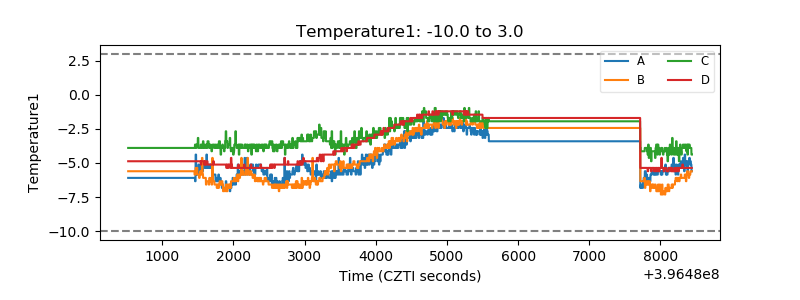

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

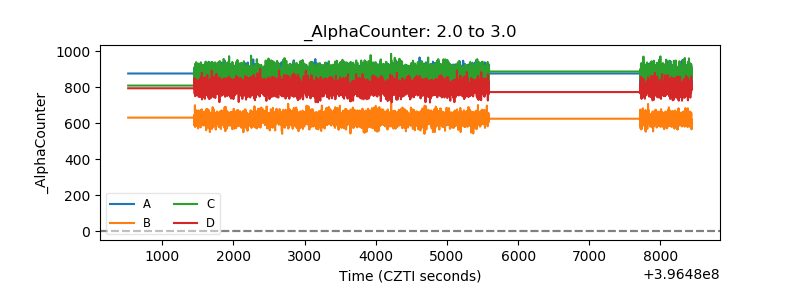

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
