| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_010T01_9000005246_36911cztM0_level2.evt | modeM0/AS1C07_010T01_9000005246_36911cztM0_level2_quad_clean.evt |
| Size (bytes) | 344,563,200 | 77,771,520 |
| Size | 328.6 MB | 74.2 MB |
| Events in quadrant A | 2,961,691 | 663,971 |
| Events in quadrant B | 850,051 | 10,100 |
| Events in quadrant C | 3,064,023 | 662,063 |
| Events in quadrant D | 3,171,612 | 624,221 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12222 | 3 |
| B | 0 | 5686 | 2 |
| C | 0 | 12326 | 2 |
| D | 0 | 13093 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5616 | 14 | 0.249288% |
| B | 5616 | 5616 | 100.000000% |
| C | 5616 | 44 | 0.783476% |
| D | 5616 | 121 | 2.154558% |

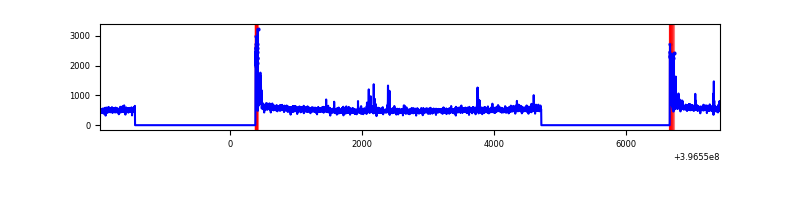

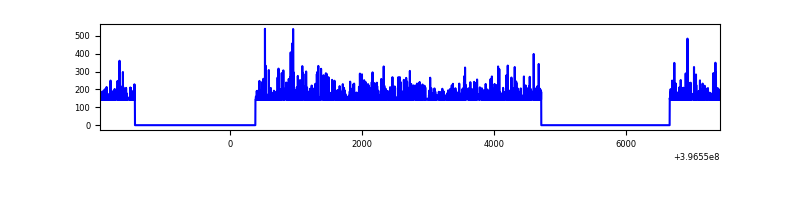

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9383 | 5618 | 3 | 3 | 0.03% | 0.05% |  |
| B | 9382 | 5615 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9383 | 5618 | 29 | 29 | 0.31% | 0.52% |  |
| D | 9383 | 5618 | 93 | 93 | 0.99% | 1.66% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 228886 | 1667.66 | 685 | 673 | 136.8 |
| A | 9 | 143 | 55237 | 398.73 | 685 | 673 | 136.8 |
| A | 12 | 189 | 11590 | 79.78 | 685 | 673 | 136.8 |
| B | 12 | 243 | 780175 | 191577.96 | 12 | 11 | 4.1 |
| B | 12 | 144 | 14463 | 3548.85 | 12 | 11 | 4.1 |
| B | 0 | 182 | 1568 | 382.34 | 12 | 11 | 4.1 |
| C | 15 | 214 | 238504 | 1524.77 | 674 | 680 | 156.0 |
| C | 0 | 10 | 142151 | 907.02 | 674 | 680 | 156.0 |
| C | 15 | 208 | 52134 | 329.89 | 674 | 680 | 156.0 |
| D | 13 | 249 | 261446 | 1611.98 | 665 | 648 | 161.8 |
| D | 13 | 171 | 99198 | 609.13 | 665 | 648 | 161.8 |
| D | 12 | 233 | 53449 | 326.36 | 665 | 648 | 161.8 |

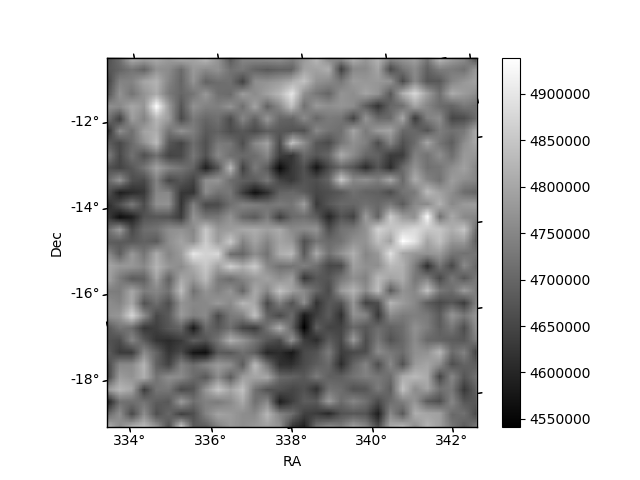

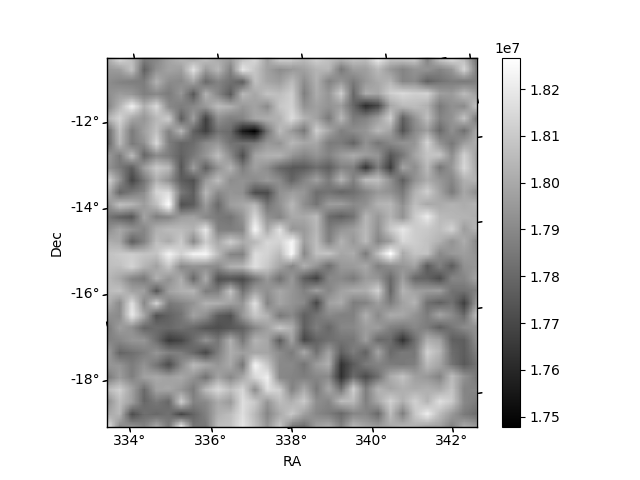

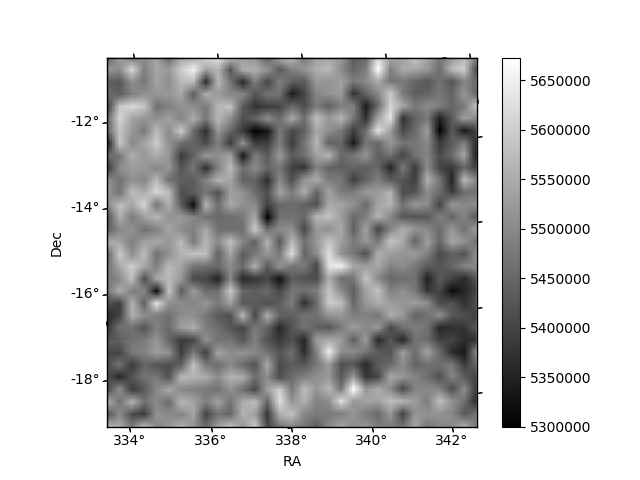

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

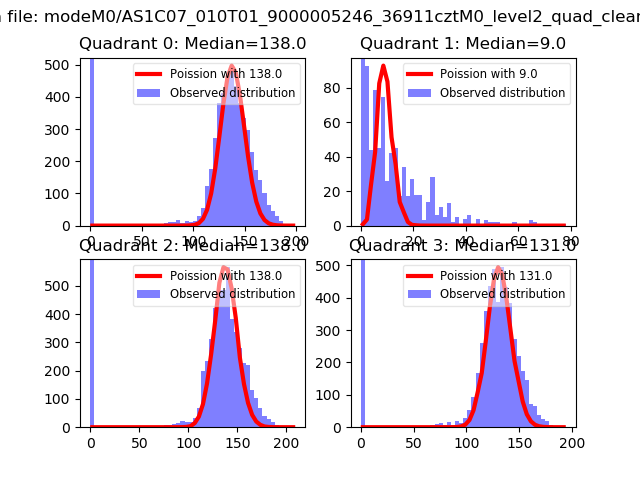

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

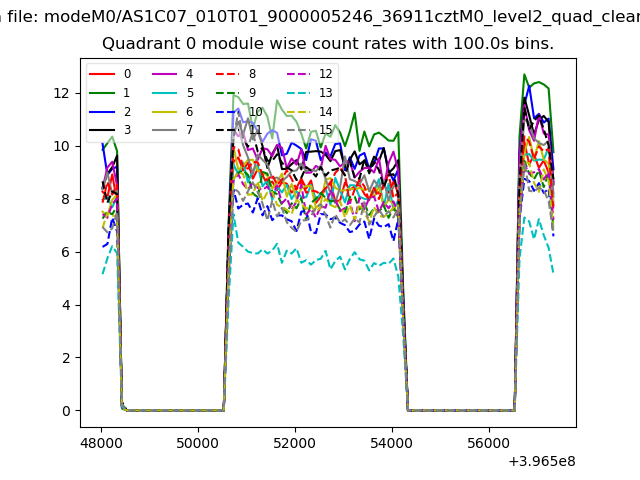

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

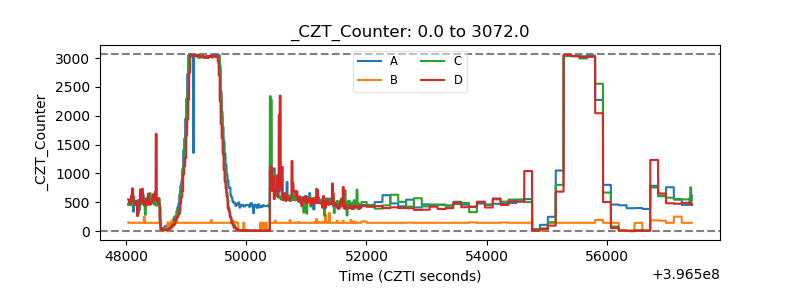

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
