| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_087T05_9000005248_36929cztM0_level2.evt | modeM0/AS1A11_087T05_9000005248_36929cztM0_level2_quad_clean.evt |
| Size (bytes) | 432,184,320 | 76,095,360 |
| Size | 412.2 MB | 72.6 MB |
| Events in quadrant A | 2,466,091 | 493,724 |
| Events in quadrant B | 2,698,407 | 507,338 |
| Events in quadrant C | 2,927,234 | 497,974 |
| Events in quadrant D | 4,655,080 | 452,456 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10602 | 3 |
| B | 0 | 11314 | 2 |
| C | 0 | 11742 | 2 |
| D | 0 | 17335 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5024 | 19 | 0.378185% |
| B | 5024 | 55 | 1.094745% |
| C | 5024 | 108 | 2.149682% |
| D | 5024 | 819 | 16.301752% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7087 | 5025 | 7 | 7 | 0.10% | 0.14% |  |
| B | 7087 | 5025 | 40 | 40 | 0.56% | 0.80% |  |
| C | 7087 | 5025 | 95 | 95 | 1.34% | 1.89% |  |
| D | 7087 | 5025 | 777 | 777 | 10.96% | 15.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 211236 | 1820.29 | 568 | 556 | 115.7 |
| A | 15 | 174 | 31401 | 266.5 | 568 | 556 | 115.7 |
| A | 9 | 143 | 14560 | 120.99 | 568 | 556 | 115.7 |
| B | 5 | 172 | 182990 | 1660.02 | 568 | 553 | 109.9 |
| B | 0 | 182 | 145742 | 1321.09 | 568 | 553 | 109.9 |
| B | 0 | 213 | 33980 | 304.16 | 568 | 553 | 109.9 |
| C | 0 | 10 | 439632 | 3342.39 | 563 | 569 | 131.4 |
| C | 15 | 214 | 215394 | 1635.37 | 563 | 569 | 131.4 |
| C | 0 | 207 | 46945 | 353.04 | 563 | 569 | 131.4 |
| D | 10 | 253 | 2137678 | 16503.11 | 525 | 510 | 129.5 |
| D | 2 | 250 | 195667 | 1506.99 | 525 | 510 | 129.5 |
| D | 10 | 118 | 85102 | 653.22 | 525 | 510 | 129.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

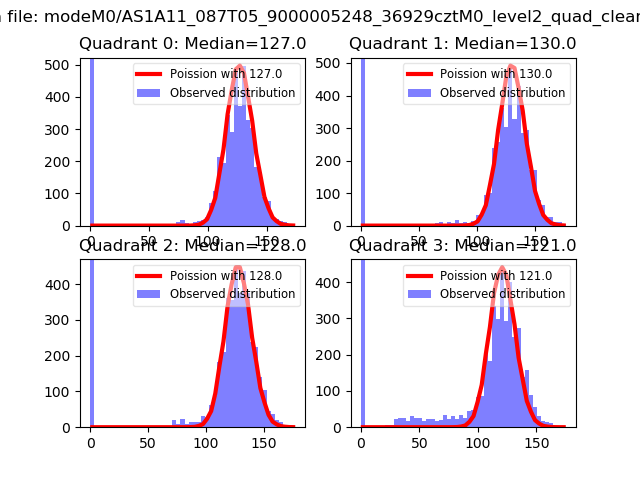

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

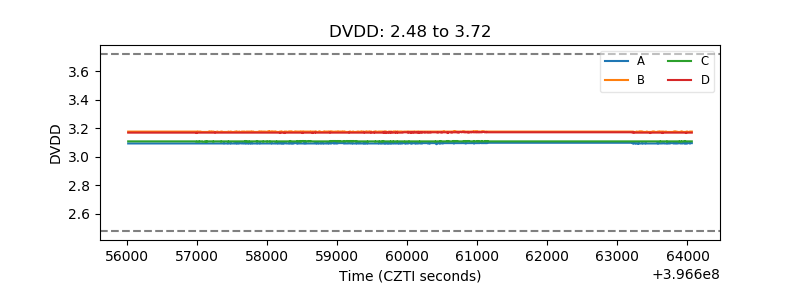

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

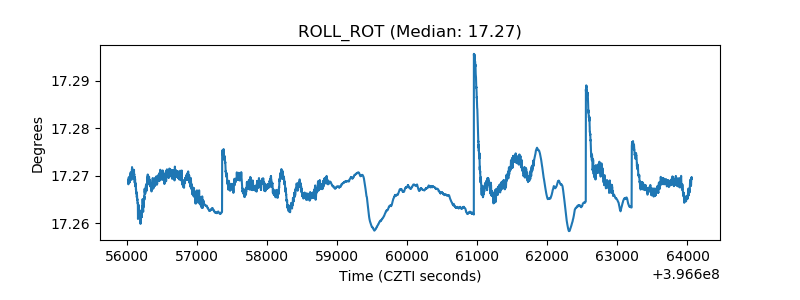

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
