| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_024T01_9000005250_36942cztM0_level2.evt | modeM0/AS1A11_024T01_9000005250_36942cztM0_level2_quad_clean.evt |
| Size (bytes) | 440,642,880 | 64,235,520 |
| Size | 420.2 MB | 61.3 MB |
| Events in quadrant A | 2,543,102 | 416,445 |
| Events in quadrant B | 3,120,993 | 413,445 |
| Events in quadrant C | 2,817,777 | 401,139 |
| Events in quadrant D | 4,527,074 | 366,862 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 29 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10589 | 3 |
| B | 0 | 12370 | 2 |
| C | 0 | 11268 | 2 |
| D | 0 | 16738 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4943 | 12 | 0.242768% |
| B | 4943 | 148 | 2.994133% |
| C | 4943 | 122 | 2.468137% |
| D | 4943 | 511 | 10.337852% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7067 | 4944 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7066 | 4943 | 122 | 122 | 1.73% | 2.47% |  |
| C | 7067 | 4944 | 104 | 104 | 1.47% | 2.10% |  |
| D | 7067 | 4944 | 481 | 481 | 6.81% | 9.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 234561 | 1956.22 | 589 | 581 | 119.6 |
| A | 13 | 254 | 10674 | 84.38 | 589 | 581 | 119.6 |
| A | 13 | 248 | 10355 | 81.72 | 589 | 581 | 119.6 |
| B | 0 | 229 | 279128 | 2523.9 | 584 | 571 | 110.4 |
| B | 5 | 184 | 136778 | 1234.12 | 584 | 571 | 110.4 |
| B | 5 | 172 | 106787 | 962.38 | 584 | 571 | 110.4 |
| C | 0 | 10 | 338458 | 2605.37 | 561 | 565 | 129.7 |
| C | 15 | 214 | 211272 | 1624.68 | 561 | 565 | 129.7 |
| C | 10 | 49 | 68382 | 522.91 | 561 | 565 | 129.7 |
| D | 12 | 17 | 880272 | 6676.12 | 539 | 526 | 131.8 |
| D | 12 | 233 | 478026 | 3623.6 | 539 | 526 | 131.8 |
| D | 10 | 253 | 379735 | 2877.7 | 539 | 526 | 131.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

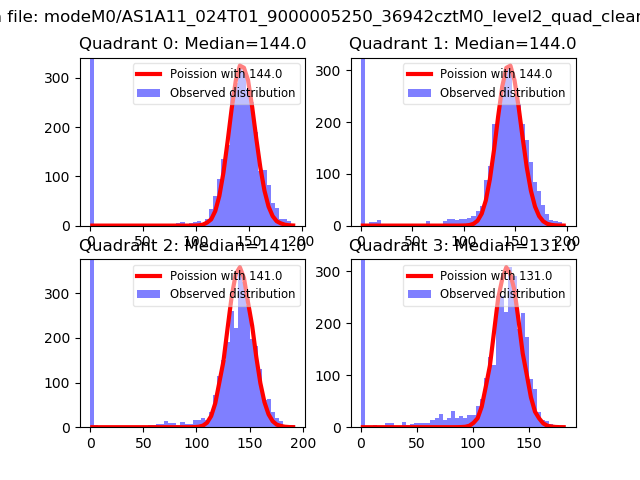

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

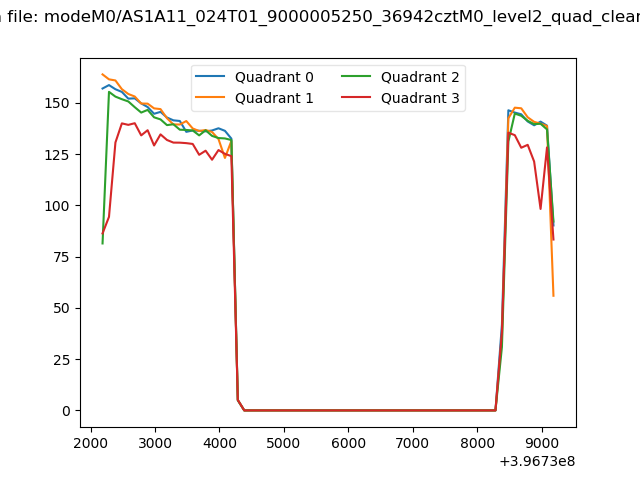

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

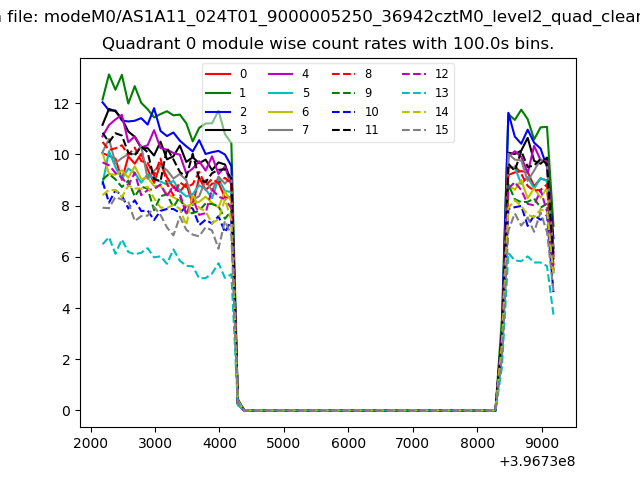

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

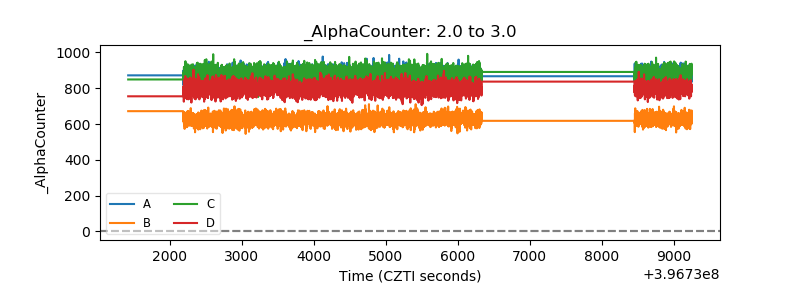

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

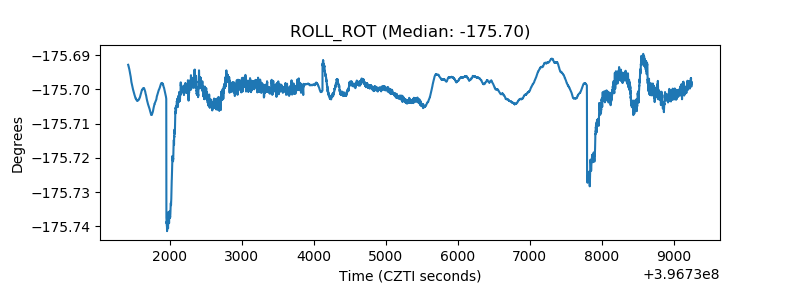

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

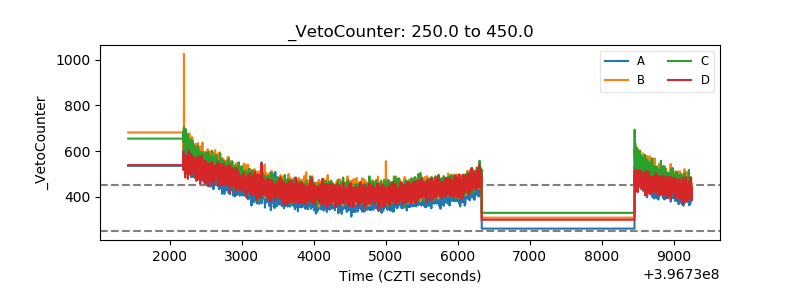

| Veto Counter |  |
