| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_024T01_9000005250_36954cztM0_level2.evt | modeM0/AS1A11_024T01_9000005250_36954cztM0_level2_quad_clean.evt |
| Size (bytes) | 195,897,600 | 12,326,400 |
| Size | 186.8 MB | 11.8 MB |
| Events in quadrant A | 1,338,838 | 47,370 |
| Events in quadrant B | 1,372,971 | 45,855 |
| Events in quadrant C | 1,437,886 | 48,383 |
| Events in quadrant D | 1,604,444 | 45,470 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 2 |
| C | 0 | 16 | 0 |
| D | 0 | 18 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 92 | 37 |
| B | 0 | 91 | 36 |
| C | 0 | 95 | 40 |
| D | 0 | 90 | 28 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9505 | 3767 |
| B | 0 | 10027 | 4289 |
| C | 0 | 10032 | 4131 |
| D | 0 | 11493 | 5004 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2609 | 7 | 0.268302% |
| B | 2567 | 32 | 1.246591% |
| C | 2555 | 25 | 0.978474% |
| D | 2544 | 92 | 3.616352% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

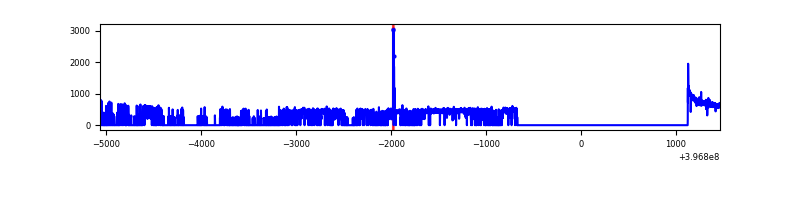

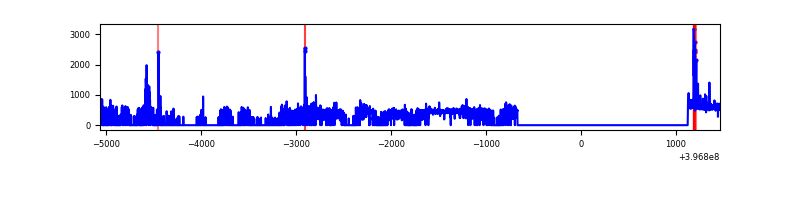

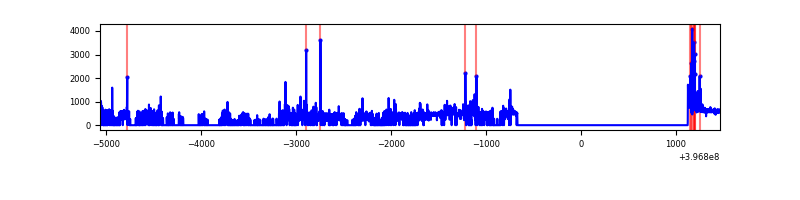

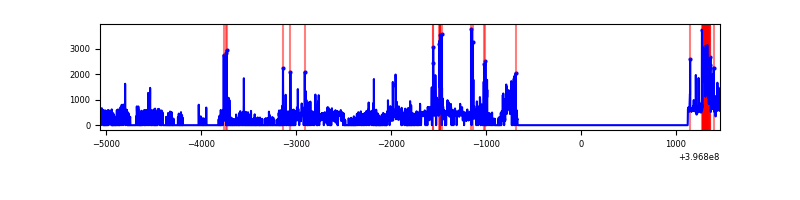

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6527 | 3193 | 3 | 3 | 0.05% | 0.09% |  |
| B | 6527 | 3128 | 15 | 15 | 0.23% | 0.48% |  |
| C | 6526 | 3125 | 13 | 13 | 0.20% | 0.42% |  |
| D | 6527 | 3090 | 62 | 62 | 0.95% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 119268 | 1838.42 | 310 | 304 | 64.7 |
| A | 15 | 174 | 15162 | 229.61 | 310 | 304 | 64.7 |
| A | 13 | 6 | 6914 | 102.15 | 310 | 304 | 64.7 |
| B | 5 | 172 | 66898 | 1121.79 | 300 | 292 | 59.4 |
| B | 0 | 229 | 31727 | 529.43 | 300 | 292 | 59.4 |
| B | 0 | 221 | 15417 | 254.74 | 300 | 292 | 59.4 |
| C | 15 | 214 | 111949 | 1626.54 | 292 | 295 | 68.6 |
| C | 14 | 254 | 106878 | 1552.66 | 292 | 295 | 68.6 |
| C | 0 | 10 | 76507 | 1110.23 | 292 | 295 | 68.6 |
| D | 12 | 233 | 132678 | 1816.74 | 290 | 281 | 72.9 |
| D | 10 | 253 | 70717 | 966.52 | 290 | 281 | 72.9 |
| D | 12 | 17 | 65843 | 899.64 | 290 | 281 | 72.9 |

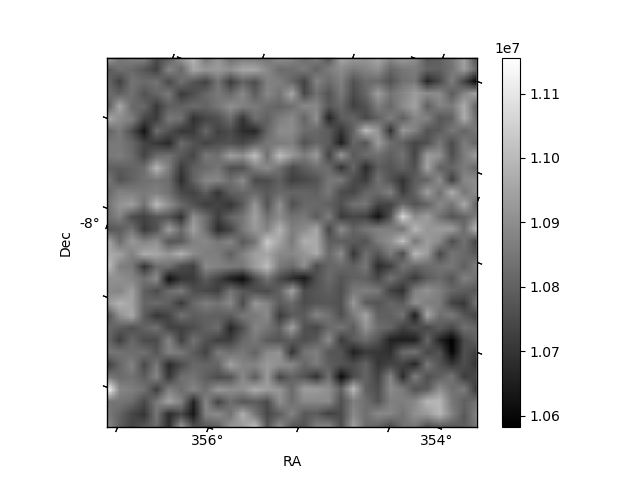

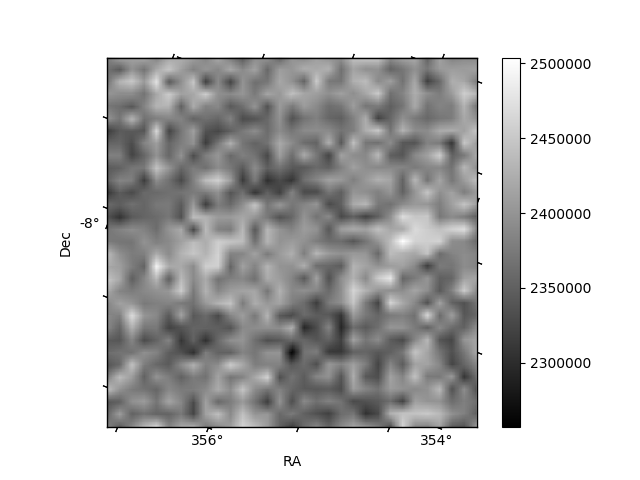

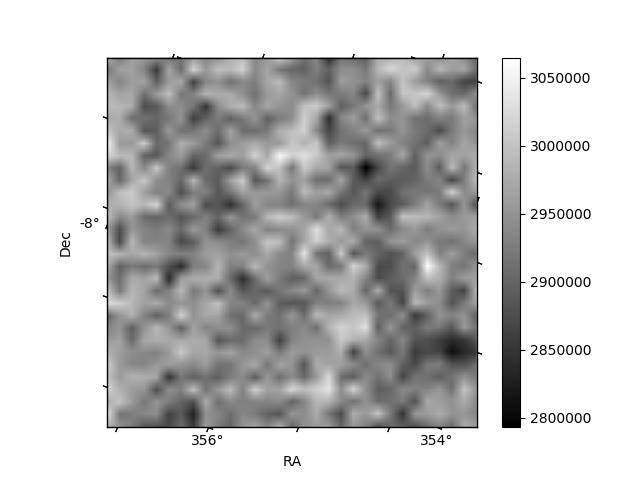

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

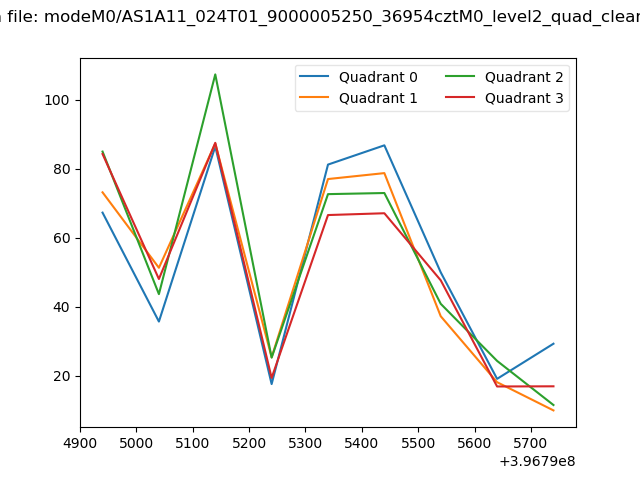

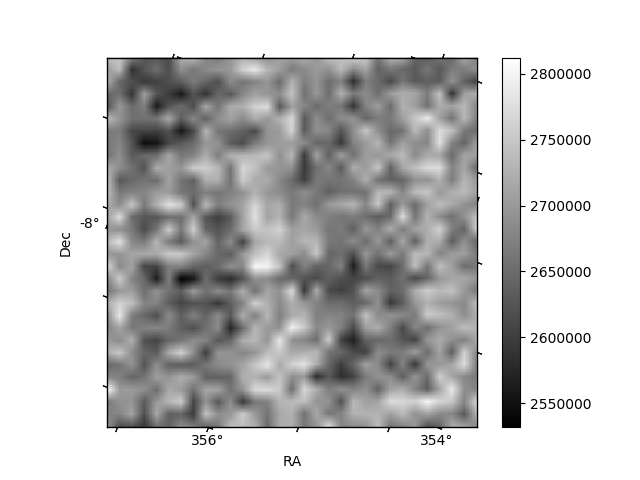

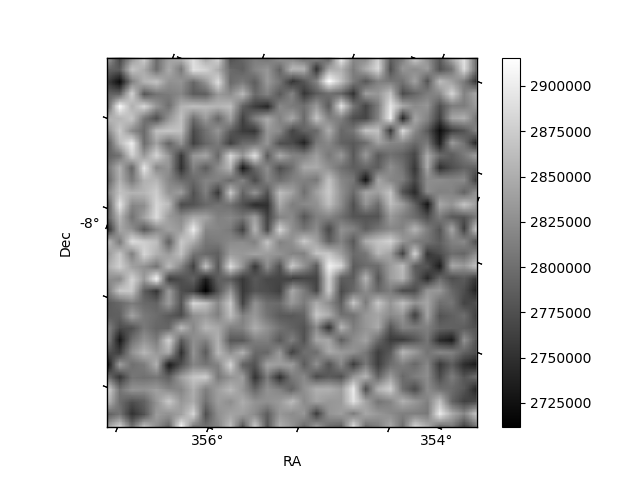

| Plot type | Count rate plots | Images |
|---|---|---|

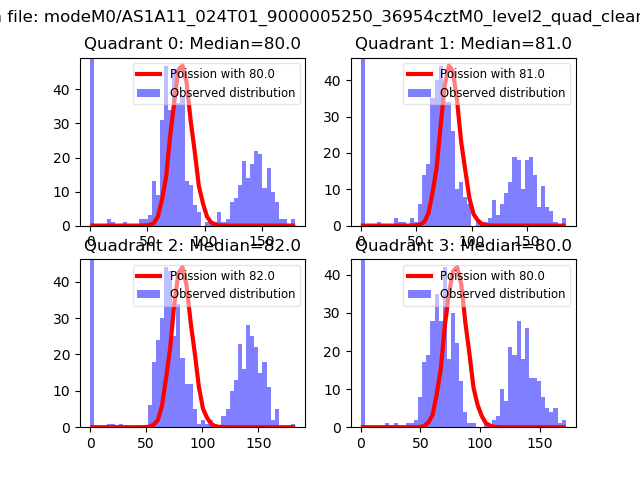

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

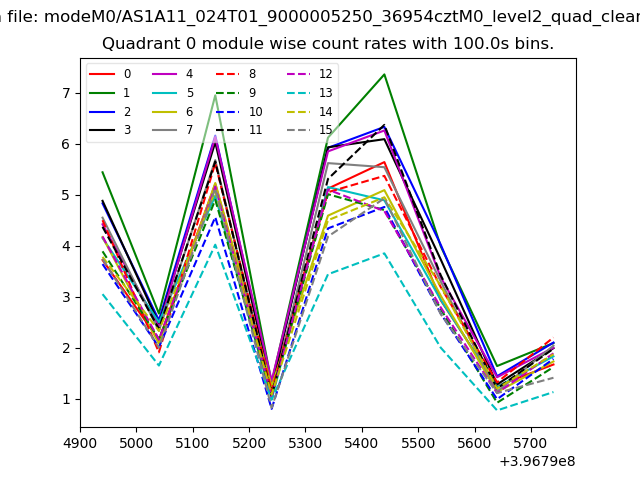

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

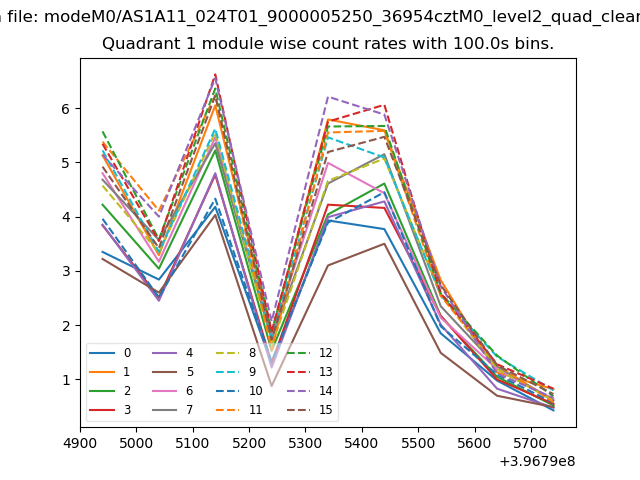

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

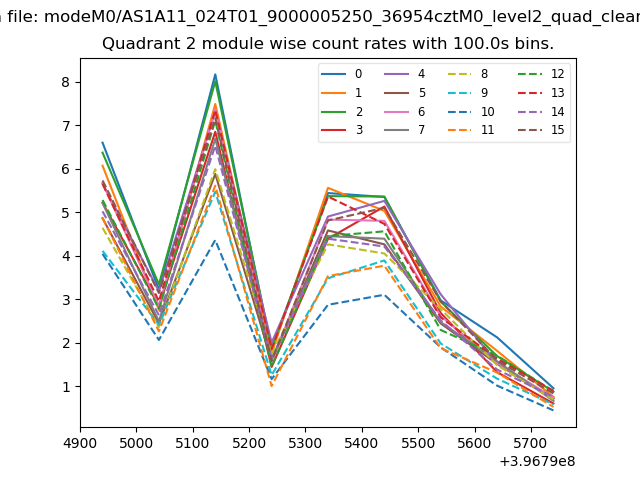

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

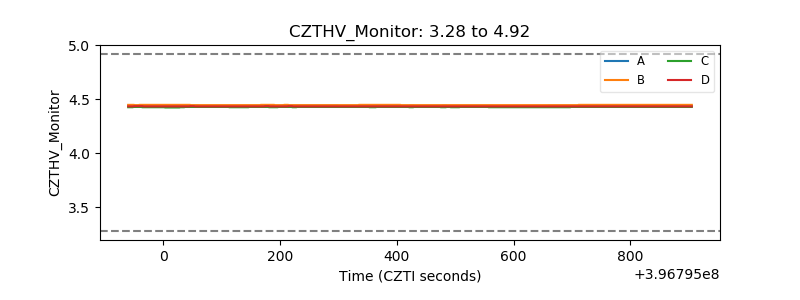

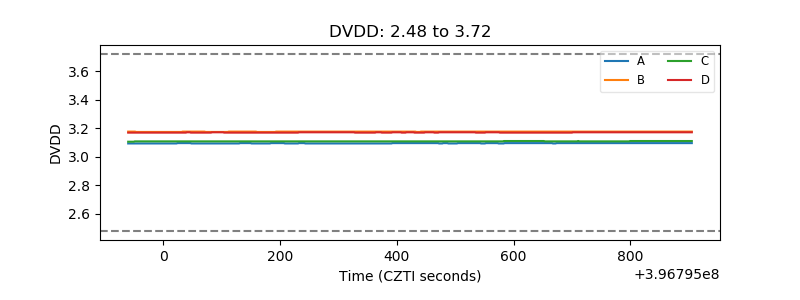

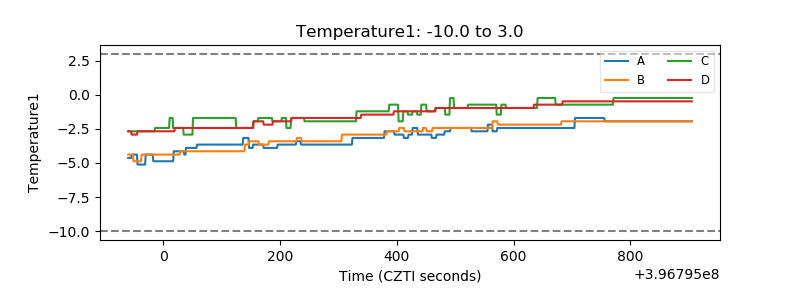

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

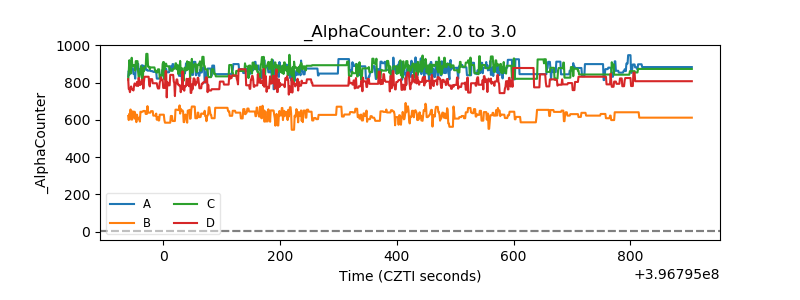

| Alpha Counter |  |

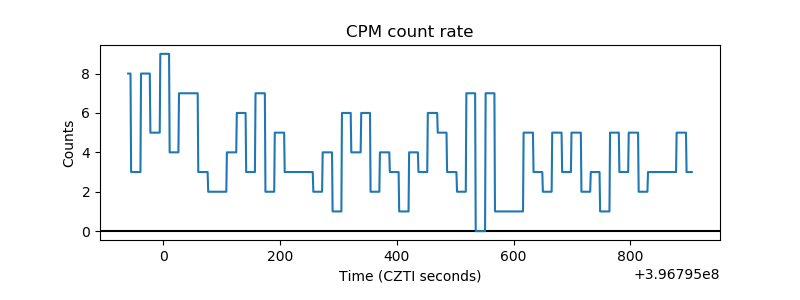

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

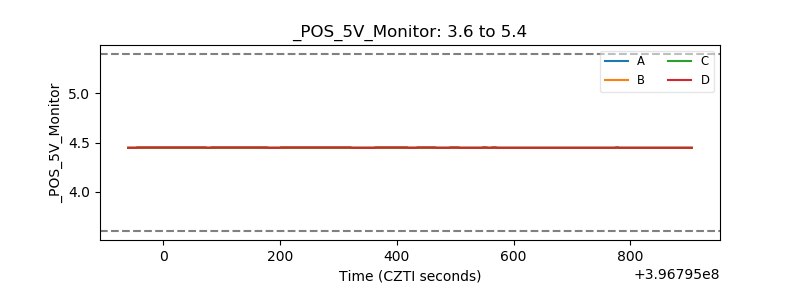

| +5 Volts monitor |  |

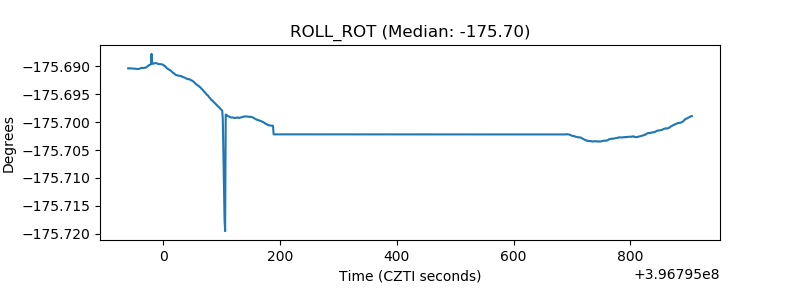

| _ROLL_ROT |  |

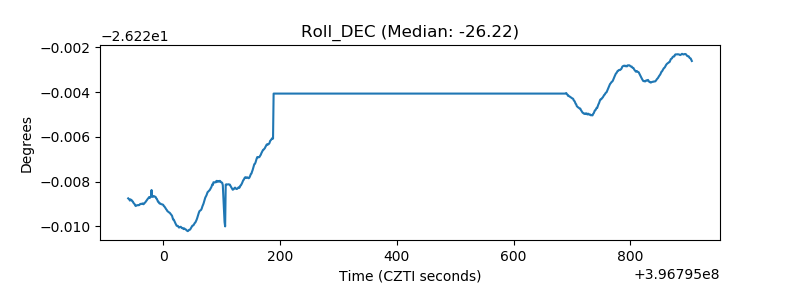

| _Roll_DEC |  |

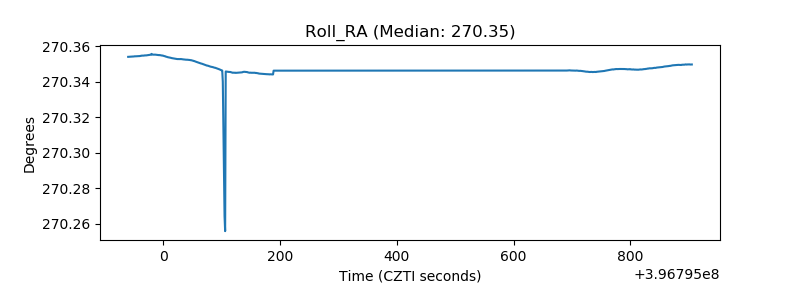

| _Roll_RA |  |

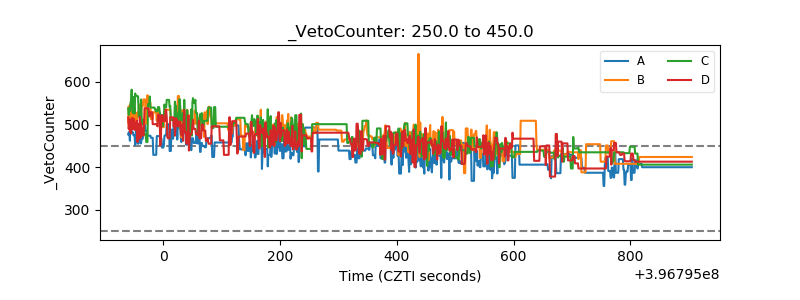

| Veto Counter |  |
