| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T10_9000005252_36972cztM0_level2.evt | modeM0/AS1C07_001T10_9000005252_36972cztM0_level2_quad_clean.evt |
| Size (bytes) | 613,517,760 | 78,756,480 |
| Size | 585.1 MB | 75.1 MB |
| Events in quadrant A | 2,461,021 | 554,446 |
| Events in quadrant B | 7,652,263 | 418,507 |
| Events in quadrant C | 2,650,795 | 562,537 |
| Events in quadrant D | 5,480,239 | 500,099 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10585 | 3 |
| B | 0 | 26122 | 2 |
| C | 0 | 10924 | 2 |
| D | 0 | 19574 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 36 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4961 | 21 | 0.423302% |
| B | 4961 | 1998 | 40.274138% |
| C | 4961 | 45 | 0.907075% |
| D | 4961 | 1117 | 22.515622% |

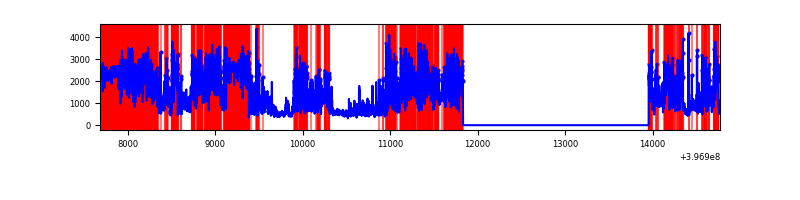

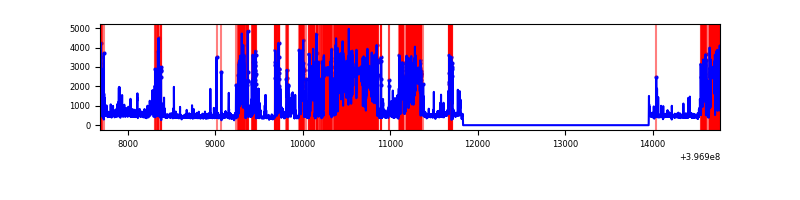

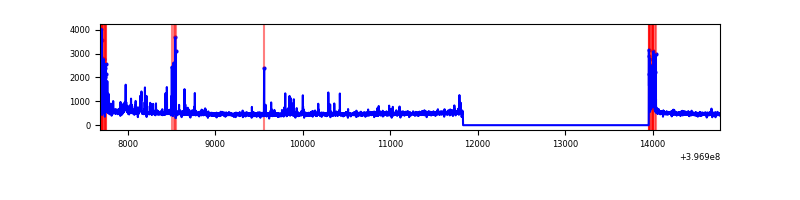

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7084 | 4962 | 16 | 16 | 0.23% | 0.32% |  |
| B | 7084 | 4962 | 1624 | 1624 | 22.92% | 32.73% |  |
| C | 7084 | 4962 | 33 | 33 | 0.47% | 0.67% |  |
| D | 7084 | 4962 | 1033 | 1033 | 14.58% | 20.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 233765 | 2103.98 | 550 | 540 | 110.8 |
| A | 13 | 248 | 47821 | 426.53 | 550 | 540 | 110.8 |
| A | 13 | 6 | 21632 | 190.28 | 550 | 540 | 110.8 |
| B | 5 | 184 | 5455733 | 64135.07 | 456 | 445 | 85.1 |
| B | 0 | 221 | 100002 | 1170.44 | 456 | 445 | 85.1 |
| B | 0 | 190 | 93836 | 1097.95 | 456 | 445 | 85.1 |
| C | 15 | 214 | 211925 | 1685.17 | 548 | 551 | 125.4 |
| C | 0 | 10 | 159603 | 1268.03 | 548 | 551 | 125.4 |
| C | 14 | 254 | 58240 | 459.92 | 548 | 551 | 125.4 |
| D | 12 | 17 | 3210342 | 24528.11 | 478 | 467 | 130.9 |
| D | 13 | 171 | 88826 | 675.19 | 478 | 467 | 130.9 |
| D | 12 | 218 | 87595 | 665.78 | 478 | 467 | 130.9 |

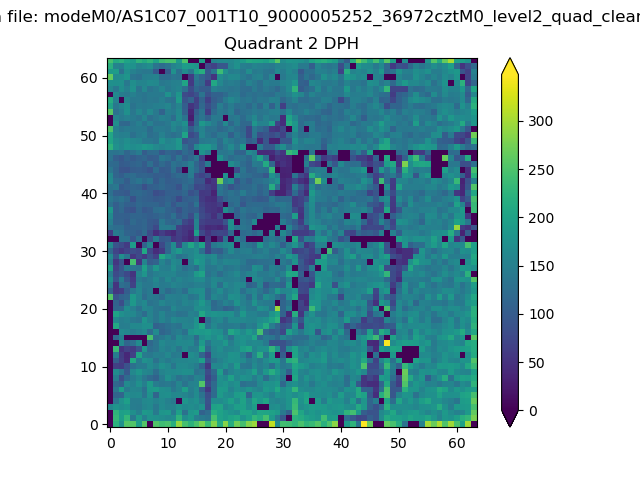

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

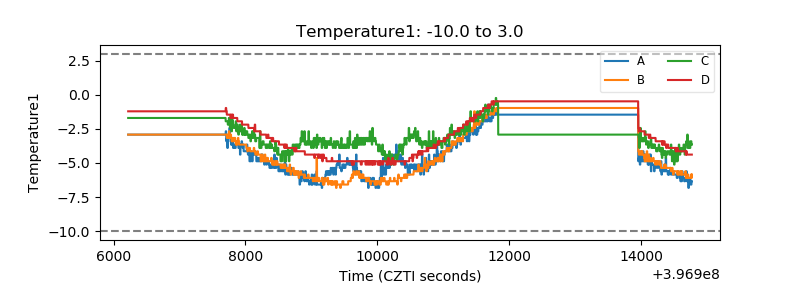

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

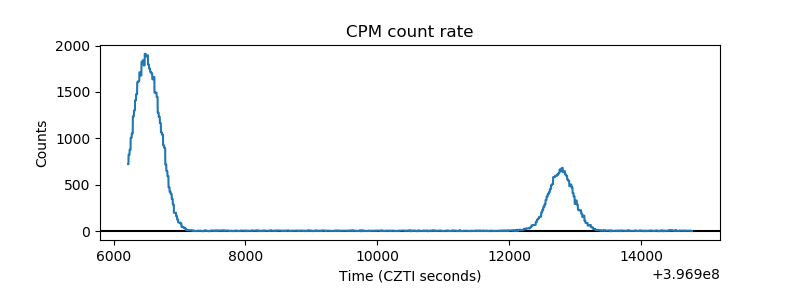

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

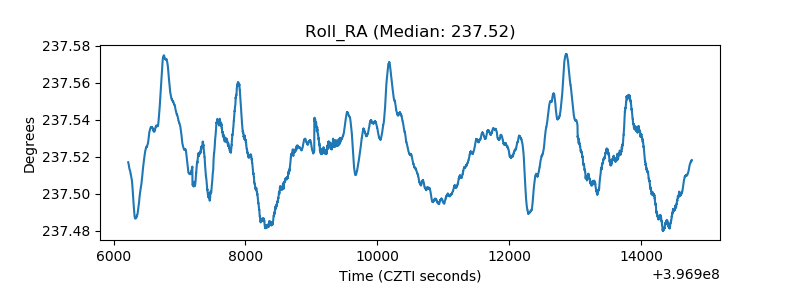

| _Roll_RA |  |
| Veto Counter |  |
