| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_015T04_9000005262_37015cztM0_level2.evt | modeM0/AS1C07_015T04_9000005262_37015cztM0_level2_quad_clean.evt |
| Size (bytes) | 443,689,920 | 64,270,080 |
| Size | 423.1 MB | 61.3 MB |
| Events in quadrant A | 2,694,773 | 406,394 |
| Events in quadrant B | 3,078,958 | 413,683 |
| Events in quadrant C | 3,401,256 | 402,035 |
| Events in quadrant D | 3,932,049 | 382,413 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 36 | 0 |
| B | 0 | 36 | 0 |
| C | 0 | 36 | 0 |
| D | 0 | 37 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10991 | 16 |
| B | 0 | 12225 | 5 |
| C | 0 | 13229 | 6 |
| D | 0 | 15058 | 26 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4861 | 20 | 0.411438% |
| B | 4868 | 137 | 2.814297% |
| C | 4867 | 140 | 2.876515% |
| D | 4860 | 258 | 5.308642% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7023 | 4868 | 7 | 7 | 0.10% | 0.14% |  |
| B | 7023 | 4870 | 93 | 93 | 1.32% | 1.91% |  |
| C | 7023 | 4871 | 121 | 121 | 1.72% | 2.48% |  |
| D | 7022 | 4866 | 186 | 186 | 2.65% | 3.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 237142 | 1913.07 | 620 | 610 | 123.6 |
| A | 12 | 189 | 30796 | 244.14 | 620 | 610 | 123.6 |
| A | 14 | 1 | 15165 | 117.72 | 620 | 610 | 123.6 |
| B | 0 | 213 | 212394 | 1831.32 | 614 | 600 | 115.7 |
| B | 5 | 184 | 207679 | 1790.55 | 614 | 600 | 115.7 |
| B | 5 | 172 | 137519 | 1183.89 | 614 | 600 | 115.7 |
| C | 1 | 23 | 563107 | 4080.28 | 603 | 610 | 137.9 |
| C | 15 | 214 | 205341 | 1485.09 | 603 | 610 | 137.9 |
| C | 0 | 10 | 141450 | 1021.63 | 603 | 610 | 137.9 |
| D | 1 | 52 | 840661 | 5739.3 | 597 | 582 | 146.4 |
| D | 12 | 235 | 215210 | 1466.31 | 597 | 582 | 146.4 |
| D | 2 | 250 | 205522 | 1400.12 | 597 | 582 | 146.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

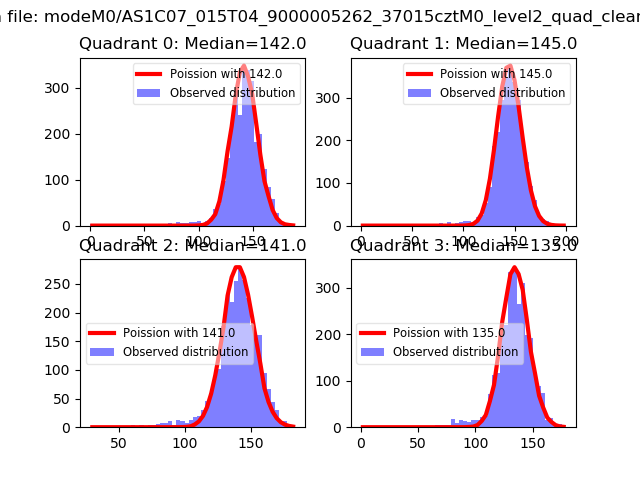

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

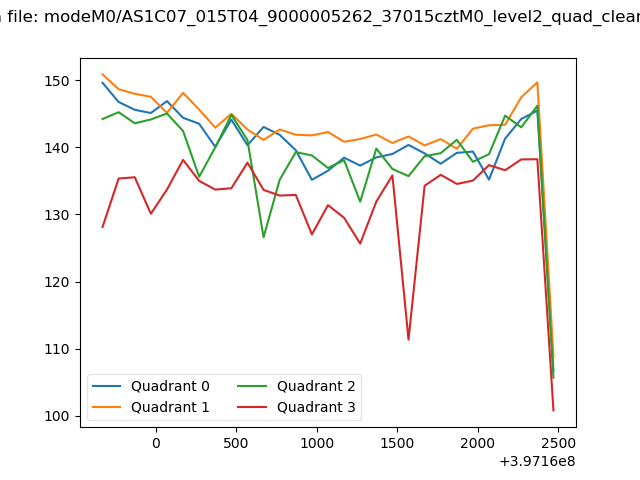

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

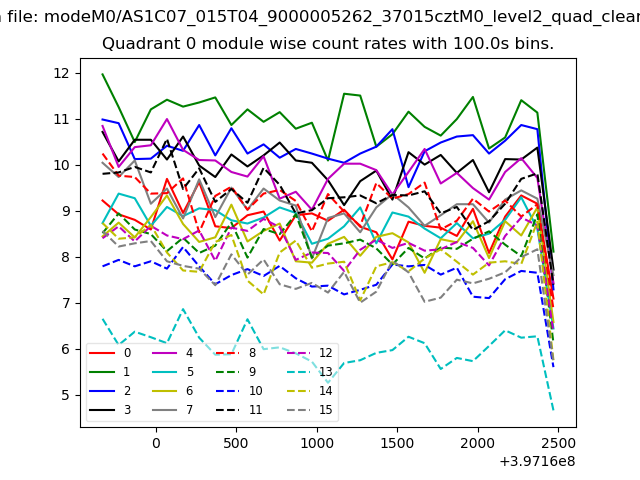

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

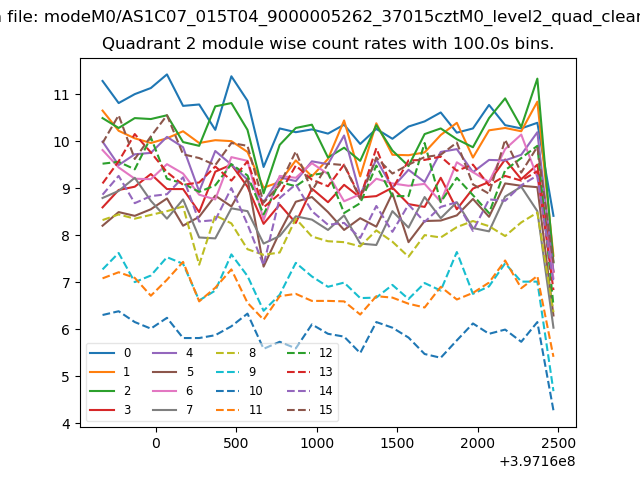

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

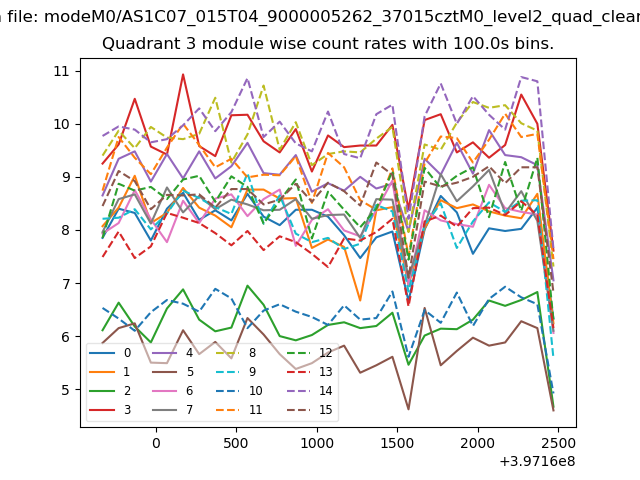

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

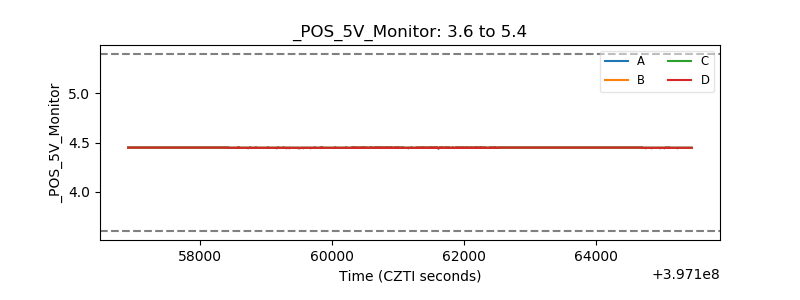

| +5 Volts monitor |  |
| _ROLL_ROT |  |

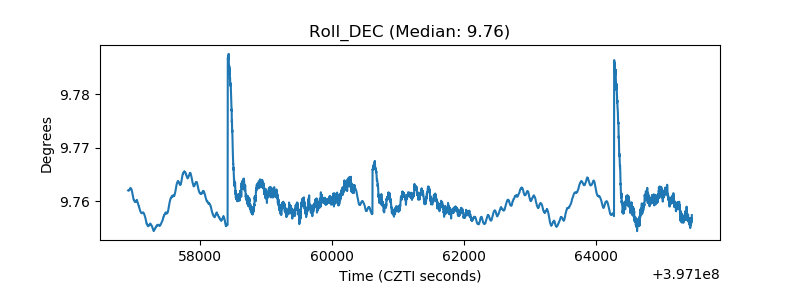

| _Roll_DEC |  |
| _Roll_RA |  |

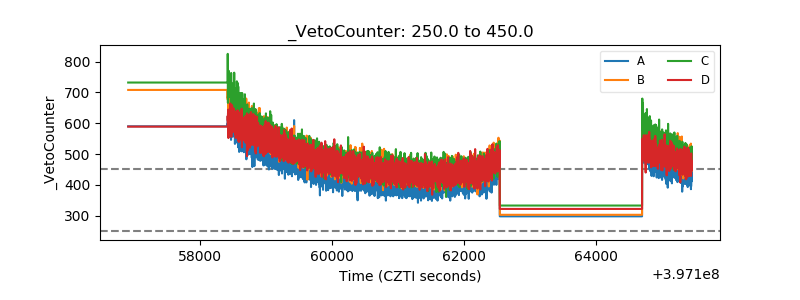

| Veto Counter |  |
