| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_046T01_9000005266_37030cztM0_level2.evt | modeM0/AS1T05_046T01_9000005266_37030cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,546,880 | 58,049,280 |
| Size | 391.5 MB | 55.4 MB |
| Events in quadrant A | 2,543,715 | 362,630 |
| Events in quadrant B | 2,905,580 | 360,989 |
| Events in quadrant C | 3,103,993 | 350,965 |
| Events in quadrant D | 3,541,846 | 333,563 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10634 | 3 |
| B | 0 | 11739 | 2 |
| C | 0 | 12205 | 2 |
| D | 0 | 13856 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4978 | 6 | 0.120530% |
| B | 4978 | 107 | 2.149458% |
| C | 4978 | 105 | 2.109281% |
| D | 4978 | 192 | 3.856971% |

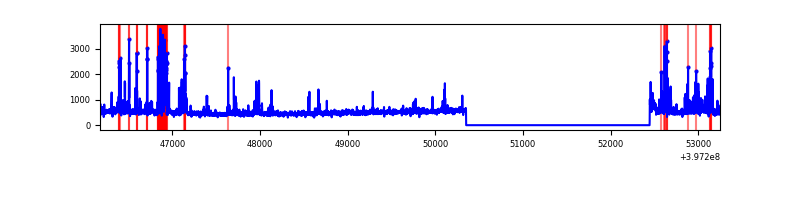

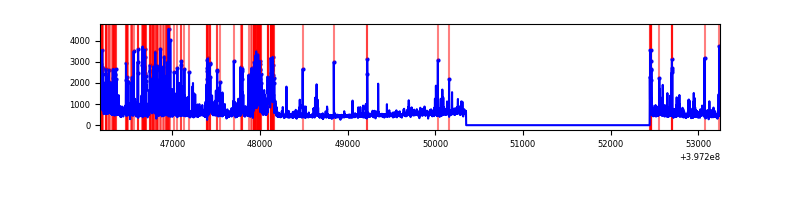

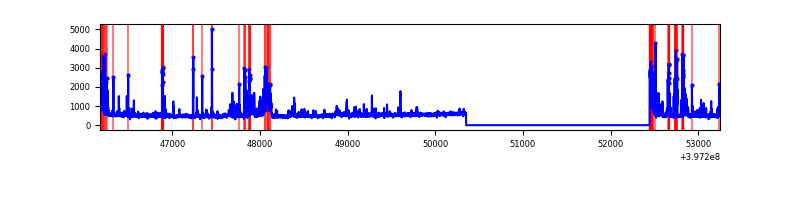

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7072 | 4979 | 4 | 4 | 0.06% | 0.08% |  |
| B | 7072 | 4979 | 82 | 82 | 1.16% | 1.65% |  |
| C | 7072 | 4979 | 93 | 93 | 1.32% | 1.87% |  |
| D | 7072 | 4979 | 197 | 197 | 2.79% | 3.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 226607 | 1896.25 | 590 | 580 | 119.2 |
| A | 13 | 6 | 21246 | 173.38 | 590 | 580 | 119.2 |
| A | 13 | 254 | 8651 | 67.71 | 590 | 580 | 119.2 |
| B | 5 | 172 | 334670 | 2994.93 | 583 | 571 | 111.6 |
| B | 5 | 184 | 84635 | 753.57 | 583 | 571 | 111.6 |
| B | 0 | 219 | 43245 | 382.54 | 583 | 571 | 111.6 |
| C | 14 | 254 | 266478 | 2030.96 | 563 | 567 | 130.9 |
| C | 15 | 214 | 213169 | 1623.8 | 563 | 567 | 130.9 |
| C | 0 | 10 | 195768 | 1490.89 | 563 | 567 | 130.9 |
| D | 13 | 171 | 428579 | 3102.22 | 560 | 545 | 138.0 |
| D | 2 | 153 | 294600 | 2131.19 | 560 | 545 | 138.0 |
| D | 2 | 250 | 212829 | 1538.55 | 560 | 545 | 138.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

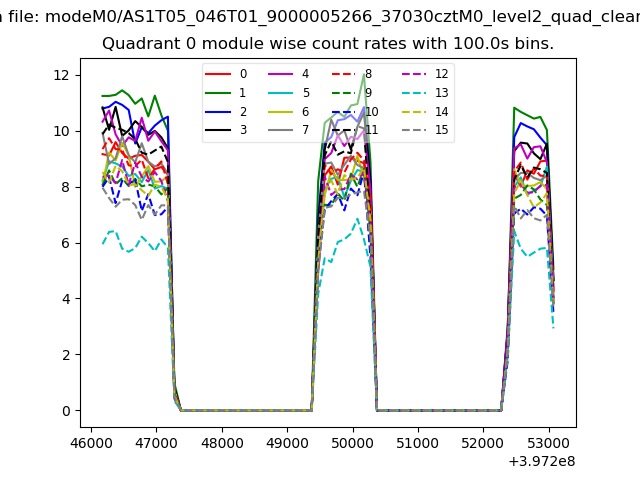

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

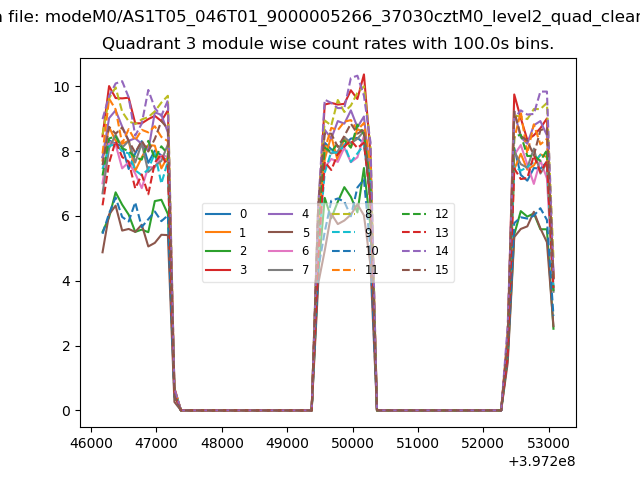

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

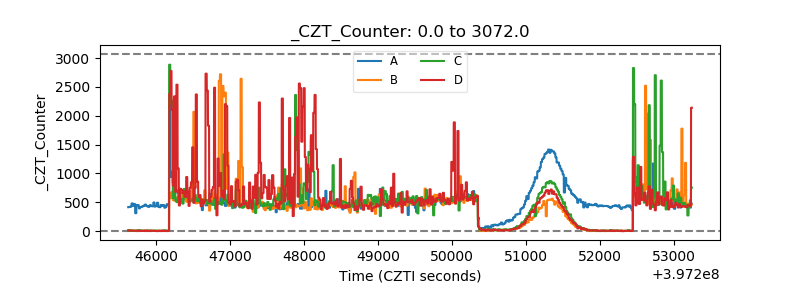

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

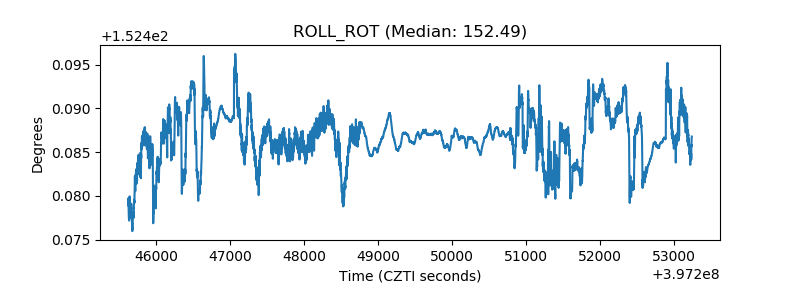

| _ROLL_ROT |  |

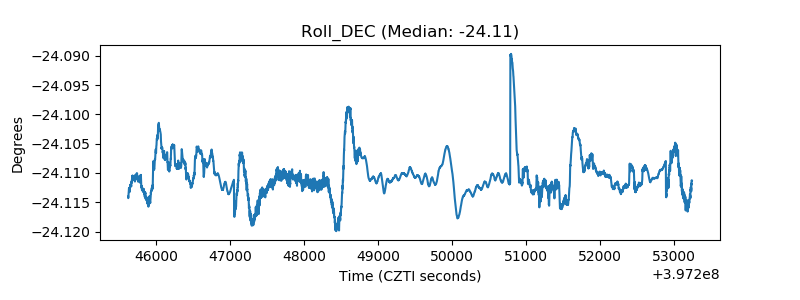

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
