| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_083T04_9000005272_37045cztM0_level2.evt | modeM0/AS1A11_083T04_9000005272_37045cztM0_level2_quad_clean.evt |
| Size (bytes) | 452,185,920 | 87,626,880 |
| Size | 431.2 MB | 83.6 MB |
| Events in quadrant A | 2,695,464 | 591,132 |
| Events in quadrant B | 3,268,621 | 594,547 |
| Events in quadrant C | 3,564,540 | 573,987 |
| Events in quadrant D | 3,821,812 | 538,540 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 41 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11213 | 3 |
| B | 0 | 13013 | 2 |
| C | 0 | 13810 | 2 |
| D | 0 | 14716 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5066 | 19 | 0.375049% |
| B | 5066 | 155 | 3.059613% |
| C | 5066 | 219 | 4.322937% |
| D | 5066 | 453 | 8.941966% |

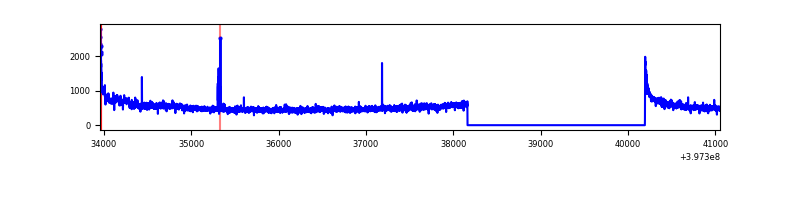

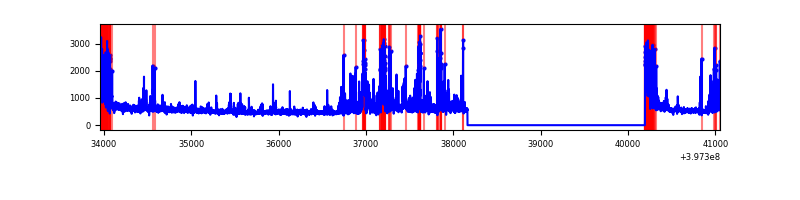

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7098 | 5067 | 8 | 8 | 0.11% | 0.16% |  |
| B | 7098 | 5067 | 117 | 117 | 1.65% | 2.31% |  |
| C | 7098 | 5067 | 189 | 189 | 2.66% | 3.73% |  |
| D | 7097 | 5065 | 379 | 379 | 5.34% | 7.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 247493 | 2023.25 | 601 | 589 | 122.0 |
| A | 11 | 254 | 102808 | 837.63 | 601 | 589 | 122.0 |
| A | 15 | 254 | 11516 | 89.54 | 601 | 589 | 122.0 |
| B | 0 | 229 | 295101 | 2564.84 | 596 | 581 | 114.8 |
| B | 5 | 172 | 217925 | 1892.75 | 596 | 581 | 114.8 |
| B | 0 | 213 | 121474 | 1052.8 | 596 | 581 | 114.8 |
| C | 0 | 10 | 472684 | 3471.24 | 582 | 588 | 136.0 |
| C | 14 | 254 | 354488 | 2602.16 | 582 | 588 | 136.0 |
| C | 15 | 214 | 212116 | 1555.33 | 582 | 588 | 136.0 |
| D | 12 | 17 | 941235 | 6752.04 | 565 | 551 | 139.3 |
| D | 2 | 153 | 222010 | 1589.59 | 565 | 551 | 139.3 |
| D | 13 | 171 | 192121 | 1375.05 | 565 | 551 | 139.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

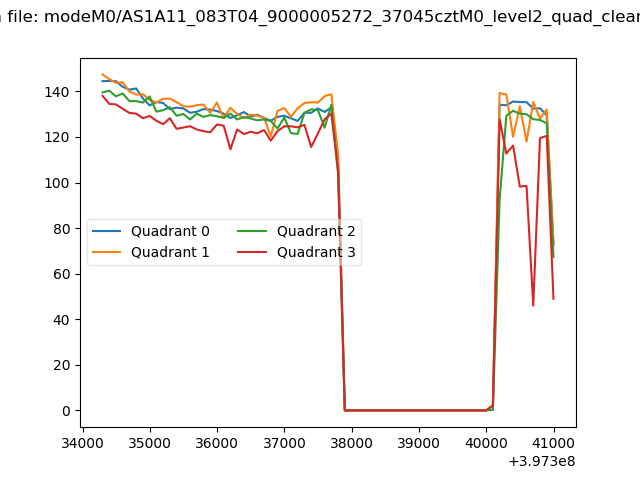

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

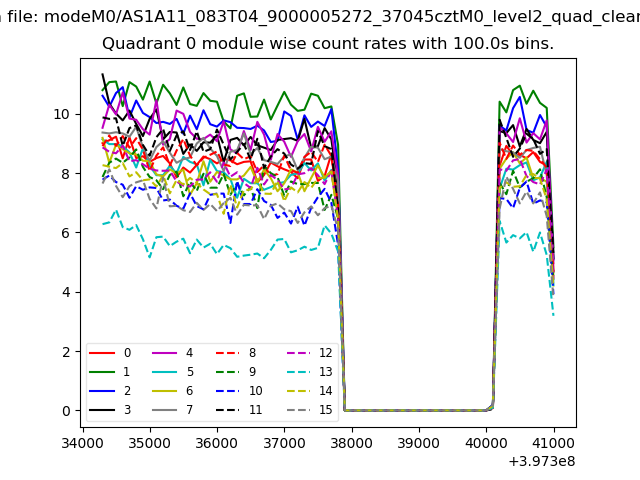

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

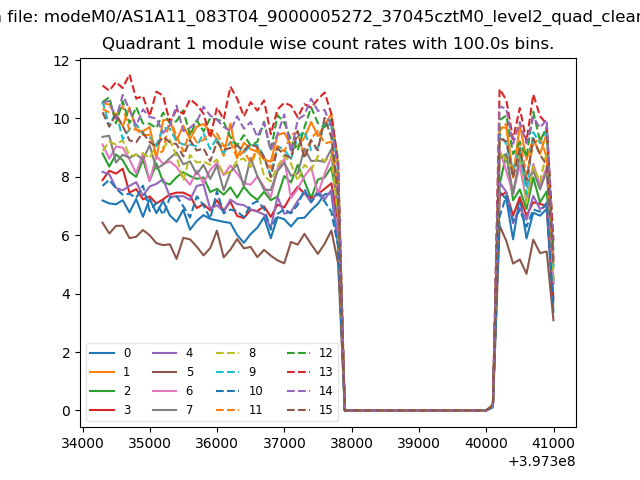

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

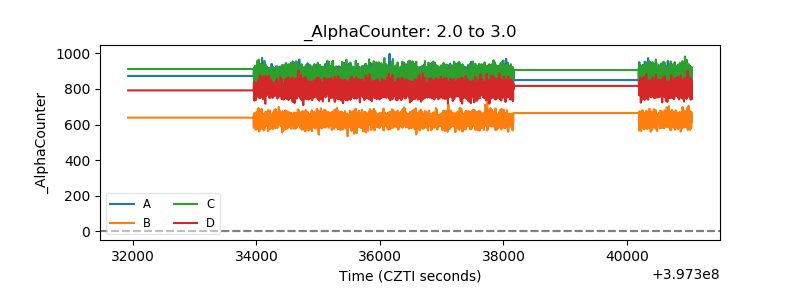

| Alpha Counter |  |

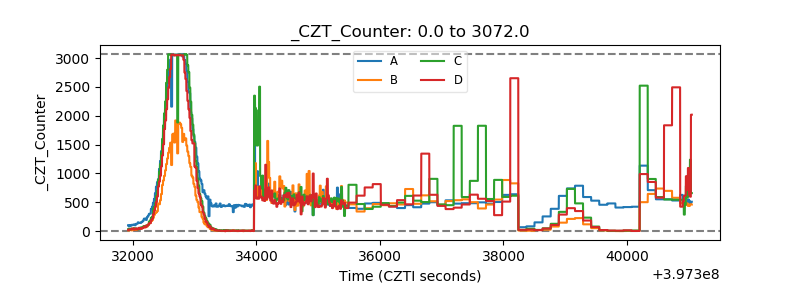

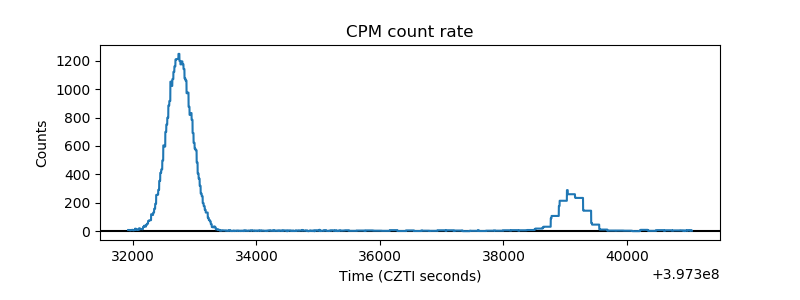

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
