| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_138T04_9000005282_37092cztM0_level2.evt | modeM0/AS1A09_138T04_9000005282_37092cztM0_level2_quad_clean.evt |
| Size (bytes) | 458,974,080 | 86,742,720 |
| Size | 437.7 MB | 82.7 MB |
| Events in quadrant A | 3,041,121 | 565,582 |
| Events in quadrant B | 3,423,880 | 562,870 |
| Events in quadrant C | 3,141,854 | 555,849 |
| Events in quadrant D | 3,889,185 | 526,934 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12754 | 3 |
| B | 0 | 14124 | 2 |
| C | 0 | 12825 | 2 |
| D | 0 | 15540 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 25 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5953 | 22 | 0.369562% |
| B | 5953 | 158 | 2.654124% |
| C | 5953 | 38 | 0.638334% |
| D | 5953 | 199 | 3.342852% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

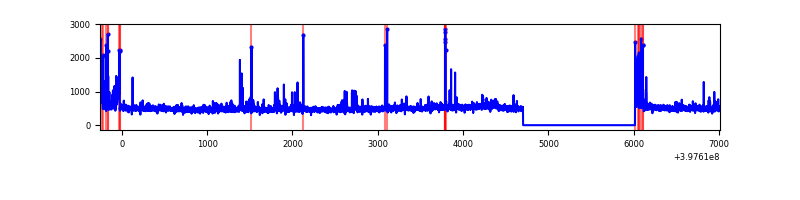

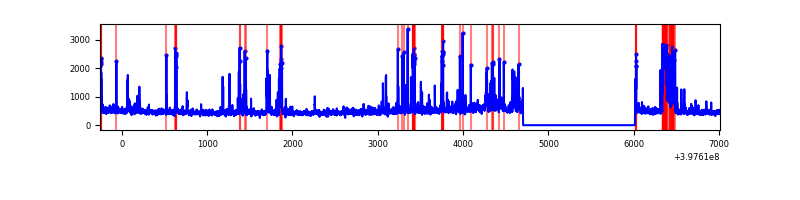

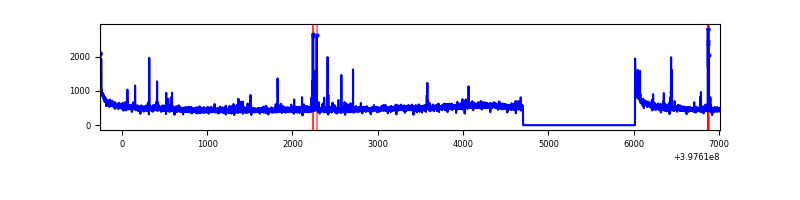

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7265 | 5954 | 11 | 11 | 0.15% | 0.18% |  |
| B | 7265 | 5954 | 125 | 125 | 1.72% | 2.10% |  |
| C | 7265 | 5954 | 25 | 25 | 0.34% | 0.42% |  |
| D | 7264 | 5953 | 189 | 189 | 2.60% | 3.17% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 272996 | 1943.7 | 687 | 675 | 140.1 |
| A | 7 | 3 | 49970 | 351.84 | 687 | 675 | 140.1 |
| A | 9 | 143 | 42965 | 301.85 | 687 | 675 | 140.1 |
| B | 0 | 229 | 296623 | 2261.05 | 675 | 658 | 130.9 |
| B | 5 | 172 | 198509 | 1511.5 | 675 | 658 | 130.9 |
| B | 5 | 184 | 115546 | 877.7 | 675 | 658 | 130.9 |
| C | 15 | 214 | 252581 | 1605.18 | 668 | 673 | 156.9 |
| C | 0 | 10 | 124716 | 790.41 | 668 | 673 | 156.9 |
| C | 14 | 254 | 62312 | 392.77 | 668 | 673 | 156.9 |
| D | 13 | 249 | 323633 | 1994.63 | 662 | 643 | 161.9 |
| D | 1 | 47 | 259475 | 1598.42 | 662 | 643 | 161.9 |
| D | 2 | 153 | 163991 | 1008.76 | 662 | 643 | 161.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

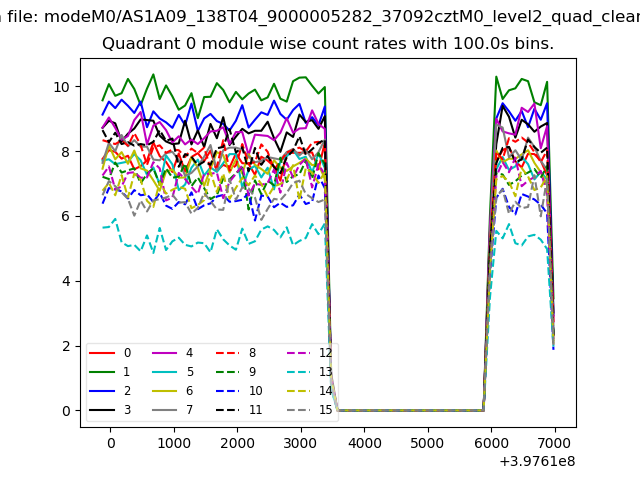

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

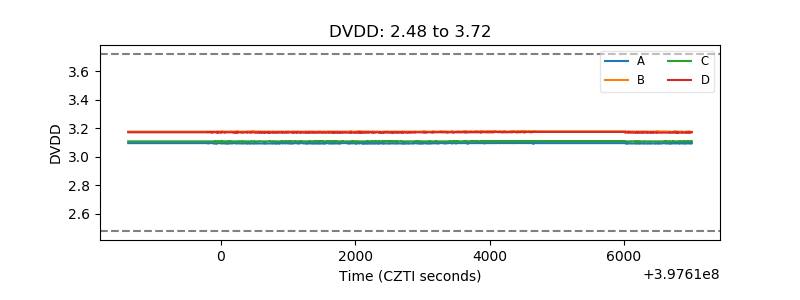

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

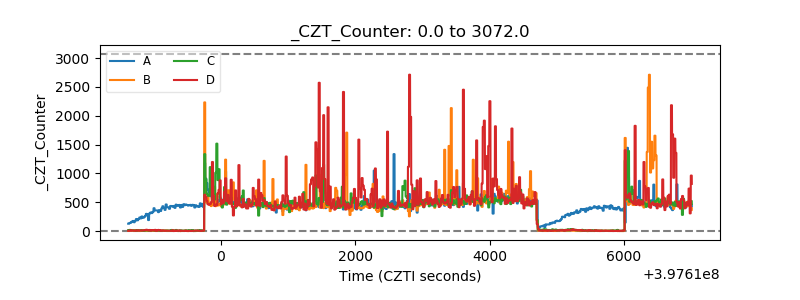

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

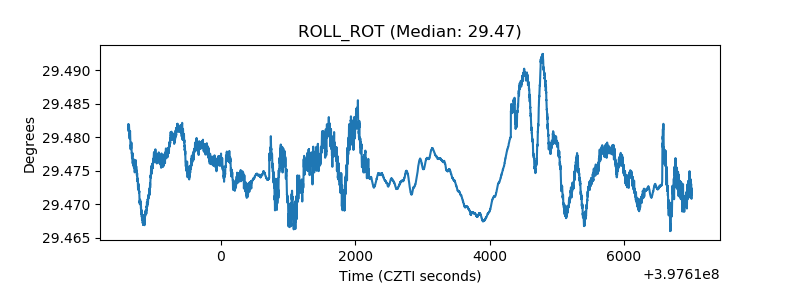

| _ROLL_ROT |  |
| _Roll_DEC |  |

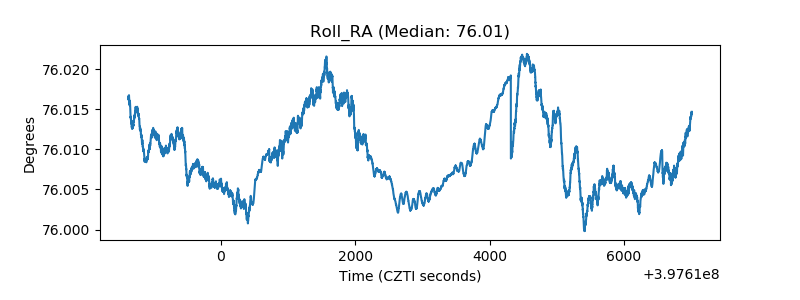

| _Roll_RA |  |
| Veto Counter |  |
