| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_138T04_9000005282_37117cztM0_level2.evt | modeM0/AS1A09_138T04_9000005282_37117cztM0_level2_quad_clean.evt |
| Size (bytes) | 429,298,560 | 49,095,360 |
| Size | 409.4 MB | 46.8 MB |
| Events in quadrant A | 2,769,282 | 293,846 |
| Events in quadrant B | 2,829,471 | 289,455 |
| Events in quadrant C | 2,702,608 | 281,141 |
| Events in quadrant D | 4,359,042 | 270,014 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 102 | 0 |
| B | 0 | 102 | 0 |
| C | 0 | 102 | 0 |
| D | 0 | 102 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11169 | 3 |
| B | 0 | 11408 | 2 |
| C | 0 | 10851 | 2 |
| D | 0 | 16287 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5018 | 59 | 1.175767% |
| B | 5018 | 102 | 2.032682% |
| C | 5018 | 18 | 0.358709% |
| D | 5018 | 532 | 10.601833% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7141 | 5019 | 48 | 48 | 0.67% | 0.96% |  |
| B | 7141 | 5019 | 86 | 86 | 1.20% | 1.71% |  |
| C | 7141 | 5019 | 13 | 13 | 0.18% | 0.26% |  |
| D | 7141 | 5019 | 499 | 499 | 6.99% | 9.94% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 264070 | 2160.25 | 609 | 597 | 122.0 |
| A | 15 | 237 | 123897 | 1010.95 | 609 | 597 | 122.0 |
| A | 9 | 143 | 11914 | 92.79 | 609 | 597 | 122.0 |
| B | 5 | 172 | 287535 | 2497.82 | 605 | 590 | 114.9 |
| B | 0 | 182 | 68885 | 594.5 | 605 | 590 | 114.9 |
| B | 5 | 200 | 41328 | 354.62 | 605 | 590 | 114.9 |
| C | 15 | 214 | 216272 | 1586.9 | 585 | 590 | 135.9 |
| C | 10 | 49 | 94793 | 693.11 | 585 | 590 | 135.9 |
| C | 0 | 10 | 75068 | 547.98 | 585 | 590 | 135.9 |
| D | 1 | 52 | 1294955 | 9382.21 | 568 | 553 | 138.0 |
| D | 13 | 249 | 233554 | 1688.86 | 568 | 553 | 138.0 |
| D | 12 | 233 | 221255 | 1599.71 | 568 | 553 | 138.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

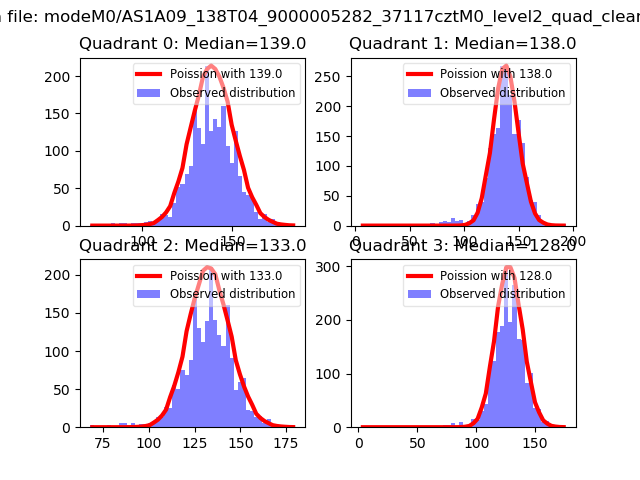

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

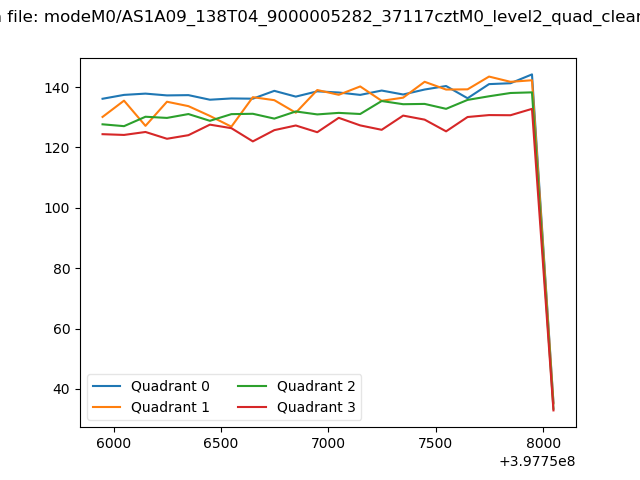

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

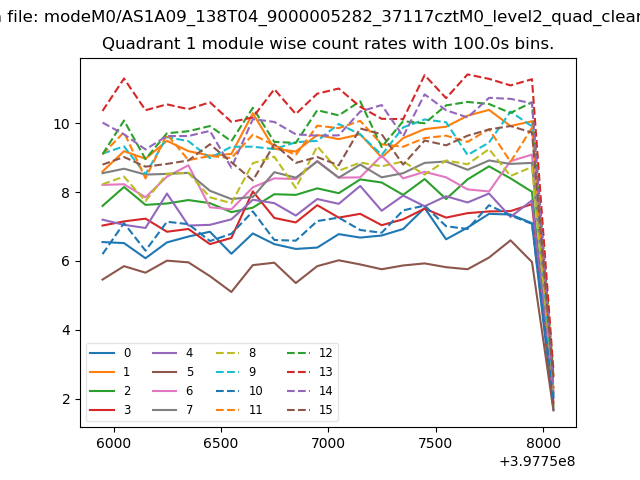

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

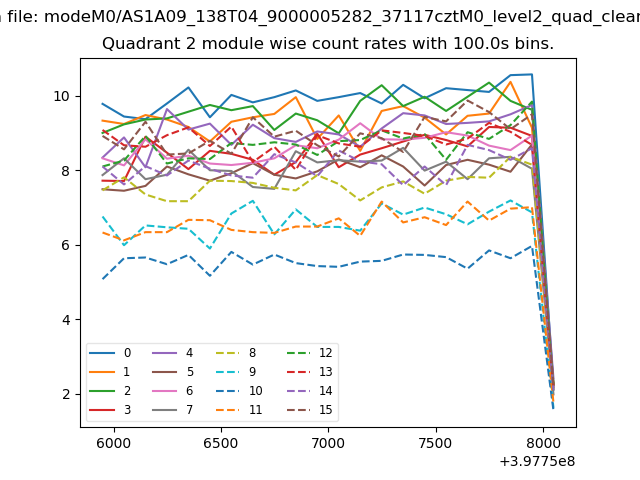

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

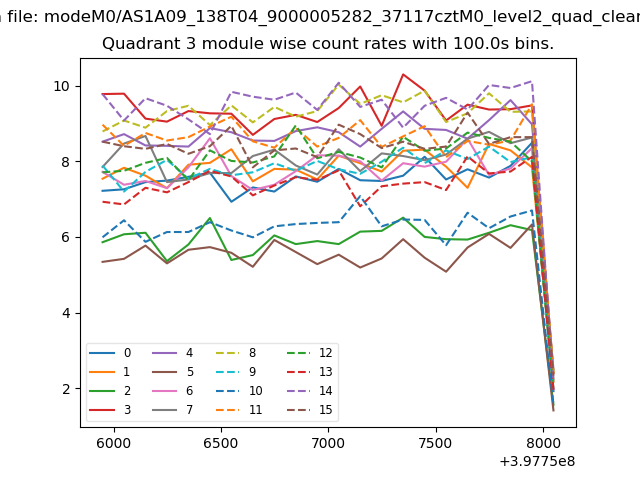

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

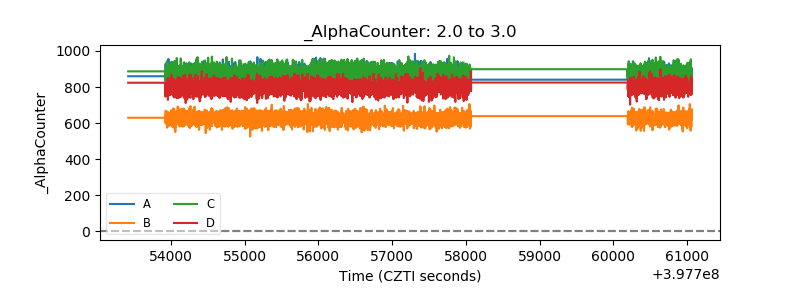

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

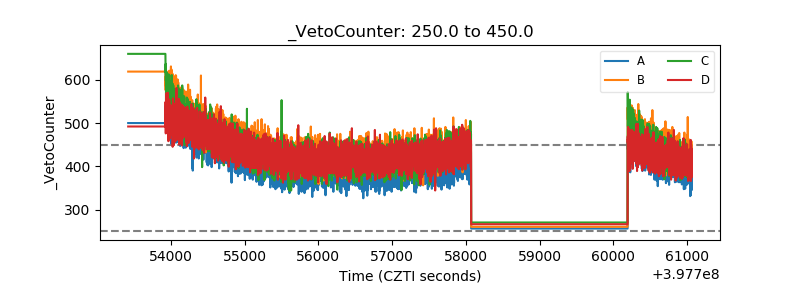

| Veto Counter |  |
