| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A09_138T04_9000005282_37118cztM0_level2.evt | modeM0/AS1A09_138T04_9000005282_37118cztM0_level2_quad_clean.evt |
| Size (bytes) | 375,004,800 | 58,420,800 |
| Size | 357.6 MB | 55.7 MB |
| Events in quadrant A | 2,635,072 | 363,217 |
| Events in quadrant B | 2,812,827 | 356,783 |
| Events in quadrant C | 2,664,769 | 351,695 |
| Events in quadrant D | 2,894,738 | 336,932 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10964 | 3 |
| B | 0 | 11541 | 2 |
| C | 0 | 10902 | 2 |
| D | 0 | 12093 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5135 | 22 | 0.428432% |
| B | 5135 | 80 | 1.557936% |
| C | 5135 | 39 | 0.759494% |
| D | 5135 | 89 | 1.733204% |

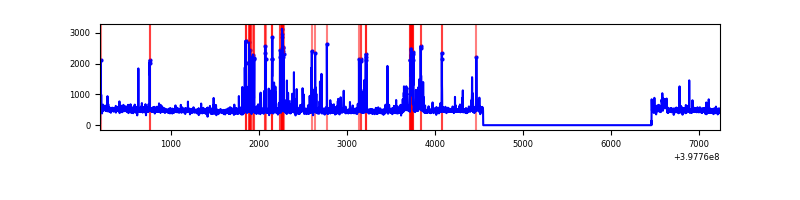

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7049 | 5136 | 9 | 9 | 0.13% | 0.18% |  |
| B | 7049 | 5136 | 70 | 70 | 0.99% | 1.36% |  |
| C | 7049 | 5136 | 31 | 31 | 0.44% | 0.60% |  |
| D | 7049 | 5136 | 67 | 67 | 0.95% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 265726 | 2194.68 | 600 | 588 | 120.8 |
| A | 9 | 143 | 27974 | 226.69 | 600 | 588 | 120.8 |
| A | 15 | 237 | 9153 | 70.9 | 600 | 588 | 120.8 |
| B | 5 | 172 | 316119 | 2755.89 | 593 | 578 | 114.5 |
| B | 5 | 255 | 56629 | 489.54 | 593 | 578 | 114.5 |
| B | 5 | 200 | 39160 | 336.97 | 593 | 578 | 114.5 |
| C | 15 | 214 | 221136 | 1647.41 | 577 | 580 | 133.9 |
| C | 0 | 10 | 116869 | 868.6 | 577 | 580 | 133.9 |
| C | 15 | 159 | 35476 | 260.65 | 577 | 580 | 133.9 |
| D | 13 | 249 | 228804 | 1610.82 | 578 | 562 | 141.7 |
| D | 13 | 171 | 131718 | 925.63 | 578 | 562 | 141.7 |
| D | 12 | 233 | 127273 | 894.26 | 578 | 562 | 141.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

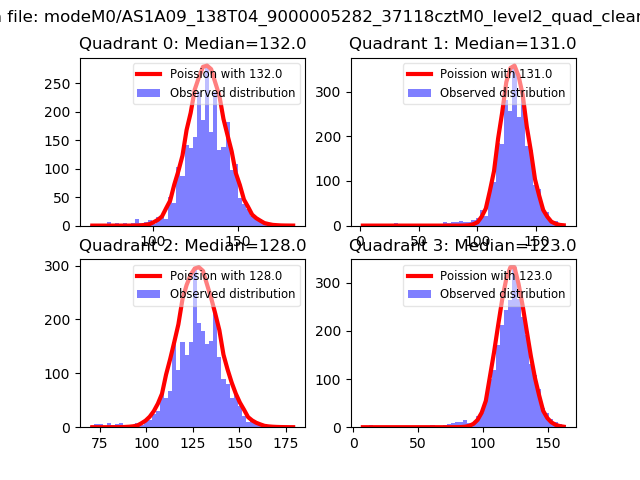

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

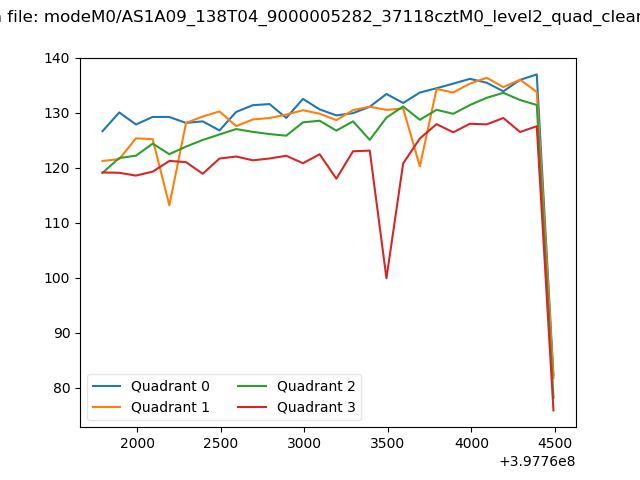

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

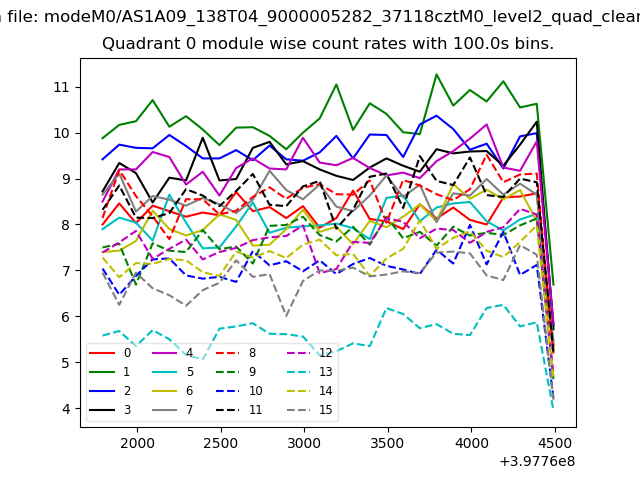

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

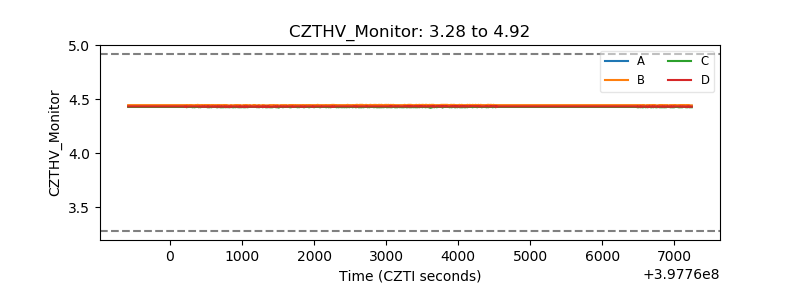

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

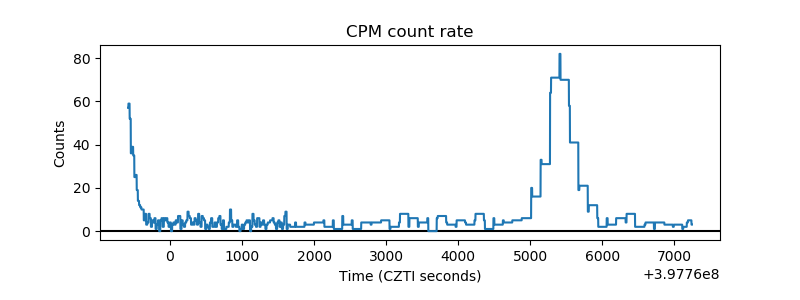

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

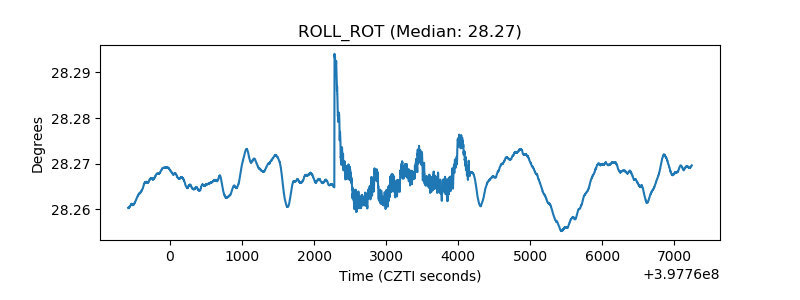

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
