| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37131cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37131cztM0_level2_quad_clean.evt |
| Size (bytes) | 410,702,400 | 92,661,120 |
| Size | 391.7 MB | 88.4 MB |
| Events in quadrant A | 2,805,707 | 628,591 |
| Events in quadrant B | 3,085,549 | 624,155 |
| Events in quadrant C | 2,859,260 | 617,429 |
| Events in quadrant D | 3,346,056 | 583,680 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 41 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11397 | 3 |
| B | 0 | 12292 | 2 |
| C | 0 | 11419 | 2 |
| D | 0 | 13127 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5020 | 61 | 1.215139% |
| B | 5020 | 177 | 3.525896% |
| C | 5020 | 32 | 0.637450% |
| D | 5020 | 191 | 3.804781% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7174 | 5021 | 37 | 37 | 0.52% | 0.74% |  |
| B | 7174 | 5021 | 119 | 119 | 1.66% | 2.37% |  |
| C | 7174 | 5021 | 38 | 38 | 0.53% | 0.76% |  |
| D | 7174 | 5021 | 183 | 183 | 2.55% | 3.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 243311 | 1953.91 | 620 | 610 | 124.2 |
| A | 15 | 174 | 135373 | 1084.93 | 620 | 610 | 124.2 |
| A | 9 | 143 | 17416 | 135.3 | 620 | 610 | 124.2 |
| B | 5 | 172 | 278103 | 2425.54 | 600 | 584 | 114.4 |
| B | 5 | 184 | 226151 | 1971.48 | 600 | 584 | 114.4 |
| B | 5 | 255 | 109740 | 954.03 | 600 | 584 | 114.4 |
| C | 15 | 214 | 230854 | 1655.47 | 601 | 609 | 139.1 |
| C | 14 | 254 | 143322 | 1026.11 | 601 | 609 | 139.1 |
| C | 0 | 10 | 109830 | 785.31 | 601 | 609 | 139.1 |
| D | 2 | 250 | 619633 | 4204.57 | 599 | 584 | 147.2 |
| D | 12 | 233 | 130726 | 883.92 | 599 | 584 | 147.2 |
| D | 13 | 249 | 67988 | 457.81 | 599 | 584 | 147.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

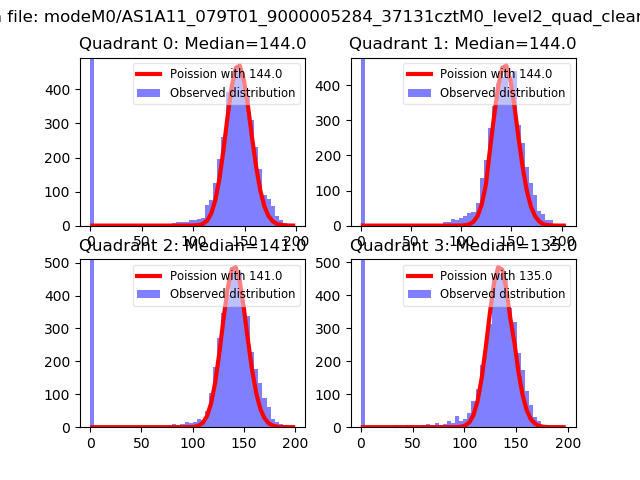

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

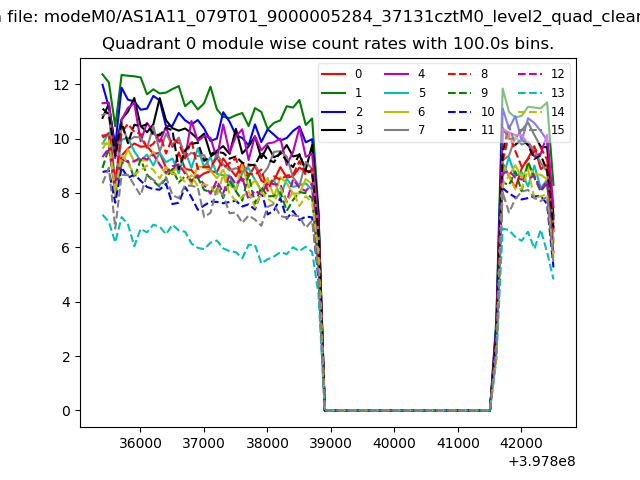

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

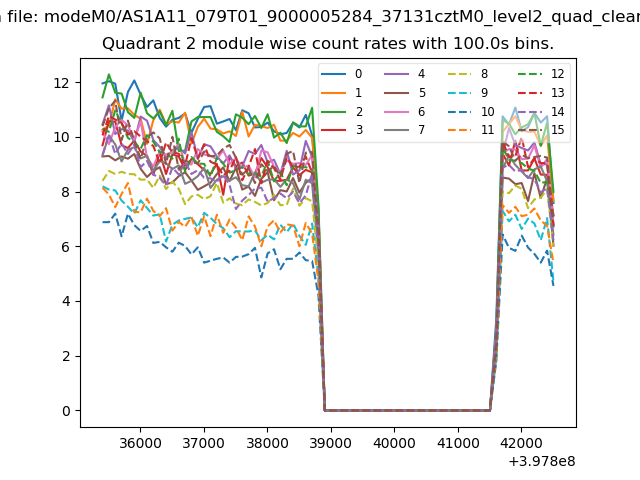

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

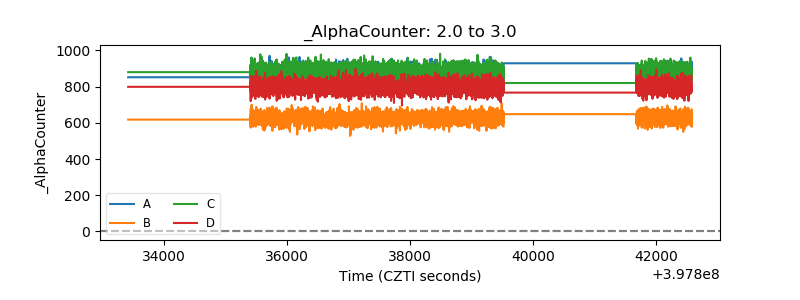

| Alpha Counter |  |

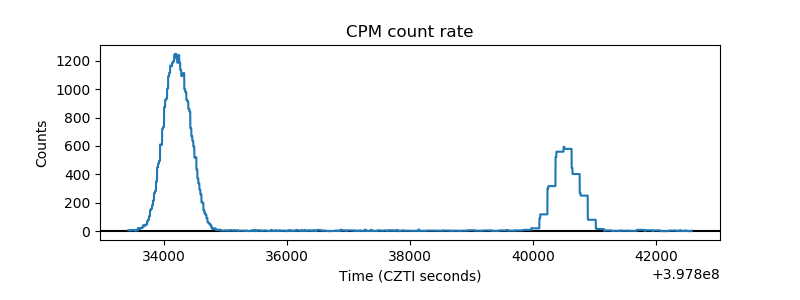

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

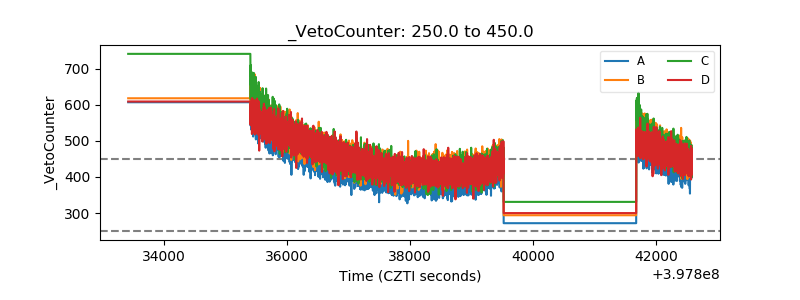

| Veto Counter |  |
