| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37156cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37156cztM0_level2_quad_clean.evt |
| Size (bytes) | 380,151,360 | 57,208,320 |
| Size | 362.5 MB | 54.6 MB |
| Events in quadrant A | 2,762,043 | 347,745 |
| Events in quadrant B | 2,643,382 | 349,145 |
| Events in quadrant C | 2,725,298 | 343,645 |
| Events in quadrant D | 3,026,582 | 325,435 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25 | 0 |
| B | 0 | 25 | 0 |
| C | 0 | 25 | 0 |
| D | 0 | 26 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11297 | 3 |
| B | 0 | 11054 | 2 |
| C | 0 | 11022 | 2 |
| D | 0 | 12347 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5234 | 9 | 0.171953% |
| B | 5234 | 48 | 0.917081% |
| C | 5234 | 15 | 0.286588% |
| D | 5234 | 152 | 2.904089% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7056 | 5235 | 3 | 3 | 0.04% | 0.06% |  |
| B | 7056 | 5235 | 32 | 32 | 0.45% | 0.61% |  |
| C | 7056 | 5235 | 6 | 6 | 0.09% | 0.11% |  |
| D | 7056 | 5235 | 126 | 126 | 1.79% | 2.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 253627 | 1973.88 | 635 | 624 | 128.2 |
| A | 15 | 174 | 31481 | 240.74 | 635 | 624 | 128.2 |
| A | 13 | 6 | 18344 | 138.25 | 635 | 624 | 128.2 |
| B | 5 | 172 | 147908 | 1230.09 | 625 | 610 | 119.7 |
| B | 12 | 111 | 15151 | 121.43 | 625 | 610 | 119.7 |
| B | 11 | 111 | 13661 | 108.99 | 625 | 610 | 119.7 |
| C | 15 | 214 | 243022 | 1699.35 | 610 | 613 | 142.6 |
| C | 0 | 10 | 70961 | 493.16 | 610 | 613 | 142.6 |
| C | 15 | 159 | 22018 | 150.05 | 610 | 613 | 142.6 |
| D | 2 | 249 | 370000 | 2494.32 | 603 | 586 | 148.1 |
| D | 10 | 199 | 68751 | 460.26 | 603 | 586 | 148.1 |
| D | 2 | 250 | 60938 | 407.5 | 603 | 586 | 148.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

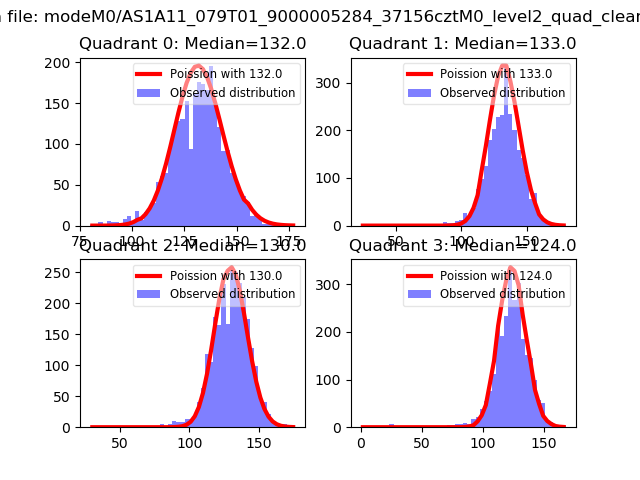

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

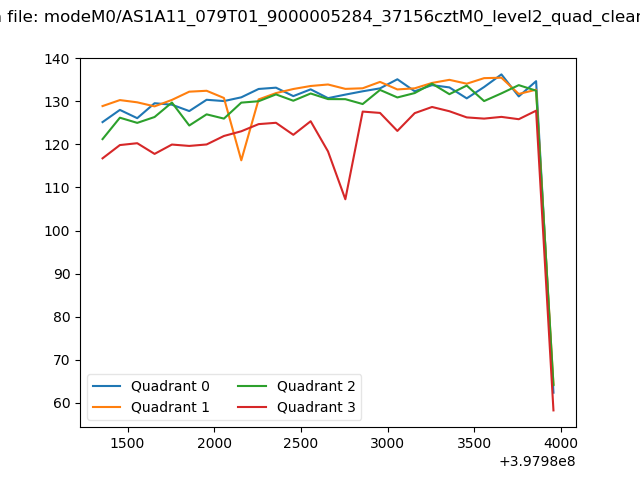

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

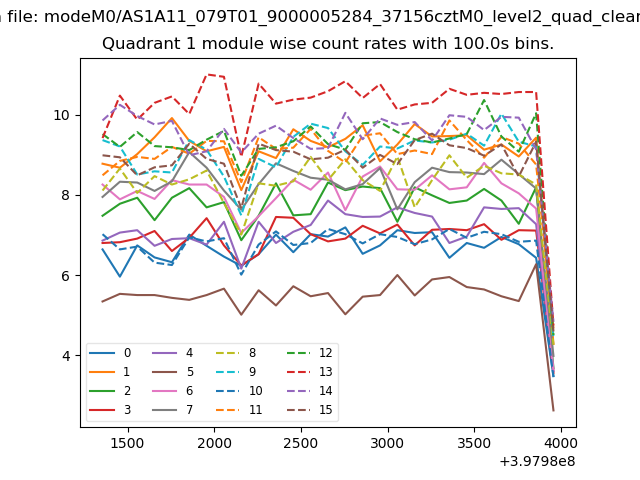

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

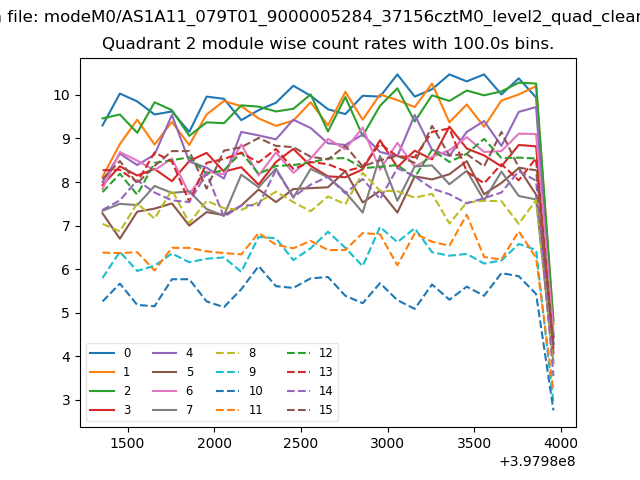

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

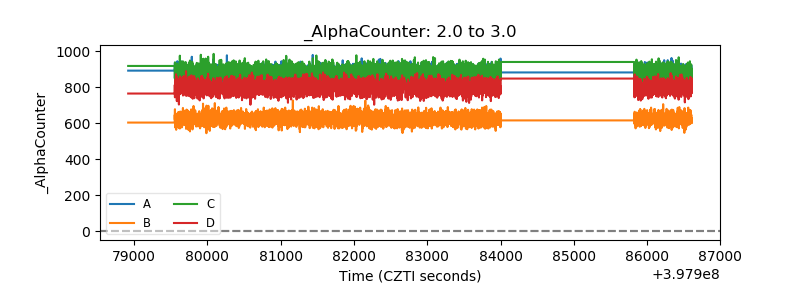

| Alpha Counter |  |

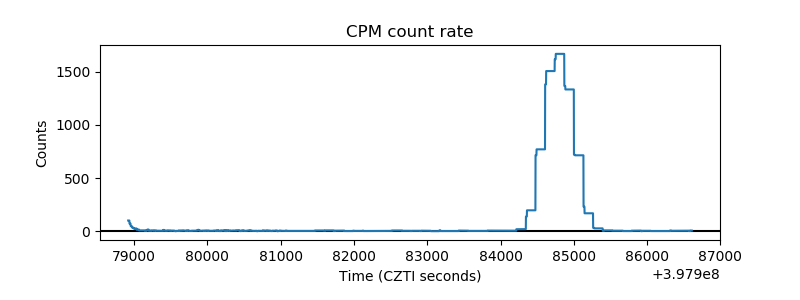

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

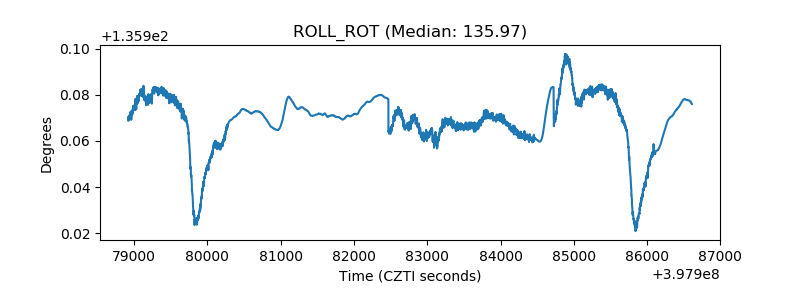

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

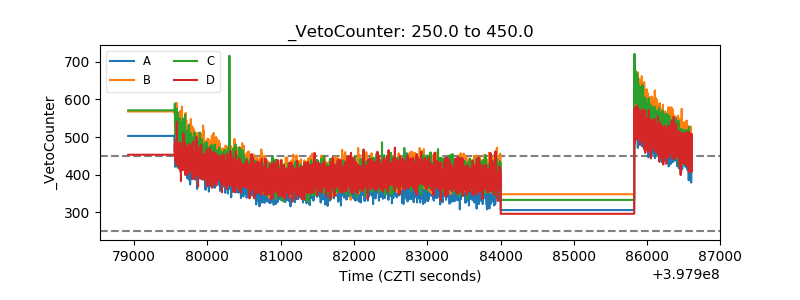

| Veto Counter |  |
