| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37177cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37177cztM0_level2_quad_clean.evt |
| Size (bytes) | 454,682,880 | 70,012,800 |
| Size | 433.6 MB | 66.8 MB |
| Events in quadrant A | 2,849,424 | 442,701 |
| Events in quadrant B | 3,488,845 | 438,850 |
| Events in quadrant C | 3,570,114 | 436,135 |
| Events in quadrant D | 3,485,334 | 414,197 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12001 | 3 |
| B | 0 | 14151 | 2 |
| C | 0 | 14087 | 2 |
| D | 0 | 14016 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5548 | 47 | 0.847152% |
| B | 5548 | 80 | 1.441961% |
| C | 5548 | 68 | 1.225667% |
| D | 5548 | 151 | 2.721702% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7070 | 5549 | 23 | 23 | 0.33% | 0.41% |  |
| B | 7070 | 5549 | 51 | 51 | 0.72% | 0.92% |  |
| C | 7070 | 5549 | 70 | 70 | 0.99% | 1.26% |  |
| D | 7070 | 5549 | 127 | 127 | 1.80% | 2.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 261405 | 2057.03 | 630 | 619 | 126.8 |
| A | 9 | 143 | 126427 | 992.35 | 630 | 619 | 126.8 |
| A | 13 | 254 | 9774 | 72.21 | 630 | 619 | 126.8 |
| B | 4 | 251 | 523170 | 4364.57 | 626 | 609 | 119.7 |
| B | 4 | 232 | 272929 | 2274.49 | 626 | 609 | 119.7 |
| B | 0 | 190 | 110811 | 920.44 | 626 | 609 | 119.7 |
| C | 10 | 49 | 461771 | 3207.04 | 614 | 619 | 143.8 |
| C | 15 | 214 | 235580 | 1634.01 | 614 | 619 | 143.8 |
| C | 0 | 10 | 189791 | 1315.58 | 614 | 619 | 143.8 |
| D | 12 | 6 | 348047 | 2338.65 | 611 | 595 | 148.6 |
| D | 1 | 52 | 246779 | 1657.03 | 611 | 595 | 148.6 |
| D | 2 | 249 | 178539 | 1197.72 | 611 | 595 | 148.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

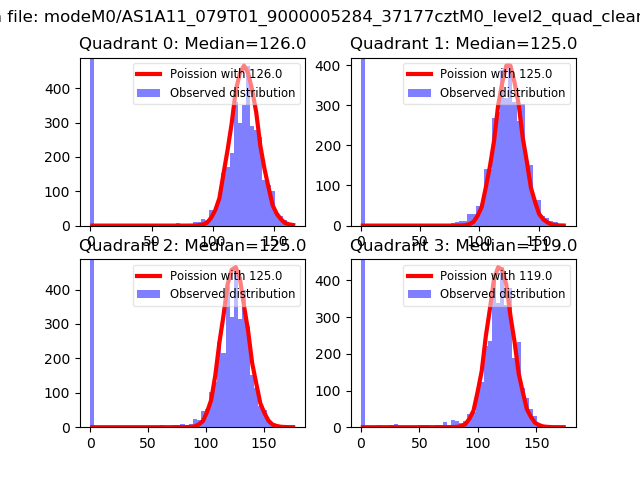

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

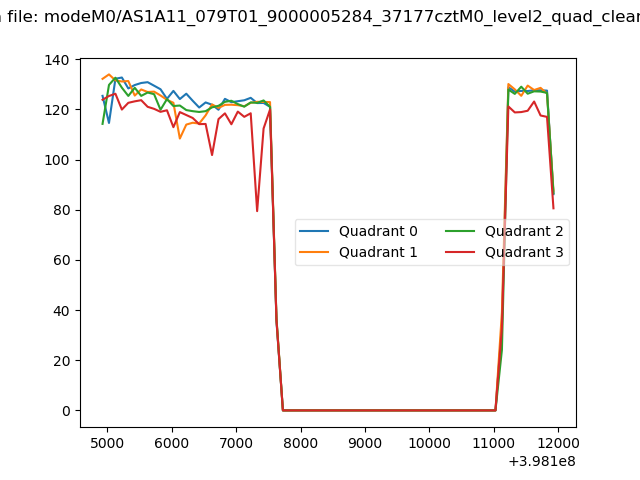

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

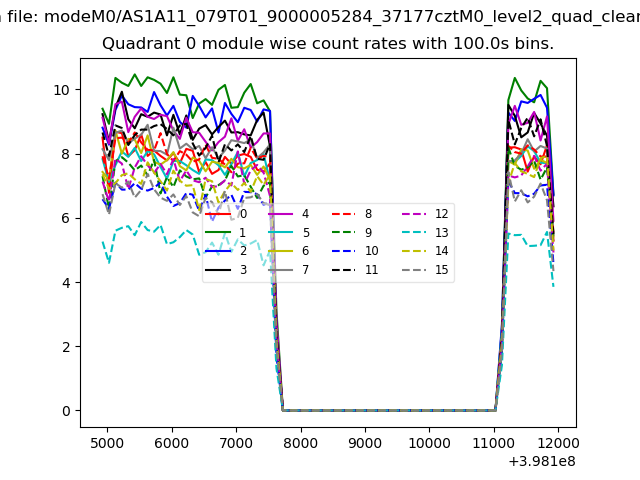

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

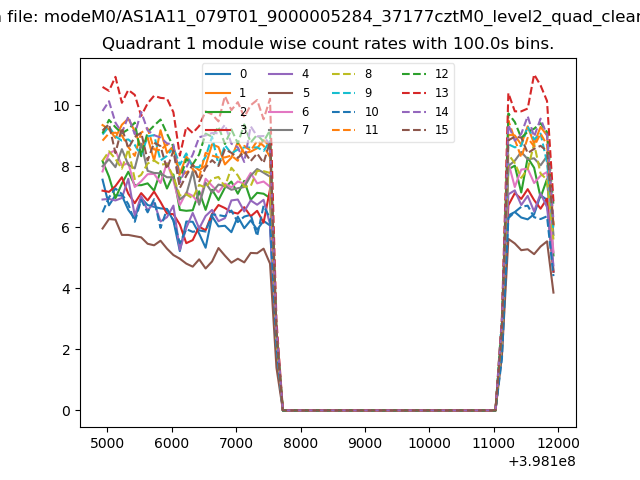

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

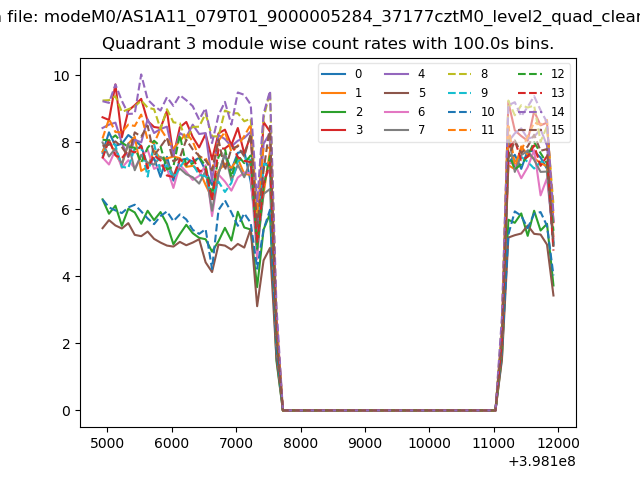

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

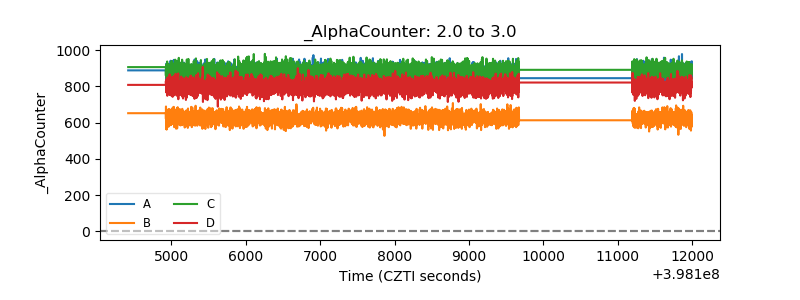

| Alpha Counter |  |

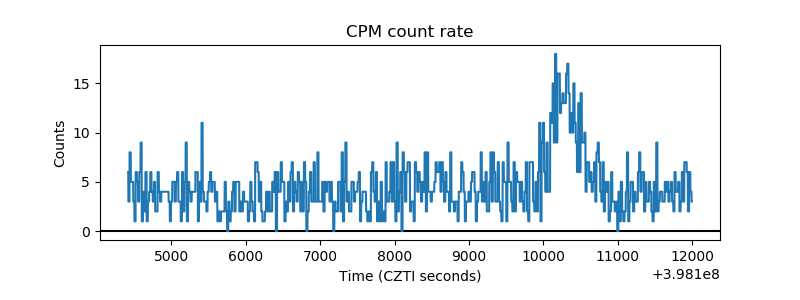

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

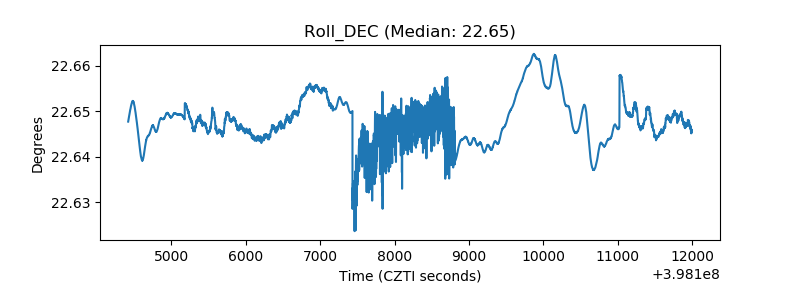

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
