| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37178cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37178cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,169,920 | 69,128,640 |
| Size | 429.3 MB | 65.9 MB |
| Events in quadrant A | 3,118,742 | 430,678 |
| Events in quadrant B | 2,961,511 | 432,154 |
| Events in quadrant C | 3,141,457 | 426,755 |
| Events in quadrant D | 4,021,713 | 401,974 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 28 | 0 |
| B | 0 | 28 | 0 |
| C | 0 | 28 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13003 | 3 |
| B | 0 | 12640 | 2 |
| C | 0 | 12885 | 2 |
| D | 0 | 15855 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5740 | 59 | 1.027875% |
| B | 5740 | 56 | 0.975610% |
| C | 5740 | 65 | 1.132404% |
| D | 5740 | 219 | 3.815331% |

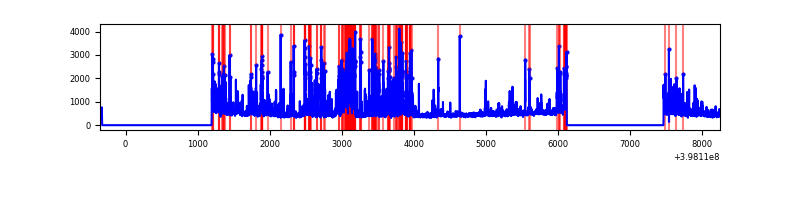

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8605 | 5742 | 57 | 57 | 0.66% | 0.99% |  |
| B | 8605 | 5742 | 40 | 40 | 0.46% | 0.70% |  |
| C | 8605 | 5742 | 52 | 52 | 0.60% | 0.91% |  |
| D | 8605 | 5742 | 230 | 230 | 2.67% | 4.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 143 | 283591 | 2150.41 | 648 | 635 | 131.6 |
| A | 10 | 83 | 267434 | 2027.62 | 648 | 635 | 131.6 |
| A | 15 | 237 | 26557 | 197.0 | 648 | 635 | 131.6 |
| B | 5 | 172 | 117162 | 940.21 | 645 | 628 | 123.9 |
| B | 0 | 190 | 111320 | 893.08 | 645 | 628 | 123.9 |
| B | 5 | 184 | 74097 | 592.76 | 645 | 628 | 123.9 |
| C | 15 | 214 | 243901 | 1627.59 | 634 | 639 | 149.5 |
| C | 0 | 10 | 176233 | 1174.85 | 634 | 639 | 149.5 |
| C | 10 | 49 | 125005 | 832.09 | 634 | 639 | 149.5 |
| D | 12 | 6 | 725594 | 4741.55 | 627 | 611 | 152.9 |
| D | 1 | 52 | 345486 | 2255.56 | 627 | 611 | 152.9 |
| D | 2 | 249 | 259876 | 1695.65 | 627 | 611 | 152.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

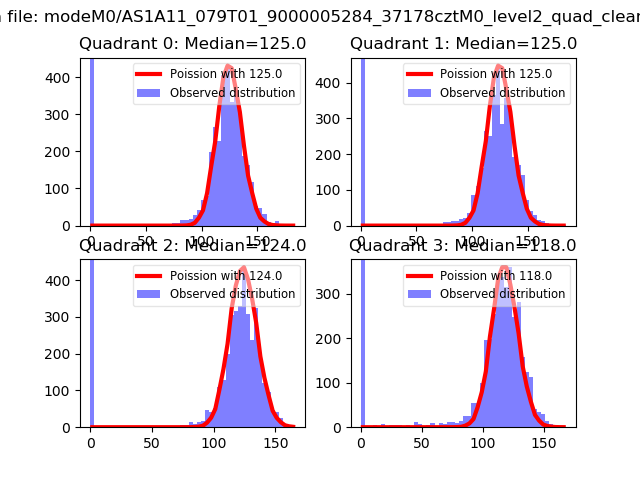

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

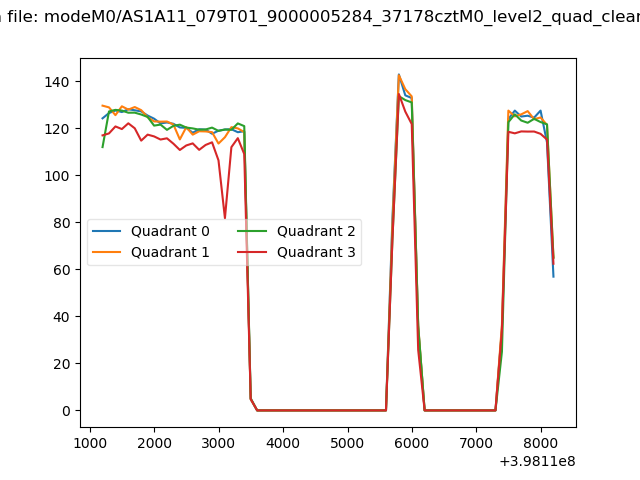

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

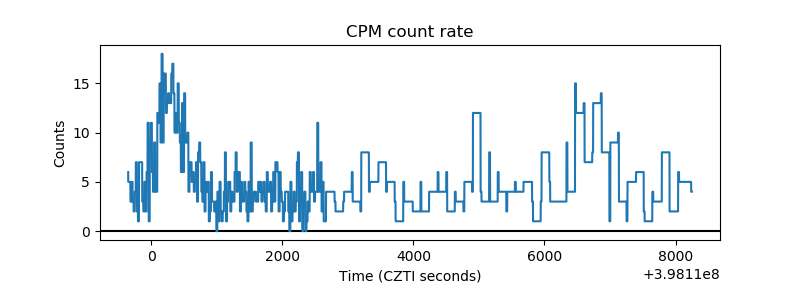

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

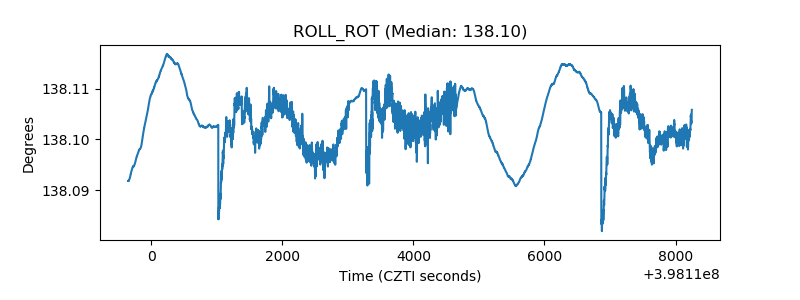

| _ROLL_ROT |  |

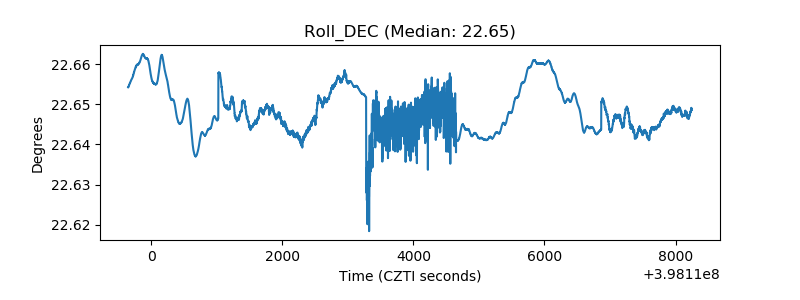

| _Roll_DEC |  |

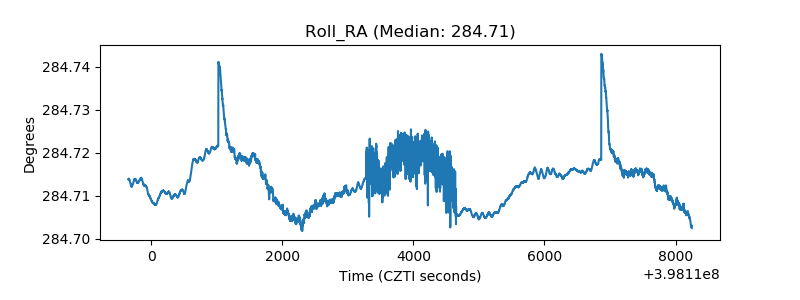

| _Roll_RA |  |

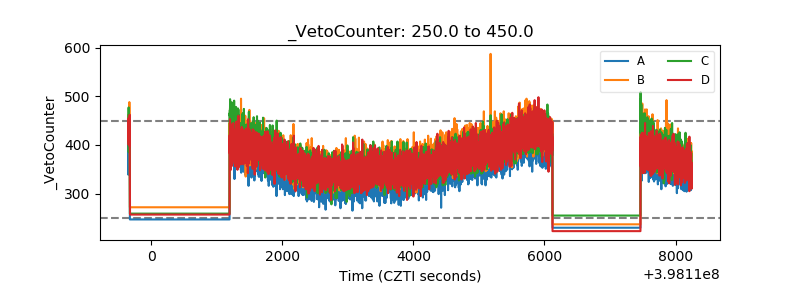

| Veto Counter |  |
