| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37191cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37191cztM0_level2_quad_clean.evt |
| Size (bytes) | 466,009,920 | 77,258,880 |
| Size | 444.4 MB | 73.7 MB |
| Events in quadrant A | 2,786,109 | 504,032 |
| Events in quadrant B | 2,894,431 | 498,526 |
| Events in quadrant C | 5,172,051 | 479,854 |
| Events in quadrant D | 2,890,078 | 474,694 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11819 | 3 |
| B | 0 | 12021 | 2 |
| C | 0 | 18871 | 2 |
| D | 0 | 12208 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5466 | 21 | 0.384193% |
| B | 5466 | 76 | 1.390413% |
| C | 5466 | 249 | 4.555434% |
| D | 5466 | 65 | 1.189169% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 5467 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7139 | 5467 | 39 | 39 | 0.55% | 0.71% |  |
| C | 7139 | 5467 | 411 | 411 | 5.76% | 7.52% |  |
| D | 7139 | 5467 | 53 | 53 | 0.74% | 0.97% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 269646 | 2096.71 | 630 | 618 | 128.3 |
| A | 13 | 6 | 47843 | 368.05 | 630 | 618 | 128.3 |
| A | 13 | 248 | 17044 | 128.02 | 630 | 618 | 128.3 |
| B | 5 | 172 | 256704 | 2152.82 | 619 | 603 | 119.0 |
| B | 0 | 190 | 125356 | 1048.69 | 619 | 603 | 119.0 |
| B | 0 | 155 | 20690 | 168.85 | 619 | 603 | 119.0 |
| C | 10 | 49 | 2276388 | 16053.51 | 607 | 611 | 141.8 |
| C | 15 | 214 | 235059 | 1653.81 | 607 | 611 | 141.8 |
| C | 0 | 10 | 160177 | 1125.59 | 607 | 611 | 141.8 |
| D | 2 | 249 | 232928 | 1557.28 | 614 | 599 | 149.2 |
| D | 1 | 52 | 114324 | 762.29 | 614 | 599 | 149.2 |
| D | 7 | 55 | 36654 | 241.67 | 614 | 599 | 149.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

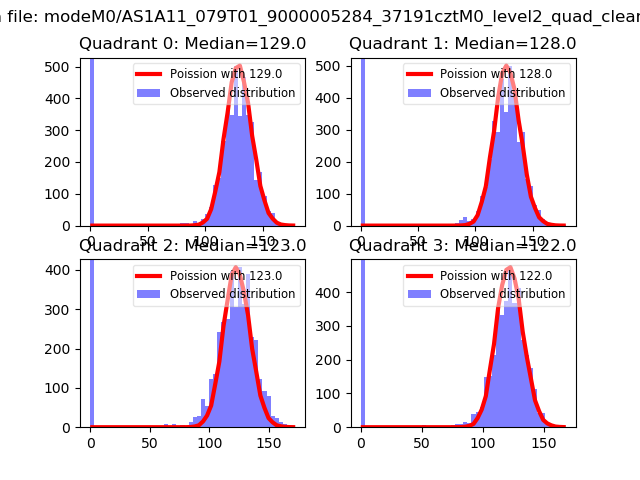

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

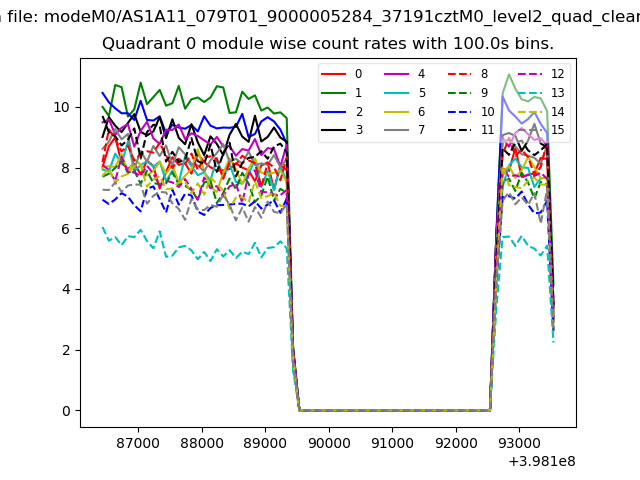

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

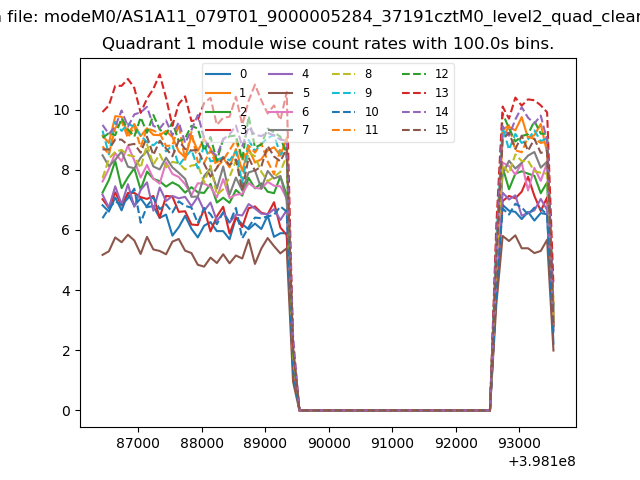

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

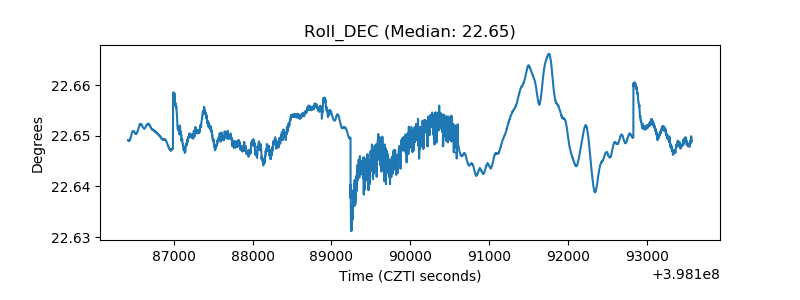

| _Roll_DEC |  |

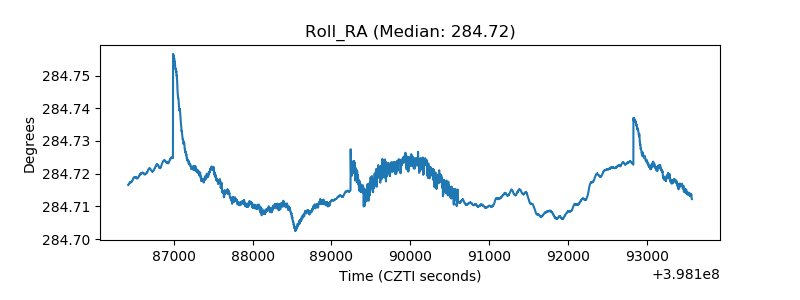

| _Roll_RA |  |

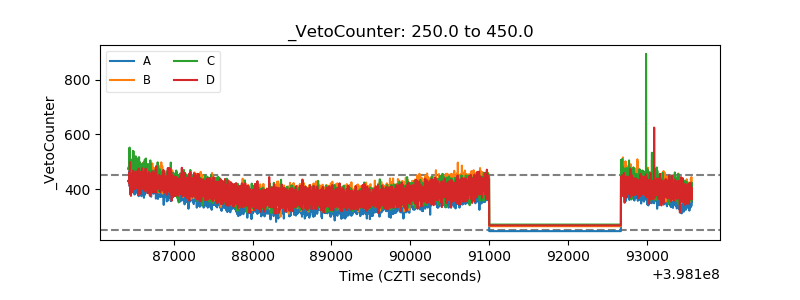

| Veto Counter |  |
