| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37192cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37192cztM0_level2_quad_clean.evt |
| Size (bytes) | 469,319,040 | 70,260,480 |
| Size | 447.6 MB | 67.0 MB |
| Events in quadrant A | 3,011,528 | 440,673 |
| Events in quadrant B | 3,165,532 | 438,946 |
| Events in quadrant C | 3,332,243 | 435,223 |
| Events in quadrant D | 4,311,871 | 408,591 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12743 | 3 |
| B | 0 | 13115 | 2 |
| C | 0 | 13330 | 2 |
| D | 0 | 16681 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5777 | 31 | 0.536611% |
| B | 5777 | 112 | 1.938723% |
| C | 5777 | 100 | 1.731002% |
| D | 5777 | 393 | 6.802839% |

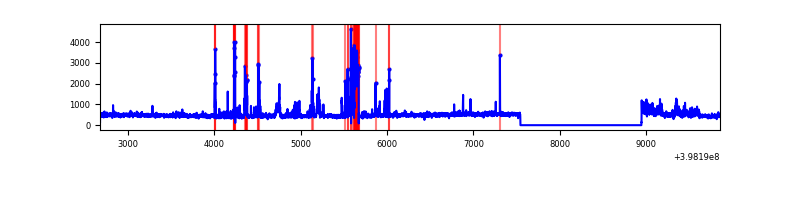

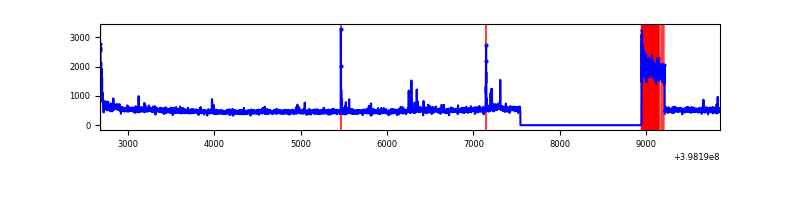

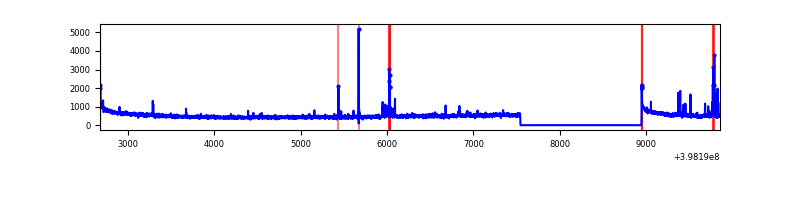

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

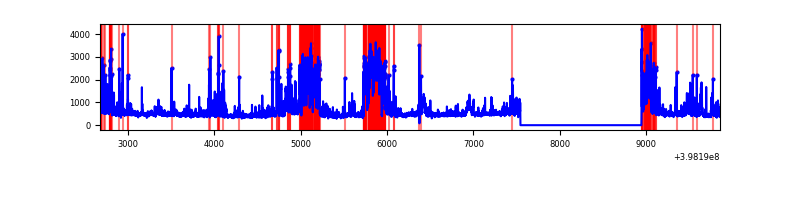

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7180 | 5778 | 16 | 16 | 0.22% | 0.28% |  |
| B | 7180 | 5778 | 78 | 78 | 1.09% | 1.35% |  |
| C | 7180 | 5778 | 130 | 130 | 1.81% | 2.25% |  |
| D | 7180 | 5778 | 419 | 419 | 5.84% | 7.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 278766 | 2104.0 | 656 | 643 | 132.2 |
| A | 13 | 248 | 77193 | 579.1 | 656 | 643 | 132.2 |
| A | 13 | 6 | 74329 | 557.43 | 656 | 643 | 132.2 |
| B | 0 | 229 | 214007 | 1718.23 | 646 | 629 | 124.2 |
| B | 5 | 172 | 153498 | 1230.98 | 646 | 629 | 124.2 |
| B | 0 | 190 | 99167 | 793.48 | 646 | 629 | 124.2 |
| C | 10 | 49 | 454622 | 3022.82 | 640 | 644 | 150.2 |
| C | 15 | 214 | 248334 | 1649.25 | 640 | 644 | 150.2 |
| C | 0 | 10 | 62852 | 414.21 | 640 | 644 | 150.2 |
| D | 10 | 253 | 1078605 | 7098.75 | 627 | 610 | 151.9 |
| D | 2 | 249 | 229058 | 1504.36 | 627 | 610 | 151.9 |
| D | 1 | 52 | 151153 | 991.35 | 627 | 610 | 151.9 |

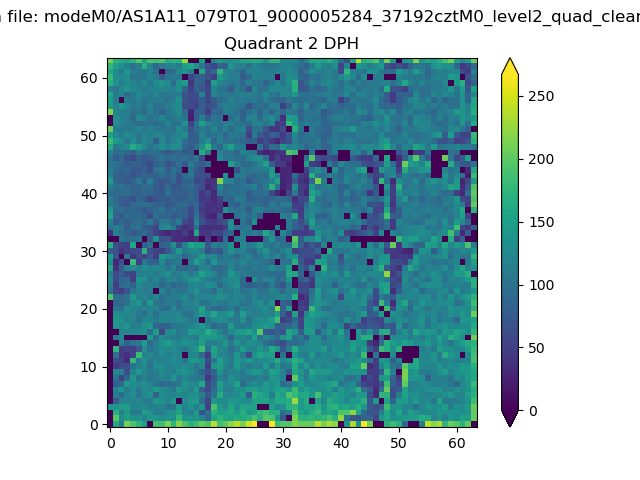

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

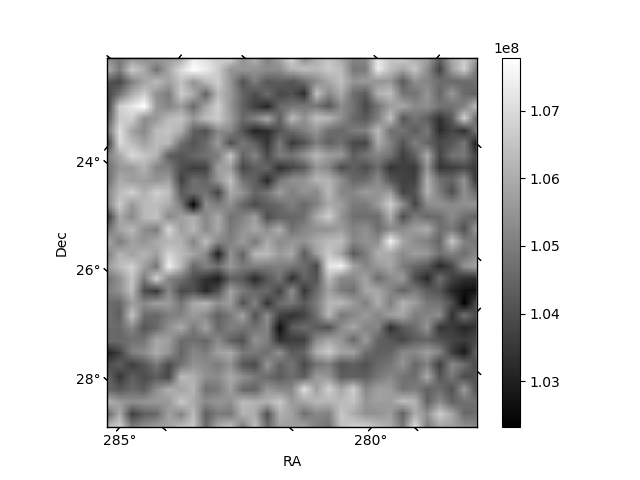

| Plot type | Count rate plots | Images |
|---|---|---|

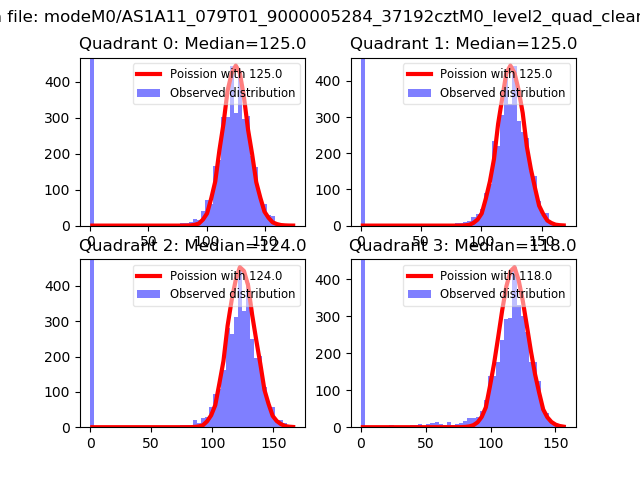

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

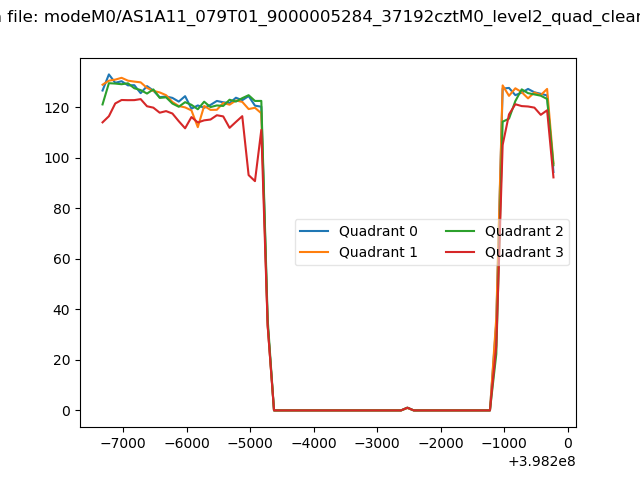

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

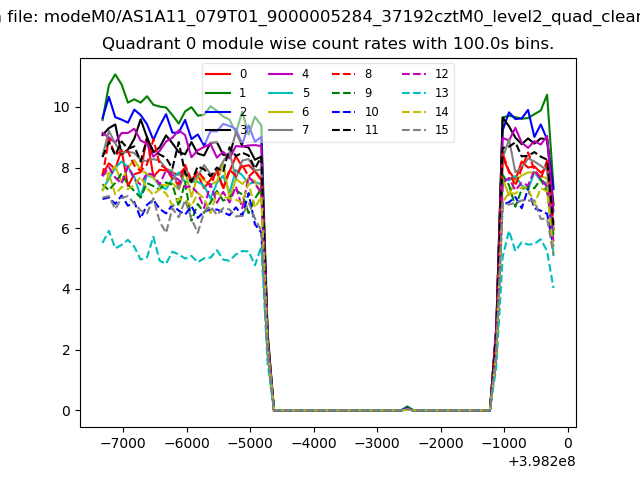

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

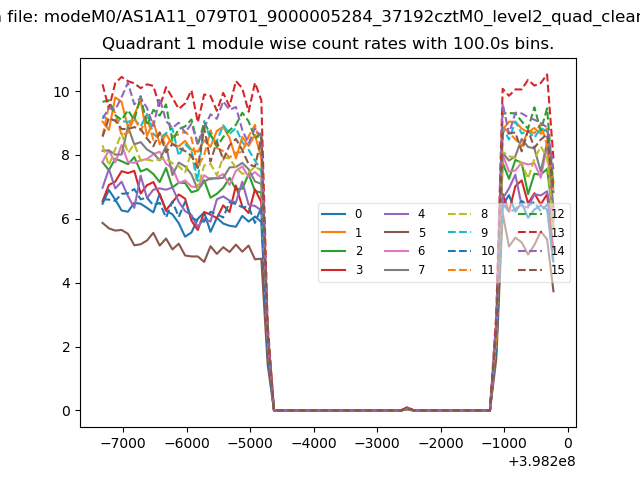

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

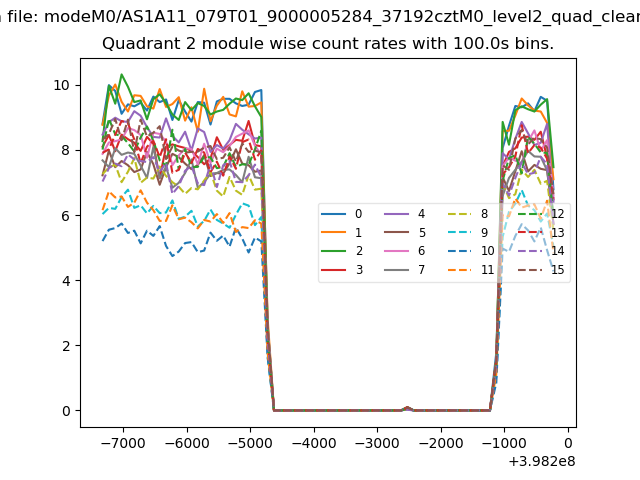

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

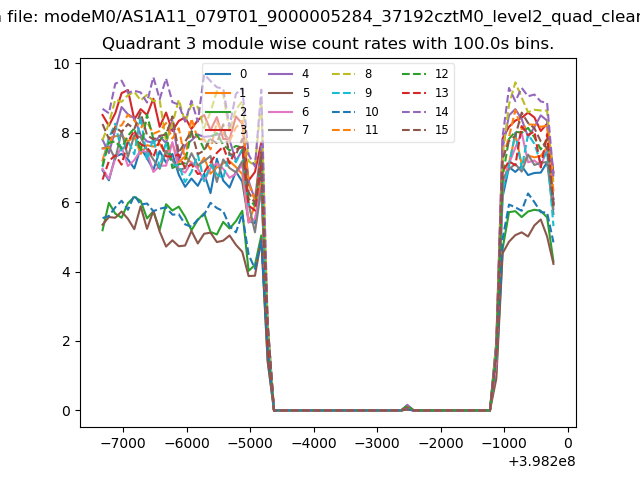

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

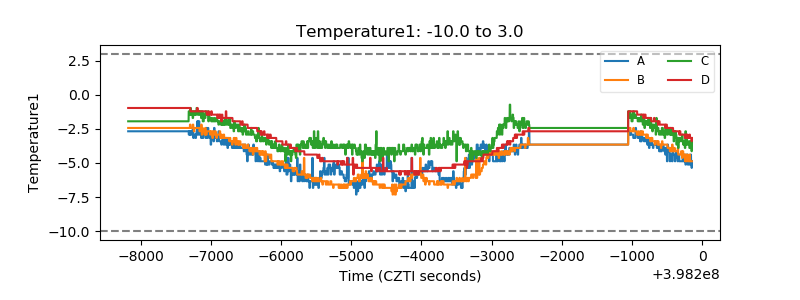

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

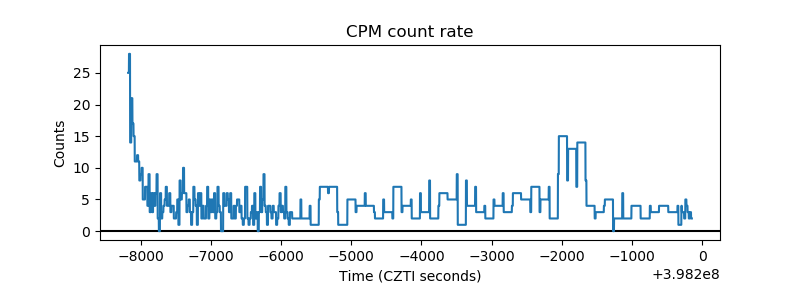

| _CPM_Rate |  |

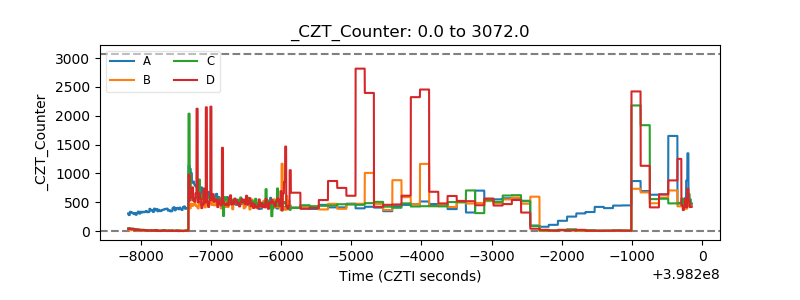

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

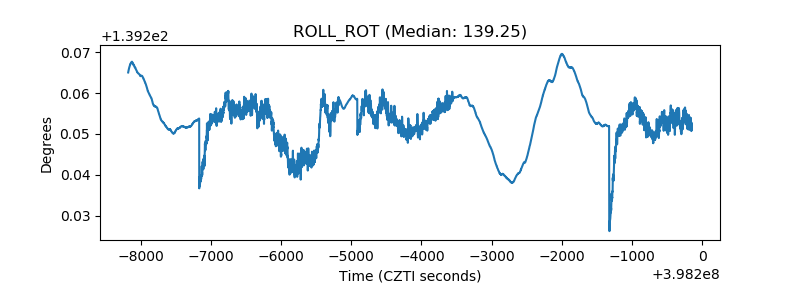

| _ROLL_ROT |  |

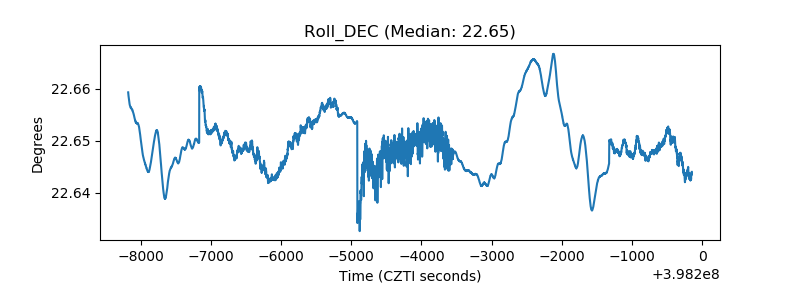

| _Roll_DEC |  |

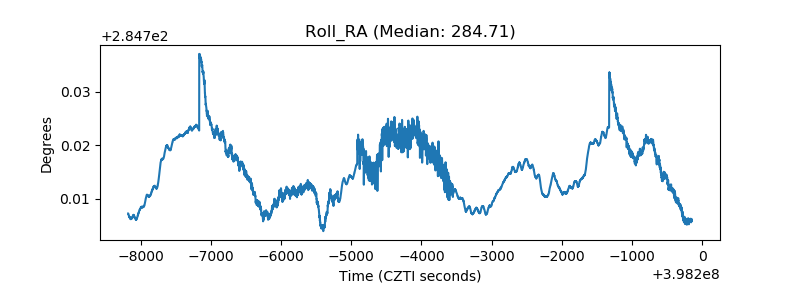

| _Roll_RA |  |

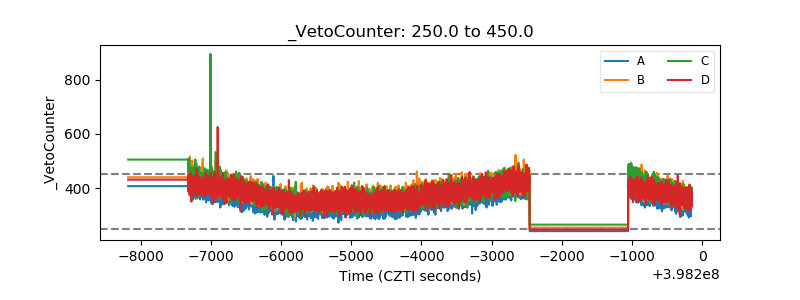

| Veto Counter |  |
