| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_079T01_9000005284_37228cztM0_level2.evt | modeM0/AS1A11_079T01_9000005284_37228cztM0_level2_quad_clean.evt |
| Size (bytes) | 219,951,360 | 23,307,840 |
| Size | 209.8 MB | 22.2 MB |
| Events in quadrant A | 1,580,925 | 121,162 |
| Events in quadrant B | 1,596,330 | 124,165 |
| Events in quadrant C | 1,660,255 | 119,992 |
| Events in quadrant D | 1,607,391 | 115,357 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 64 | 0 |
| B | 0 | 64 | 0 |
| C | 0 | 64 | 0 |
| D | 0 | 64 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6687 | 1 |
| B | 0 | 6747 | 1 |
| C | 0 | 6816 | 1 |
| D | 0 | 6997 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3159 | 4 | 0.126622% |
| B | 3159 | 25 | 0.791390% |
| C | 3159 | 29 | 0.918012% |
| D | 3159 | 17 | 0.538145% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4800 | 3160 | 5 | 5 | 0.10% | 0.16% |  |
| B | 4800 | 3160 | 15 | 15 | 0.31% | 0.47% |  |
| C | 4800 | 3160 | 26 | 26 | 0.54% | 0.82% |  |
| D | 4800 | 3160 | 8 | 8 | 0.17% | 0.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 143574 | 1917.42 | 362 | 356 | 74.7 |
| A | 15 | 237 | 15550 | 203.42 | 362 | 356 | 74.7 |
| A | 13 | 248 | 7283 | 92.74 | 362 | 356 | 74.7 |
| B | 0 | 155 | 77935 | 1084.86 | 362 | 353 | 71.5 |
| B | 0 | 213 | 33513 | 463.69 | 362 | 353 | 71.5 |
| B | 0 | 230 | 25338 | 349.38 | 362 | 353 | 71.5 |
| C | 15 | 214 | 133788 | 1602.49 | 351 | 354 | 83.3 |
| C | 0 | 10 | 70509 | 842.54 | 351 | 354 | 83.3 |
| C | 8 | 79 | 34534 | 410.49 | 351 | 354 | 83.3 |
| D | 12 | 248 | 65506 | 754.95 | 349 | 340 | 86.3 |
| D | 2 | 249 | 48008 | 552.24 | 349 | 340 | 86.3 |
| D | 13 | 249 | 42966 | 493.82 | 349 | 340 | 86.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

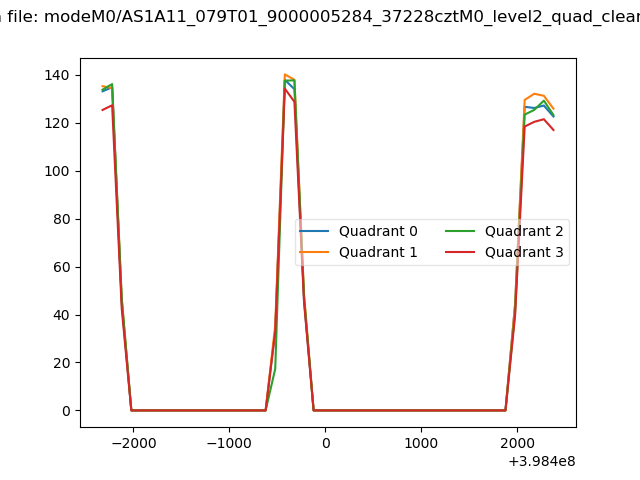

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

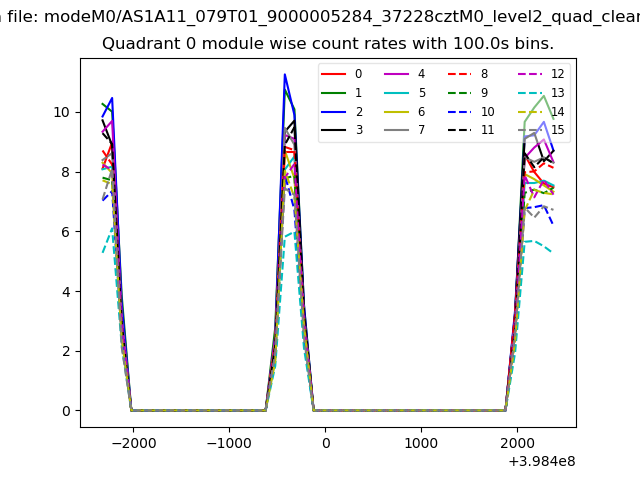

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

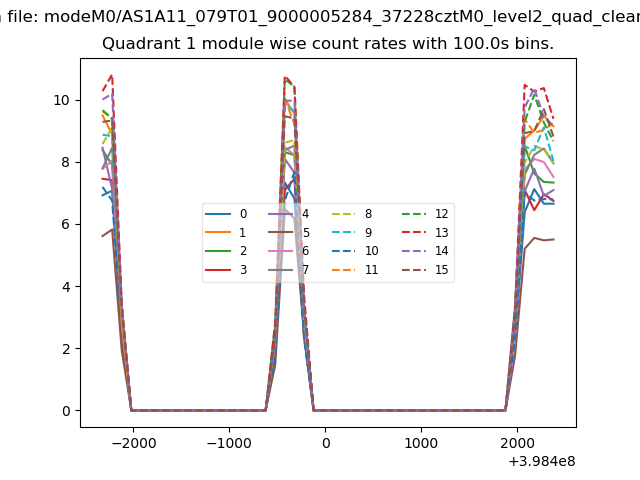

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

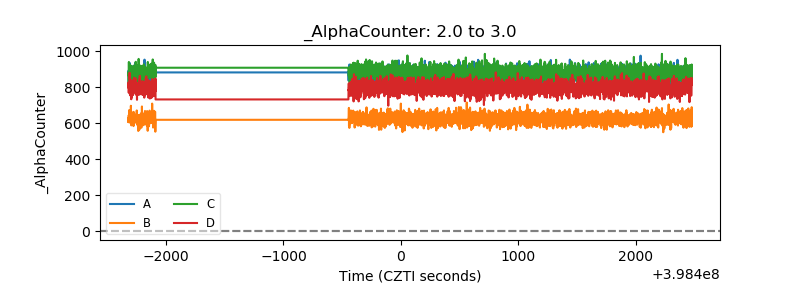

| Alpha Counter |  |

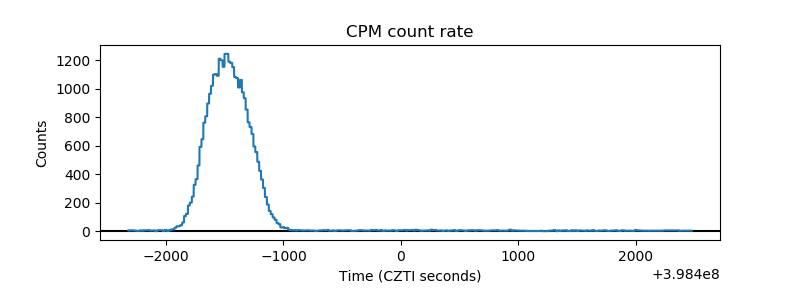

| _CPM_Rate |  |
| CZT Counter |  |

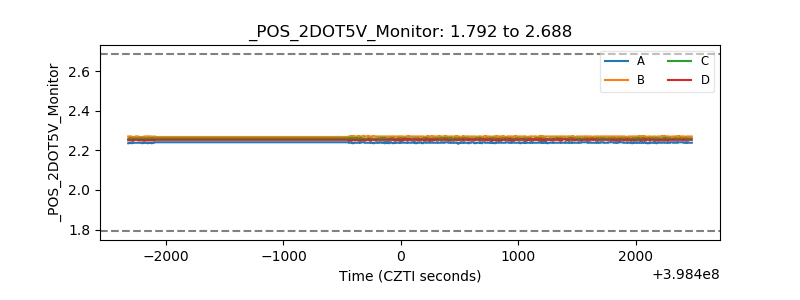

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

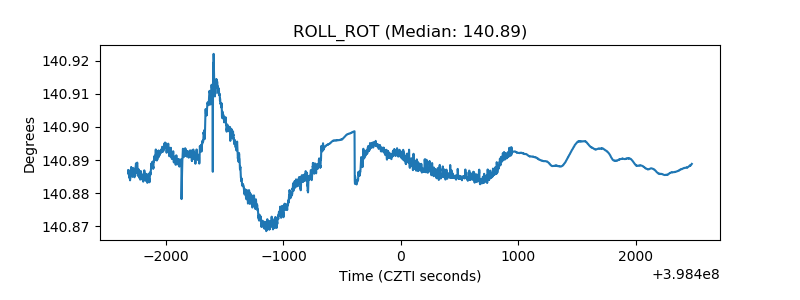

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
