| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T07_9000005302_37283cztM0_level2.evt | modeM0/AS1A10_103T07_9000005302_37283cztM0_level2_quad_clean.evt |
| Size (bytes) | 78,180,480 | 18,852,480 |
| Size | 74.6 MB | 18.0 MB |
| Events in quadrant A | 533,432 | 123,821 |
| Events in quadrant B | 508,885 | 126,076 |
| Events in quadrant C | 547,622 | 125,607 |
| Events in quadrant D | 705,686 | 116,777 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2255 | 2 |
| B | 0 | 2196 | 1 |
| C | 0 | 2280 | 1 |
| D | 0 | 2830 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1016 | 3 | 0.295276% |
| B | 1016 | 12 | 1.181102% |
| C | 1016 | 12 | 1.181102% |
| D | 1016 | 62 | 6.102362% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1016 | 1016 | 4 | 4 | 0.39% | 0.39% |  |
| B | 1016 | 1016 | 8 | 8 | 0.79% | 0.79% |  |
| C | 1016 | 1016 | 15 | 15 | 1.48% | 1.48% |  |
| D | 1016 | 1016 | 47 | 47 | 4.63% | 4.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 89803 | 3676.18 | 109 | 107 | 24.4 |
| A | 13 | 6 | 5667 | 227.88 | 109 | 107 | 24.4 |
| A | 13 | 248 | 3263 | 129.35 | 109 | 107 | 24.4 |
| B | 0 | 229 | 24524 | 1023.13 | 110 | 107 | 23.9 |
| B | 5 | 172 | 17683 | 736.48 | 110 | 107 | 23.9 |
| B | 5 | 200 | 15047 | 626.02 | 110 | 107 | 23.9 |
| C | 0 | 10 | 77547 | 2898.86 | 107 | 107 | 26.7 |
| C | 15 | 214 | 46555 | 1738.72 | 107 | 107 | 26.7 |
| C | 1 | 23 | 5442 | 199.71 | 107 | 107 | 26.7 |
| D | 13 | 249 | 146668 | 5425.57 | 103 | 100 | 27.0 |
| D | 2 | 249 | 134478 | 4974.33 | 103 | 100 | 27.0 |
| D | 10 | 199 | 11301 | 414.63 | 103 | 100 | 27.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

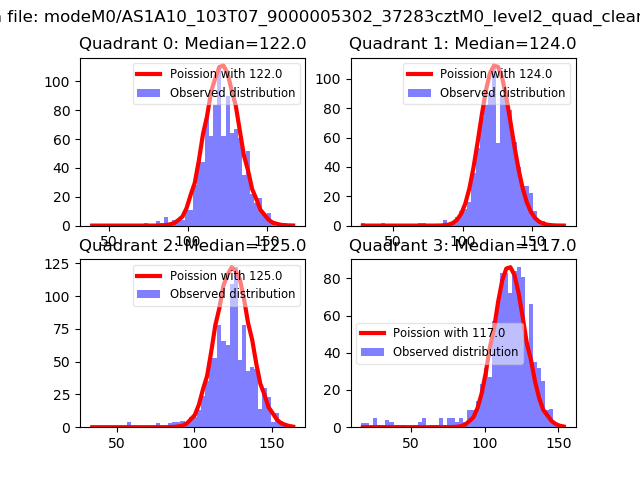

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

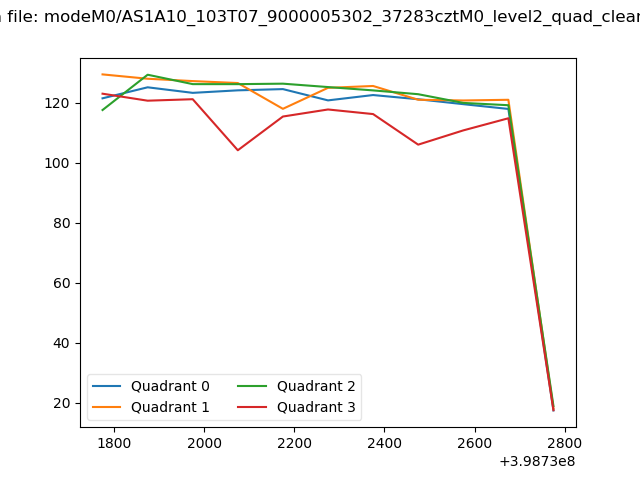

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

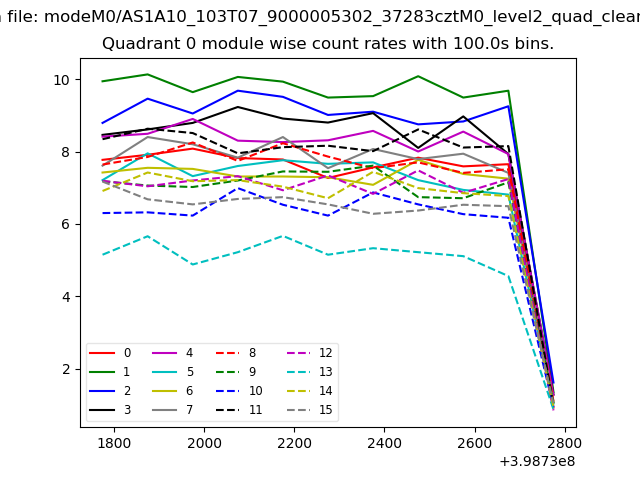

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

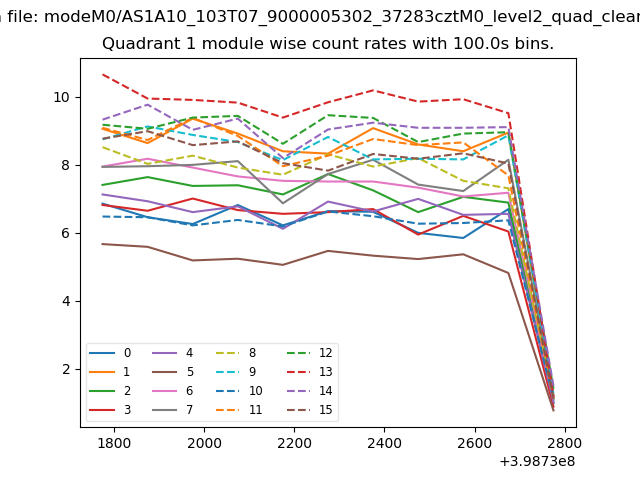

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

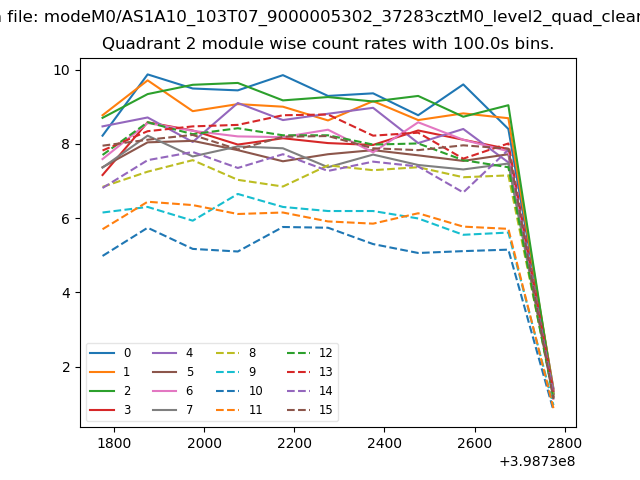

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

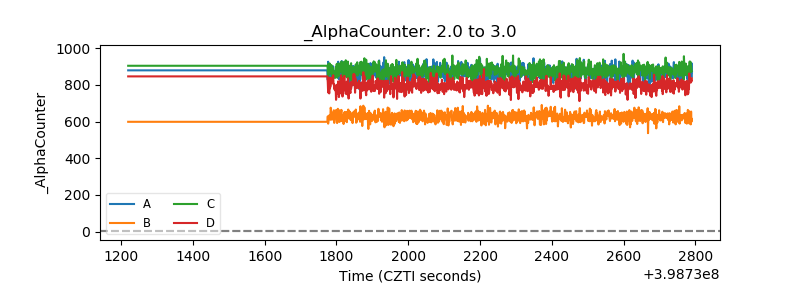

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

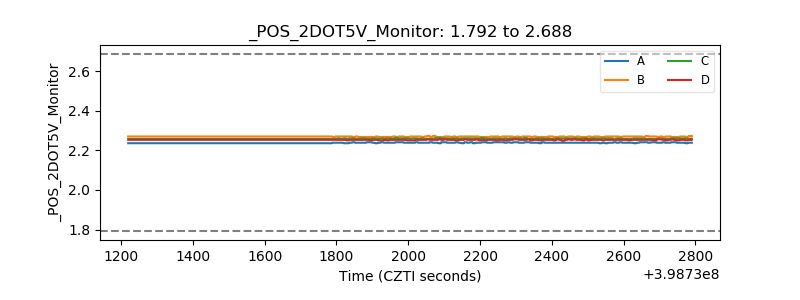

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

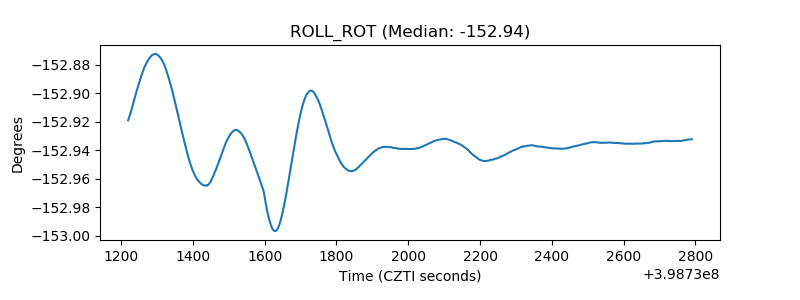

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
