| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_030T02_9000005310_37326cztM0_level2.evt | modeM0/AS1A11_030T02_9000005310_37326cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,003,898,880 | 148,032,000 |
| Size | 957.4 MB | 141.2 MB |
| Events in quadrant A | 5,793,573 | 971,613 |
| Events in quadrant B | 5,666,464 | 980,321 |
| Events in quadrant C | 7,839,515 | 931,924 |
| Events in quadrant D | 10,365,879 | 842,679 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24108 | 4 |
| B | 0 | 24084 | 3 |
| C | 0 | 30101 | 3 |
| D | 0 | 38216 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 228 | 0 |
| B | 0 | 228 | 0 |
| C | 0 | 228 | 0 |
| D | 0 | 228 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40 | 0 |
| B | 0 | 40 | 0 |
| C | 0 | 40 | 0 |
| D | 0 | 40 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10912 | 111 | 1.017229% |
| B | 10912 | 213 | 1.951979% |
| C | 10912 | 692 | 6.341642% |
| D | 10912 | 1804 | 16.532258% |

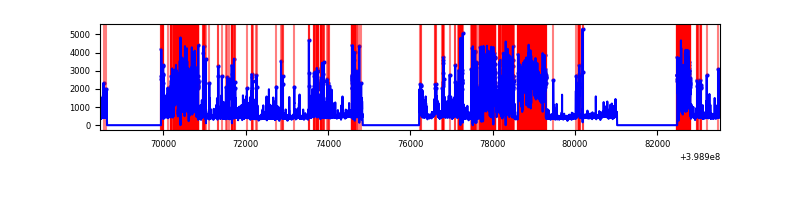

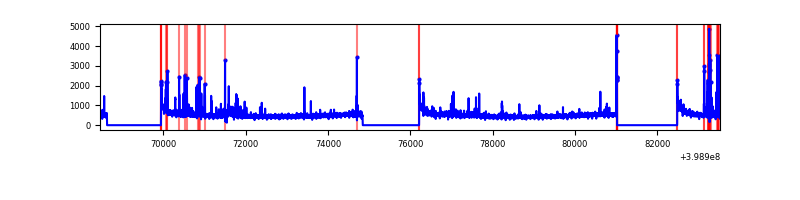

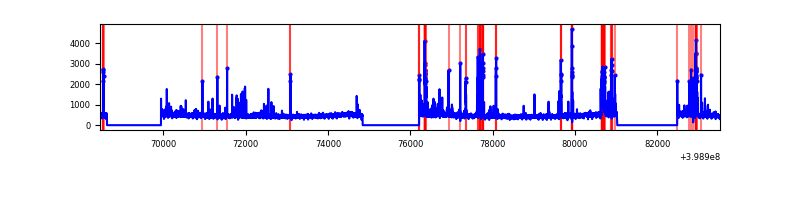

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15060 | 10915 | 45 | 45 | 0.30% | 0.41% |  |
| B | 15060 | 10915 | 126 | 126 | 0.84% | 1.15% |  |
| C | 15060 | 10915 | 607 | 607 | 4.03% | 5.56% |  |
| D | 15060 | 10914 | 1548 | 1548 | 10.28% | 14.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 514134 | 2057.36 | 1236 | 1214 | 249.3 |
| A | 13 | 248 | 155900 | 620.46 | 1236 | 1214 | 249.3 |
| A | 15 | 237 | 150922 | 600.49 | 1236 | 1214 | 249.3 |
| B | 5 | 172 | 385304 | 1623.94 | 1224 | 1189 | 236.5 |
| B | 12 | 18 | 150227 | 630.1 | 1224 | 1189 | 236.5 |
| B | 0 | 190 | 112913 | 472.34 | 1224 | 1189 | 236.5 |
| C | 1 | 23 | 2114471 | 7637.19 | 1178 | 1184 | 276.7 |
| C | 14 | 254 | 468139 | 1687.52 | 1178 | 1184 | 276.7 |
| C | 15 | 214 | 445599 | 1606.07 | 1178 | 1184 | 276.7 |
| D | 2 | 249 | 2320891 | 8411.03 | 1121 | 1090 | 275.8 |
| D | 12 | 227 | 1619824 | 5869.13 | 1121 | 1090 | 275.8 |
| D | 13 | 249 | 1057458 | 3830.13 | 1121 | 1090 | 275.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

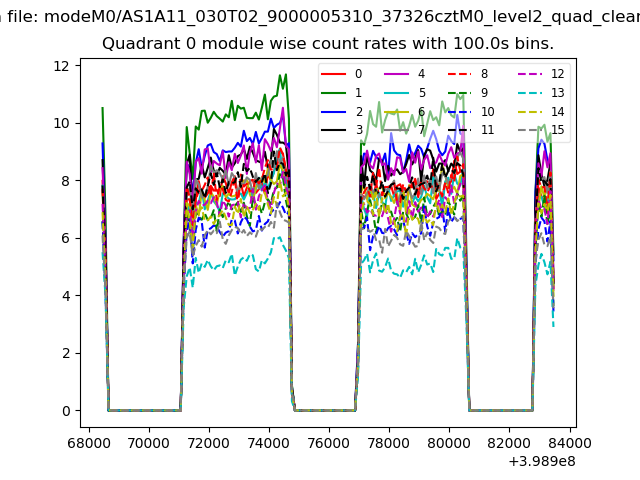

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

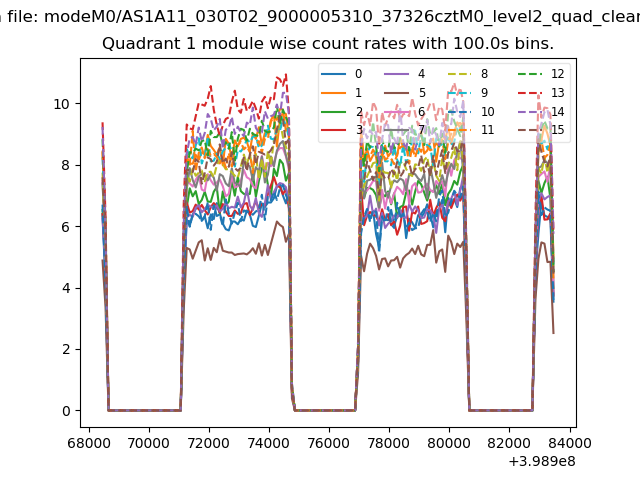

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

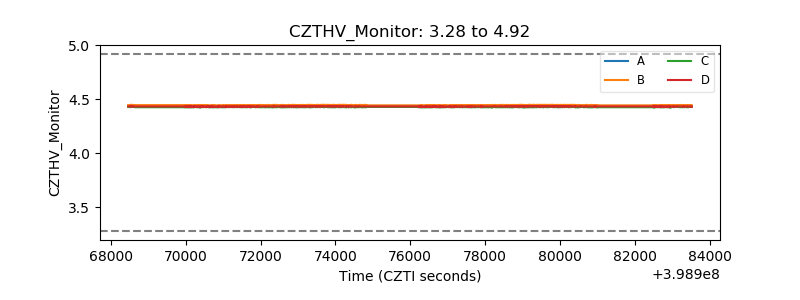

| CZT HV Monitor |  |
| D_VDD |  |

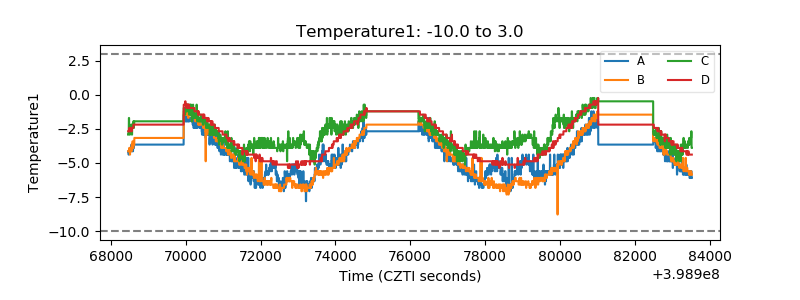

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

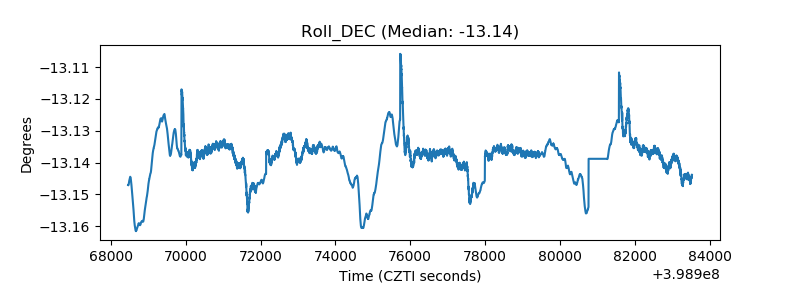

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
