| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_014T01_9000005314_37359cztM0_level2.evt | modeM0/AS1C07_014T01_9000005314_37359cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,287,040 | 86,690,880 |
| Size | 503.8 MB | 82.7 MB |
| Events in quadrant A | 2,853,479 | 582,797 |
| Events in quadrant B | 2,966,233 | 582,717 |
| Events in quadrant C | 2,804,257 | 584,098 |
| Events in quadrant D | 7,028,194 | 516,295 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11723 | 2 |
| B | 0 | 12142 | 2 |
| C | 0 | 11345 | 2 |
| D | 0 | 24497 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5123 | 69 | 1.346867% |
| B | 5123 | 143 | 2.791333% |
| C | 5123 | 48 | 0.936951% |
| D | 5123 | 752 | 14.678899% |

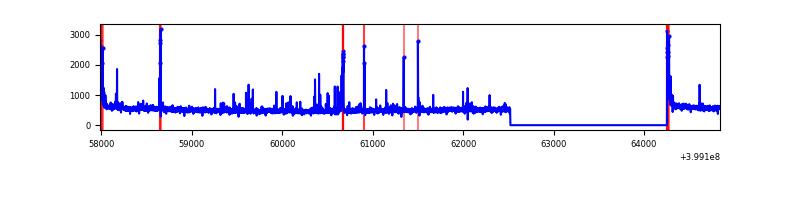

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

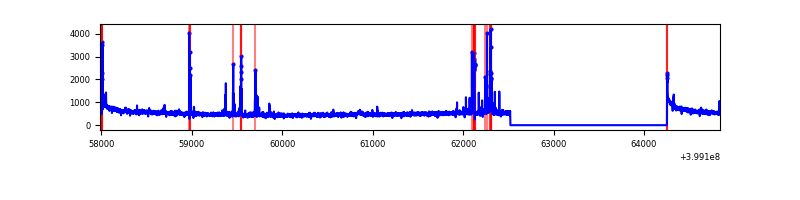

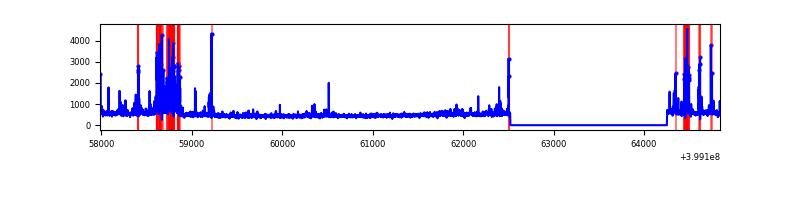

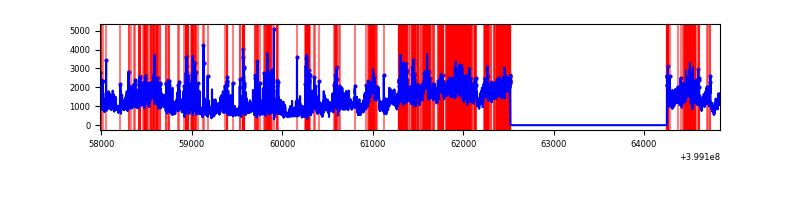

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6856 | 5124 | 44 | 44 | 0.64% | 0.86% |  |
| B | 6856 | 5124 | 83 | 83 | 1.21% | 1.62% |  |
| C | 6856 | 5124 | 36 | 36 | 0.53% | 0.70% |  |
| D | 6856 | 5124 | 730 | 730 | 10.65% | 14.25% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 273978 | 2194.55 | 608 | 600 | 124.6 |
| A | 15 | 237 | 129750 | 1036.75 | 608 | 600 | 124.6 |
| A | 9 | 143 | 45339 | 359.14 | 608 | 600 | 124.6 |
| B | 5 | 172 | 335558 | 2861.95 | 605 | 593 | 117.0 |
| B | 0 | 190 | 70442 | 596.79 | 605 | 593 | 117.0 |
| B | 5 | 255 | 64311 | 544.41 | 605 | 593 | 117.0 |
| C | 15 | 214 | 217424 | 1527.62 | 600 | 607 | 141.9 |
| C | 0 | 10 | 97103 | 679.88 | 600 | 607 | 141.9 |
| C | 15 | 159 | 92941 | 650.56 | 600 | 607 | 141.9 |
| D | 12 | 235 | 2710359 | 18867.22 | 574 | 558 | 143.6 |
| D | 12 | 227 | 987268 | 6870.05 | 574 | 558 | 143.6 |
| D | 2 | 249 | 643464 | 4476.29 | 574 | 558 | 143.6 |

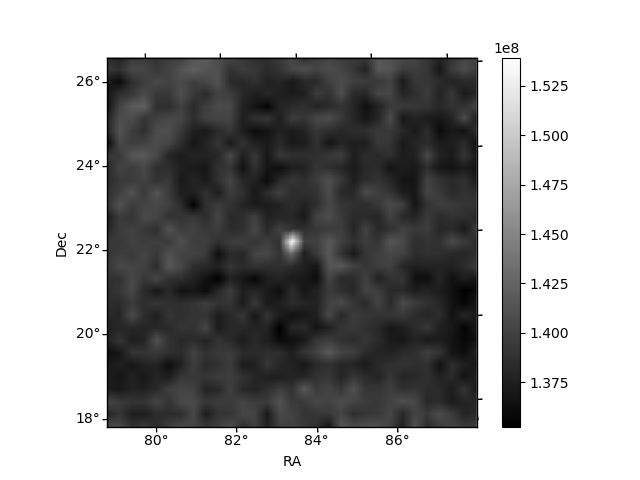

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

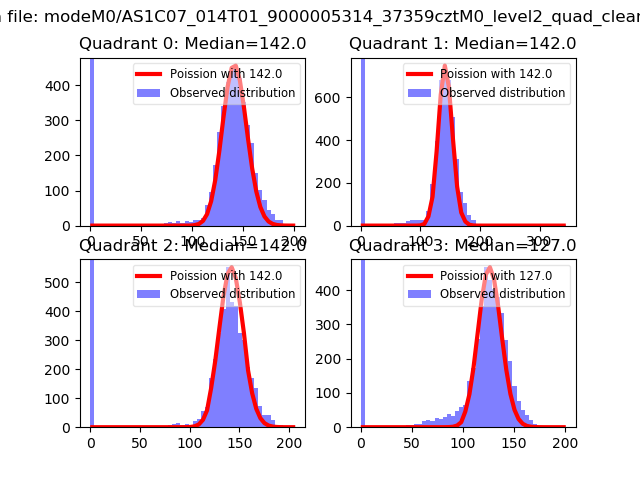

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

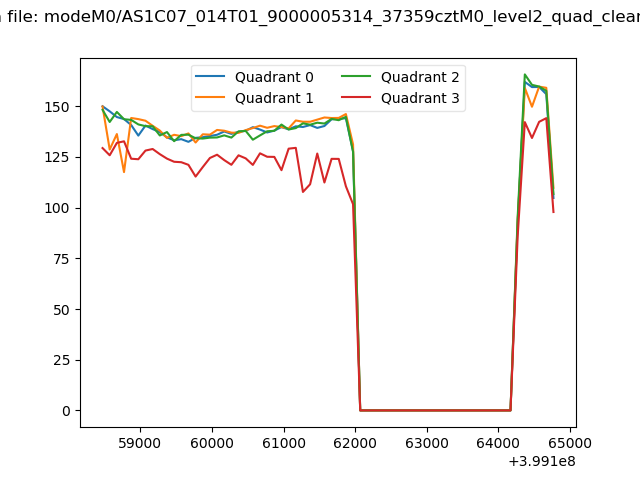

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

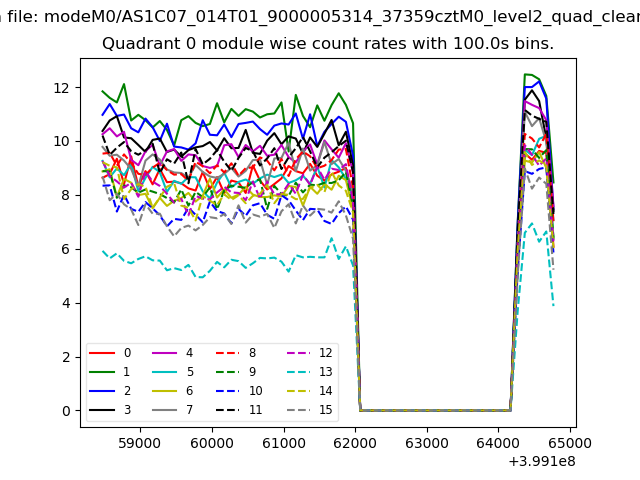

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

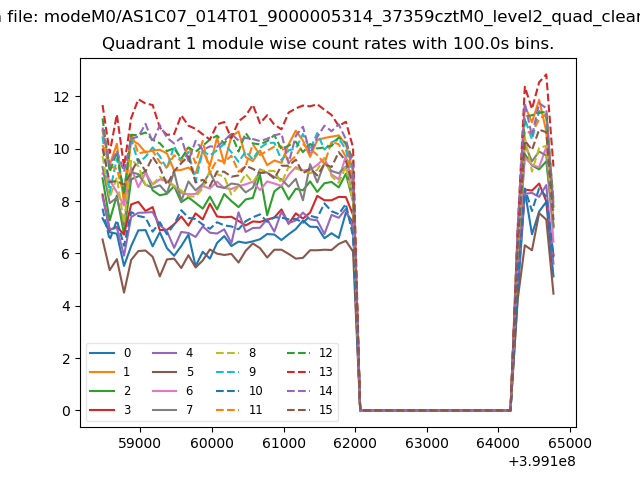

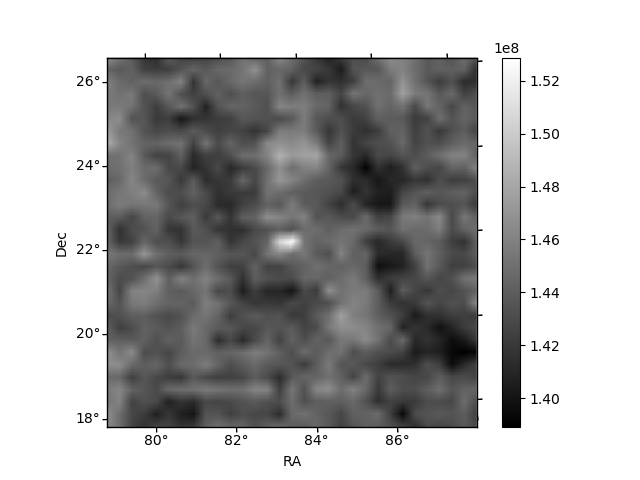

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

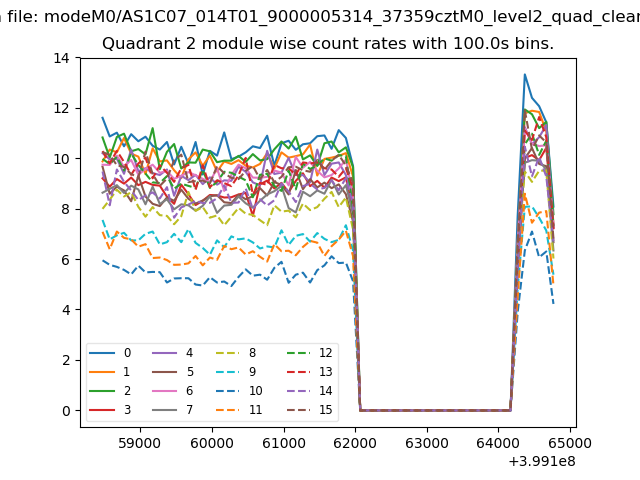

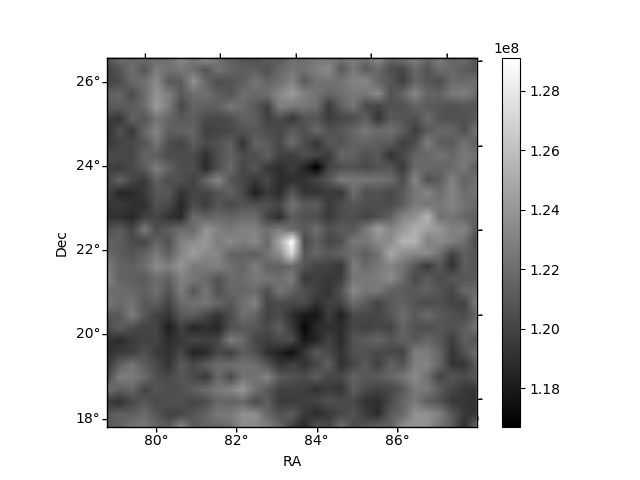

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

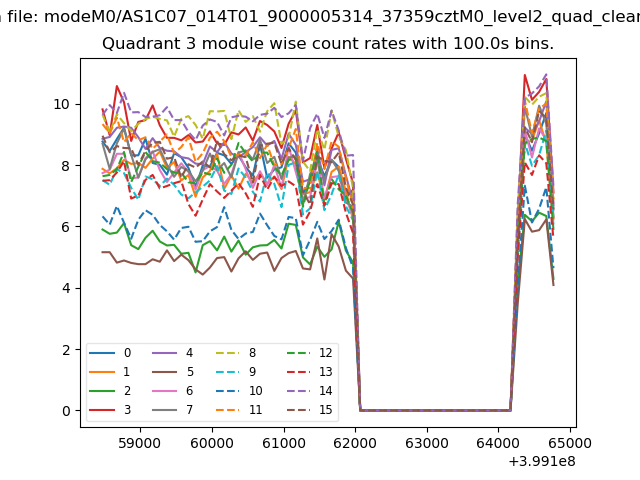

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

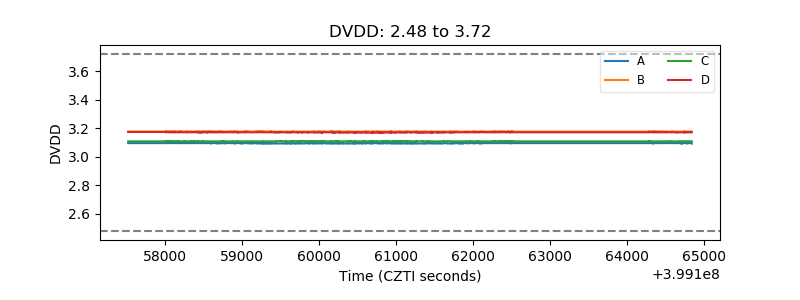

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

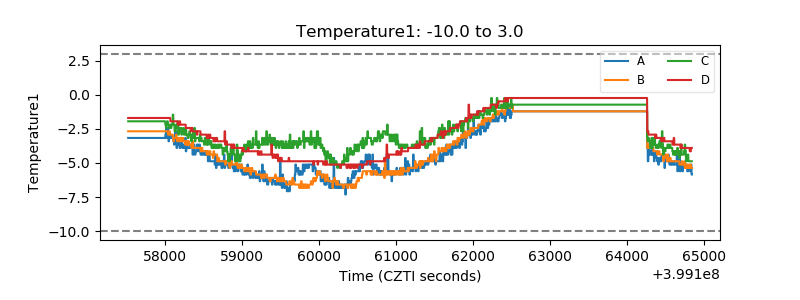

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

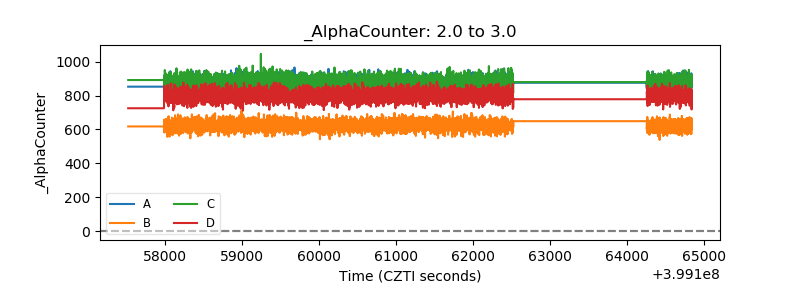

| Alpha Counter |  |

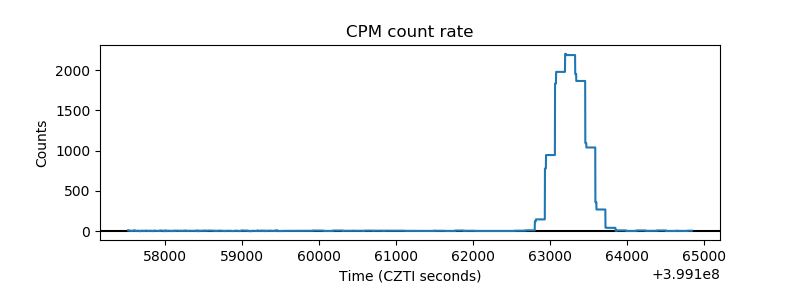

| _CPM_Rate |  |

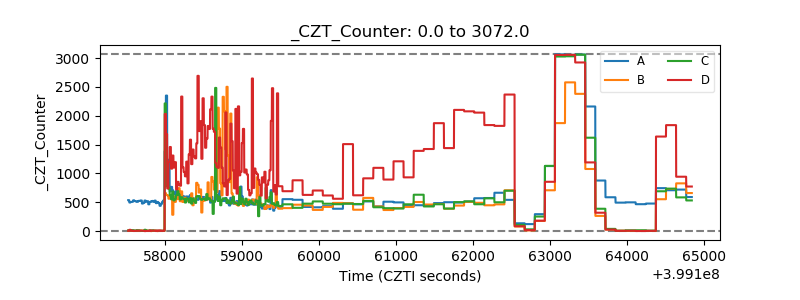

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

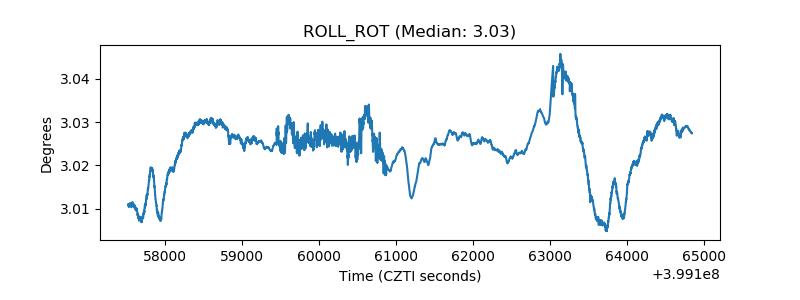

| _ROLL_ROT |  |
| _Roll_DEC |  |

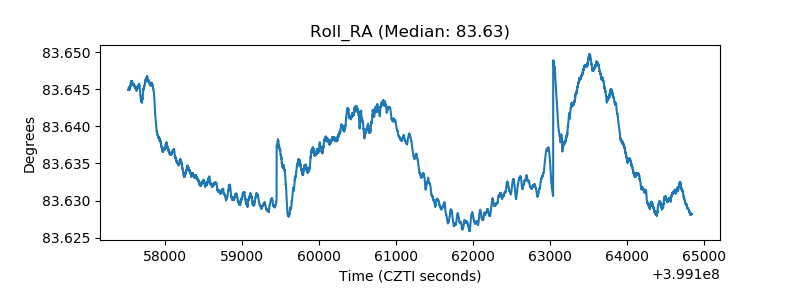

| _Roll_RA |  |

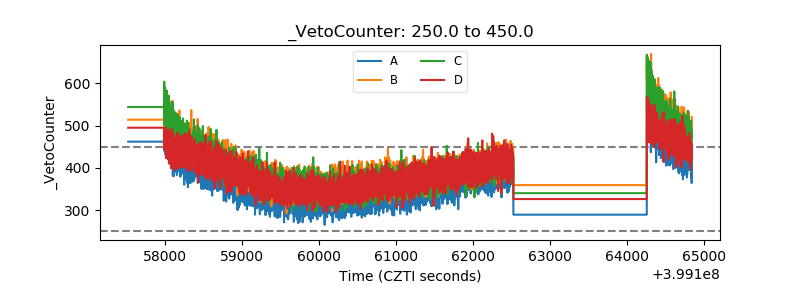

| Veto Counter |  |
