| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_094T20_9000005316_37361cztM0_level2.evt | modeM0/AS1A10_094T20_9000005316_37361cztM0_level2_quad_clean.evt |
| Size (bytes) | 603,912,960 | 102,913,920 |
| Size | 575.9 MB | 98.1 MB |
| Events in quadrant A | 2,782,243 | 716,247 |
| Events in quadrant B | 3,607,989 | 724,705 |
| Events in quadrant C | 2,983,941 | 748,407 |
| Events in quadrant D | 8,571,010 | 569,675 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11301 | 3 |
| B | 0 | 13840 | 4 |
| C | 0 | 11756 | 2 |
| D | 0 | 28970 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 33 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5093 | 27 | 0.530139% |
| B | 5092 | 292 | 5.734485% |
| C | 5093 | 56 | 1.099548% |
| D | 5093 | 2095 | 41.134891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7156 | 5094 | 18 | 18 | 0.25% | 0.35% |  |
| B | 7156 | 5094 | 197 | 197 | 2.75% | 3.87% |  |
| C | 7156 | 5094 | 41 | 41 | 0.57% | 0.80% |  |
| D | 7156 | 5094 | 1914 | 1914 | 26.75% | 37.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 270790 | 2198.71 | 613 | 601 | 122.9 |
| A | 9 | 143 | 115563 | 935.52 | 613 | 601 | 122.9 |
| A | 13 | 248 | 13327 | 103.56 | 613 | 601 | 122.9 |
| B | 5 | 255 | 985391 | 8651.92 | 605 | 588 | 113.8 |
| B | 0 | 190 | 52746 | 458.23 | 605 | 588 | 113.8 |
| B | 5 | 172 | 44275 | 383.81 | 605 | 588 | 113.8 |
| C | 15 | 214 | 218304 | 1525.71 | 621 | 624 | 142.7 |
| C | 1 | 23 | 147045 | 1026.26 | 621 | 624 | 142.7 |
| C | 0 | 10 | 108363 | 755.14 | 621 | 624 | 142.7 |
| D | 12 | 235 | 5831031 | 46058.17 | 525 | 510 | 126.6 |
| D | 12 | 227 | 477498 | 3767.96 | 525 | 510 | 126.6 |
| D | 12 | 233 | 111414 | 876.09 | 525 | 510 | 126.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

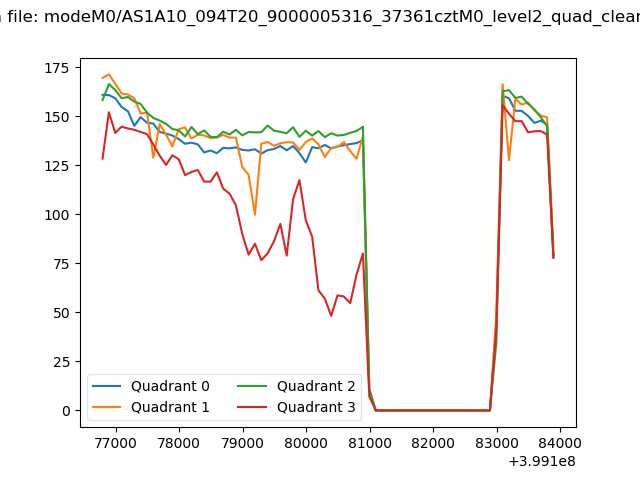

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

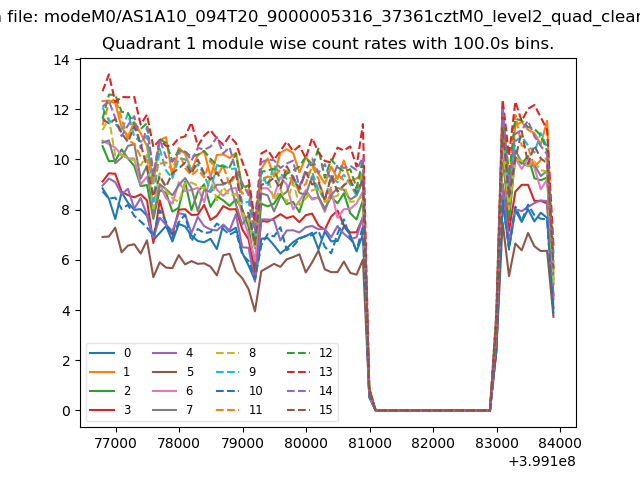

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

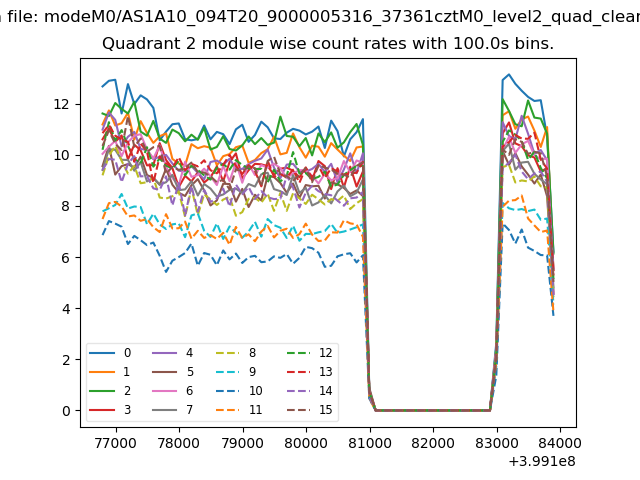

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

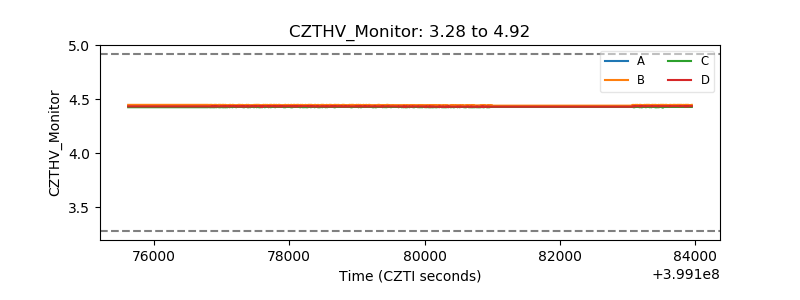

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

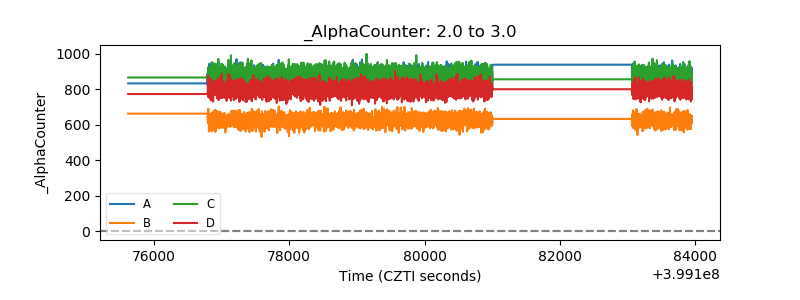

| Alpha Counter |  |

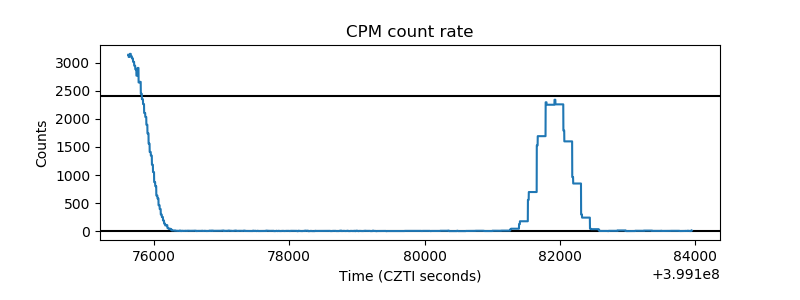

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

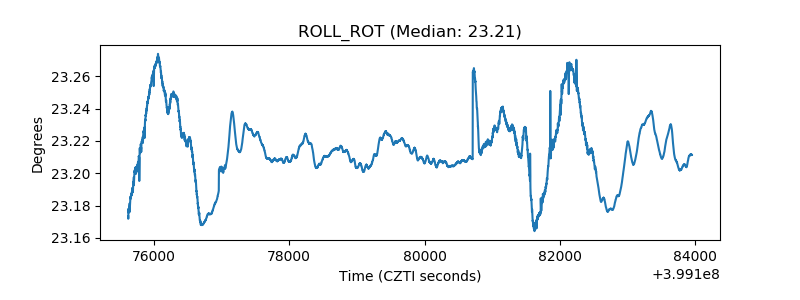

| _ROLL_ROT |  |

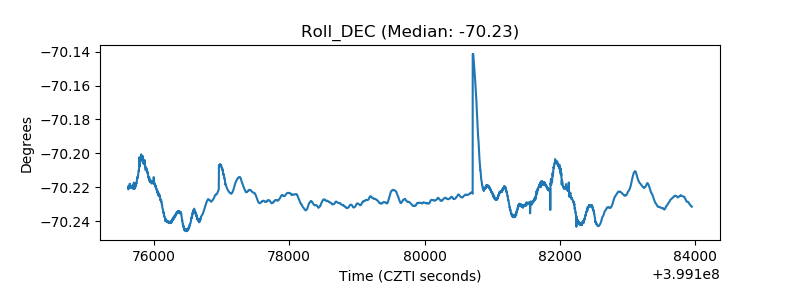

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
