| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C07_001T01_9000005320_37393cztM0_level2.evt | modeM0/AS1C07_001T01_9000005320_37393cztM0_level2_quad_clean.evt |
| Size (bytes) | 474,148,800 | 95,014,080 |
| Size | 452.2 MB | 90.6 MB |
| Events in quadrant A | 2,608,711 | 647,594 |
| Events in quadrant B | 2,574,725 | 655,061 |
| Events in quadrant C | 2,507,421 | 638,170 |
| Events in quadrant D | 6,317,688 | 573,739 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10929 | 3 |
| B | 0 | 11085 | 2 |
| C | 0 | 10647 | 2 |
| D | 0 | 22323 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5174 | 22 | 0.425203% |
| B | 5174 | 37 | 0.715114% |
| C | 5174 | 10 | 0.193274% |
| D | 5174 | 737 | 14.244298% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7087 | 5175 | 9 | 9 | 0.13% | 0.17% |  |
| B | 7087 | 5175 | 15 | 15 | 0.21% | 0.29% |  |
| C | 7087 | 5175 | 5 | 5 | 0.07% | 0.10% |  |
| D | 7087 | 5175 | 737 | 737 | 10.40% | 14.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 279608 | 2388.82 | 578 | 569 | 116.8 |
| A | 9 | 143 | 23778 | 198.69 | 578 | 569 | 116.8 |
| A | 10 | 248 | 19728 | 164.02 | 578 | 569 | 116.8 |
| B | 4 | 171 | 105344 | 968.37 | 571 | 557 | 108.2 |
| B | 4 | 232 | 57802 | 529.02 | 571 | 557 | 108.2 |
| B | 5 | 172 | 48760 | 445.46 | 571 | 557 | 108.2 |
| C | 15 | 214 | 221201 | 1716.29 | 555 | 557 | 128.6 |
| C | 0 | 10 | 50703 | 390.06 | 555 | 557 | 128.6 |
| C | 0 | 239 | 27830 | 212.14 | 555 | 557 | 128.6 |
| D | 12 | 235 | 2557227 | 19565.59 | 537 | 521 | 130.7 |
| D | 12 | 227 | 650278 | 4972.37 | 537 | 521 | 130.7 |
| D | 2 | 249 | 527830 | 4035.31 | 537 | 521 | 130.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

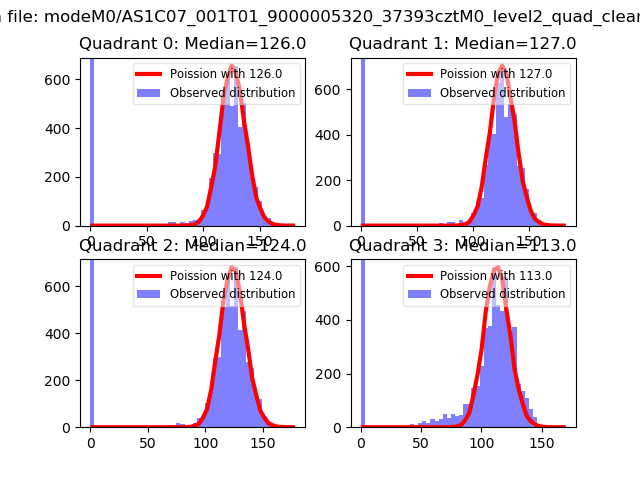

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

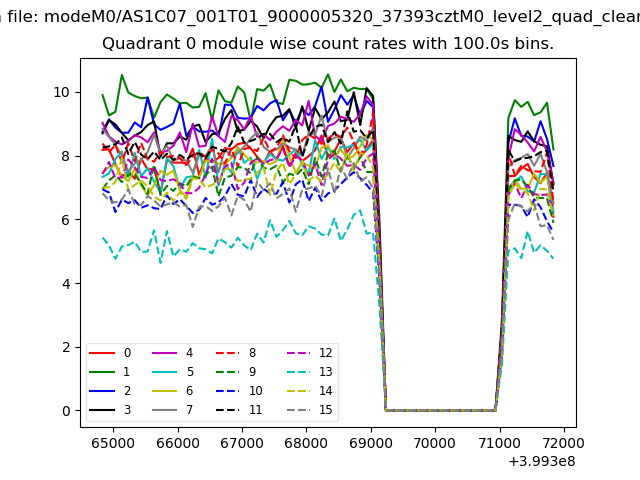

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

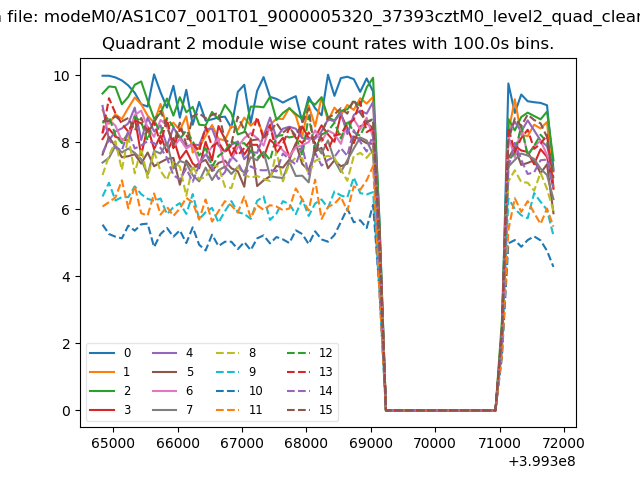

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |

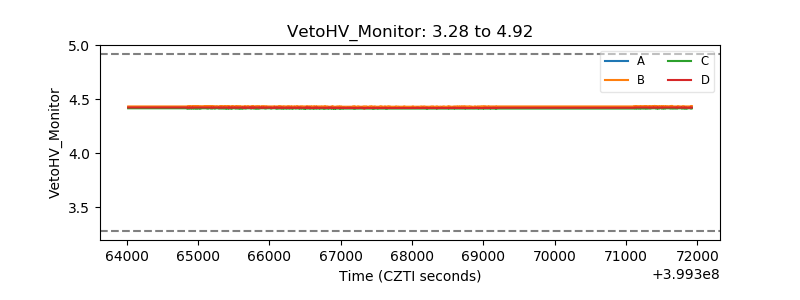

| Veto HV Monitor |  |
| Veto LLD |  |

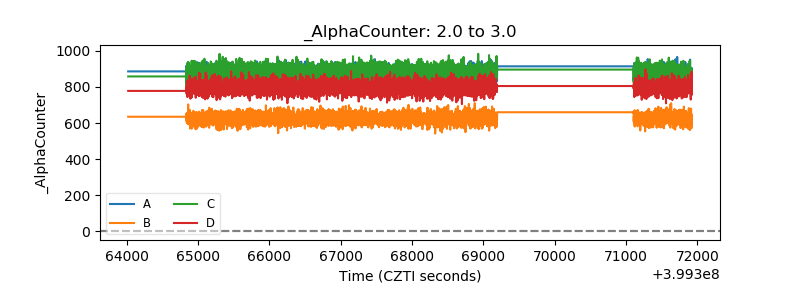

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

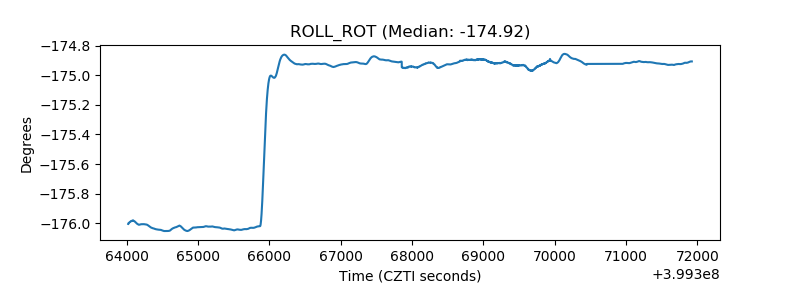

| _ROLL_ROT |  |
| _Roll_DEC |  |

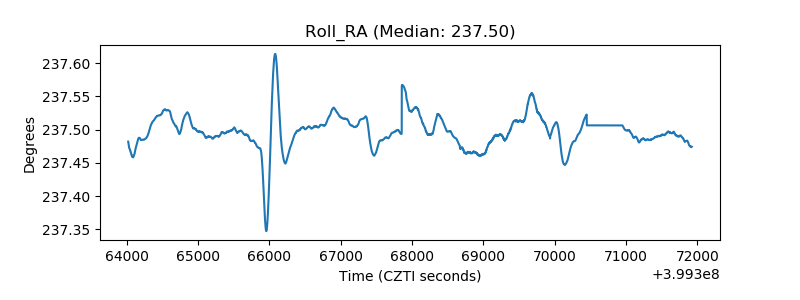

| _Roll_RA |  |

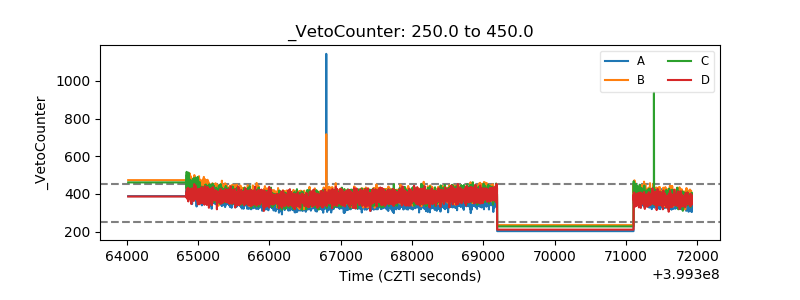

| Veto Counter |  |
