| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_027T01_9000005324_37465cztM0_level2.evt | modeM0/AS1A11_027T01_9000005324_37465cztM0_level2_quad_clean.evt |
| Size (bytes) | 447,696,000 | 98,101,440 |
| Size | 427.0 MB | 93.6 MB |
| Events in quadrant A | 3,491,533 | 649,350 |
| Events in quadrant B | 2,741,252 | 676,950 |
| Events in quadrant C | 2,799,246 | 676,581 |
| Events in quadrant D | 4,177,646 | 607,944 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 30 | 0 |
| B | 0 | 30 | 0 |
| C | 0 | 30 | 0 |
| D | 0 | 31 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13809 | 3 |
| B | 0 | 11490 | 2 |
| C | 0 | 11232 | 2 |
| D | 0 | 15813 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5135 | 62 | 1.207400% |
| B | 5135 | 88 | 1.713729% |
| C | 5135 | 77 | 1.499513% |
| D | 5135 | 487 | 9.483934% |

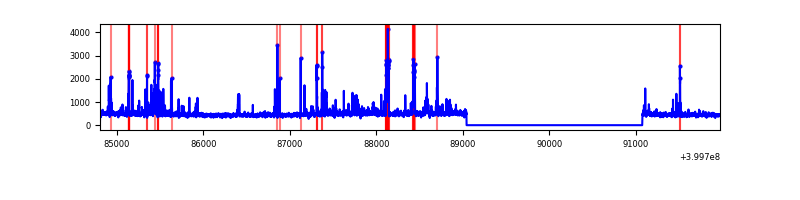

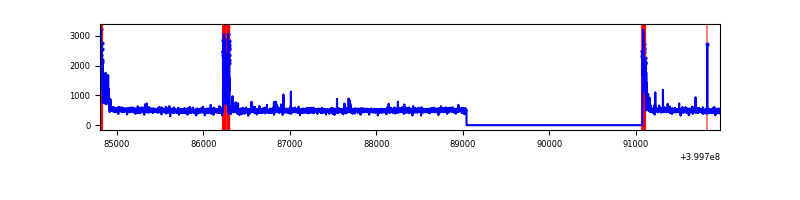

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7167 | 5136 | 52 | 52 | 0.73% | 1.01% |  |
| B | 7167 | 5136 | 62 | 62 | 0.87% | 1.21% |  |
| C | 7167 | 5136 | 63 | 63 | 0.88% | 1.23% |  |
| D | 7167 | 5136 | 444 | 444 | 6.20% | 8.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 674942 | 5815.81 | 582 | 571 | 116.0 |
| A | 10 | 83 | 276344 | 2378.28 | 582 | 571 | 116.0 |
| A | 13 | 248 | 242712 | 2088.24 | 582 | 571 | 116.0 |
| B | 5 | 172 | 185553 | 1662.17 | 582 | 566 | 111.3 |
| B | 15 | 35 | 79452 | 708.82 | 582 | 566 | 111.3 |
| B | 0 | 229 | 42816 | 379.63 | 582 | 566 | 111.3 |
| C | 15 | 214 | 221085 | 1654.97 | 581 | 585 | 133.2 |
| C | 0 | 10 | 172665 | 1291.55 | 581 | 585 | 133.2 |
| C | 14 | 254 | 118519 | 885.16 | 581 | 585 | 133.2 |
| D | 13 | 249 | 1732830 | 12926.44 | 554 | 540 | 134.0 |
| D | 2 | 249 | 78932 | 584.97 | 554 | 540 | 134.0 |
| D | 2 | 153 | 65428 | 484.2 | 554 | 540 | 134.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

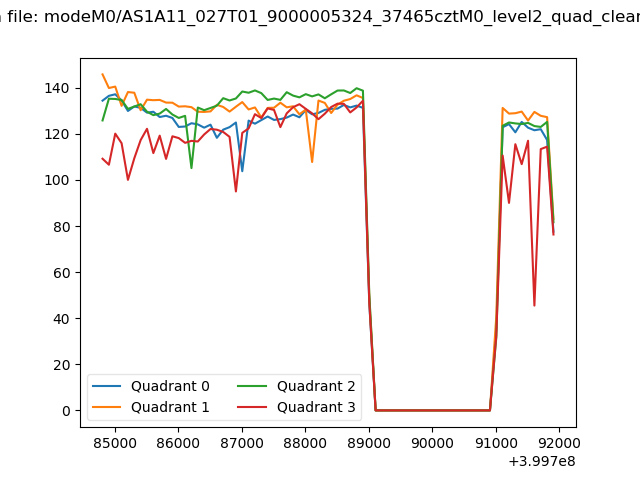

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

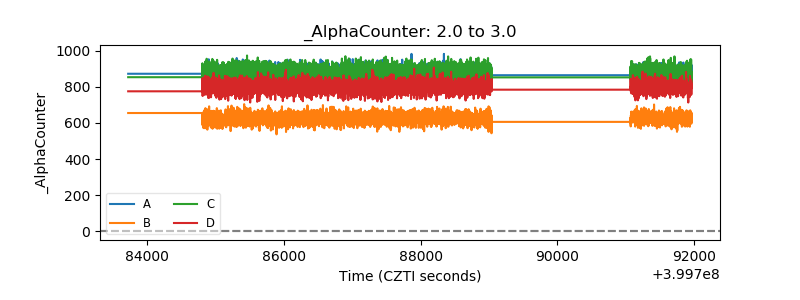

| Alpha Counter |  |

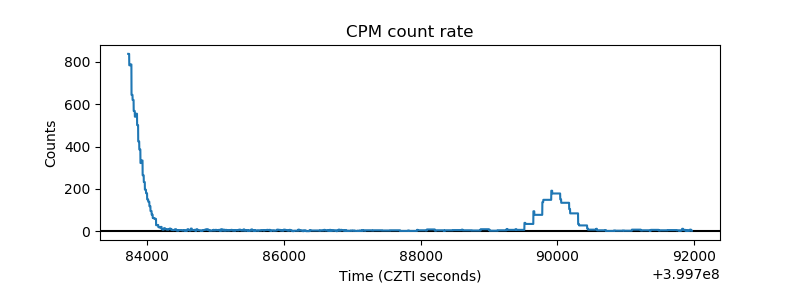

| _CPM_Rate |  |

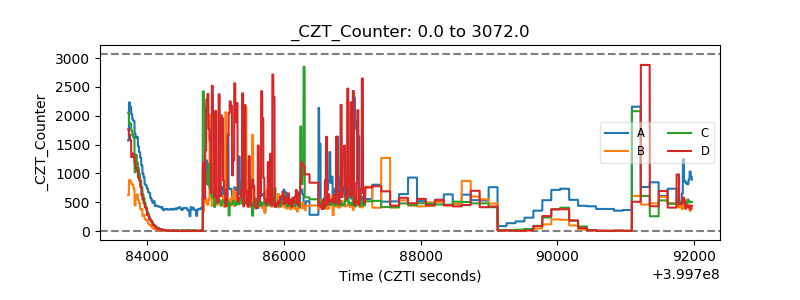

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

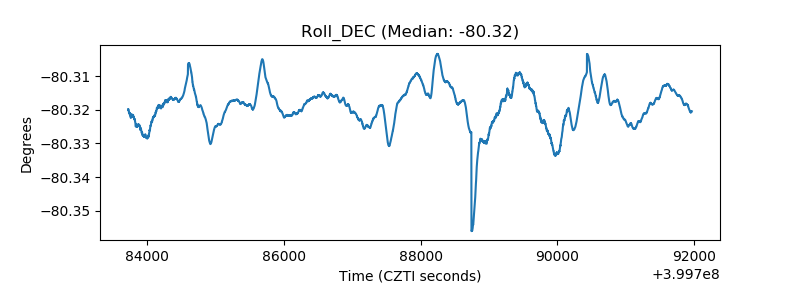

| _Roll_DEC |  |
| _Roll_RA |  |

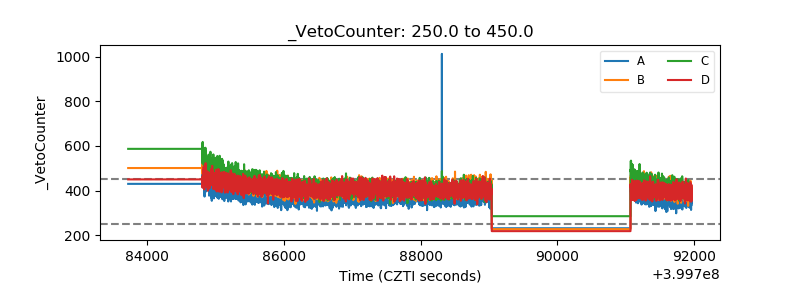

| Veto Counter |  |
