| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_027T01_9000005324_37477cztM0_level2.evt | modeM0/AS1A11_027T01_9000005324_37477cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,206,080 | 107,377,920 |
| Size | 414.1 MB | 102.4 MB |
| Events in quadrant A | 2,794,048 | 726,545 |
| Events in quadrant B | 2,874,699 | 753,329 |
| Events in quadrant C | 3,396,707 | 723,865 |
| Events in quadrant D | 3,726,904 | 679,727 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 39 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11570 | 3 |
| B | 0 | 11817 | 2 |
| C | 0 | 13155 | 2 |
| D | 0 | 14567 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5261 | 14 | 0.266109% |
| B | 5261 | 48 | 0.912374% |
| C | 5261 | 235 | 4.466831% |
| D | 5261 | 291 | 5.531268% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7353 | 5262 | 6 | 6 | 0.08% | 0.11% |  |
| B | 7353 | 5262 | 27 | 27 | 0.37% | 0.51% |  |
| C | 7353 | 5261 | 204 | 204 | 2.77% | 3.88% |  |
| D | 7353 | 5262 | 280 | 280 | 3.81% | 5.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 272062 | 2206.65 | 618 | 607 | 123.0 |
| A | 15 | 222 | 77576 | 625.68 | 618 | 607 | 123.0 |
| A | 6 | 10 | 17307 | 135.75 | 618 | 607 | 123.0 |
| B | 5 | 255 | 173989 | 1485.64 | 625 | 608 | 116.7 |
| B | 0 | 229 | 75125 | 638.51 | 625 | 608 | 116.7 |
| B | 5 | 172 | 66029 | 560.57 | 625 | 608 | 116.7 |
| C | 14 | 254 | 614120 | 4458.21 | 607 | 611 | 137.6 |
| C | 15 | 214 | 218542 | 1583.64 | 607 | 611 | 137.6 |
| C | 0 | 10 | 158613 | 1148.16 | 607 | 611 | 137.6 |
| D | 13 | 249 | 1046637 | 7315.06 | 596 | 580 | 143.0 |
| D | 2 | 250 | 114247 | 794.87 | 596 | 580 | 143.0 |
| D | 2 | 153 | 98717 | 686.27 | 596 | 580 | 143.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

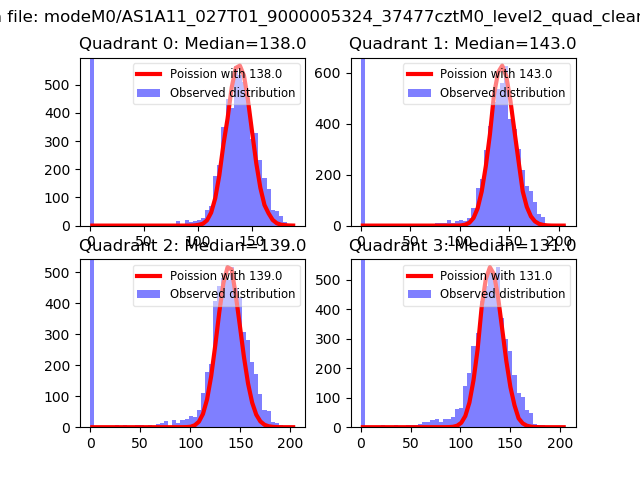

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

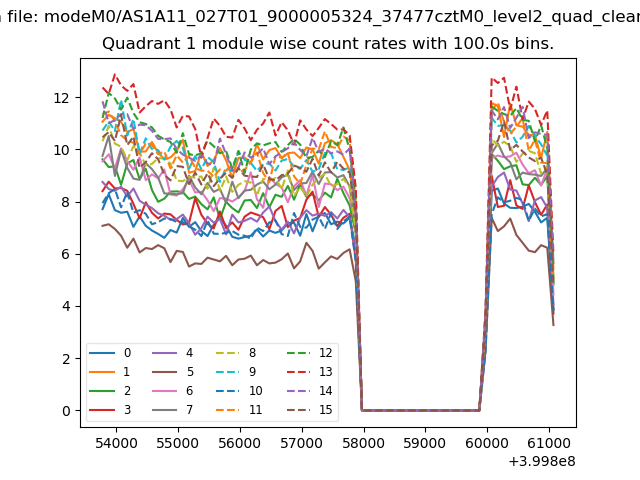

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

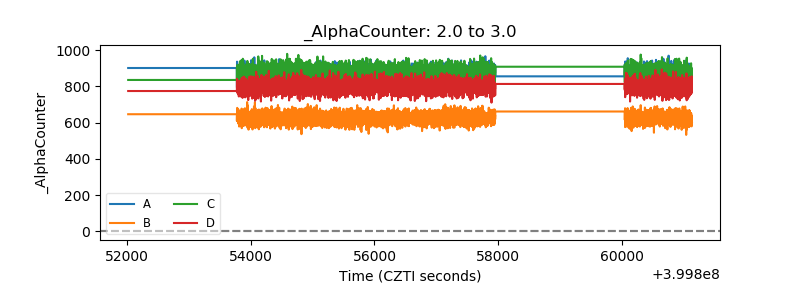

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

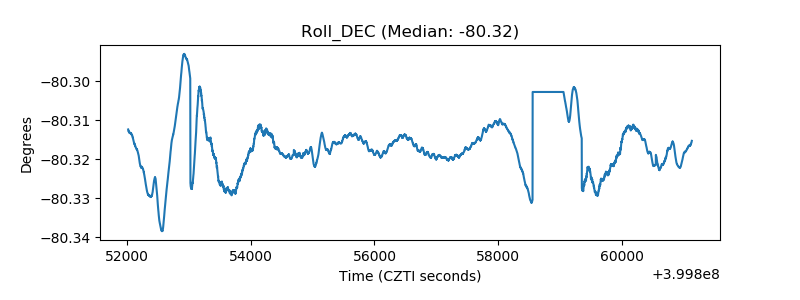

| _Roll_DEC |  |

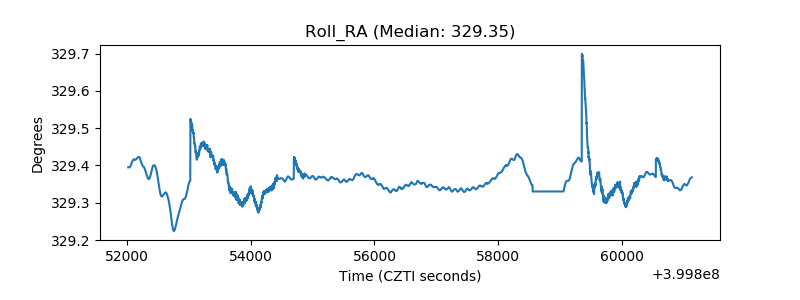

| _Roll_RA |  |

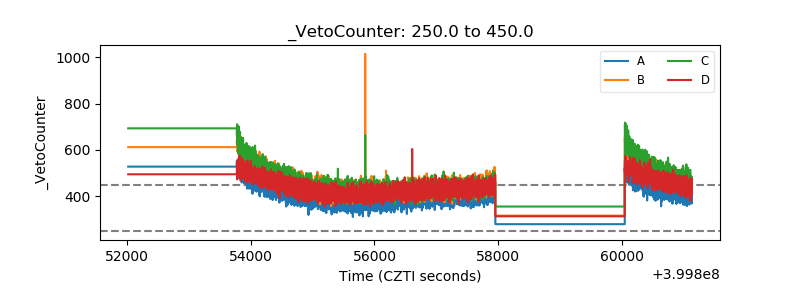

| Veto Counter |  |
