| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37664cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37664cztM0_level2_quad_clean.evt |
| Size (bytes) | 495,849,600 | 78,212,160 |
| Size | 472.9 MB | 74.6 MB |
| Events in quadrant A | 3,652,543 | 491,757 |
| Events in quadrant B | 3,279,846 | 519,050 |
| Events in quadrant C | 2,958,476 | 517,148 |
| Events in quadrant D | 4,776,019 | 478,418 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14161 | 3 |
| B | 0 | 13067 | 2 |
| C | 0 | 11957 | 2 |
| D | 0 | 17922 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 38 | 0 |
| B | 0 | 38 | 0 |
| C | 0 | 38 | 0 |
| D | 0 | 38 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5165 | 252 | 4.878993% |
| B | 5165 | 214 | 4.143272% |
| C | 5165 | 43 | 0.832527% |
| D | 5165 | 162 | 3.136496% |

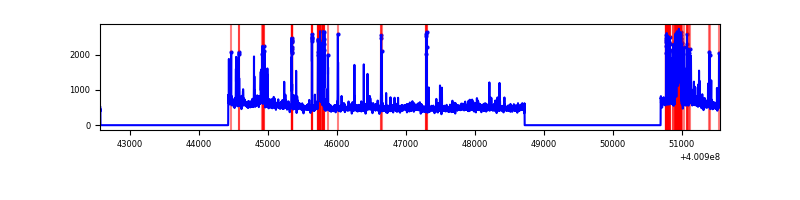

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8990 | 5167 | 234 | 234 | 2.60% | 4.53% |  |
| B | 8990 | 5165 | 143 | 143 | 1.59% | 2.77% |  |
| C | 8990 | 5165 | 31 | 31 | 0.34% | 0.60% |  |
| D | 8990 | 5165 | 161 | 161 | 1.79% | 3.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 586465 | 4607.95 | 644 | 634 | 127.1 |
| A | 10 | 83 | 312318 | 2451.6 | 644 | 634 | 127.1 |
| A | 9 | 143 | 119291 | 933.32 | 644 | 634 | 127.1 |
| B | 5 | 172 | 533741 | 4358.63 | 647 | 631 | 122.3 |
| B | 0 | 230 | 88344 | 717.13 | 647 | 631 | 122.3 |
| B | 0 | 189 | 29496 | 236.0 | 647 | 631 | 122.3 |
| C | 15 | 214 | 238085 | 1613.68 | 646 | 651 | 147.1 |
| C | 0 | 10 | 124549 | 842.05 | 646 | 651 | 147.1 |
| C | 12 | 250 | 66315 | 446.28 | 646 | 651 | 147.1 |
| D | 12 | 227 | 1803079 | 11679.48 | 640 | 623 | 154.3 |
| D | 12 | 233 | 148005 | 955.0 | 640 | 623 | 154.3 |
| D | 2 | 249 | 96452 | 620.95 | 640 | 623 | 154.3 |

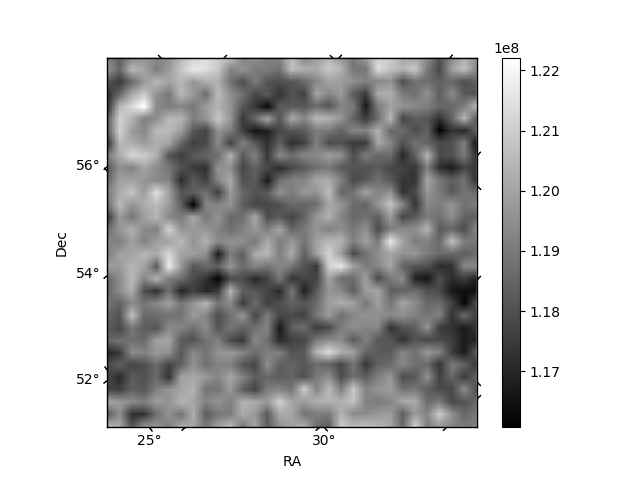

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

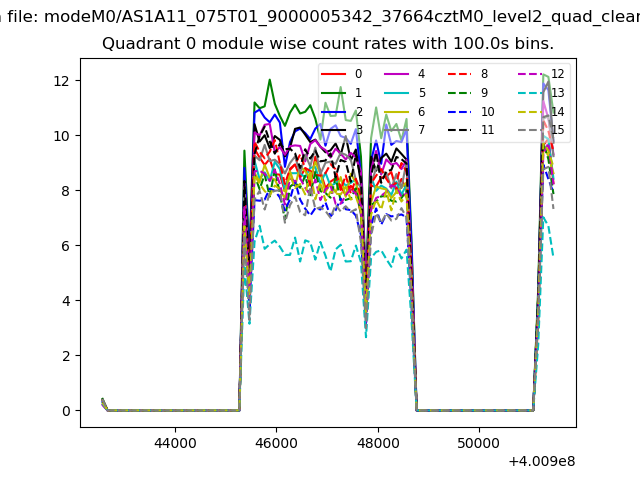

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

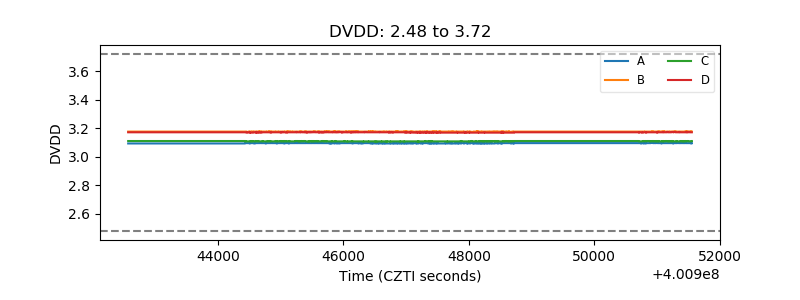

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

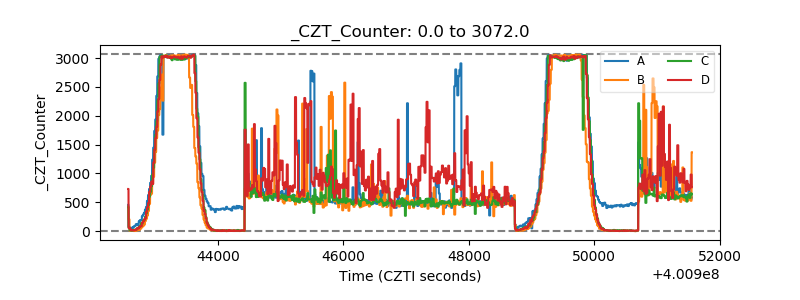

| CZT Counter |  |

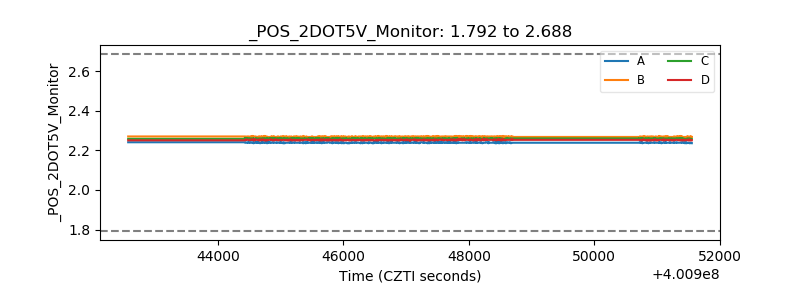

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

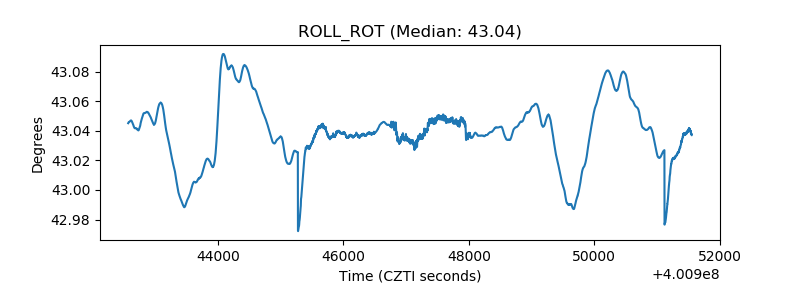

| _ROLL_ROT |  |
| _Roll_DEC |  |

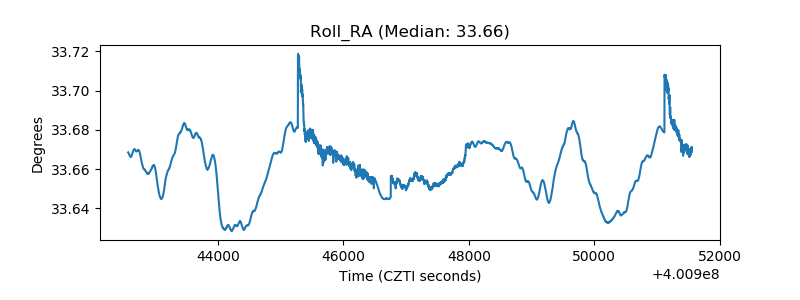

| _Roll_RA |  |
| Veto Counter |  |
