| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37666cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37666cztM0_level2_quad_clean.evt |
| Size (bytes) | 380,473,920 | 99,835,200 |
| Size | 362.8 MB | 95.2 MB |
| Events in quadrant A | 2,879,873 | 661,883 |
| Events in quadrant B | 2,596,733 | 686,113 |
| Events in quadrant C | 2,730,889 | 687,717 |
| Events in quadrant D | 2,983,829 | 646,075 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 98 | 0 |
| B | 0 | 98 | 0 |
| C | 0 | 98 | 0 |
| D | 0 | 98 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11708 | 3 |
| B | 0 | 10739 | 2 |
| C | 0 | 10978 | 2 |
| D | 0 | 12062 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4877 | 52 | 1.066229% |
| B | 4877 | 38 | 0.779168% |
| C | 4877 | 52 | 1.066229% |
| D | 4877 | 57 | 1.168751% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7029 | 4878 | 33 | 33 | 0.47% | 0.68% |  |
| B | 7028 | 4876 | 29 | 29 | 0.41% | 0.59% |  |
| C | 7028 | 4876 | 40 | 40 | 0.57% | 0.82% |  |
| D | 7028 | 4876 | 41 | 41 | 0.58% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 301684 | 2517.56 | 596 | 585 | 119.6 |
| A | 9 | 143 | 176068 | 1467.25 | 596 | 585 | 119.6 |
| A | 15 | 222 | 60072 | 497.38 | 596 | 585 | 119.6 |
| B | 5 | 172 | 68429 | 600.12 | 602 | 587 | 113.0 |
| B | 4 | 81 | 34027 | 295.8 | 602 | 587 | 113.0 |
| B | 15 | 85 | 33900 | 294.68 | 602 | 587 | 113.0 |
| C | 15 | 214 | 224115 | 1619.45 | 600 | 604 | 138.0 |
| C | 0 | 10 | 140939 | 1016.8 | 600 | 604 | 138.0 |
| C | 14 | 254 | 19097 | 133.99 | 600 | 604 | 138.0 |
| D | 12 | 227 | 233175 | 1627.56 | 593 | 579 | 142.9 |
| D | 2 | 249 | 108344 | 754.07 | 593 | 579 | 142.9 |
| D | 1 | 47 | 89049 | 619.06 | 593 | 579 | 142.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

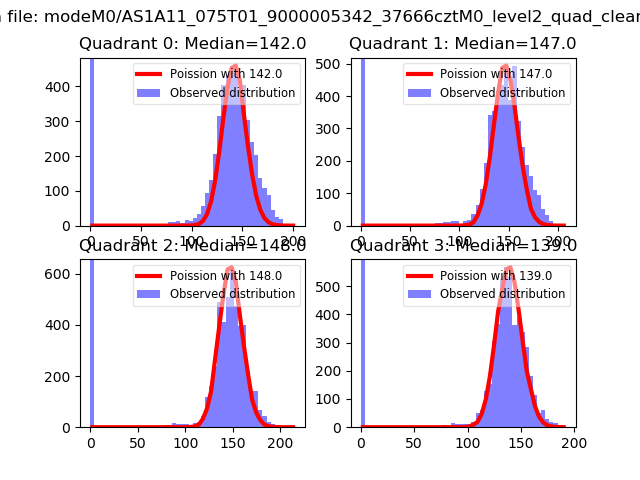

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

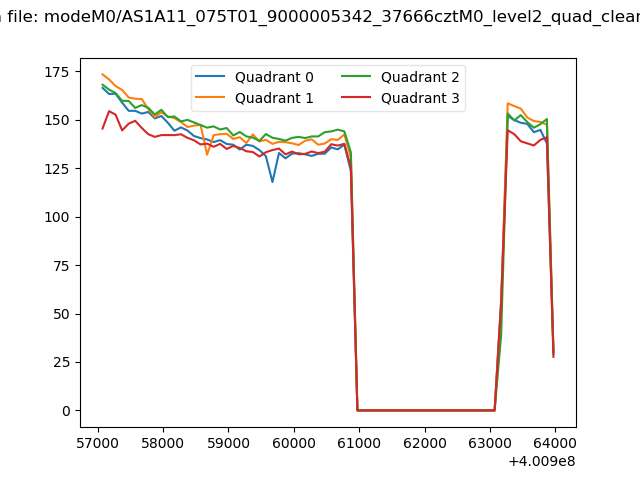

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

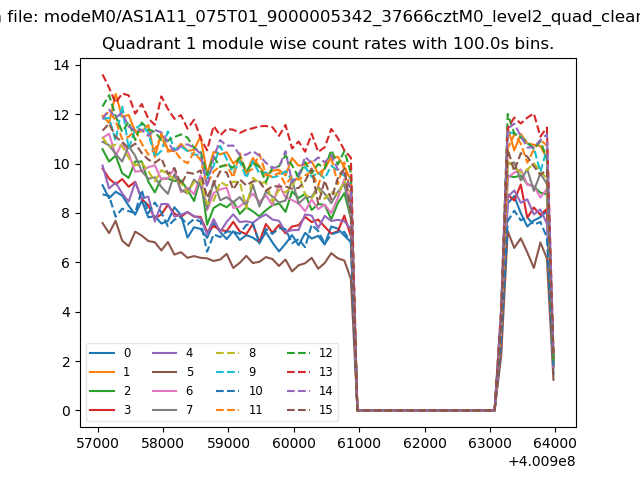

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

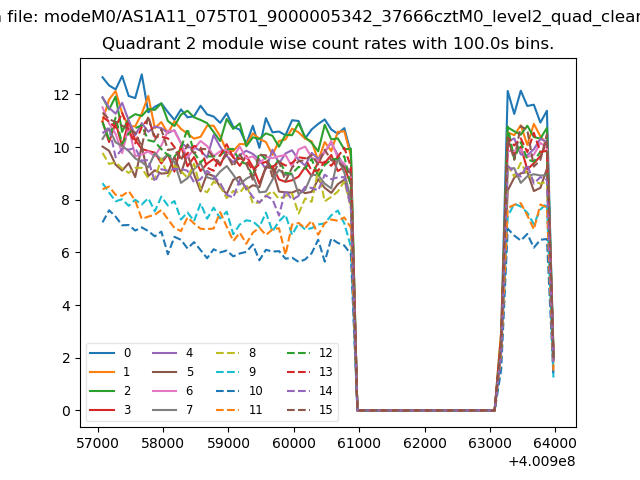

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

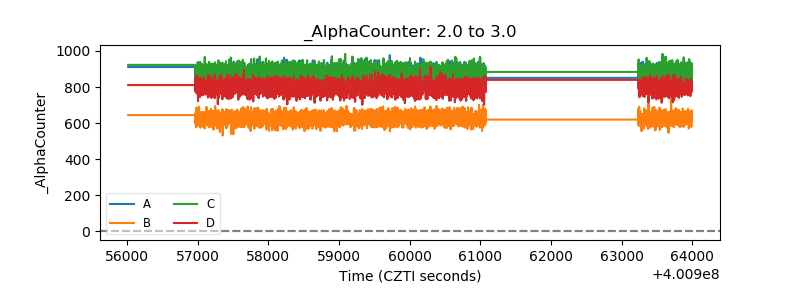

| Alpha Counter |  |

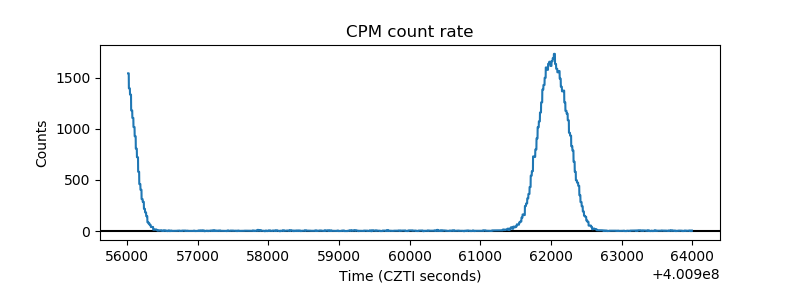

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

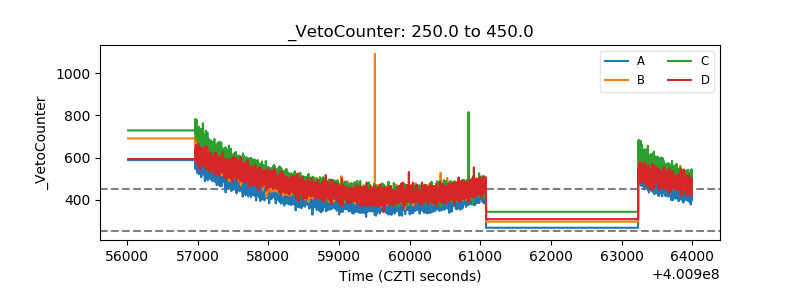

| Veto Counter |  |
