| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_075T01_9000005342_37714cztM0_level2.evt | modeM0/AS1A11_075T01_9000005342_37714cztM0_level2_quad_clean.evt |
| Size (bytes) | 86,846,400 | 2,718,720 |
| Size | 82.8 MB | 2.6 MB |
| Events in quadrant A | 994,918 | 6,519 |
| Events in quadrant B | 573,747 | 4,552 |
| Events in quadrant C | 350,903 | 9,133 |
| Events in quadrant D | 663,180 | 8,120 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3412 | 0 |
| B | 0 | 2101 | 0 |
| C | 0 | 1361 | 0 |
| D | 0 | 2429 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 648 | 368 | 56.790123% |
| B | 648 | 101 | 15.586420% |
| C | 648 | 3 | 0.462963% |
| D | 648 | 69 | 10.648148% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 647 | 647 | 263 | 263 | 40.65% | 40.65% |  |
| B | 647 | 647 | 74 | 74 | 11.44% | 11.44% |  |
| C | 647 | 647 | 0 | 0 | 0.00% | 0.00% |  |
| D | 647 | 647 | 44 | 44 | 6.80% | 6.80% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 679049 | 39804.92 | 72 | 71 | 17.1 |
| A | 10 | 83 | 22828 | 1334.12 | 72 | 71 | 17.1 |
| A | 6 | 10 | 2908 | 166.32 | 72 | 71 | 17.1 |
| B | 5 | 172 | 244835 | 14212.51 | 78 | 76 | 17.2 |
| B | 0 | 197 | 7241 | 416.05 | 78 | 76 | 17.2 |
| B | 15 | 85 | 5122 | 293.01 | 78 | 76 | 17.2 |
| C | 15 | 214 | 28276 | 1358.16 | 82 | 82 | 20.8 |
| C | 14 | 254 | 782 | 33.72 | 82 | 82 | 20.8 |
| C | 13 | 61 | 608 | 25.34 | 82 | 82 | 20.8 |
| D | 12 | 227 | 229940 | 10908.44 | 80 | 78 | 21.1 |
| D | 2 | 250 | 41904 | 1984.91 | 80 | 78 | 21.1 |
| D | 2 | 249 | 30937 | 1464.46 | 80 | 78 | 21.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

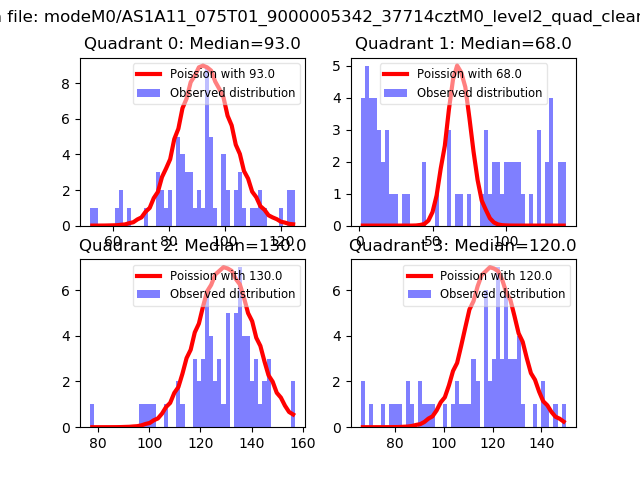

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
