| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37714cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37714cztM0_level2_quad_clean.evt |
| Size (bytes) | 541,653,120 | 76,348,800 |
| Size | 516.6 MB | 72.8 MB |
| Events in quadrant A | 6,365,429 | 468,768 |
| Events in quadrant B | 2,837,211 | 496,636 |
| Events in quadrant C | 2,598,154 | 505,662 |
| Events in quadrant D | 4,239,019 | 464,325 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22549 | 2 |
| B | 0 | 12232 | 1 |
| C | 0 | 11169 | 1 |
| D | 0 | 16424 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5379 | 1091 | 20.282580% |
| B | 5379 | 79 | 1.468674% |
| C | 5379 | 12 | 0.223090% |
| D | 5379 | 382 | 7.101692% |

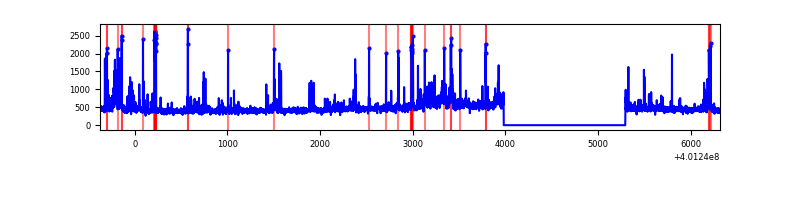

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6691 | 5378 | 982 | 982 | 14.68% | 18.26% |  |
| B | 6691 | 5378 | 49 | 49 | 0.73% | 0.91% |  |
| C | 6691 | 5378 | 8 | 8 | 0.12% | 0.15% |  |
| D | 6691 | 5378 | 411 | 411 | 6.14% | 7.64% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 3806313 | 33640.94 | 562 | 551 | 113.1 |
| A | 10 | 83 | 238300 | 2101.58 | 562 | 551 | 113.1 |
| A | 9 | 143 | 111072 | 976.95 | 562 | 551 | 113.1 |
| B | 5 | 255 | 166786 | 1457.83 | 585 | 569 | 114.0 |
| B | 5 | 200 | 164953 | 1441.75 | 585 | 569 | 114.0 |
| B | 5 | 172 | 63681 | 553.53 | 585 | 569 | 114.0 |
| C | 15 | 214 | 238798 | 1767.12 | 578 | 582 | 134.8 |
| C | 0 | 10 | 48513 | 355.56 | 578 | 582 | 134.8 |
| C | 14 | 254 | 47829 | 350.49 | 578 | 582 | 134.8 |
| D | 2 | 250 | 867349 | 6327.1 | 563 | 547 | 137.0 |
| D | 12 | 227 | 384214 | 2800.52 | 563 | 547 | 137.0 |
| D | 5 | 222 | 271337 | 1976.59 | 563 | 547 | 137.0 |

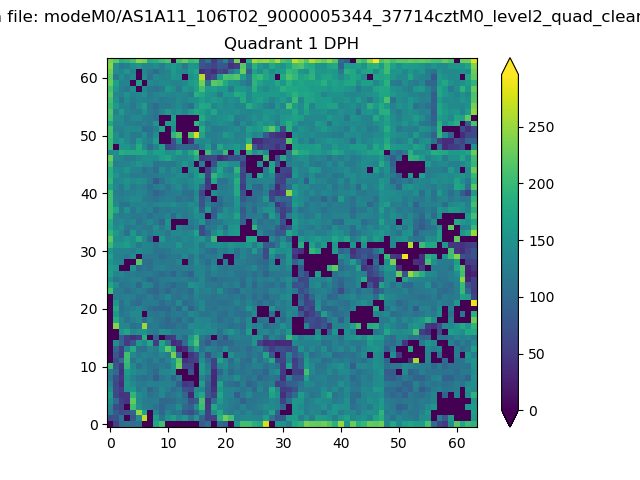

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

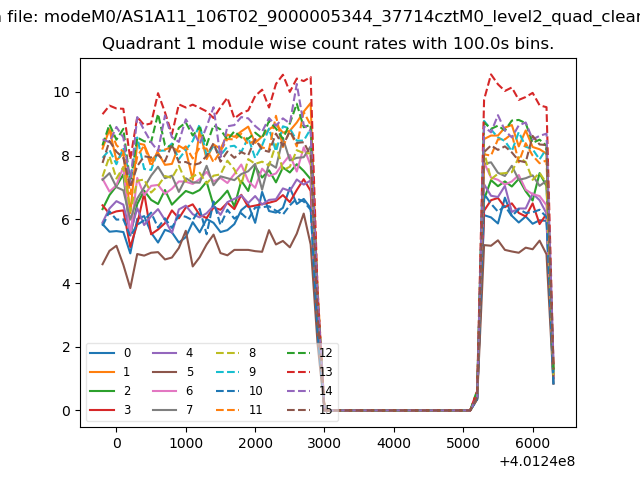

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

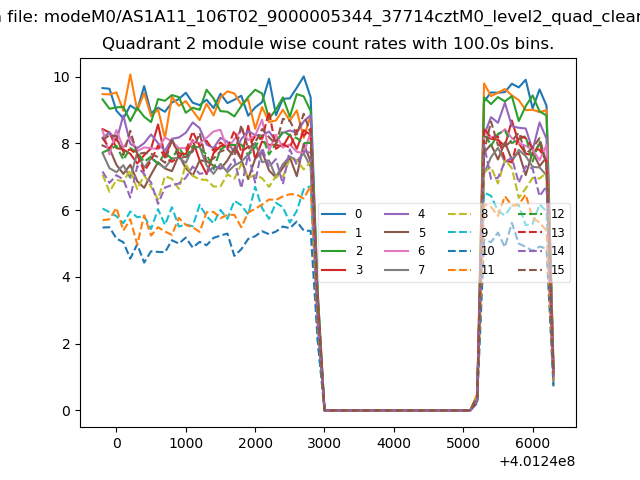

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

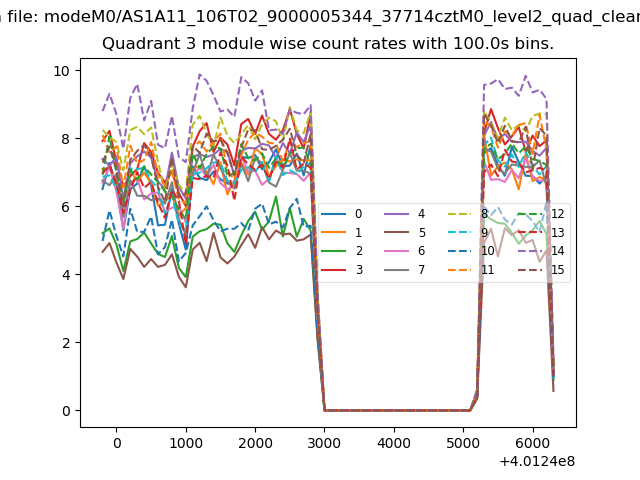

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

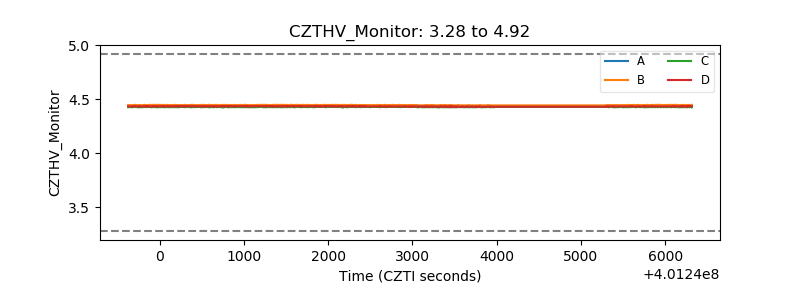

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

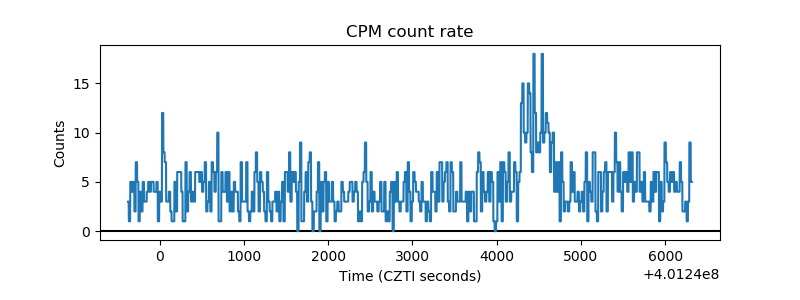

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

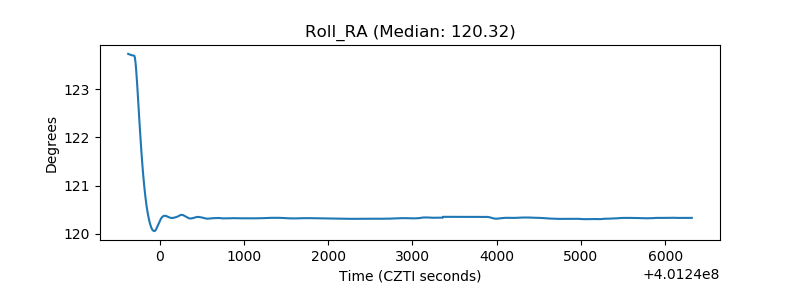

| _Roll_RA |  |
| Veto Counter |  |
