| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37724cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37724cztM0_level2_quad_clean.evt |
| Size (bytes) | 624,700,800 | 53,789,760 |
| Size | 595.8 MB | 51.3 MB |
| Events in quadrant A | 7,480,696 | 301,516 |
| Events in quadrant B | 3,078,570 | 319,797 |
| Events in quadrant C | 2,871,387 | 329,678 |
| Events in quadrant D | 5,137,581 | 313,547 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 28 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25872 | 3 |
| B | 0 | 12421 | 2 |
| C | 0 | 11376 | 2 |
| D | 0 | 18786 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5190 | 1506 | 29.017341% |
| B | 5190 | 98 | 1.888247% |
| C | 5190 | 30 | 0.578035% |
| D | 5190 | 770 | 14.836224% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7312 | 5191 | 1411 | 1411 | 19.30% | 27.18% |  |
| B | 7311 | 5189 | 79 | 79 | 1.08% | 1.52% |  |
| C | 7311 | 5189 | 23 | 23 | 0.31% | 0.44% |  |
| D | 7311 | 5189 | 760 | 760 | 10.40% | 14.65% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 4707001 | 38590.36 | 607 | 597 | 122.0 |
| A | 10 | 83 | 327941 | 2684.07 | 607 | 597 | 122.0 |
| A | 9 | 143 | 54704 | 443.65 | 607 | 597 | 122.0 |
| B | 5 | 172 | 232852 | 1951.17 | 636 | 620 | 119.0 |
| B | 0 | 189 | 107836 | 900.81 | 636 | 620 | 119.0 |
| B | 5 | 255 | 72538 | 604.24 | 636 | 620 | 119.0 |
| C | 15 | 214 | 220695 | 1521.42 | 634 | 642 | 144.6 |
| C | 0 | 10 | 132613 | 912.43 | 634 | 642 | 144.6 |
| C | 15 | 159 | 28396 | 191.89 | 634 | 642 | 144.6 |
| D | 2 | 249 | 1061984 | 7364.2 | 597 | 583 | 144.1 |
| D | 12 | 227 | 869967 | 6031.95 | 597 | 583 | 144.1 |
| D | 12 | 233 | 327629 | 2269.11 | 597 | 583 | 144.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

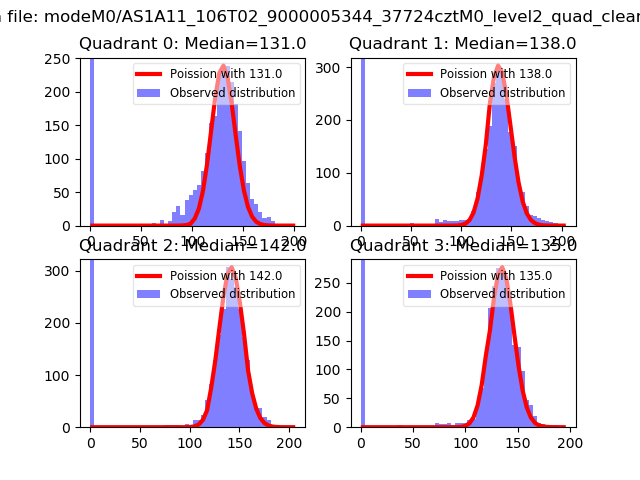

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

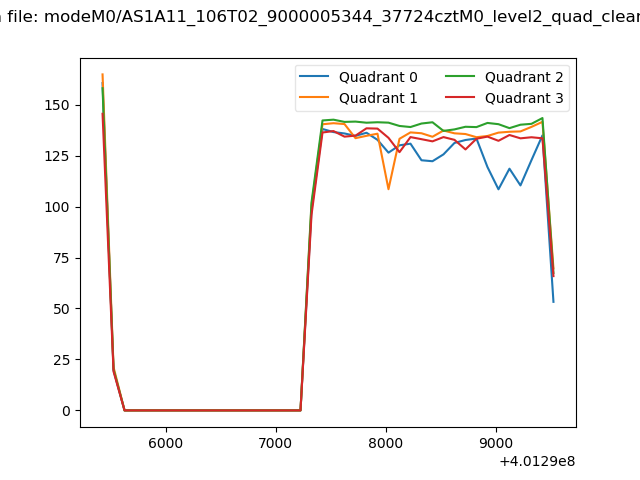

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

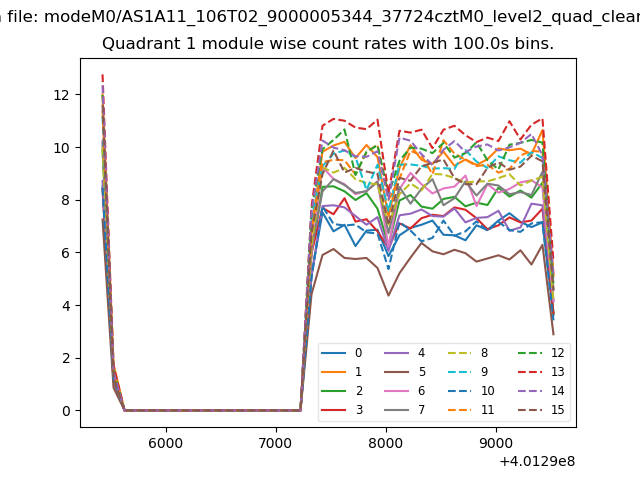

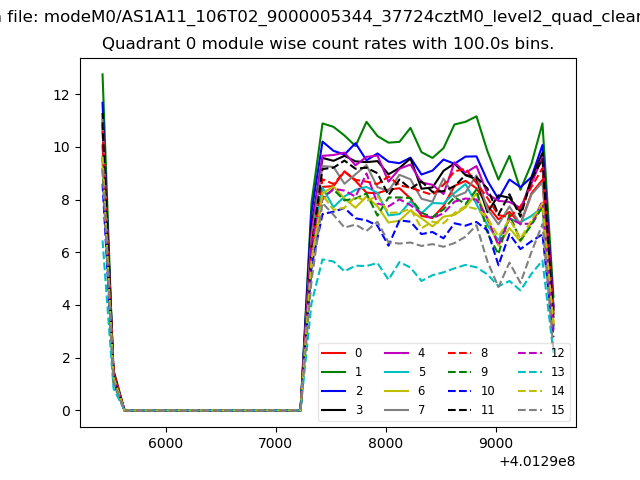

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

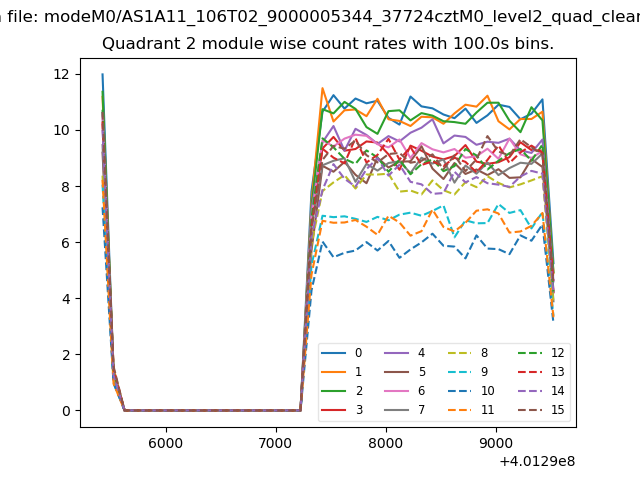

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

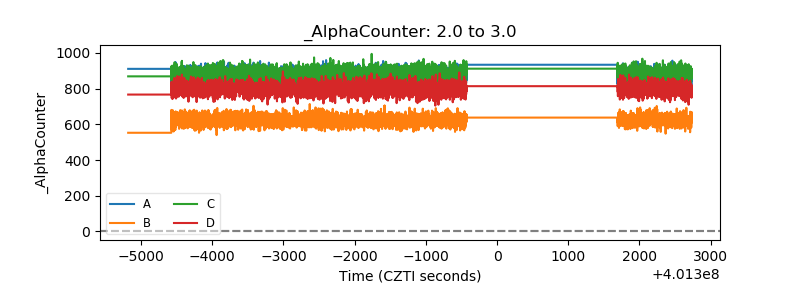

| Alpha Counter |  |

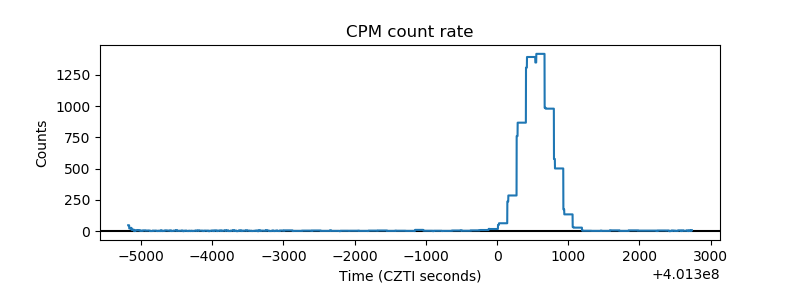

| _CPM_Rate |  |
| CZT Counter |  |

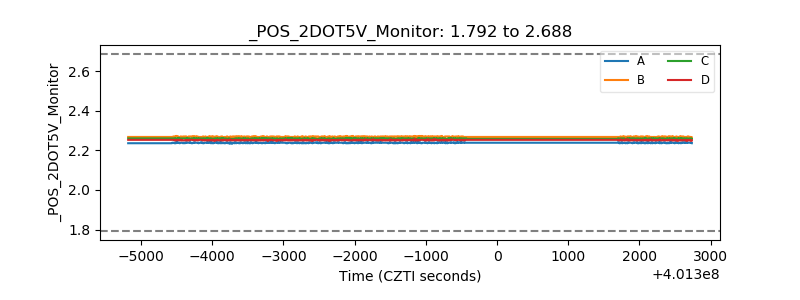

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
