| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37754cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37754cztM0_level2_quad_clean.evt |
| Size (bytes) | 587,044,800 | 46,368,000 |
| Size | 559.8 MB | 44.2 MB |
| Events in quadrant A | 7,813,401 | 78,497 |
| Events in quadrant B | 2,789,053 | 317,704 |
| Events in quadrant C | 2,770,493 | 331,153 |
| Events in quadrant D | 4,056,779 | 315,158 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26600 | 3 |
| B | 0 | 11485 | 2 |
| C | 0 | 11121 | 2 |
| D | 0 | 15484 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5140 | 3424 | 66.614786% |
| B | 5140 | 74 | 1.439689% |
| C | 5140 | 38 | 0.739300% |
| D | 5140 | 286 | 5.564202% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7231 | 5139 | 1829 | 1829 | 25.29% | 35.59% |  |
| B | 7232 | 5141 | 56 | 56 | 0.77% | 1.09% |  |
| C | 7232 | 5141 | 29 | 29 | 0.40% | 0.56% |  |
| D | 7232 | 5141 | 303 | 303 | 4.19% | 5.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 222 | 6687445 | 132251.63 | 245 | 241 | 50.6 |
| A | 10 | 83 | 127158 | 2510.01 | 245 | 241 | 50.6 |
| A | 10 | 248 | 20258 | 395.87 | 245 | 241 | 50.6 |
| B | 4 | 81 | 139051 | 1221.49 | 605 | 590 | 113.4 |
| B | 0 | 229 | 85327 | 747.54 | 605 | 590 | 113.4 |
| B | 0 | 230 | 52710 | 459.8 | 605 | 590 | 113.4 |
| C | 15 | 214 | 220372 | 1594.46 | 603 | 608 | 137.8 |
| C | 0 | 10 | 152100 | 1099.12 | 603 | 608 | 137.8 |
| C | 1 | 23 | 20201 | 142.15 | 603 | 608 | 137.8 |
| D | 2 | 249 | 705357 | 4906.33 | 594 | 579 | 143.6 |
| D | 2 | 250 | 434038 | 3017.54 | 594 | 579 | 143.6 |
| D | 13 | 249 | 273961 | 1903.16 | 594 | 579 | 143.6 |

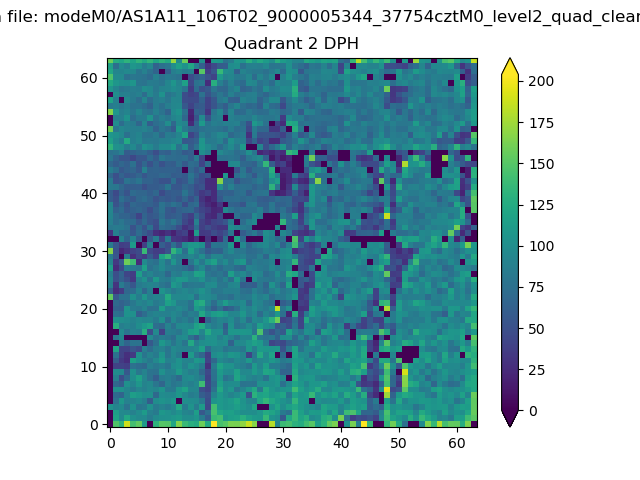

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

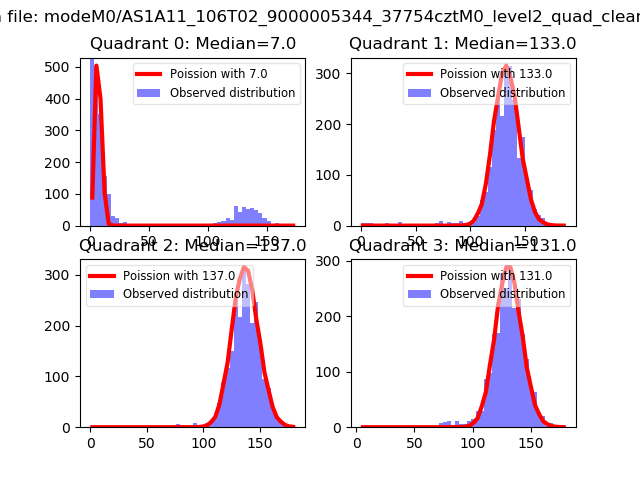

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

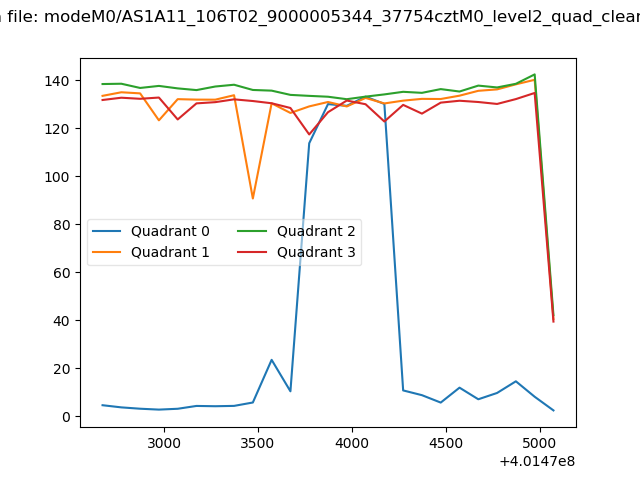

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

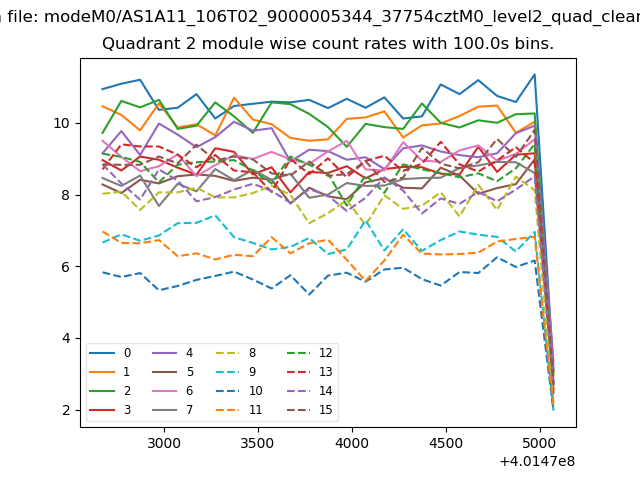

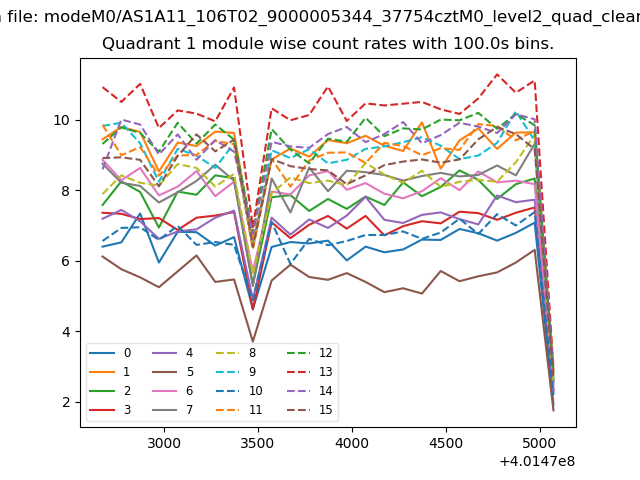

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

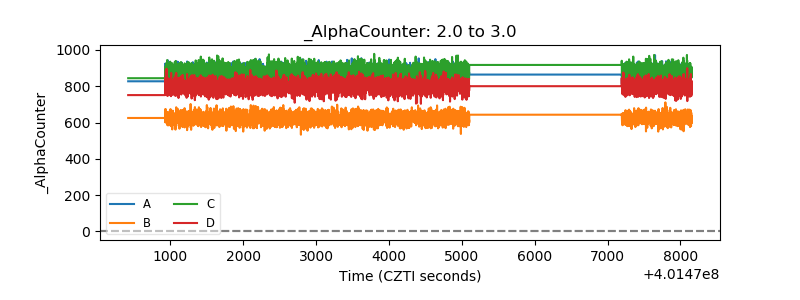

| Alpha Counter |  |
| _CPM_Rate |  |

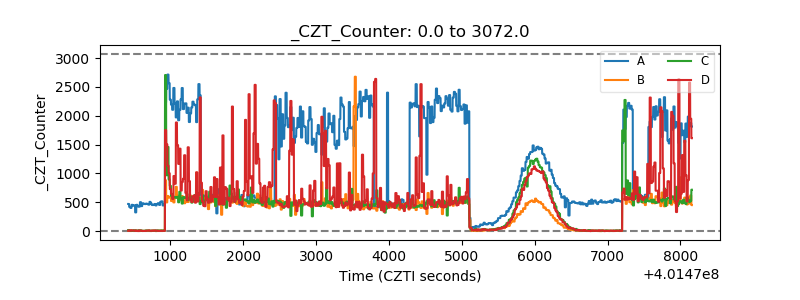

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

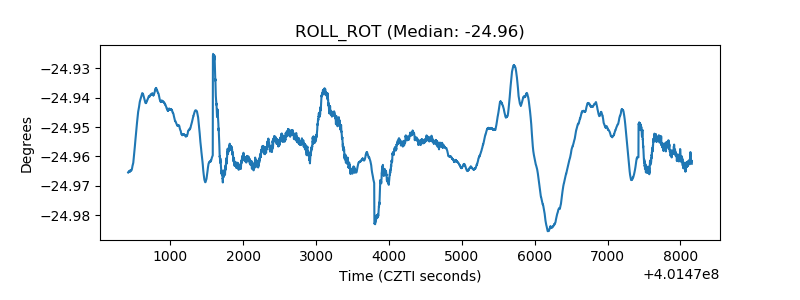

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
