| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_106T02_9000005344_37761cztM0_level2.evt | modeM0/AS1A11_106T02_9000005344_37761cztM0_level2_quad_clean.evt |
| Size (bytes) | 438,065,280 | 69,569,280 |
| Size | 417.8 MB | 66.3 MB |
| Events in quadrant A | 3,351,499 | 429,654 |
| Events in quadrant B | 2,681,367 | 442,591 |
| Events in quadrant C | 2,604,042 | 443,020 |
| Events in quadrant D | 4,252,836 | 402,675 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13469 | 2 |
| B | 0 | 11881 | 1 |
| C | 0 | 11368 | 1 |
| D | 0 | 16394 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5547 | 111 | 2.001082% |
| B | 5547 | 45 | 0.811249% |
| C | 5547 | 18 | 0.324500% |
| D | 5547 | 405 | 7.301244% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7100 | 5548 | 114 | 114 | 1.61% | 2.05% |  |
| B | 7100 | 5548 | 34 | 34 | 0.48% | 0.61% |  |
| C | 7100 | 5548 | 17 | 17 | 0.24% | 0.31% |  |
| D | 7100 | 5548 | 411 | 411 | 5.79% | 7.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 254 | 330788 | 2684.48 | 605 | 592 | 123.0 |
| A | 10 | 83 | 297259 | 2411.89 | 605 | 592 | 123.0 |
| A | 9 | 143 | 281078 | 2280.34 | 605 | 592 | 123.0 |
| B | 5 | 172 | 81939 | 704.7 | 602 | 585 | 115.4 |
| B | 5 | 255 | 78182 | 672.15 | 602 | 585 | 115.4 |
| B | 0 | 229 | 78075 | 671.23 | 602 | 585 | 115.4 |
| C | 15 | 214 | 235682 | 1702.75 | 590 | 593 | 138.1 |
| C | 0 | 10 | 53493 | 383.15 | 590 | 593 | 138.1 |
| C | 1 | 23 | 5664 | 36.73 | 590 | 593 | 138.1 |
| D | 2 | 250 | 1263908 | 9061.26 | 575 | 558 | 139.4 |
| D | 2 | 249 | 532175 | 3812.97 | 575 | 558 | 139.4 |
| D | 13 | 249 | 79122 | 563.49 | 575 | 558 | 139.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

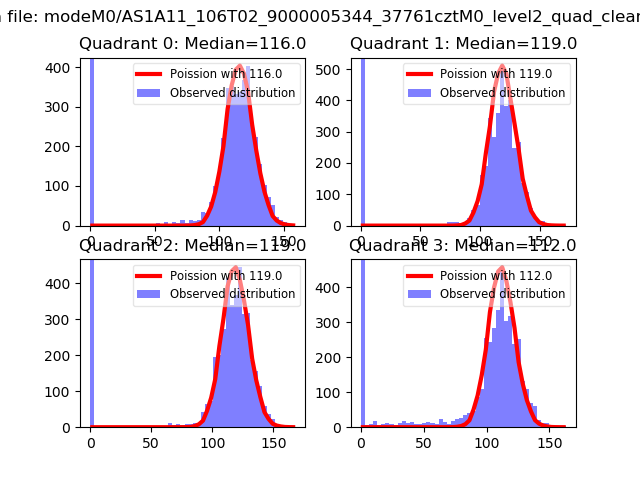

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

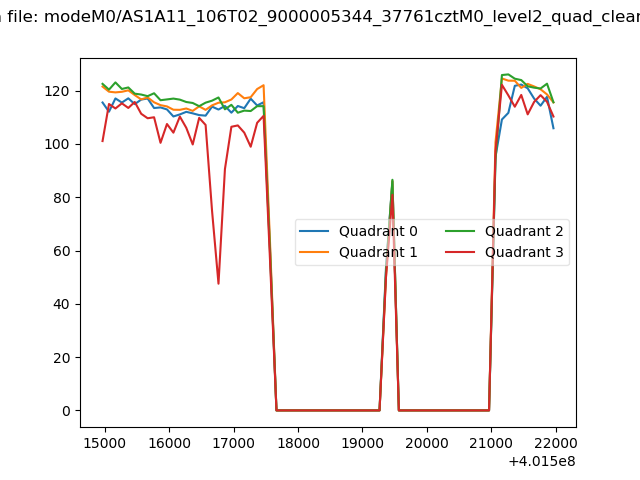

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

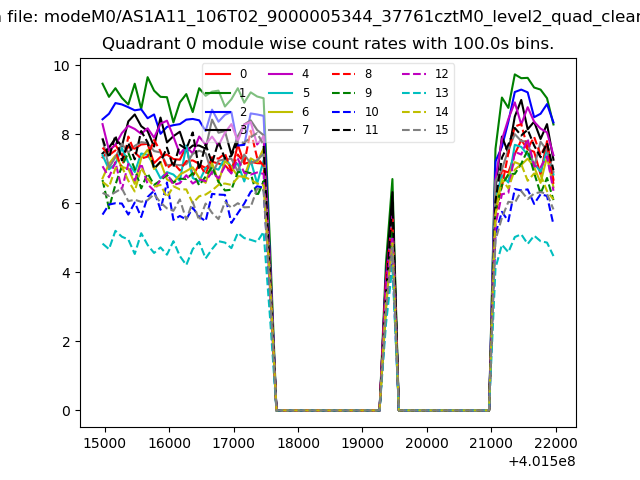

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

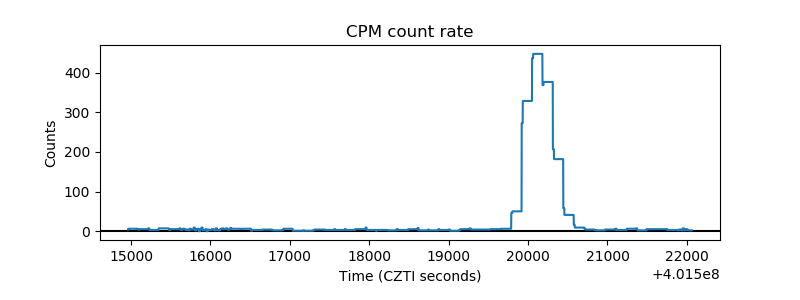

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

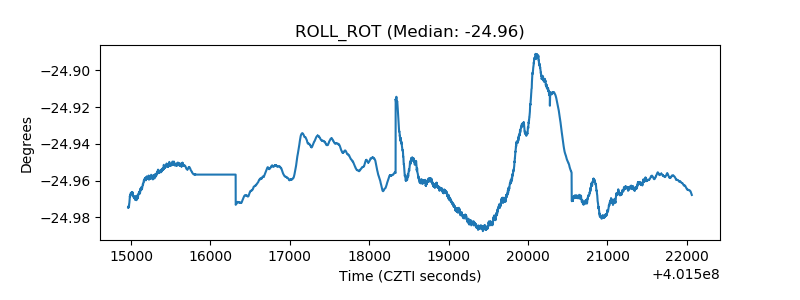

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

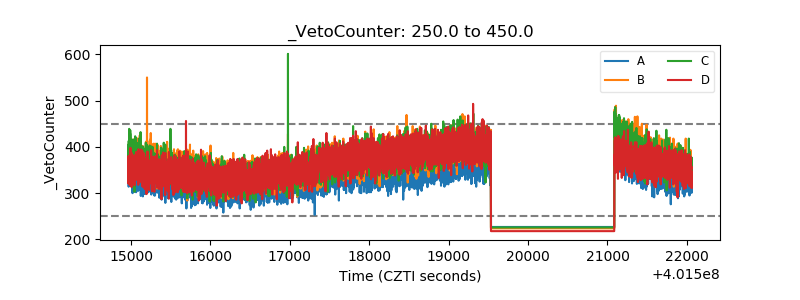

| Veto Counter |  |
