| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T05_057T01_9000005346_37784cztM0_level2.evt | modeM0/AS1T05_057T01_9000005346_37784cztM0_level2_quad_clean.evt |
| Size (bytes) | 394,102,080 | 56,963,520 |
| Size | 375.8 MB | 54.3 MB |
| Events in quadrant A | 2,616,114 | 352,075 |
| Events in quadrant B | 2,844,918 | 340,131 |
| Events in quadrant C | 3,173,713 | 348,792 |
| Events in quadrant D | 2,961,158 | 333,297 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10830 | 3 |
| B | 0 | 11658 | 2 |
| C | 0 | 12487 | 2 |
| D | 0 | 12183 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 100 | 0 |
| B | 0 | 100 | 0 |
| C | 0 | 100 | 0 |
| D | 0 | 100 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29 | 0 |
| B | 0 | 29 | 0 |
| C | 0 | 29 | 0 |
| D | 0 | 30 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4999 | 10 | 0.200040% |
| B | 4999 | 172 | 3.440688% |
| C | 4999 | 97 | 1.940388% |
| D | 4999 | 61 | 1.220244% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6941 | 5000 | 8 | 8 | 0.12% | 0.16% |  |
| B | 6941 | 5000 | 163 | 163 | 2.35% | 3.26% |  |
| C | 6941 | 5000 | 108 | 108 | 1.56% | 2.16% |  |
| D | 6941 | 5000 | 63 | 63 | 0.91% | 1.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 343656 | 2983.71 | 569 | 560 | 115.0 |
| A | 9 | 143 | 15364 | 128.74 | 569 | 560 | 115.0 |
| A | 15 | 222 | 15362 | 128.72 | 569 | 560 | 115.0 |
| B | 4 | 81 | 328902 | 3063.02 | 557 | 541 | 107.2 |
| B | 5 | 172 | 195550 | 1819.08 | 557 | 541 | 107.2 |
| B | 0 | 230 | 55674 | 514.29 | 557 | 541 | 107.2 |
| C | 0 | 207 | 548752 | 4280.55 | 549 | 553 | 128.1 |
| C | 15 | 214 | 227839 | 1774.74 | 549 | 553 | 128.1 |
| C | 0 | 10 | 182126 | 1417.79 | 549 | 553 | 128.1 |
| D | 2 | 249 | 175374 | 1285.0 | 550 | 536 | 136.1 |
| D | 13 | 249 | 149557 | 1095.26 | 550 | 536 | 136.1 |
| D | 2 | 250 | 120204 | 879.52 | 550 | 536 | 136.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

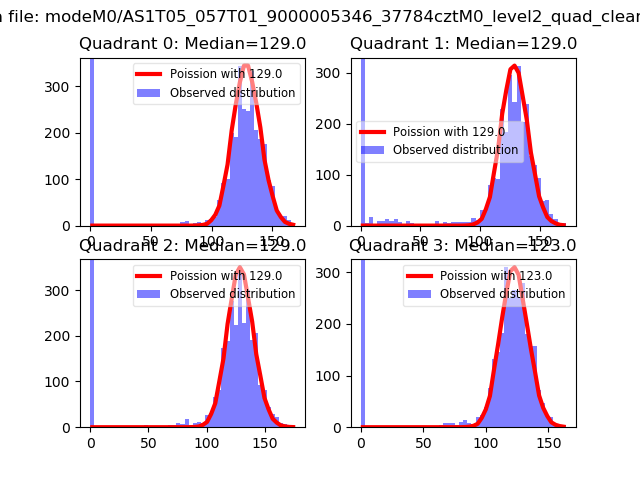

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

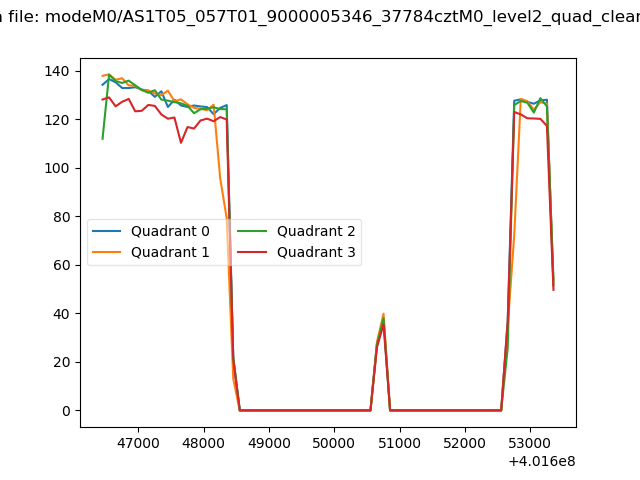

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

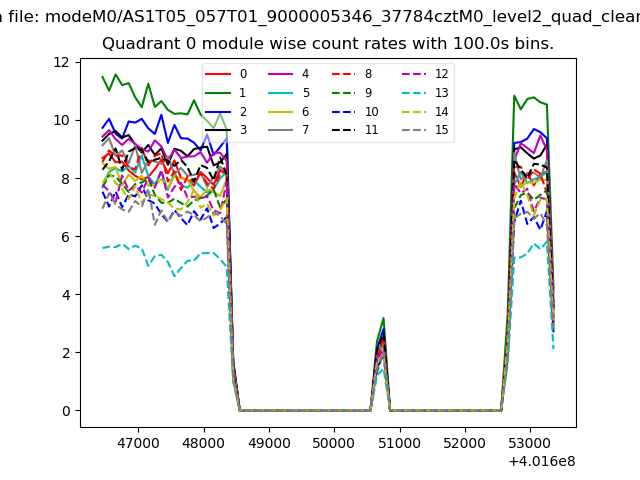

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

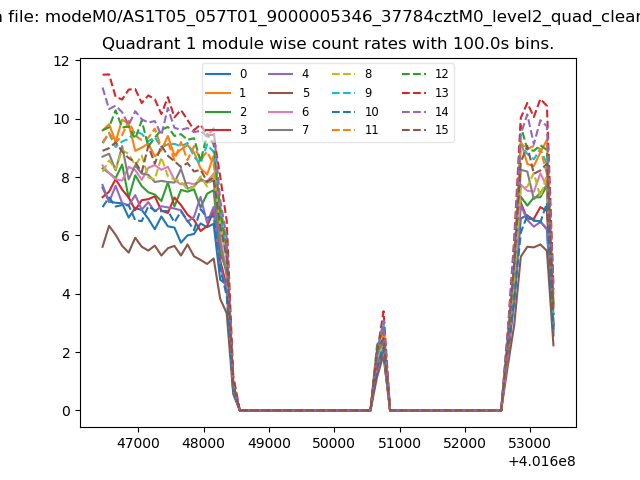

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

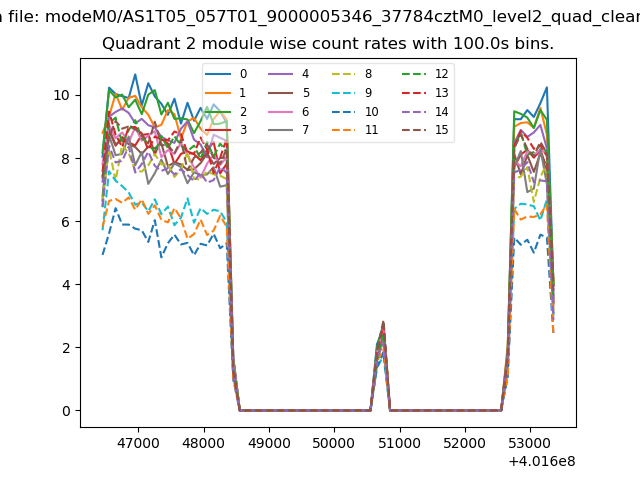

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

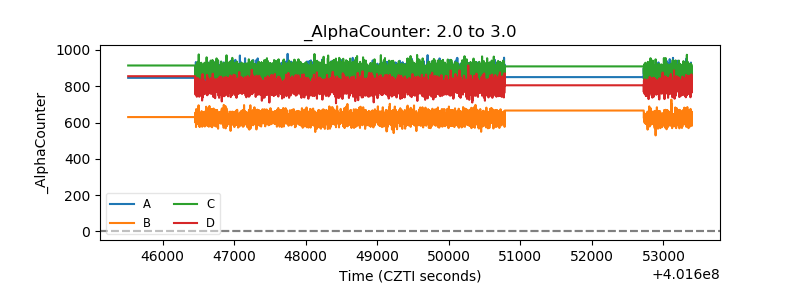

| Alpha Counter |  |

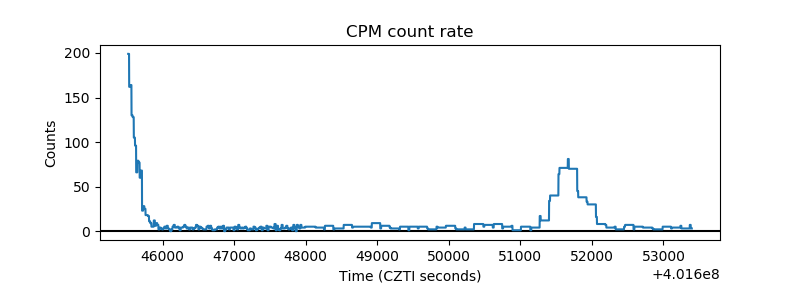

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

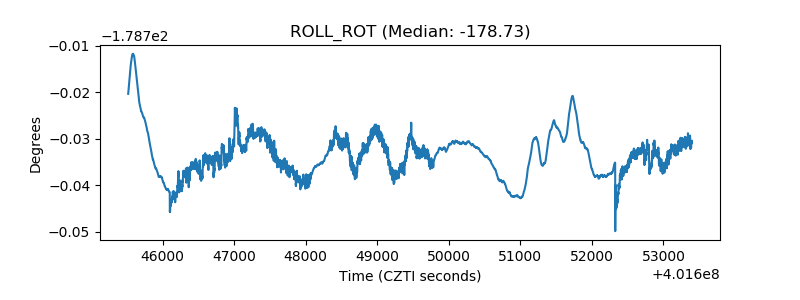

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
