| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A10_103T06_9000005348_37809cztM0_level2.evt | modeM0/AS1A10_103T06_9000005348_37809cztM0_level2_quad_clean.evt |
| Size (bytes) | 394,542,720 | 77,641,920 |
| Size | 376.3 MB | 74.0 MB |
| Events in quadrant A | 2,988,147 | 499,516 |
| Events in quadrant B | 2,866,284 | 506,793 |
| Events in quadrant C | 2,843,262 | 507,773 |
| Events in quadrant D | 2,907,735 | 482,837 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 31 | 0 |
| B | 0 | 31 | 0 |
| C | 0 | 31 | 0 |
| D | 0 | 32 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12036 | 3 |
| B | 0 | 11561 | 2 |
| C | 0 | 11488 | 2 |
| D | 0 | 11769 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 104 | 0 |
| B | 0 | 104 | 0 |
| C | 0 | 104 | 0 |
| D | 0 | 104 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5049 | 28 | 0.554565% |
| B | 5049 | 56 | 1.109131% |
| C | 5049 | 23 | 0.455536% |
| D | 5049 | 34 | 0.673401% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7052 | 5050 | 10 | 10 | 0.14% | 0.20% |  |
| B | 7052 | 5050 | 44 | 44 | 0.62% | 0.87% |  |
| C | 7052 | 5050 | 15 | 15 | 0.21% | 0.30% |  |
| D | 7052 | 5050 | 27 | 27 | 0.38% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 323034 | 2462.41 | 656 | 645 | 130.9 |
| A | 9 | 143 | 51807 | 390.78 | 656 | 645 | 130.9 |
| A | 13 | 248 | 33776 | 253.05 | 656 | 645 | 130.9 |
| B | 0 | 229 | 131320 | 1071.04 | 648 | 634 | 122.0 |
| B | 5 | 172 | 48143 | 389.36 | 648 | 634 | 122.0 |
| B | 0 | 189 | 42263 | 341.17 | 648 | 634 | 122.0 |
| C | 15 | 214 | 233832 | 1611.65 | 632 | 638 | 144.7 |
| C | 0 | 10 | 90786 | 623.03 | 632 | 638 | 144.7 |
| C | 1 | 23 | 35484 | 240.83 | 632 | 638 | 144.7 |
| D | 2 | 249 | 142453 | 915.25 | 636 | 622 | 155.0 |
| D | 2 | 250 | 93432 | 598.91 | 636 | 622 | 155.0 |
| D | 10 | 199 | 73562 | 470.69 | 636 | 622 | 155.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

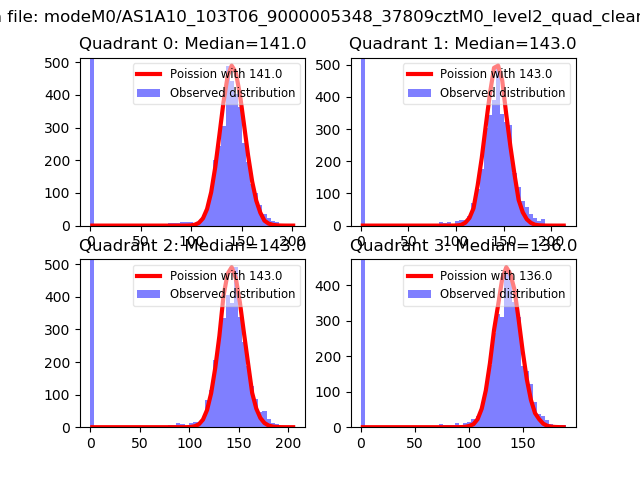

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

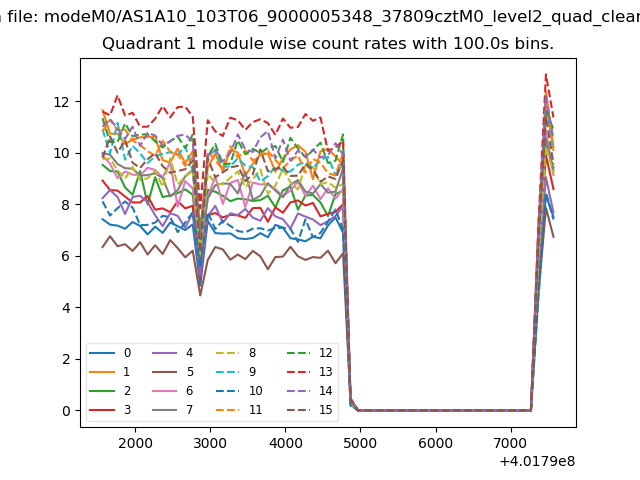

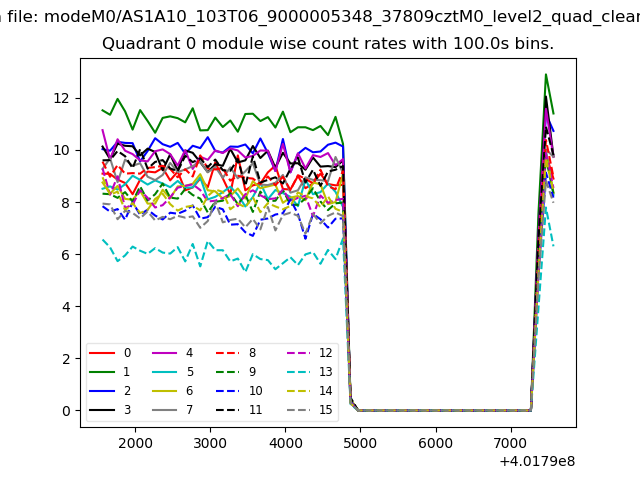

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

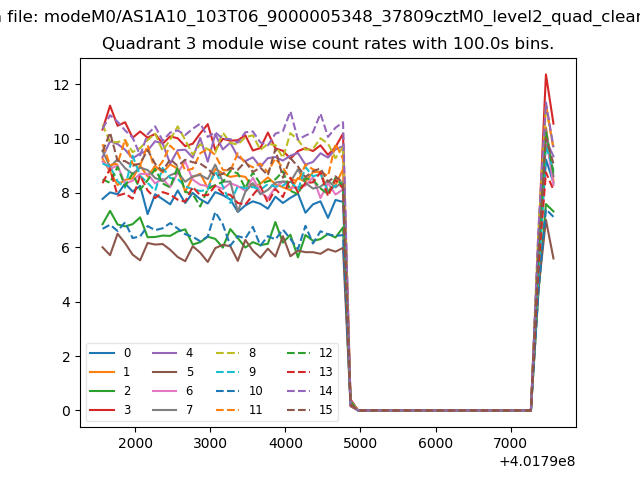

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

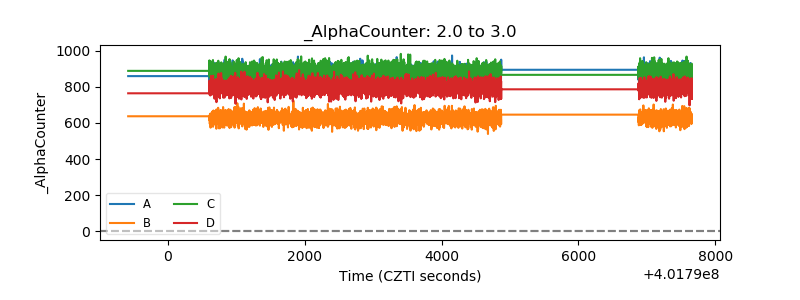

| Alpha Counter |  |

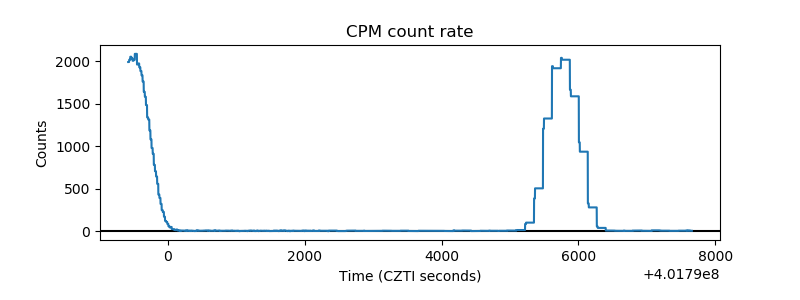

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

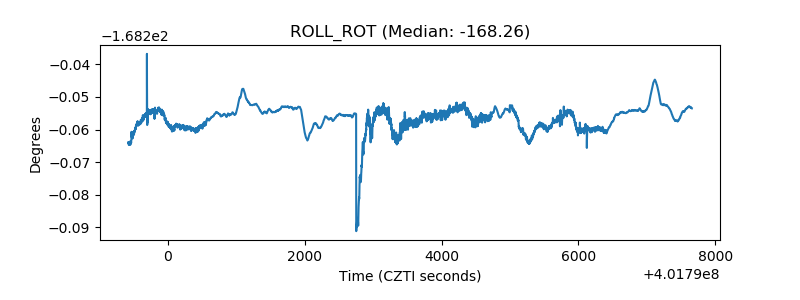

| _ROLL_ROT |  |

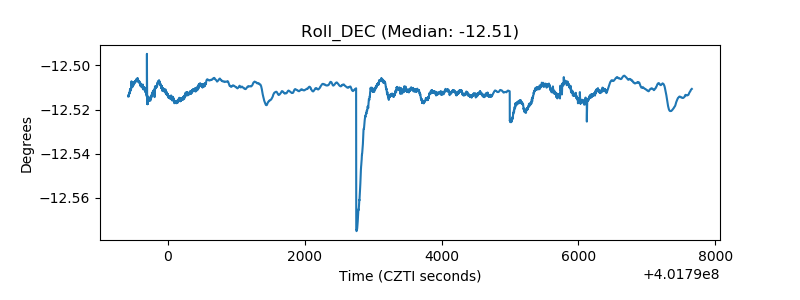

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
