| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A11_047T09_9000005362_38065cztM0_level2.fits | modeM0/AS1A11_047T09_9000005362_38065cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,304,291,520 | 245,568,960 |
| Size | 1.2 GB | 234.2 MB |
| Events in quadrant A | 8,785,810 | 1,760,654 |
| Events in quadrant B | 8,769,456 | 1,749,296 |
| Events in quadrant C | 10,835,567 | 1,632,875 |
| Events in quadrant D | 18,691,624 | 1,221,519 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35432 | 5 |
| B | 0 | 35865 | 4 |
| C | 0 | 42263 | 4 |
| D | 0 | 65888 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 318 | 0 |
| B | 0 | 318 | 0 |
| C | 0 | 318 | 0 |
| D | 0 | 318 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 47 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 15504 | 62 | 0.399897% |
| B | 15504 | 345 | 2.225232% |
| C | 15504 | 546 | 3.521672% |
| D | 15504 | 3996 | 25.773994% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19834 | 15507 | 23 | 23 | 0.12% | 0.15% |  |
| B | 19834 | 15507 | 247 | 247 | 1.25% | 1.59% |  |
| C | 19834 | 15507 | 459 | 459 | 2.31% | 2.96% |  |
| D | 19834 | 15507 | 3646 | 3646 | 18.38% | 23.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 961153 | 2619.2 | 1809 | 1777 | 366.3 |
| A | 12 | 16 | 440443 | 1197.61 | 1809 | 1777 | 366.3 |
| A | 7 | 16 | 104224 | 279.69 | 1809 | 1777 | 366.3 |
| B | 5 | 172 | 538984 | 1559.33 | 1785 | 1733 | 344.5 |
| B | 4 | 171 | 320743 | 925.9 | 1785 | 1733 | 344.5 |
| B | 5 | 184 | 285817 | 824.53 | 1785 | 1733 | 344.5 |
| C | 1 | 23 | 1838852 | 4560.62 | 1733 | 1744 | 402.8 |
| C | 3 | 233 | 1536233 | 3809.37 | 1733 | 1744 | 402.8 |
| C | 15 | 214 | 634976 | 1572.0 | 1733 | 1744 | 402.8 |
| D | 12 | 227 | 10873343 | 28688.49 | 1560 | 1519 | 379.0 |
| D | 13 | 200 | 393660 | 1034.78 | 1560 | 1519 | 379.0 |
| D | 2 | 250 | 311479 | 817.92 | 1560 | 1519 | 379.0 |

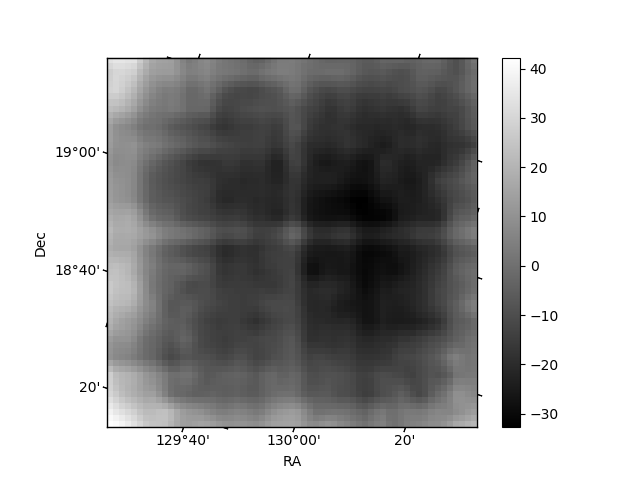

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

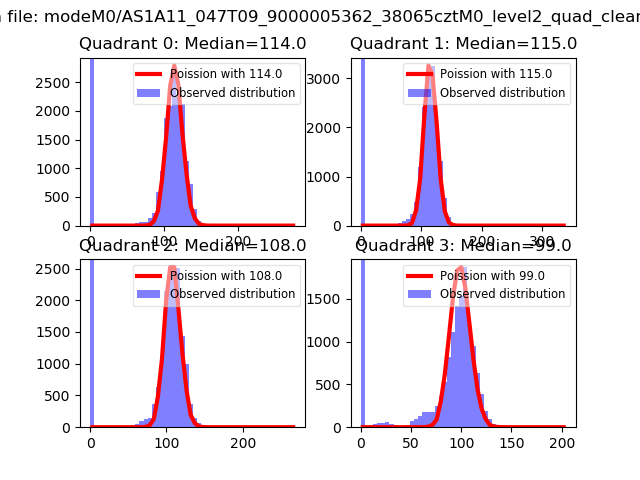

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

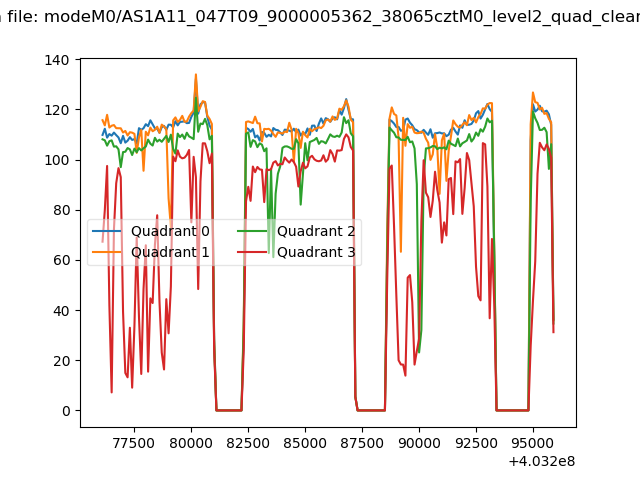

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

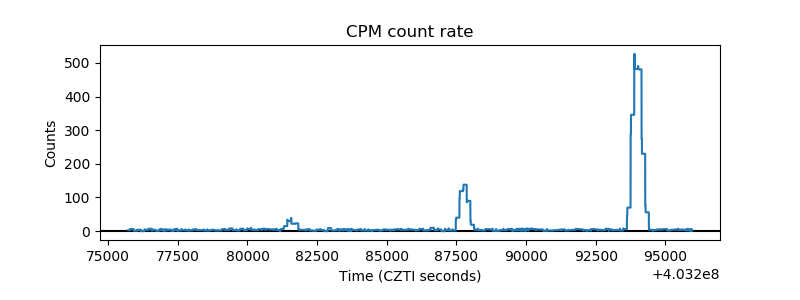

| _CPM_Rate |  |

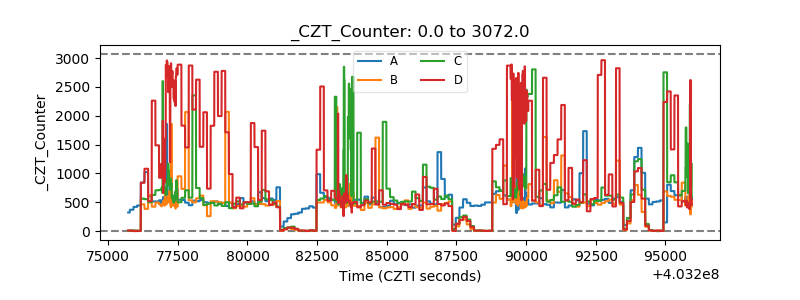

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

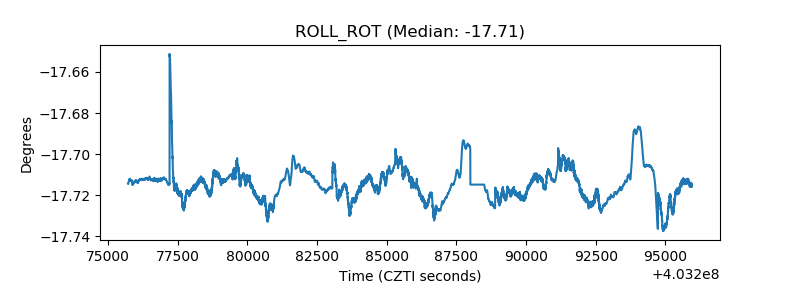

| _ROLL_ROT |  |
| _Roll_DEC |  |

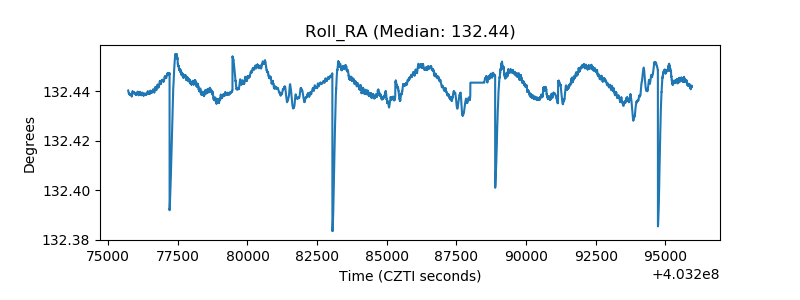

| _Roll_RA |  |

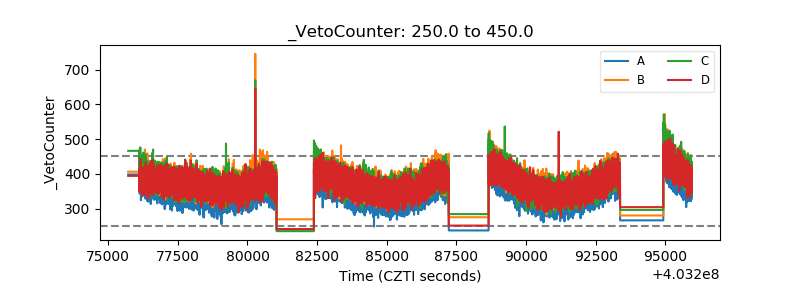

| Veto Counter |  |
