| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000005370_38170cztM0_level2.fits | modeM0/AS1A07_145T01_9000005370_38170cztM0_level2_quad_clean.evt |
| Size (bytes) | 566,455,680 | 163,540,800 |
| Size | 540.2 MB | 156.0 MB |
| Events in quadrant A | 4,796,701 | 1,104,850 |
| Events in quadrant B | 4,595,899 | 1,128,178 |
| Events in quadrant C | 4,593,046 | 1,088,490 |
| Events in quadrant D | 6,257,075 | 982,003 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 35 | 0 |
| B | 0 | 35 | 0 |
| C | 0 | 35 | 0 |
| D | 0 | 35 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 192 | 0 |
| B | 0 | 192 | 0 |
| C | 0 | 192 | 0 |
| D | 0 | 192 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19980 | 3 |
| B | 0 | 19867 | 2 |
| C | 0 | 19255 | 2 |
| D | 0 | 24878 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9349 | 15 | 0.160445% |
| B | 9349 | 52 | 0.556209% |
| C | 9349 | 9 | 0.096267% |
| D | 9349 | 305 | 3.262381% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 12934 | 9351 | 12 | 12 | 0.09% | 0.13% |  |
| B | 12934 | 9351 | 34 | 34 | 0.26% | 0.36% |  |
| C | 12934 | 9351 | 6 | 6 | 0.05% | 0.06% |  |
| D | 12934 | 9351 | 335 | 335 | 2.59% | 3.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 544045 | 2544.28 | 1061 | 1043 | 213.4 |
| A | 7 | 3 | 33404 | 151.63 | 1061 | 1043 | 213.4 |
| A | 12 | 189 | 32193 | 145.96 | 1061 | 1043 | 213.4 |
| B | 4 | 171 | 108330 | 526.93 | 1067 | 1038 | 203.6 |
| B | 5 | 172 | 102991 | 500.71 | 1067 | 1038 | 203.6 |
| B | 0 | 229 | 84927 | 412.0 | 1067 | 1038 | 203.6 |
| C | 15 | 214 | 381648 | 1547.3 | 1054 | 1060 | 246.0 |
| C | 1 | 23 | 61536 | 245.87 | 1054 | 1060 | 246.0 |
| C | 0 | 10 | 22373 | 86.65 | 1054 | 1060 | 246.0 |
| D | 12 | 233 | 653341 | 2611.22 | 1036 | 1010 | 249.8 |
| D | 12 | 235 | 645618 | 2580.31 | 1036 | 1010 | 249.8 |
| D | 12 | 227 | 468173 | 1870.01 | 1036 | 1010 | 249.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

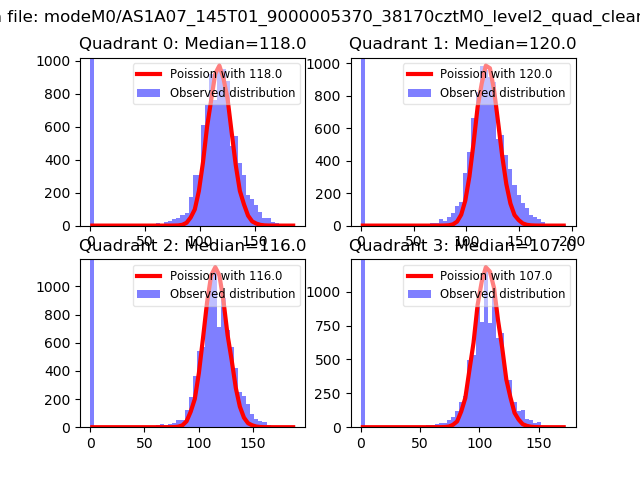

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

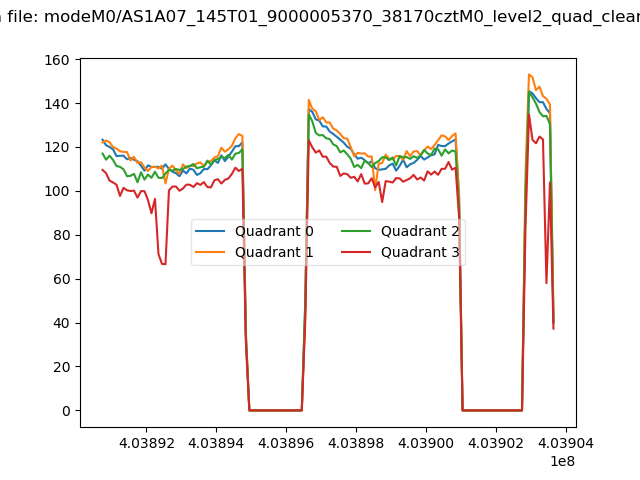

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

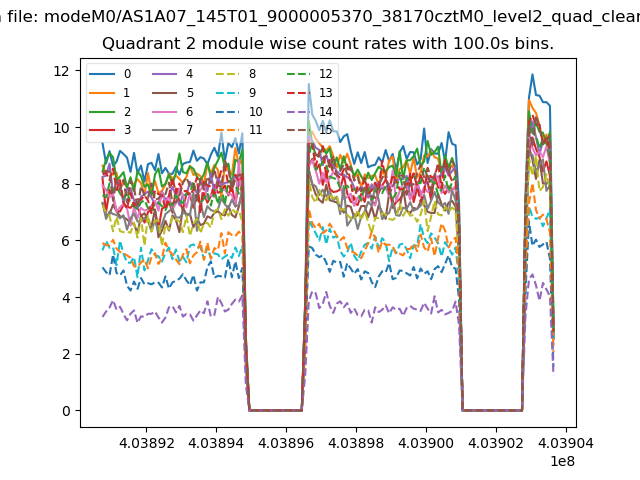

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

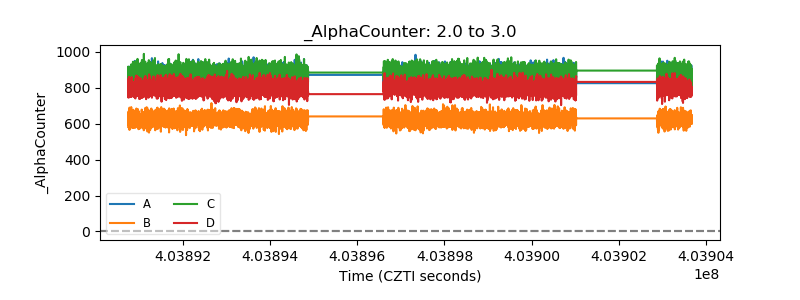

| Alpha Counter |  |

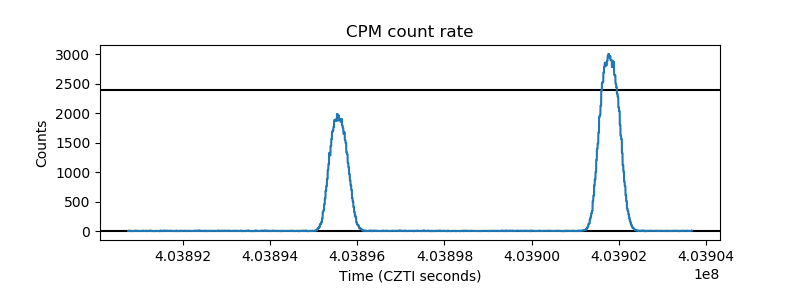

| _CPM_Rate |  |
| CZT Counter |  |

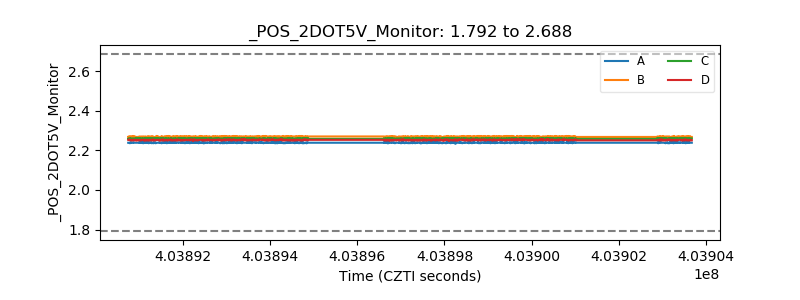

| +2.5 Volts monitor |  |

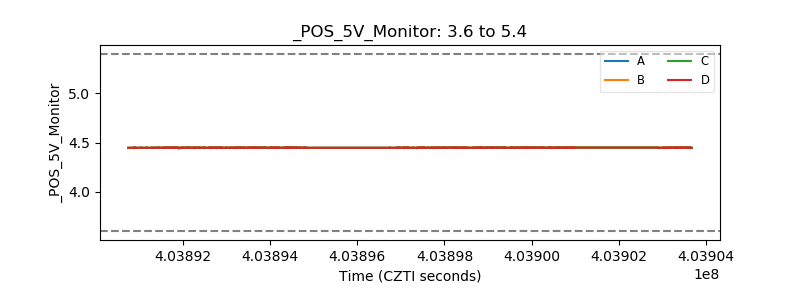

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
