| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A07_145T01_9000005370_38209cztM0_level2.fits | modeM0/AS1A07_145T01_9000005370_38209cztM0_level2_quad_clean.evt |
| Size (bytes) | 623,880,000 | 175,501,440 |
| Size | 595.0 MB | 167.4 MB |
| Events in quadrant A | 5,397,671 | 1,183,898 |
| Events in quadrant B | 4,940,311 | 1,211,481 |
| Events in quadrant C | 5,689,476 | 1,136,843 |
| Events in quadrant D | 6,246,806 | 1,049,931 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27 | 0 |
| B | 0 | 27 | 0 |
| C | 0 | 27 | 0 |
| D | 0 | 27 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 216 | 0 |
| B | 0 | 216 | 0 |
| C | 0 | 216 | 0 |
| D | 0 | 216 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22512 | 3 |
| B | 0 | 21815 | 2 |
| C | 0 | 23529 | 2 |
| D | 0 | 25434 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10562 | 18 | 0.170422% |
| B | 10562 | 42 | 0.397652% |
| C | 10562 | 142 | 1.344442% |
| D | 10562 | 334 | 3.162280% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13306 | 10564 | 4 | 4 | 0.03% | 0.04% |  |
| B | 13306 | 10564 | 13 | 13 | 0.10% | 0.12% |  |
| C | 13306 | 10564 | 119 | 119 | 0.89% | 1.13% |  |
| D | 13306 | 10564 | 248 | 248 | 1.86% | 2.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 83 | 636428 | 2649.97 | 1180 | 1154 | 239.7 |
| A | 12 | 189 | 63446 | 259.84 | 1180 | 1154 | 239.7 |
| A | 9 | 143 | 57632 | 235.59 | 1180 | 1154 | 239.7 |
| B | 5 | 172 | 103900 | 456.73 | 1173 | 1140 | 225.0 |
| B | 0 | 229 | 63899 | 278.94 | 1173 | 1140 | 225.0 |
| B | 15 | 85 | 58162 | 253.44 | 1173 | 1140 | 225.0 |
| C | 15 | 214 | 432941 | 1626.75 | 1142 | 1148 | 265.4 |
| C | 14 | 254 | 369888 | 1389.21 | 1142 | 1148 | 265.4 |
| C | 9 | 236 | 287106 | 1077.33 | 1142 | 1148 | 265.4 |
| D | 13 | 171 | 414251 | 1505.42 | 1138 | 1106 | 274.4 |
| D | 10 | 118 | 343402 | 1247.26 | 1138 | 1106 | 274.4 |
| D | 13 | 249 | 262556 | 952.67 | 1138 | 1106 | 274.4 |

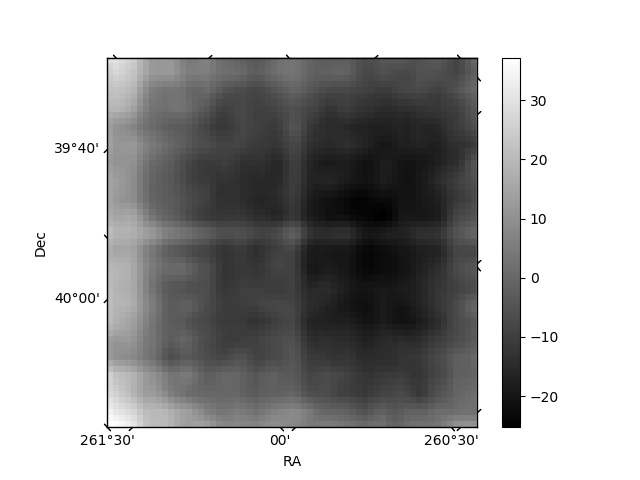

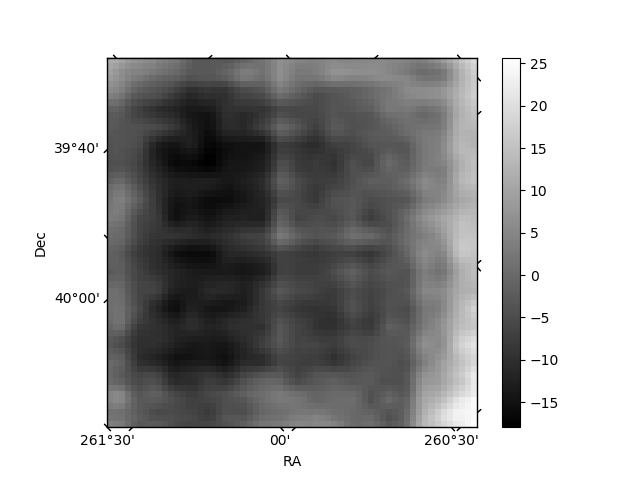

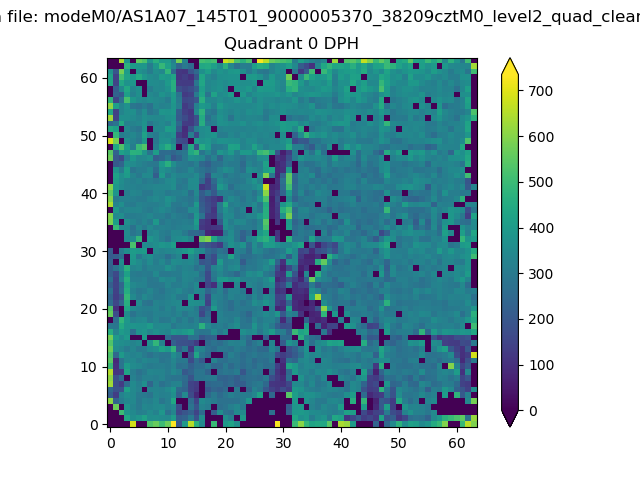

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

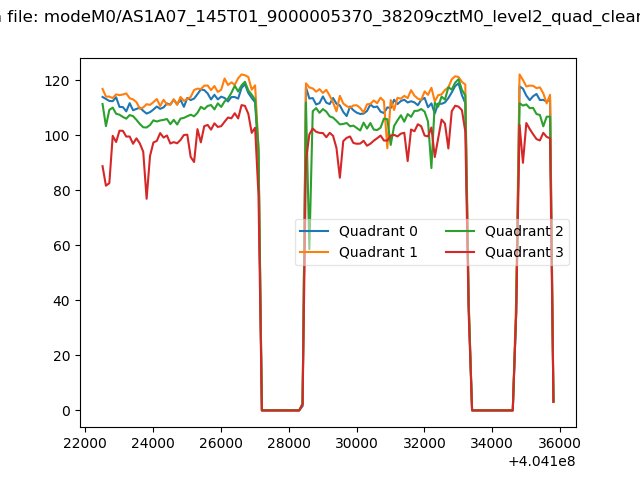

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

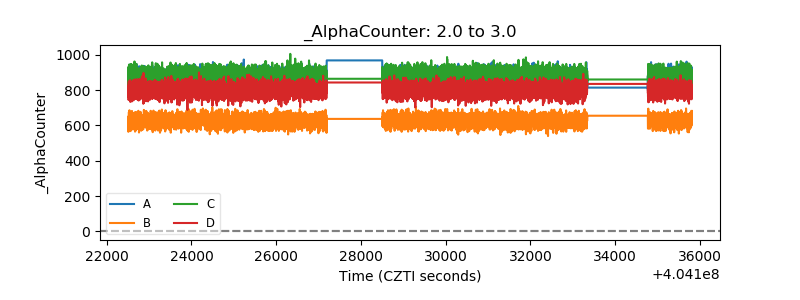

| Alpha Counter |  |

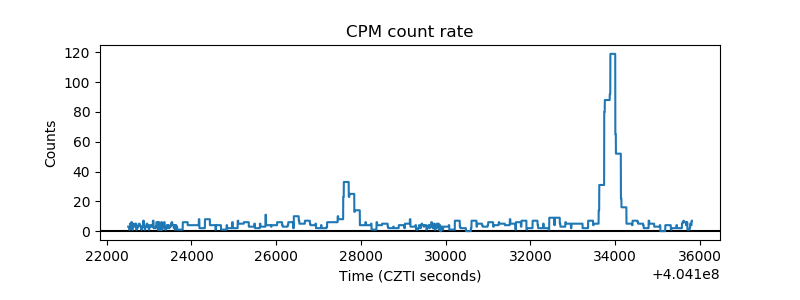

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

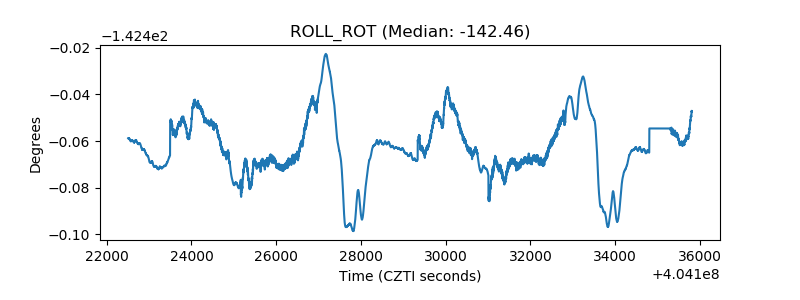

| _ROLL_ROT |  |

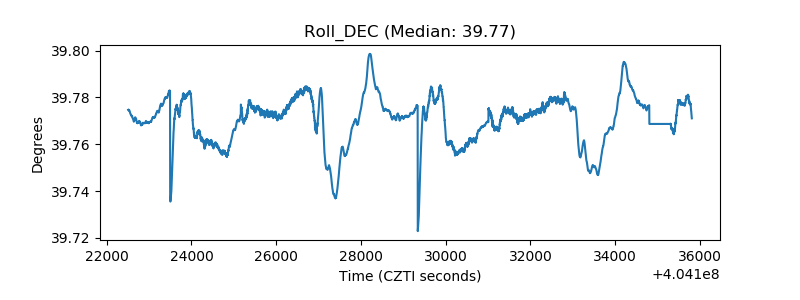

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
